Mediatek Announces MTK6572 Dual Core Cortex A7 SoC For Entry-Level Smartphones

MediaTek has recently announced the MT6572, a  dual-core SoC with integrated Wi-Fi, FM, GPS and Bluetooth functions targeted at the entry segment. This SoC, manufactured using 28nm process technology, comes with a dual core cortex A7 processor @ 1.2GHz combined with a Mali-400 GPU and a multi-mode Rel. 8 HSPA+/TD-SCDMA modem.

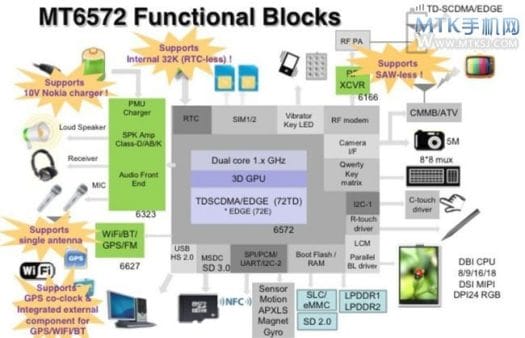

MT6572 Block Diagram
Mediatek MT6572 Functional Blocks (Source)

Other characteristics include support for up to HD 720p video playback and recording, 5MP camera, and up to qHD (960×540) displays.

One of the first smartphones based on the platform will be Sunspan D28X and D26X with 4.5″ display, 5MP camera, and running Android 4.2 version of the system. Both devices will come with 1600 mAh battery., and both will cater for the Chinese market with D28X supporting TD-SCDMA (China Mobile), and D26X W-CDMA (Unicom).

MediaTek claims MT6572 can be expected in hundreds of commercial models which will sell in June and beyond. MT6582, the quad core version, is expected in Q3 2013.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
13 Comments
oldest
newest
Marius Cirsta
11 years ago

Oh this is good news indeed. For one I don’t really need a quad core anyway and second the Mali is interesting as it’s a shift from PowerVr.
What I don’t really understand is why there’s a need for a quad core MT6582 ? Don’t they already have a quad core, the MT6589 ? Will this be a lower cost quad core ?
Too about about the screen resolution limit, it’s kind of low but should be enough I guess.

pepe
pepe
11 years ago

Cant this chipset play 1080p vídeo?

zoobab
11 years ago

Any linux sources published yet?

noname
noname
11 years ago


Hi.
Is that source legal? It seems some codes is encumbered with NDA from MediaTek.

Marius
11 years ago

noname :

Hi.
Is that source legal? It seems some codes is encumbered with NDA from MediaTek.

All Mediatek code I’ve seen contains all kinds of notices and NDAs and such in the headers. The fact is that it’s released under the GPL and that given the fact that it links to previously existing GPL code it’s GPL code whatever MediaTek says in its headers. If Mediatek doesn’t agree they can always sue and loose 🙂

onebir
onebir
11 years ago

A phone using this:
http://www.focalprice.com/MH0613Y/Cubot_GT72_40_Android_42_Dual_Core_MTK6572_12GHz_3G_Smartphone.html
but is there any point having dual core with only 256MB RAM???

AlAn
AlAn
11 years ago

@pepe
Cant

Bharat Biswal
Bharat Biswal
10 years ago

Where from can I order a devkit or evaluation board for MT6572 chipset ?
