When MINIX unveiled their RK3188 based MINIX NEO X7 at the Hong Kong Electronics Fair in April, they showcased a new enclosure design. Many people seemed to dislike the new “Lamborghini” casing, but the company listened to complains, and redesigned it to a more traditional casing, very similar to the one used for NEO X5.

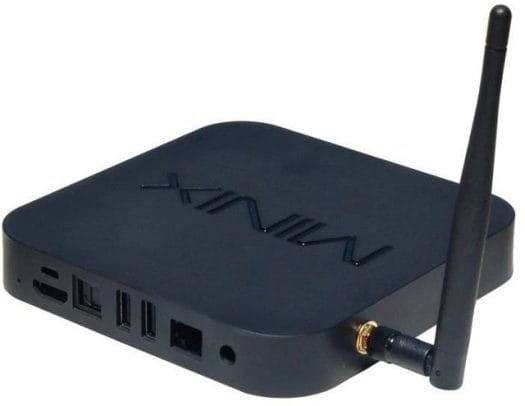

MINIX_NEO_X7
MINIX NEO X7

The company also disclosed the official specifications.

  • SoC- Quad core Cortex A9 processor with quad core Mali-400 GPU (Rockchip RK3188)
  • System Memory – 2GB DDR3
  • Storage – 16GB NAND Flash + SD/MMC card reader (SD 3.0, MMC V4.41)
  • Connectivity:
    • 802.11 b/g/n Dual-band Wi-Fi (2.4 / 5GHz) with external antenna
    • 3G support via external USB dongle (not provided)
    • 10/100M Ethernet (Supports hotspot sharing via Wi-Fi)
    • Bluetooth V4.0
  • Video Output – HDMI 1.4a, full HD 1080p, 3D movie file format supported
  • Audio Output/Input – HDMI 1.4a two channels, optical S/PDIF AC3 multi-channel, headphone and microphone jacks
  • USB – 3x USB 2.0 port + micro USB OTG port
  • Misc – IR sensor
  • Power Supply – 5V/3A

This media player runs Android 4.2.2, and is said to come with a remote. The company also announced MINIX NEO X7 will be available at the end of July, beginning of August, but price has not been disclosed yet.

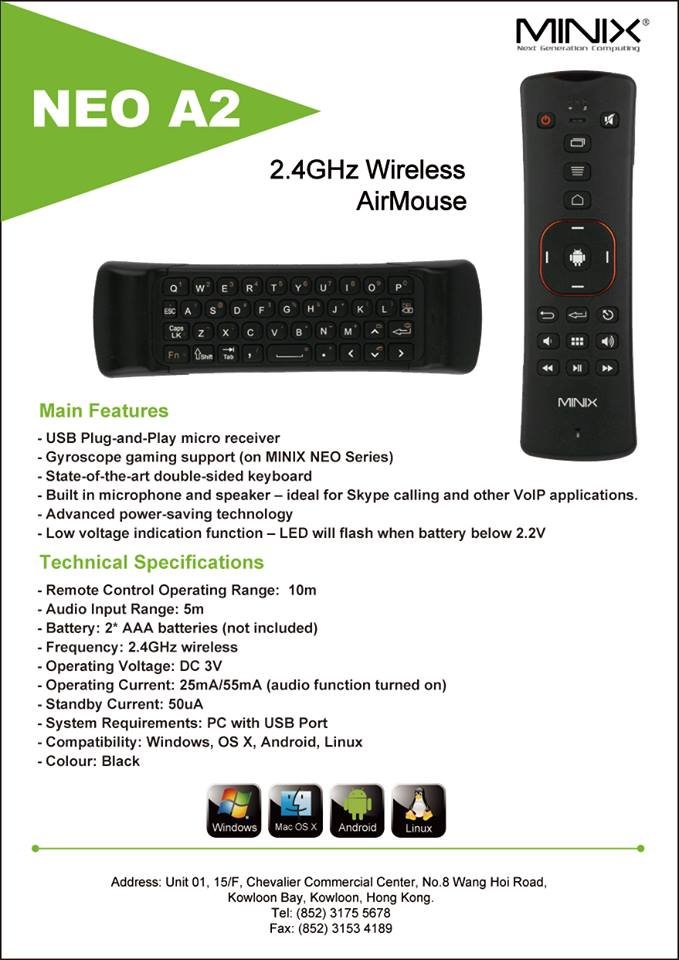

[Update: They’ve also posted specifications for their MINIX NEO A2 Air Mouse (dual sided with QWERTY keyboard and microphone/speaker), also available in July/August, but no word on pricing yet].
