$125 Com 1 Android Wear Watch Powered by Ingenic JZ4775 MIPS Processor (Crowdfunding)

September 15th, 2014 Leave a comment Go to comments

If you’d like to get an Android Wear watch, but are not quite ready to spend $200+ for the models currently available, the Com 1 Android Wear smartwatch could be interesting as you may get one for as low as $125, albeit with higher risks since it’s part of a flexible funding Indiegogo campaign. The watch is powered by Ingenic JZ4775 MIPS processor, features a 1.6″ AMOLED display, and is IP67 rated (Water- and dust-proof).

Android_Wear_Watch_Com_1

Com 1 watch hardware specifications:

  • SoC –  Ingenic JZ4775 XBurst (MIPS) processor @ 1.0 GHz with 2D graphics, and VPU (MPEG-2, MPEG-4, VC-1, H.264, VP8, RV9), [email protected]
  • System Memory – 375 MB LPDDR1
  • Storage – 4 GB eMMC
  • Display – 1.6” AMOLED touchscreen display, 320 x 320 resolution, 16.7 Million Colors , LED back light, Brightness: 300 cd/m^2.
  • Connectivity – WiFi (802.11 a/b/g/n at 2.4/5 GHz), Bluetooth 4.0 + EDR (BLE Compliant), FM, and NFC
  • Sensors – 3-axis gyroscope, accelerometer, magnetometer, pedometer, GPS, heart rate sensor, pressure, humidity and temperature
  • Audio – DMIC, speaker
  • Ingress Protection Rating – IP67 (Waterproof up to 1m deep)
  • Power – USB and 400 mAH Battery, with PMU and a custom magnetic lock 4-pin charger. Battery life: Around 2 days.
  • Dimensions – 37x40x10mm

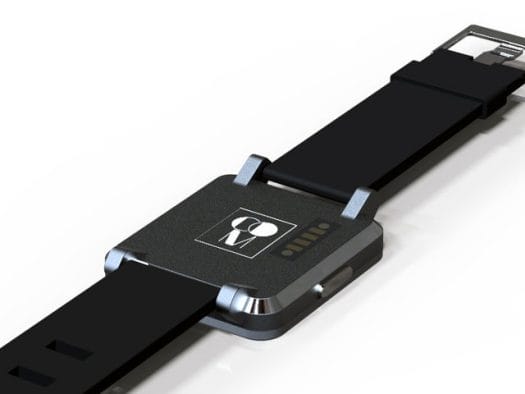

Back of Com 1 Smartwatch with 4-pin for Charging

Back of Com 1 Smartwatch with Charging Pins

The watch body is made either of “aircraft grade” aluminum 6061 or stainless steel, depending on models, and straps are available in silicone, leather or stainless steel.

You can pledge $125 (early bird) to get a Com 1 smartwatch with an aluminum body and a black silicone strap, or $145 (early bird) for a stainless steel watch. Options for white silicone, leather, or stainless steel strap respectively add $5, $10, and $20. Shipping is free to the US, and $15 to the rest of the world with delivery scheduled for January 2015. Several stretch goals are also planned: Charging Cradle ($20,000), Wireless Charging ($80,000), and Paywave and Paypass Contactless NFC Payment System ($150,000).

The project also has its own website com1watch.com, but there’s not much too see over there for now.

Via Connectedly

  1. Marius Cirsta
    September 15th, 2014 at 18:58 | #1

    Yeah I don’t know about the watch but the SOC on this is crap for late 2014. It doesn’t even have a GPU. Besides there’s already a quite similar smart watch with this exact SOC selling for less than $100.
    Also for less than $100 you can get a MT6572 smartwatch ( no GSM but still a dual core A7 with a GPU ).

  2. September 16th, 2014 at 10:02 | #2

    Crowdfunded projects do fail. Makers of Kreyos smartwatch will close operation: http://www.connectedly.com/kreyos-founder-kreyos-really-done-our-reputation-already-shot-beyond-redemption

  3. José Vázquez
    September 17th, 2014 at 17:36 | #3

    @Marius Cirsta
    Do you really need a fully featured GPU and a dual core cpu in a smartwatch? What you need is a SoC with good 2D acceleration, low power consumption and enough peripherals for connectivity.
    According to the JZ4775, it seems to be a stripped down JZ4770 with Ingenic Xburst MIPS32r2 compatible core targeted to applications that require low power consumption, enough 2D acceleration and/or a reasonable capable cpu.
    http://en.wikipedia.org/wiki/MediaTek#.282013_and_later.29
    http://en.wikipedia.org/wiki/Ingenic_Semiconductor
    ftp://ftp.ingenic.cn/SOC/JZ4775/JZ4775_DS.PDF
    Any comment will be welcome.

  4. Marius
    September 18th, 2014 at 00:21 | #4

    @José Vázquez
    I kind of do because Android relies heavily on the GPU acceleration these days ( I’m Android L will work without one ). It is a small resolution screen so let’s just say that the CPU can handle the drawing.
    My complains about the SOC:

    1. No GPU, a lonely Mali 400 is not too much to ask for these days and it really does help, no sense not to have one
    2. 65 nm process is used to make it. This is really old stuff and it will use loads more power than a MTK6572 which is manufactured in 28 nm
    3. It’s a MIPS which is a bit harder to get working with Android, Linux works just fine though
    4. It’s a single core, dual core really helps when there are backgound task to run

    I could go on but basically IMO it’s crap and doesn’t really belong in a modern watch. It was decent for when the Allwinner A10 was popular but that was a long time ago. These days I expect a modern SOC like MTK6572 or A23 in a smartwatch.
    I’m also really looking forward to 20nm SOC, a dual core A5 one at say 1GHz should have no problem powering a smarthwatch while also including a VPU and GPU and not using too much power.
