$46 EKB318 / F6 Android Media Player Features Rockchip RK3128, Supports H.265 Decoding

Rockchip RK3128 is a quad core Cortex A7 processor with a Mali GPU that supports H.265 video decoding up 1080p, and aimed at tablets, but it also found it way into mini PCs such as EKB318 (aka F6) with 1GB RAM, and 8GB flash in what looks like the answer from Rockchip to Amlogic S805 solutions.

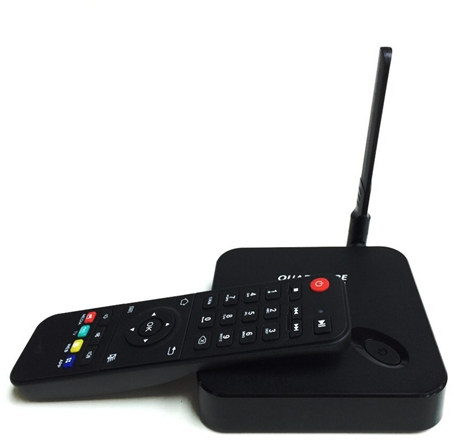

EKB318

F6 / EKK318 specifications:

  • SoC – Rockchip RK3128 quad core ARM Cortex A7 @ 1.3 GHz (or 1.2GHz) with ARM Mali-400MP2 GPU
  • System Memory – 1 GB DDR3
  • Storage – 8 GB NAND flash + micro SD slot (up to 32GB)
  • Connectivity – 10/100M Ethernet, 802.11 b/g/n Wi-Fi, and optional Bluetooth 4.0.
  • Video Output – HDMI 1.4
  • Audio Output – HDMI, optical S/PDIF
  • Video Codec
    • Decode – H.265, MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC up to 1920×1080 @ 60fps
    • Encode – H.264, H.265, VP8, MVC (1080p)
  • USB – 4x USB 2.0 ports + 1 x micro USB OTG port
  • Misc – IR sensor, power button and LED
  • Power Supply – 5V/2A
  • Dimensions – 117 x 117x 22 mm
  • Weight – 190 grams

The box runs Android 4.4 pre-loaded with XBMC 14.0, and comes with an IR remote control, an HDMI cable, a power adapter, and a user’s manual.

Cortex A7 is a faster core than Cortex A5, but the frequency on RK3128 is only 1.2/1.3GHz, while S805 is clocked at 1.5 GHz, so there may not be that much difference in terms of CPU performance. However, the GPU in RK3128 is the old Mali-400MP2, which may feel a bit sluggish like in M-195 (Realtek RTD1195) media player, and even casual gaming may suffer, so the box should probably be reserved for media consumption.

Price-wise the solution is very competitive, just like Amlogic S805 device, as it sells for as low as $45.90 on Aliexpress, and $49.99 on GeekBuying, both shops selling the version without Bluetooth. Eny Technology will soon sell in bulk for $31 to $34, according to their Alibaba page.

Thanks to Adem for the tip.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

12
Leave a Reply

avatar
12 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
4 Comment authors
ARM Introduces Mali-470 GPU for Wearables, IoT and Embedded ApplicationsFirePrime Board Features Rockchip RK3128 Quad Core Cortex A7 ProcessorcnxsoftademKiNiO Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Curmudgeon
Guest
Curmudgeon

Well, if you want to beat the opposition, you need to BEAT the opposition. Fast Ethernet doesn’t beat Gbit Ethernet. 1.2Ghz A7 probably doesn’t beat 1.5Ghz A5 (or 1.73 GHz overclocked). Perhaps more importantly, Amlogic is looking quite Linux friendly these days wheras Rockckip is … well, Rockchip.

Curmudgeon
Guest
Curmudgeon

@Curmudgeon
and … Mali 400 doesn’t beat Mali 450 …

trackback

[…] CNXSoft TV Box Amlogic S805, Android KitKat 4.4, ekb318, f6, rk3128, rockchip, Rockchip RK3128, […]

adem
Guest
adem

i dont know why but i here every one saying video is better on amlogic but to be honest xbmc has been very good to me in all rockchip devices going back all the way to mk908. and people are saying amlogic is much more linux friendly and yet i never here about ubuntu running on new s802 or new aml devices and yet it runs very well on rk3288. ??

KiNiO
Guest
KiNiO

I need some advice in getting android box that is good in x264 playback including 10bit files (anime). I am looking for something cheap, with good wifi performance (to connect to my NAS) and 3.5mm audio jack for my stereo amp (in TV i have only optic output).

adem
Guest
adem

@cnxsoft

ohhh ok i never really tried to play high end stuff because my tv is a plasma lg 720p @60 but anything i downloaded and played never gave me an issue but then the biggest movie file that i would download would be between 1.5GB-2.1GB mkv or avi file. but then i would think i would be what you call the everyday user who does not get into it really deep. so if you are like me and just want play or stream your content to your tv these cheap rockchip boxes will do it. 🙂 i think thats what most people want but when they read stuff like OHHH no linux support OOHHH cant play this file or that file ohh there is not audio pass-through they get mixed up and rather then paying $45-$80 for a cheap box they end up paying $130-$180 for a box specially after watching that silly rivers guy i think that guy lives in a perfect world where nothing ever goes wrong with his boxes . 🙁
