Advantech UBC-220 Freescale i.MX6 RISC Compact Box Is Made for Wall-Mounting

If somehow you need a fanless ARM Linux / Android computer with lots of mounting holes, Advantech UBC-220 might be what you are looking for. The company’s “Freescale i.MX6 RISC Compact Box” features a Freescale i.M6 Solo or DualLite processor with up to 1GB RAM, 4GB eMMC, Gigabit Ethernet, HDMI and LVDS, a COM port, and more.

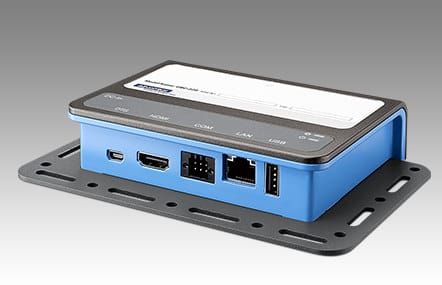

Advantech_UBC-220Product specifications:

  • SoC – Freescale i.MX6 Solo/DualLite up to 1GHz with Vivante GPU
  • System Memory – 512MB to 1GB DDR3 @ 1066 MHz
  • Storage – 4GB eMMC for OS, 4MB SPI flash for Advantech bootloader, 1x SD card slot
  • Video Output / Display – 1x HDMI, 1x 18/24-bit LVDS
  • Connectivity – Gigabit Ethernet (limited to 470Mbps due to i.MX6 internal limitation). Optional 3G/Wi-Fi via mini-PCIe slots. External antenna connector included.
  • USB – 1x USB 2.0 type A, 1x micro USB 2.0 OTG
  • Serial – 1x 4-wire UART
  • Expansion
    • 1x full size mini PCIe slot
    • 1x half size mini PCIe slot
  • Misc – Power LED, Watchdog timer
  • Power Supply – 12V/3A
  • Dimensions – 120 x 89 x30 mm
  • Weight – 240 grams
  • Temperature Range – 0 – 40 C (Operating)

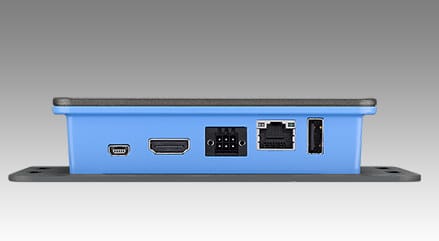

Freescale_i.MX6_Wall_MountUBC-220 runs Linux 3.0.35 or Android 4.4.2. Optional accessories include a 12V/3A power adapter, an Atheros AR9287 based mini PCIe Wi-Fi module, a 2dBi Wi-Fi antenna with SMA connector, etc…

The product was announced in August 2014, but it’s unclear whether it’s available yet, and price has not been disclosed. A few more details can be found on Advantech UBC-220 product page.
