Intel Celeron N3000 2-in-1 Laptop, and MSI Motherboards with Celeron N3050/N3150 and Pentium N3700 Processors

Intel introduced the first low power Braswell Celeron and Pentium processors with 4 to 6W TDP, meaning a lower power consumption compared to Bay Trail-M processors, and with better performance. The first devices and motherboards based on these have started to show up with Intel’s Orchid Island 2-in-1 Reference Design based on Celeron N3000, and three MSI motherboards: N3050I ECO, N3150I ECO, and N3700I ECO respectively powered by Celeron N3050 dual core processor, Celeron N3150 quad core processor, and Pentium N3700 quad core processor, all clocked @ 1.6GHz (base frequency) and with 6W TDP.

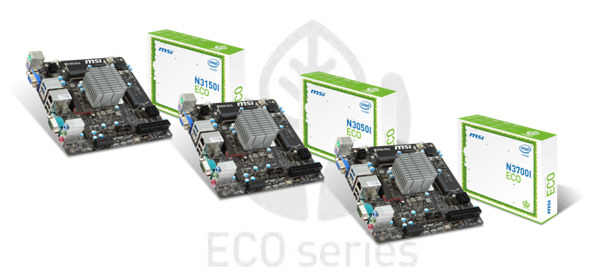

MSI_ECO_Braswell_MotherboardMSI did not release full details about their motherboards but we still now they’ll support H.265/HEVC hardware decoding up to 4K, Blu-ray playback and 8-channel HD Audio via an HDMI 1.4b port. Other connectors and interfaces include two DDR3L-1600MHz SO-DIMM slots (up to 8GB), two SATA III ports, one PCIe slot, Gigabit Ethernet, a COM port, a VGA port, and USB 3.0 ports. Pricing and availability have not been announced.

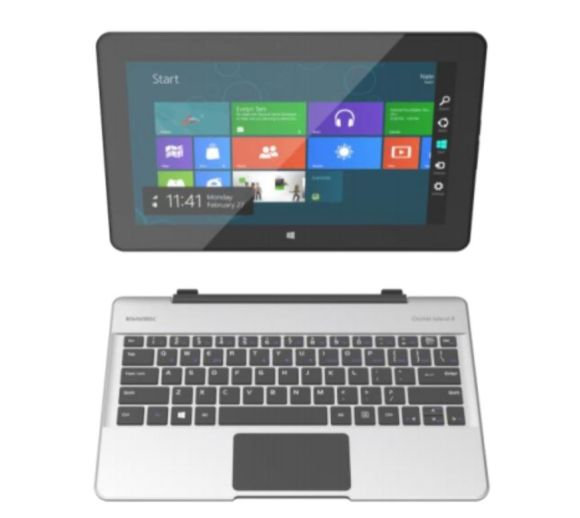

However. more information have been provided for Orchid Island, Intel’s 2-in-1 fanless detachable reference design based on the lower-end Celeron N3000 clocked @ 1.04 GHz and with 4W TDP.

Intel_OrchidOrchid Island specifications:

  • SoC – Intel Celeron N3000 dual core processor @ 1.04 GHz (Burst: 2.08 GHz) with Intel HD graphics (Gen 8)
  • System Memory – 4GB DDR3L (Dual channel)
  • Storage – 64GB eMMC + SD card slot
  • Display – 11.6″ embedded displayport IPS (1366×768) multi-touch
  • Video Output – HDMI
  • Audio – HDA based speakers, 1x audio jack, HDMI
  • Connectivity – Wi-Fi 802.11 b/g/n, Bluetooth 4.0, and optional GPS
  • USB – 1x USB 3.0 port
  • Sensors – ALS (Ambient Light Sensor), Accelerometer, Gryroscope, Compass
  • Camera – 2MP front-facing camera, 5MP “world-facing” camera
  • Battery – 37Whr
  • Dimensions – 302 x 195 x 9.8 mm. Thickness is 9.8mm for screen only, and 19.3 including the keyboard dock when the laptop is folded.
  • Weight – ~750 grams

The laptop is said to run “Windows 8.1 Non-Connected Standby 64-bit”, but Android and other Linux operating systems should also run on the platform. Battery life is said to be up to 11.5% better than equivalent systems built with Bay Trail-M processors.

The reference design is expected to be used in actual products that will sell for 1799 to 2199 RMB (~$299 – $349).

Via Liliputing and UMPC Portal
