Amlogic S905 is the first 64-bit ARM processor by Amlogic, and comes with four ARM Cortex A53 cores coupled with a Mali-450MP GPU, with S912 to follow later with the same CPU cores, but more powerful Mali-T7xx GPU. With Acemax G9C we already have one company working on an Amlogic S905 TV box, but Eny Technology just informed me they are about to launch two models based on Amlogic armv8 processor: EM95-MXQ, which looks exactly like G9C, and EM95 with a different casing, but very similar specs.
- SoC – Amlogic S905 quad core ARM Cortex-A53 @ up to 2.0GHz with quad core Mali-450MP GPU up to 750MHz
- System Memory – 1GB DDR3 (Option: 2GB)
- Storage – 8GB NAND flash (Option: 16GB) + SD card slot
- Video Output – HDMI 2.0 up to 4K @ 60Hz with support for CEC and HDCP 2.2 , AV output
- Video Codecs – H.264, H.265, HD AVC/VC-1, HD MPEG1/2/4, RM/RMVB, Xvid/DivX 3/4/5/6, RealVideo 8/9/10 up to 4K resolutions
- Audio – HDMI, AV, optical S/PDIF
- Connectivity – 10/100M Ethernet (Optional Gigabit Ethernet), Wi-Fi @ 2.4GHz, Bluetooth 4.0
- USB – 3x USB 2.0 host ports
- Misc- Power LED, LED display on front panel
- Power Supply – DC 5V/2A
- Dimensions – N/A
The box will run Android 5.1 Lollipop, and the company sent me a short video showing the system booting, and they claim development is nearly complete.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Love the clock on the front!
OS Android 5.1.X
3D 3D-HD 1080Px2”
support full 3d?
I really hope it blinks 12:00 until you set it.
no sata again 🙁

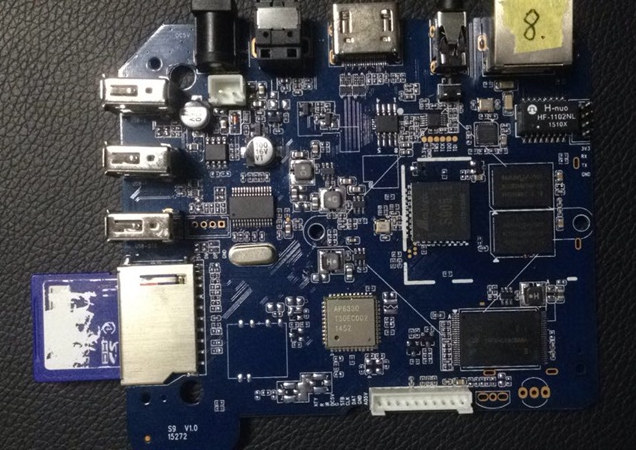

This photo is photo of new Alibaba media player and by layout cannot fit in this fake photoshop images of ENY.
Most people only look at the top photos but don’t realize the board can’t fit inside.
The device has no heatsink, which is a must for a TV box and probably will only get 1 firmware update before ENY jumps to a new device & chipset again, completely abandoning their older devices.

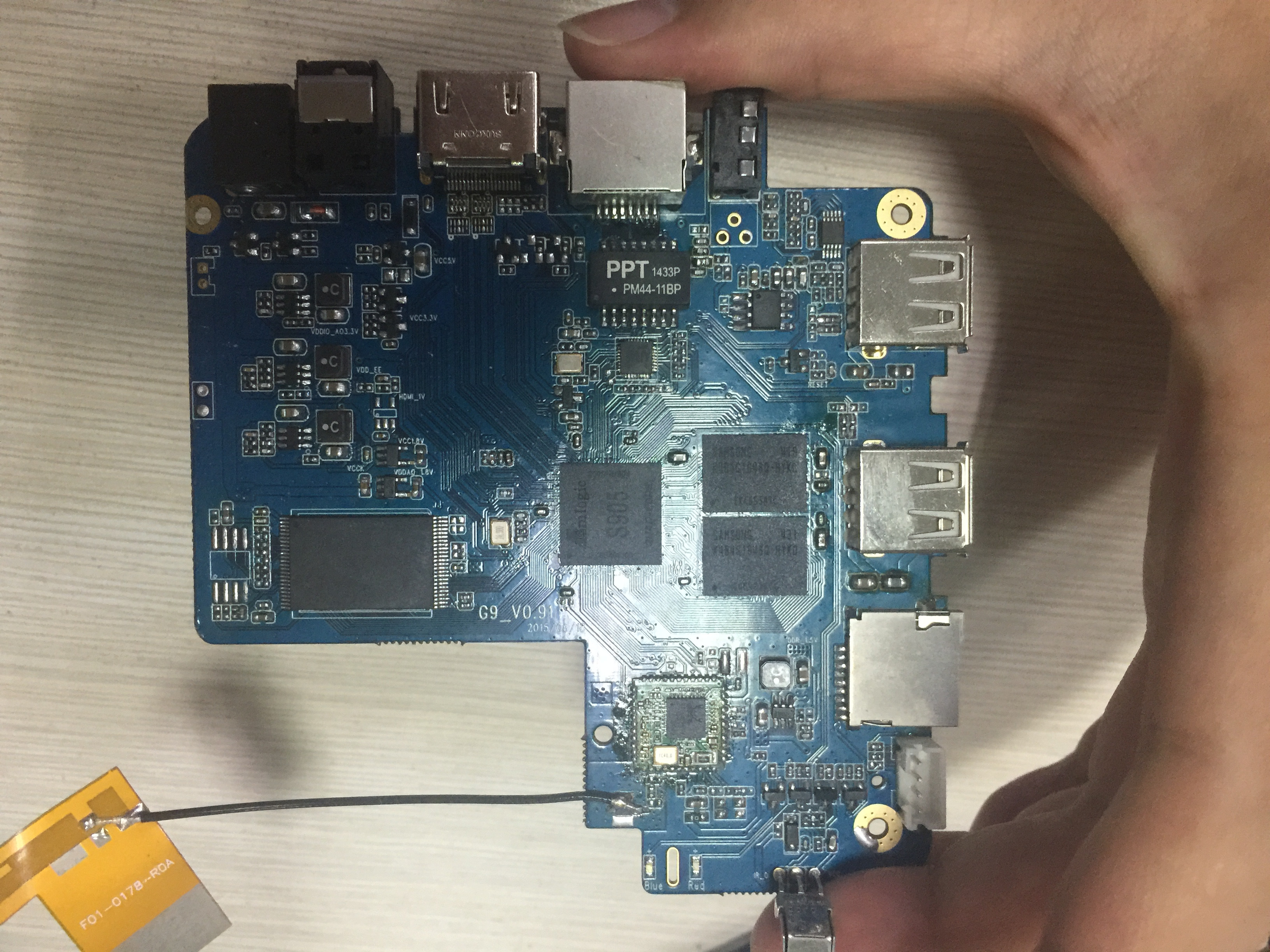

Oops.. well spotted. That board must be for EM95-MXQ (Post now edited), and I’ve asked them if they have a picture of EM95 PCBA.
pitty it doesn’t have AC wifi like the rockchip rk3368 has.
Yeah, my contact at AMLogic says this board is designed as prototype for Alibaba Video service for China market, so probably ENY as Acemax trying to get attention and customers by releasing non-existing photos. I will try to get sample of S905 board from Alibaba next week.
AMLogic S905 samples for development will be available only at mid-August.
Firmware glitches and non existent support plague these devices, hell after 3 years the China STB manufacturers still haven’t even got OTA updates working properly.
Thanks but no thanks.
Rockchip retailers like Nagrace/UGOOS have OTA updates for their TV Boxes.
For other Chinese chip manufacturers like AMLogic, Allwinner, nothing.
Doesn’t Pivos, MINIX, and Matricom have OTA updates for their Amlogic devices?
I know at least MINIX have Amlogic devices and better support than most today.
WeTek is another that offer OTA updates and great support for its WekTek Play which it too is an Amlogic based device.
Kodi/XBMC support is also better on Amlogic then on any other ARM SoCs
Wonder if the Amlogic S905 & S912 SoCs will support 10-bit VP9?
Do they even support 10-bit HEVC? Previous SoCs was 8-bit only.
Yes, 10-bit HEVC is supported on S905/S912.
System UI base on Amlogic S905
I had pre-order one from Amazon, I think it’s the best choose
When I try update the system. It fails and tell me “Check Failed! Check Your OTA Server Argent”
Where do I find the OTA Server Agent?
That simply means they have not setup an OTA server. There’s nothing you can do about it.
Well simply do manual update, some time is much better than the one supplied by seller
If you get the right software you will get and OTA working.
Most5 of the times they just changing the housing box
