Zidoo X1 II Android Media Player Powered by Rockchip RK3229 SoC Supports 4K 10-bit H.264 & H.265 Videos

Rockchip RK3229 is a low cost 4K SoC that supports 10-bit H.265 up to 4K @ 60 fps and 10-bit H.264 and VP9 up to 4K @ 30 fps, and found in inexpensive TV boxes such as MXQ 4K. Zidoo has decided to design a new product based on the processor, with the same enclosure as Allwinner H3 based Zidoo X1 TV box, and aptly called Zidoo X1 II.

Zidoo_X1-II

Zidoo X1 II specifications:

  • SoC – Rockchip RK3229 quad core ARM Cortex A7 processor @ 1.5 GHz with  ARM Mali-400MP2
  • System Memory – 1GB DDR3
  • Storage – 8GB eMMC flash + micro SD card slot up to 32GB
  • Video & Audio Output – HDMI 2.0 up to 4K2K @ 60 fps, and 3.5mm AV output (composite)
  • Connectivity – 100Mbps Ethernet, 802.11 b/g/n WiFi and Bluetooth 4.0
  • USB – 2x USB 2.0 host ports
  • Misc – IR receiver
  • Power Supply – 5V/2A
  • Dimensions – 12.6 x 11.8 x 3.6 cm

The device runs Android 4.4 with the usual Zidoo UI as found on all recent Zidoo devices such as Zidoo X6 Pro. It ships with a remote control, an HDMI cable, a power adapter for EU, UK, US or AU, and user’s manual. Beside video codecs capabilities, the strength of RK3229 is that it can handle video with high bitrates (200 Mbps+).

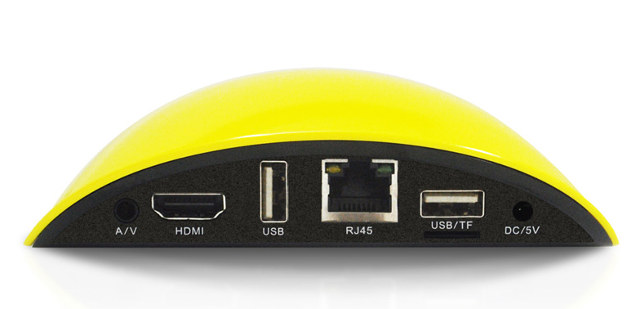

Zidoo_X1-II_Rear_PanelSome of the custom features include unified storage (single partition for apps and data), power is controlled via an MCU allowing for power on or off schedules and using the remote to turn on the device, OTA firmware upgrades, as well as ZDMC (based on Kodi) with audio HD pass-through with 7.1 channels, and the company’s own Zidoo Media Center and ZIDOO RC smartphone app for Android.

Zidoo X1 II should be available in a few weeks for $59 (SRP) [Update: Geekbuying is pre-selling the device for $49 including shipping]. Visit Zidoo X1 II page for more info. The company is also organizing a giveaway on Facebook where the 10 people who get the most referrals with their “lucky” link will win a Zidoo X1 II.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
12 Comments
oldest
newest
Dr. Azrael Tod
8 years ago

ok, looks isn’t everything.

but damn, that thing is ugly! And it’s not like you could hide it easily because it’s just screaming, bright, glossy yellow.

marios
8 years ago

other than the hideous looks will this be good enough for Kodi with Quasar addon? Also how’s Zidoo reputation with its firmwares if anyone has experience with other devices.

ValdikSS
ValdikSS
8 years ago

At a moment I thought why did they took a photo of a helmet with a remote control. Then I realized that’s the device.

Gotan
Gotan
8 years ago

They are “printing” their devices each month new SoC but support getting bad with each new release

Mac
Mac
8 years ago

Android Version 4.4 for a new product, what a shame

rasz_pl
rasz_pl
8 years ago

Android 4.4, kernel 3.4?
Rockchip so good …

kadajawi
kadajawi
8 years ago

So… this is better than the usual RK3229 based players? Like the MXQ 4K? The MXQ is $20-30 less (almost half the price!), and it has SPDIF…

Bluesmanuk
Bluesmanuk
8 years ago

I hope that it is a whole lot better than the original X1. I had one fry itself because it overheated and then the replacement also suffered from the same heat dissipation issues.

They pretty much dropped support for the original X1 the moment that the X6 came onto the scene and it took ages for them to bring out firmware v1.0.20
.
Zidoo spread themselves a little bit too thin and should concentrate on getting existing products right before they embark on new ventures and start dropping support.

Daremo
Daremo
7 years ago

This device is the same known as OTT MX4 and EKB329-MX4 by Eny.
Zidoo have added a strong security system against piracy (!?) This made the system a bit crippled as it uses ZBMC (old XBMC now Kodi).
Indeed is a great low price Box Tv, but I would suggest the original by OTT or Eny whihc are really open. Those square box devices sports 3 USB ports
and a SPDIF port, that aren’t in this Zidoo helmet.

And excuse me, Rockchip is really a great SOC manufacturer.
