Unboxing and Teardown of Zidoo X1 II Android TV Box

Orange Pi Development Boards

MXQ-4K, the first Android TV box based on Rockchip RK3229 I received, was a massive disappointment to me as it was unusable to play 4K videos possibly due to CPU throttling and/or poorly optimized USB storage support. So I was eager to try another device based on the latest Rockchip media processor with support for 4K 10-bit H.265 and H.264 video playback,  and Zidoo sent their Zidoo X1 II TV box for review on CNX Software. Today, I’ll start by checking the device and the hardware, before testing the firmware later on.

Zidoo X1 II Unboxing

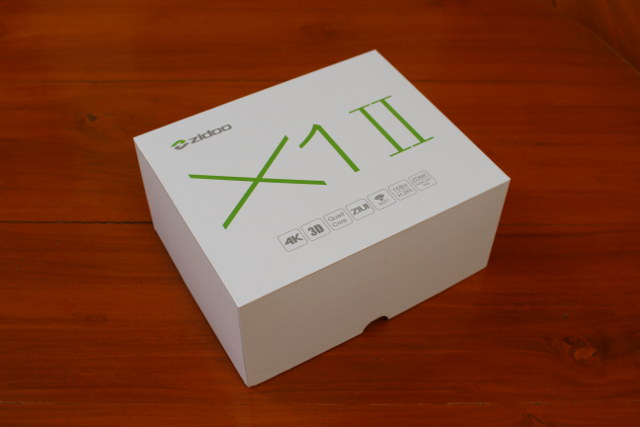

I got the device by DHL in the usual Zidoo’s white and green package with some icons representing the key features: 4K, 3D, ZIUI user interface, WiFI, 10-bit HEVC… ZDMC is the custom version of Kodi developed by the company, and that makes Zidoo one of the rare companies to respect Kodi’s trademark.

Zidoo_X1_II_Package

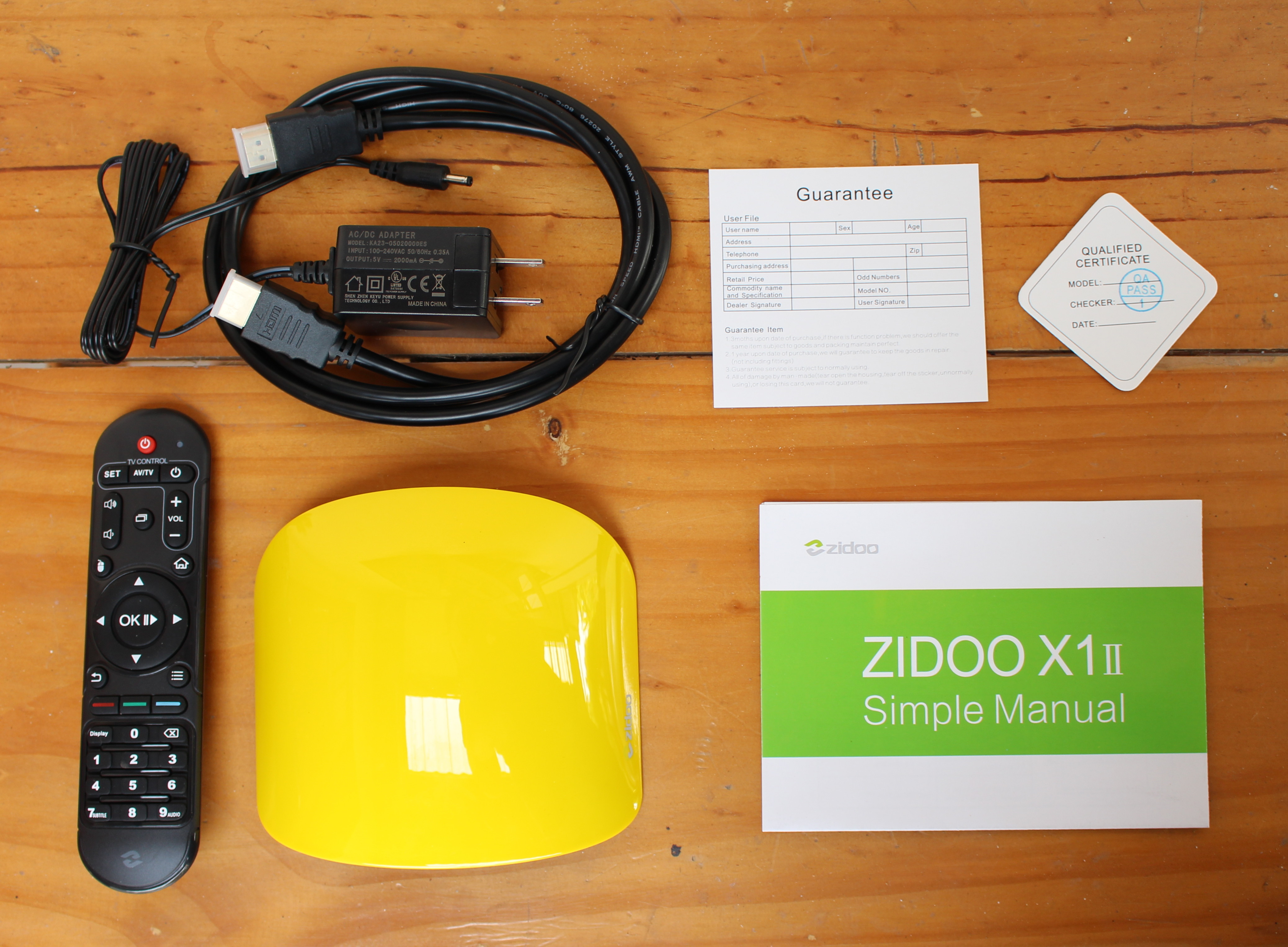

The package includes the yellow version of the device, an HDMI cable, an IR remote control with IR learning function, a 5V/2A power supply with retractable prongs,  Zidoo X1 II “simple manual”, a guarantee card, and a “qualified certificate”.

Click to Enlarge
Click to Enlarge

While I found the gray version of Zidoo X1 to be pretty nice and a new refreshing design, I don’t quite have the same feeling with the yellow color used with Zidoo X1 II, as it looks like a hard hat, a flying saucer, and maybe something else depending on the angle.

Click to Enlarge
Click to Enlarge

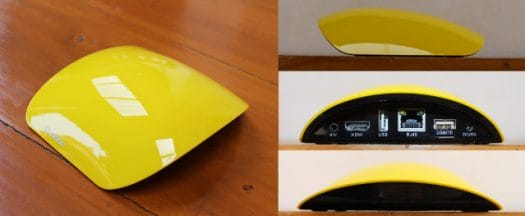

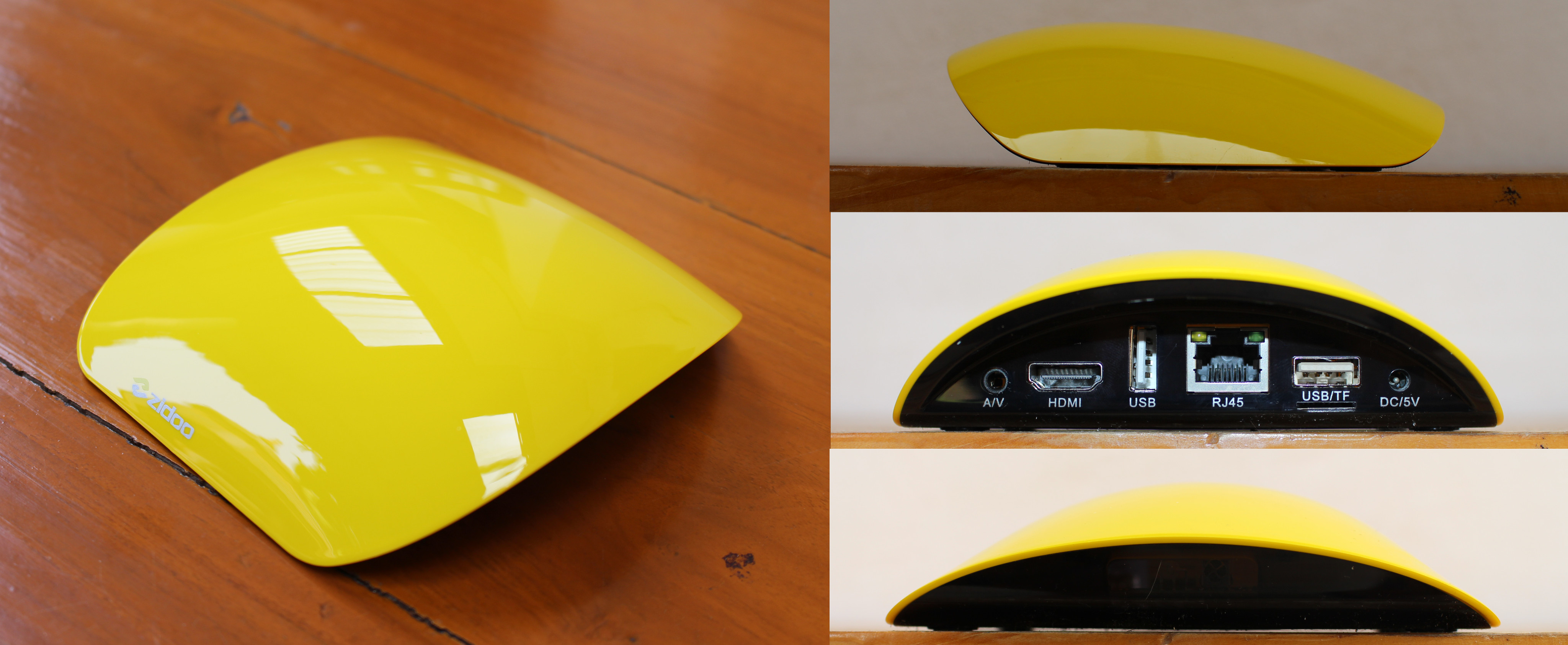

All ports are located at the back with a 3.5mm AV jack, HDMI 2.0 output, one USB port, an Ethernet port, another USB port, a micro SD slot, and the DC jack.

Zidoo X1 II Teardown

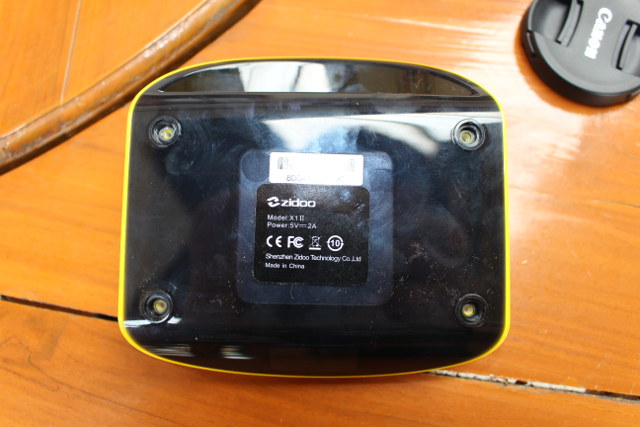

You’ll need to remove the four rubbed pads and loosen four screws on the bottom of the case , and then use a sharp and rigid plastic tool to open the device by separating the yellow and black parts of the case.

Zidoo_X1_II_Bottom
When I first saw the heatsink, I felt it was not a good sign, as it was quite smaller than in MXQ-4K. They must have planned to call the device Zidoo X2, as the board is named X2_3229_V1.0, but reverted to Zidoo X1 II as they used the same enclosure as the first design.

Click to Enlarge
Click to Enlarge

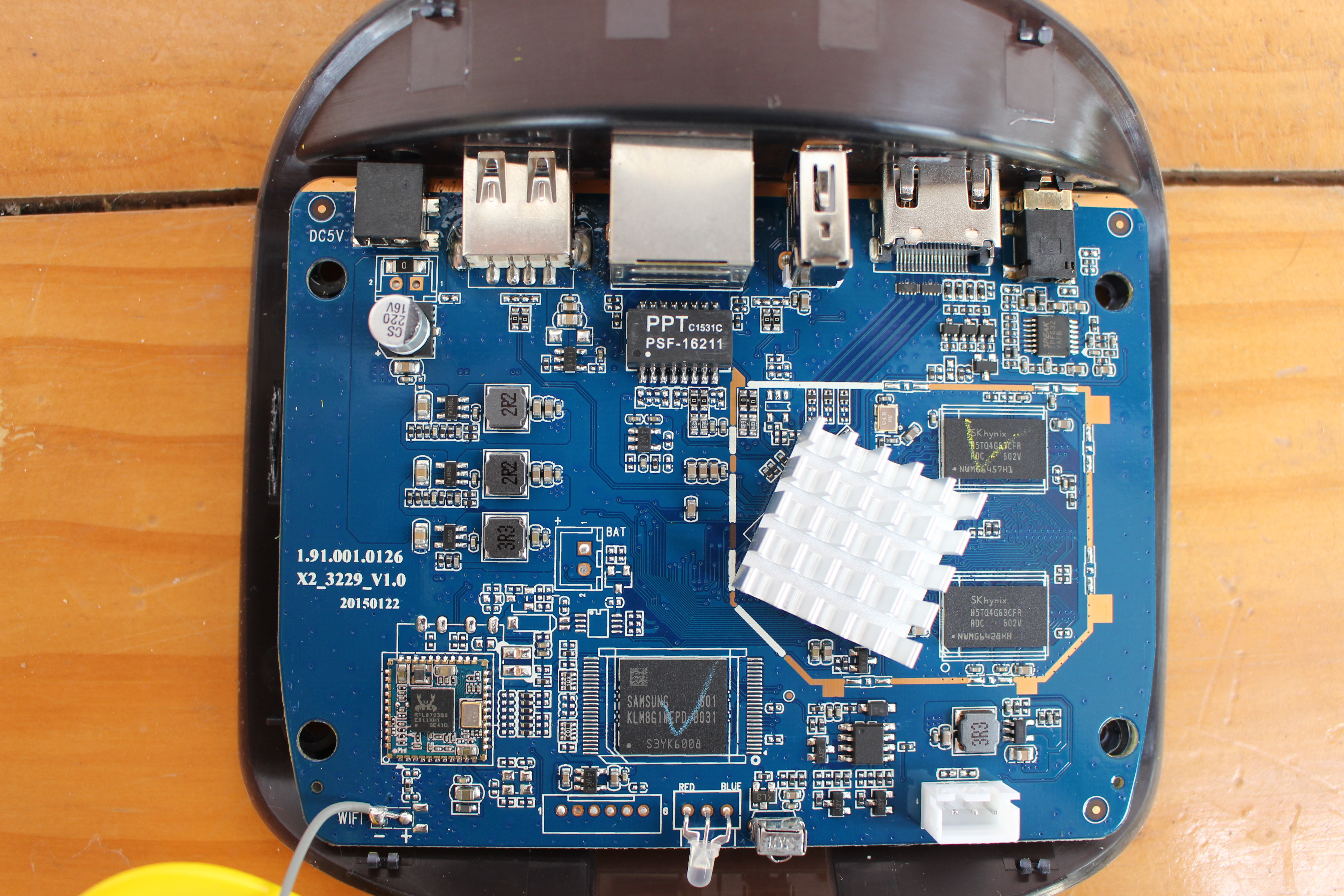

Two SKHynix H5TQ4G63CFR DDR3 chips and Samsung KLM8G1WEPD-B031 eMMC 5.0 flash are used to bring 1GB RAM and 8GB storage to the device, while a Realtek RTL8723BS module adds WiFi 802.11 b/g/n ad Bluetooth 4.0 connectivity. Since RK3229 SoC is highly integrated there aren’t many other IC on the board, with PPT C1531C Fast Ethernet magnetics transformer,  and 3PEAK TPF632 audio line driver. If you plan on hacking the board the 3-pin UART header is soldered which should make it extra easy to access the serial console.

Click to Enlarge
Click to Enlarge

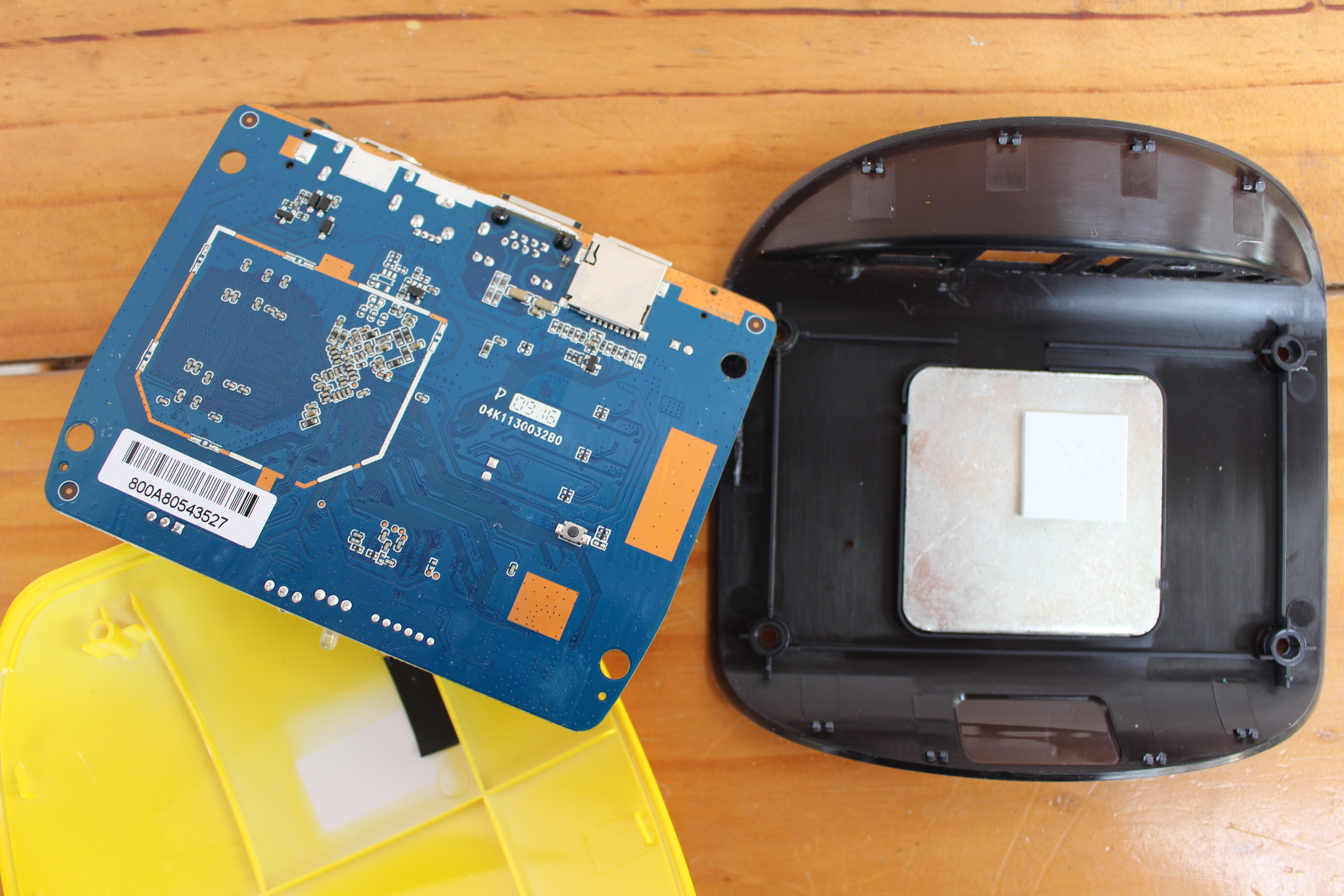

There’s nothing much on the other side of the board, except the micro SD card slot and recovery button, but more importantly a thermal pad and metal plate are attached to the bottom of the case to further cool the processor.

Distributors and resellers interested in this product can purchase it in quantities by contacting Zidoo directly, for example via the product page. Zidoo X1 II can also be purchased for $49 on GeekBuying, Banggood, or Aliexpress.
