Mini PCs and Cloudbooks Powered by Intel Apollo Lake Pentium and Celeron Processors, Successors of Braswell SoCs, are Expected in H2 2016

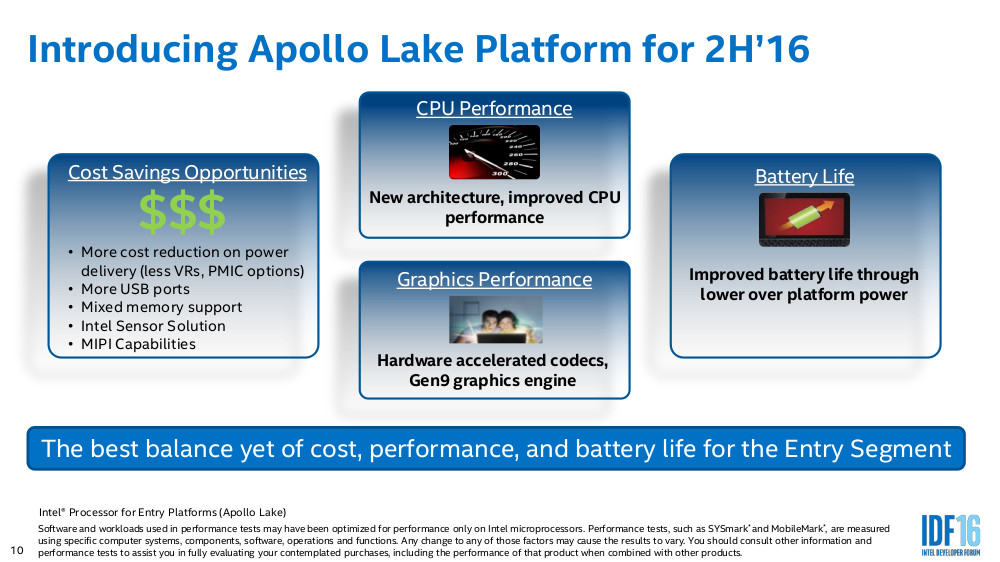

Intel released a presentation entitled “Design Considerations and Reference Designs for Entry, Value and Mainstream PCs” at IDF 2016 Shenzhen, explaining the company vision about low power laptops and mini PCs. At the core of those devices will be “Apollo Lake” Pentium and Celeron Processors with 6 to 10W TDP replacing Braswell processors with better CPU and graphics performance, lower power consumption, and low overall BoM cost.

Click to Enlarge
Click to Enlarge

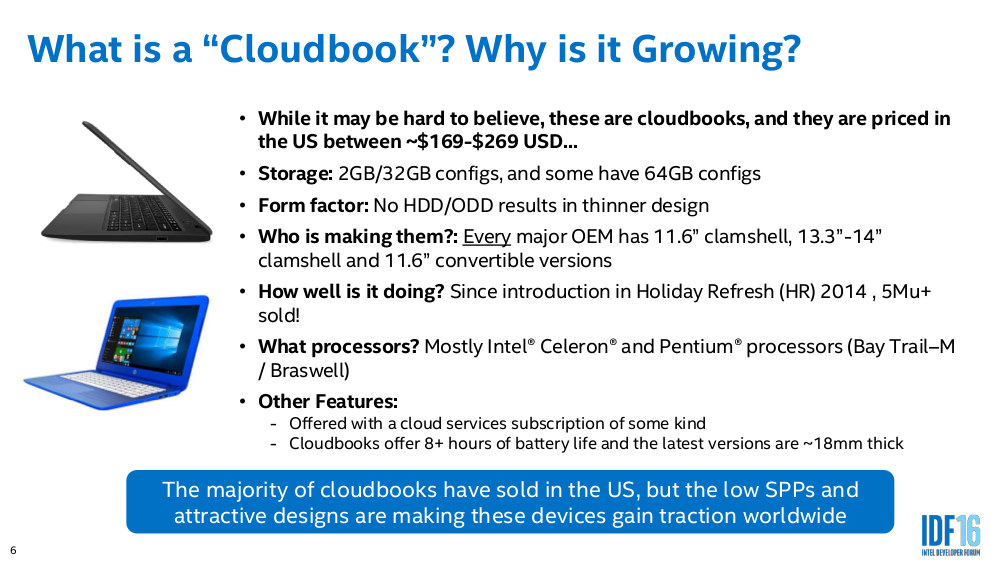

Beside mini PCs, the processors will also find their way into what Intel calls Cloudbooks, some sort of laptops with 2 to 4GB RAM, 32 to 64GB storage, no hard drive, and displays whose size ranges from 11.6″ to 14″. So it looks like Cloudbooks may be the new Netbooks, with better performance and larger displays.

Click to Enlarge
Click to Enlarge

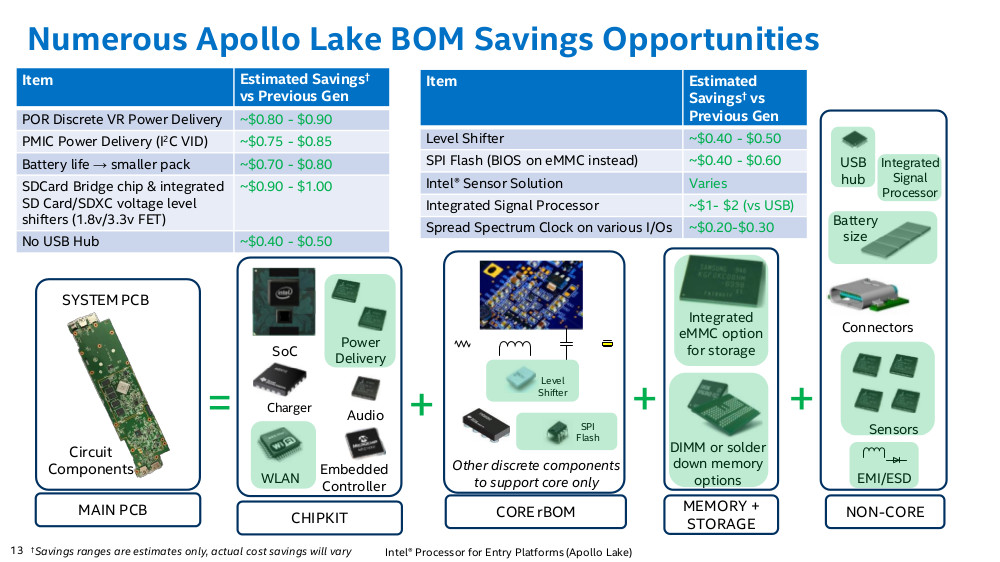

Cost savings on the mainboard are achieved thanks to the integration of many features (Signal Processor, SD Card bridge chip, Spead Spectrum Clock…), low power consumption leading to smaller batteries, the ability to load the BIOS/UEFI to the eMMC instead of an SPI flash, etc…

Click to Enlarge
Click to Enlarge

The savings appear to be small, but bear in mind that those are for the bills of materials, so the retail price savings may be two to three times higher.

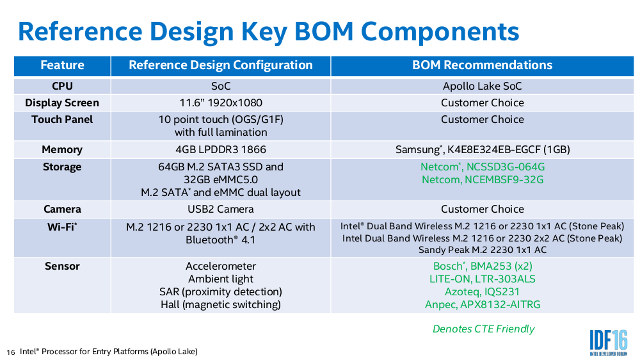

Intel also unveiled a Cloudbook reference design with the complete BoM which show what we may expect later this year, as OEM/ODM manufacturers are likely to take the easy way at first, by simply copying Intel reference design, possibly by removing some of the features in the processor.Apollo_Lake_Reference_Design_BoM_Part1

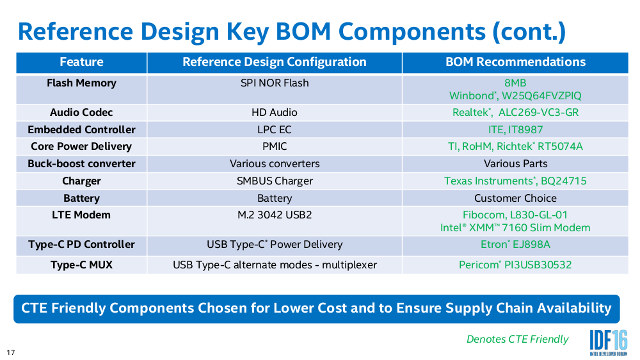

Apollo_Lake_Reference_Design_BoM_Part2That means Apollo Lake Cloudbooks with a 11.6″ full HD display, 32 to 64 GB storage, 4GB RAM, 802.11ac WiFi , and USB type C connector should be expected in the second part of 2016.

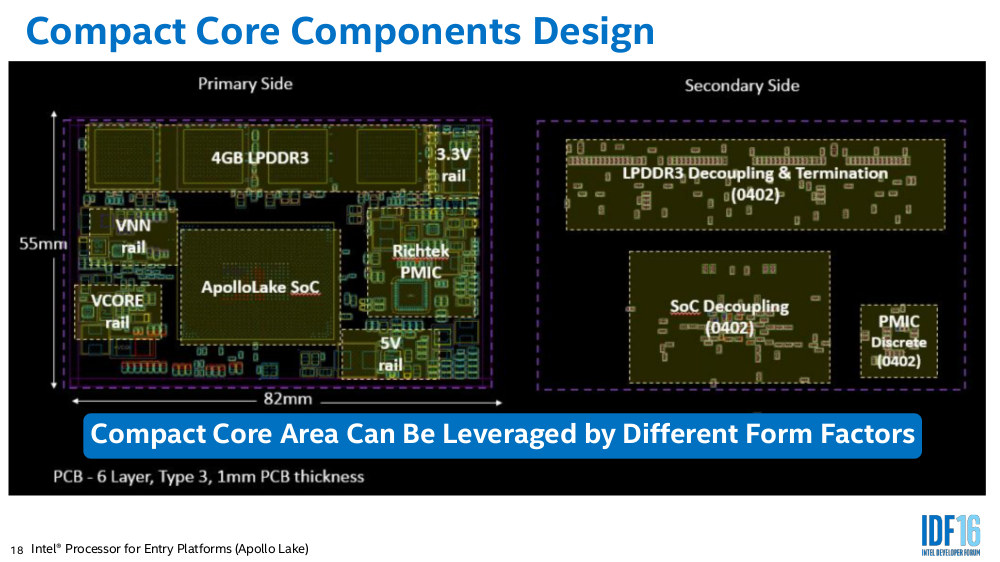

Apollo_Lake_CPU_Module
Click to Enlarge

Via Liliputing and some Google searches…
