Amlogic S905X Boards Showing Up for Eny Technology and Inphic TV Boxes

While NEXBOX A5 was the first Amlogic S905X TV box to be announced, it’s still not available, and others has started to show off their products such as Xiaomi Mi Box (US), and I got specs and pictures of boards for Inphic Spot i7 Pro and Eny TV box.

Eny TV Box Board and Specifications

Click to Enlarge
Click to Enlarge

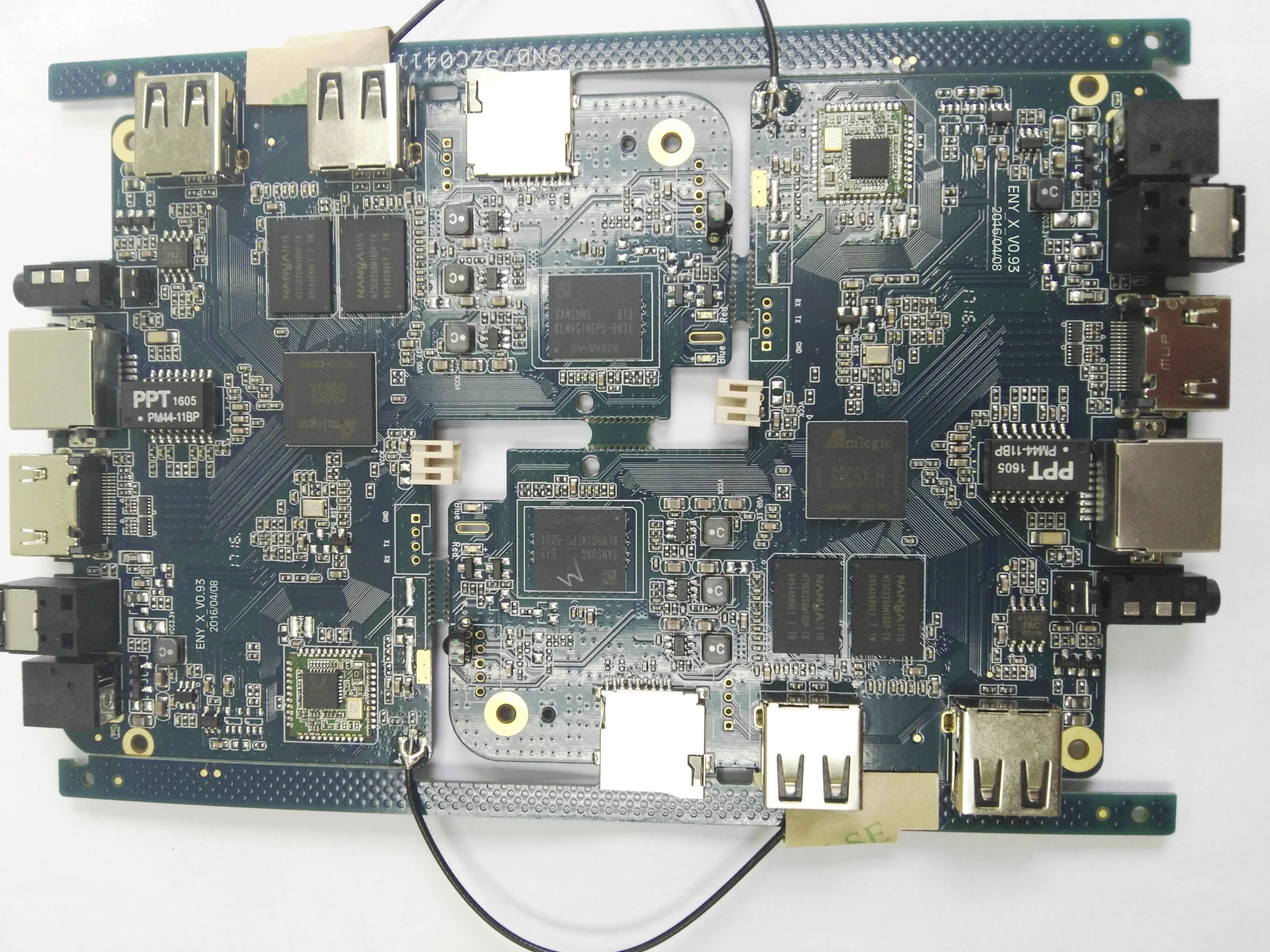

That’s actually two boards before separation, and fitted with Amlogic S905X-H processors. If you look closely are the “silkscreen” however, you’ll find that it has been edited in a photo editor to add ENY_X_V0.93. I’m not quite sure why they felt they had to do this…

Eny TV box specifications:

  • SoC –  Amlogic S905 or S905X-H quad core ARM Cortex-A53 @ up to 1.5GHz or 2.0 GHz with penta-core Mali-450MP GPU @ 750 MHz
  • System Memory – 1 or 2GB DDR3
  • Storage – 8 or 16GB flash + micro SD card slot
  • Video Output – HDMI 2.0a up to 4K @ 60 Hz, and AV port
  • Audio Output – HDMI, optical S/PDIF, AV port (stereo audio)
  • Video Codecs – 4K VP9 Profile-2 @ 60 fps, 4K 10-bit H.265 @ 60 fps; 4K H.264 @ up to 30 fps
  • Connectivity – 10/100M, 802.11 b/g/n Wi-Fi, and Bluetooth 4.0
  • USB – 2x USB 2.0 host ports
  • Misc – Power button and LED.

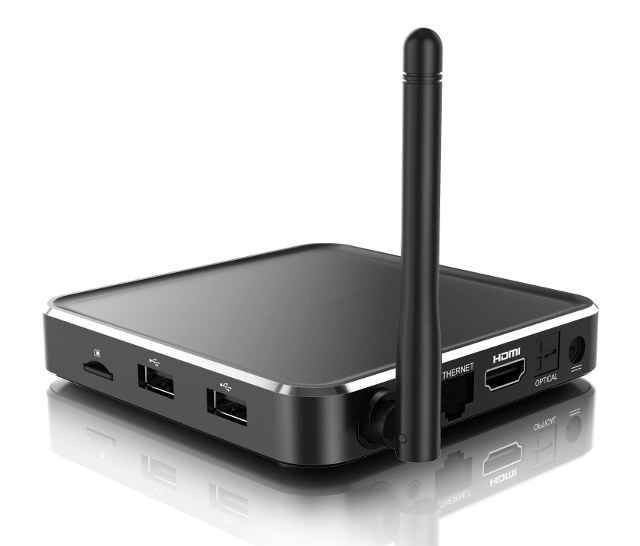

The company has two models planned, one using the board above, and the other (EM95X) another board being assembled now.

EM95X TV Box
EM95X TV Box

Amlogic_S905_TV_Box

Inphic Spot i7 Pro TV Box Board and Specifications

Click to Enlarge
Click to Enlarge

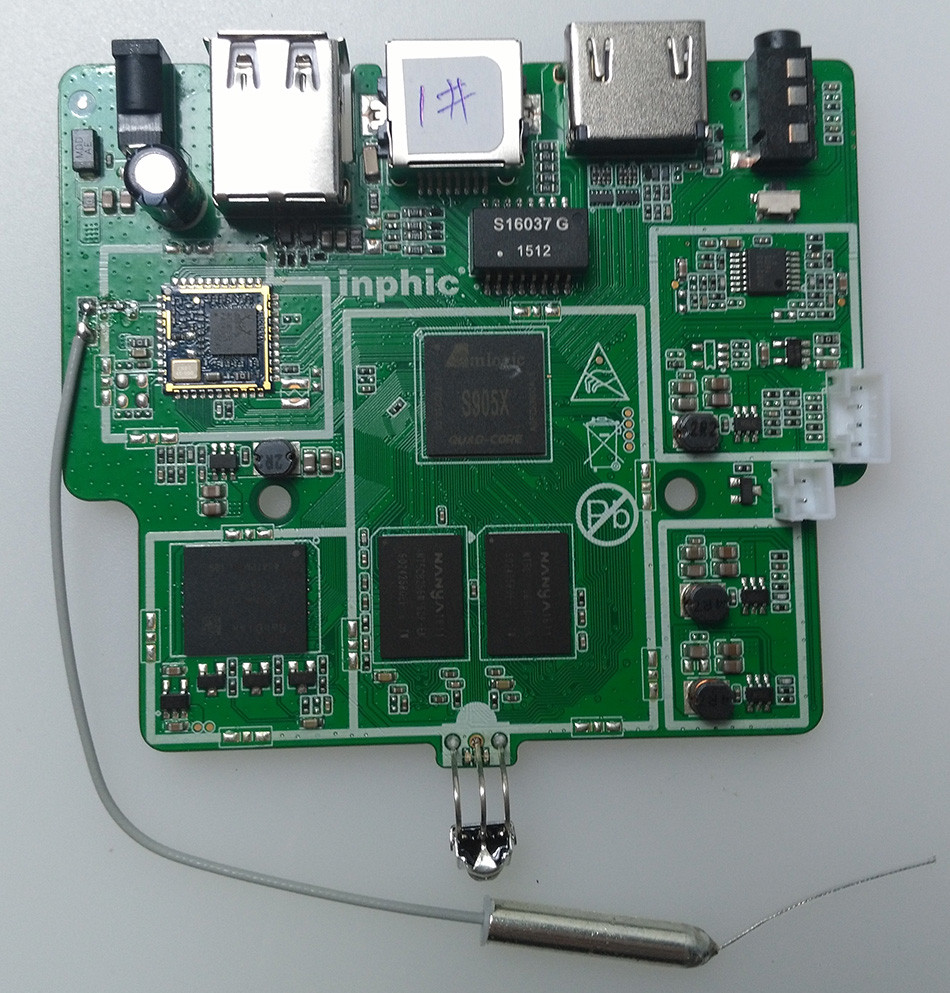

Inphic Spot i7 Pro is likely an evolution of their Spot i7 TV box with Amlogic S905, but they still laid out a new PCB, as shown in the Freaktab forum post about the development story of the product.

Inphic Spot i7 Pro preliminary specifications:

  • SoC – Amlogic S905X quad core ARM Cortex A53 @ up to 1.5 or 2.0 GHz with Mali-450MP GPU
  • System Memory – 2 GB DDR3 (on sample, final version may have 1 or 2 GB RAM)
  • Storage – 8 GB flash + micro SD slot
  • Video & Audio Output – HDMI and AV port
  • Connectivity – 10/100M Ethernet, 802.11 b/g/n Wi-Fi (Realtek)
  • USB – 2x USB OTG port
  • Misc – IR receiver, RGB LEDs for notifications
Click to Enlarge
Click to Enlarge

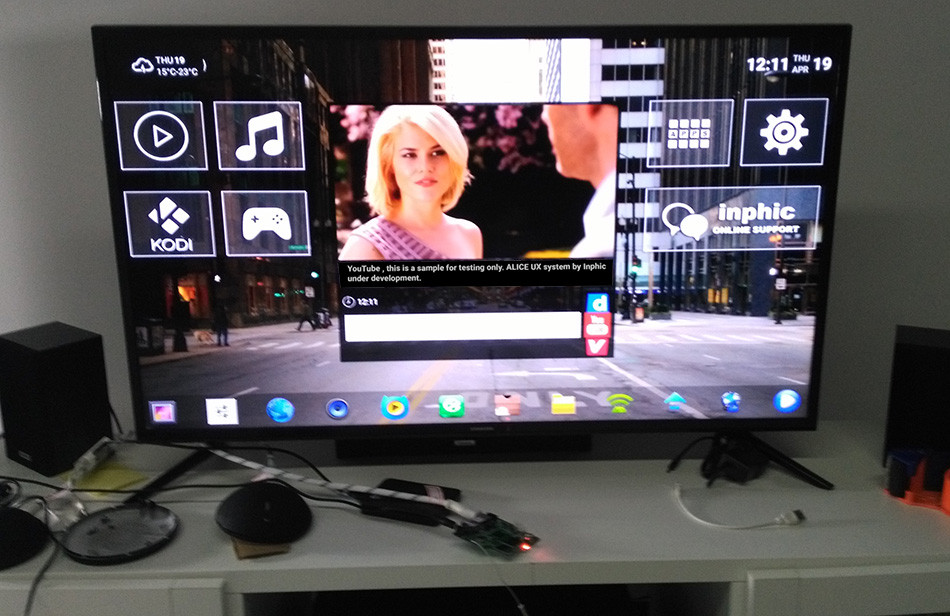

Inphic is also working a new launcher for the device. All Amlogic S905X device will run Android 6.0, so both Eny and Inphic box will also run Marshmallow. Software development is not quite finished though, and Eny Technology informed me that at least one more month for development is required.
