96Boards Compliant Mediatek X20 Development Board is Now up for Sale for $199

Mediatek Labs and Linaro introduced X20 development board based on 96Boards CE specs, and featuring Mediatek Helio X20 deca-core Cortex A72/A53 processor a couple of months ago. At the time, if you wanted to purchase the board, you’d have to fill a form explaining the details about your project, and the company, Alpha Star, would then decided whether would sell it to you. The good news here is that you don’t need to do any of that anymore, and you can buy the board directly on Seeed Studio for $199, or on Taobao for 1399 RMB.

Mediatek_X20_Development_BoardMediatek X20 development board specifications have not changed much since the first announcement, but the CPU and GPU frequencies have been lowered somewhat, and we have some more details:

  • SoC – Mediatek Helio X20 (MT6797) deca-core processor with two ARM Cortex A72 cores @ 2.1~2.3 GHz, four Cortex A53 @ 1.85 GHz, four Cortex A53 @ 1.4 GHz, and  ARM Mali-T880 GPU @ 700 MHz
  • System Memory – 2GB LPDDR3 @ 933 MHz
  • Storage – 8GB eMMC 5.1 flash + micro SD 3.0 (UHS-I) slot
  • Video Output – HDMI up to 1080p @ 30 fps
  • Video Support – 32MP @ 24fps / 25MP @ 30 fps; WQXGA 2560×1600 60fps; FHD 1920×1080 120fps; 4Kx2K 30fps H.265 w/HDR
  • Connectivity – 802.11 b/g/n WiFi, Bluetooth 4.1 (MT6631), GPS with antenna connector
  • USB – 2x USB 2.0 host ports, 1x micro USB port (device only).
  • Expansion:
    • 1x 40 pin low speed expansion connector – UART, SPI, 2x I2C, 12x GPIO, DC power
    • 1x 60 pin high speed expansion connector – 4L-MIPI DSI, USB, 2x I2C, 2L+4LMIPI CSI
    • Optional 16-pin analog expansion connector – Stereo headset/line out, speaker, analog line-in, and more
  • Misc – Power, reset and volume buttons. 6 LEDS (4x user, 1x Wifi, 1x Bluetooth)
  • Power Supply – 8 to 18V DC input
  • Dimensions – 85 x 54 mm
  • Weight – 77 grams

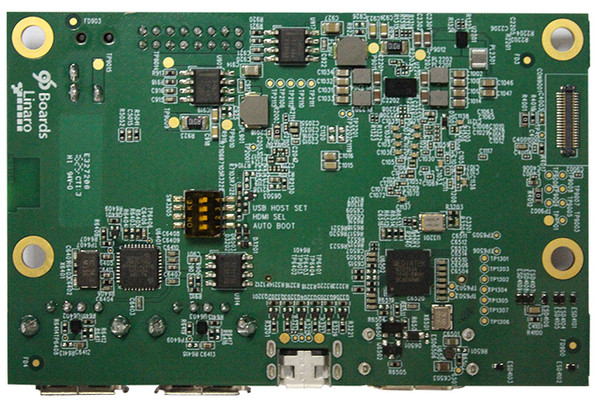

96Boards_Helio_X20_Board

The board only runs Android 6.0 Marshmallow at this stage. You can find more hardware and software technical details on the Wiki, and download page. It might also be worth monitoring 96Boards X20 page for documentation.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
Demetris
Demetris
8 years ago

Some major faults are:
– LPDDR3 @ 933 MHz
– Micro SD 3.0 (UHS-I) slot
– 4Kx2K 30fps
No thank you

ade
ade
8 years ago

@Demetris
My biggest complain is that the SoC embeds an advanced GSM/WCDMA/LTE modem, yet the board does not support it and has no SIM card slot ! I have been looking for so long for a Linux board that would be reasonably powerful (both in CPU and RAM) and cost effective and embed a 4G modem ! :-/

Demetris
Demetris
8 years ago

You can buy a mt7620a at 600mhz with 128mb ddr2 ram at 800mhz with 16mb spi flash and sdcard slot + usb2 -> and use a usb lte modem with lede/openwrt at €16

ade
ade
8 years ago

@Demetris > “You can buy a mt7620a at 600mhz with 128mb ddr2 ram at 800mhz with 16mb spi flash and sdcard slot + usb2 -> and use a usb lte modem with lede/openwrt at €16” yes that’s what I mean : 128mb is far from 2gb, and you need to add a separate (often expensive) minipcie module, and you will only run openwrt/lede i.e. not a “regular” Debian with glibc, and the minipcie module/connector can sometimes be a problem in some contexts (e.g. vibrations/industrial. USB is cheaper but even worse for this), etc. This board would be great… if only… Read more »

Luc Verhaegen
8 years ago

How is one supposed to develop for this supposed development board when there is absolutely no reference to any code to be found on the product website? Three cheers for yet another stellar linaro achievement.

anon
anon
8 years ago

@Luc Verhaegen

For quite a while, there was no code at http://limadriver.org/ , so you would be the last to be surprised this happens.

Luc Verhaegen
8 years ago

@Anon: Wait and see how yet another unknown chinese $shit_pi boardmaker makes good on this. I have seen way too many of such things, and similar, pass by over the years.

I was tempted to buy such a board, but the lack of kernel/u-boot told me to keep my money to myself for the time being and to wait for other MTK X20 development boards to appear, or for this one to deliver (which would almost be out of character).
