SolidRun MACCHIATOBin is Another Marvell ARMADA 8040 Networking Mini-ITX Board

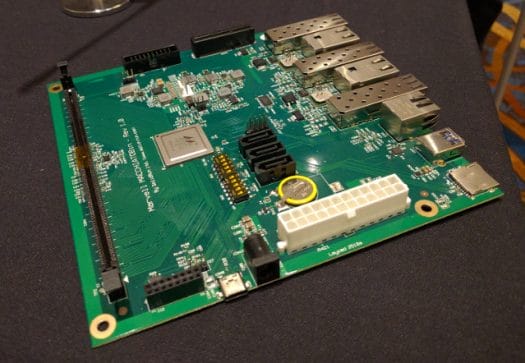

We’ve already seen SolidRun is working on a Marvell ARMADA 8040 quad core Cortex A72 community board for networking and storage applications, but based on a picture taken at Linaro Connect, the company is also working on a similar board with extra connectivity options called MACCHIATOBin.

Click to Enlarge
Click to Enlarge

Apart from the picture, there’s no info on the web about this board, so we’ll have to derive specs from the photo, the community board features, and info provided by Marcin Juszkiewicz, so all details are preliminary and subject to change:

  • SoC – ARMADA 8040 (88F8040) quad core Cortex A72 processor @ up to 2.0 GHz
  • System Memory – 1x DDR4 DIMM up to 16GB RAM
  • Storage – 3x SATA 3.0 port + micro SD slot
  • Connectivity – 1x Gigabit RJ45 port, 1x SFP SGMII @ 2.5Gbps, 2x 10Gbps copper (RJ45) with auto switchover to dual SFP+
  • Expansion – 1x PCIe-x4 3.0 slot, Marvell TDM module header
  • USB – 1x USB 3.0 port, 1x USB-C port
  • Debugging – 20-pin Connector for CPU JTAG debugger
  • Power Supply – 12V DC via power jack or ATX power supply
  • Dimensions – Mini-ITX form factor (170 mm x 170 mm)

That board is said to be SBSA compliant, meaning any ARM SBSA server distributions (like Red Hat) should work with mainlined kernel and bootloaders (U-Boot and UEFI). The price is said to be $350 with 4GB RAM, exactly what the community board is supposed to sell for, so MACCHIATOBin could also be the latest revision of the community board with a layout change, and most of the same features.
