NanoPi S2 Quad Core ARM Linux Board Comes with WiFi & BT Connectivity, HDMI, LVDS, and LCD Interfaces

FriendlyARM has released a bunch of Allwinner based NanoPi Allwinner boards recently, but they also have some Samsung/Nexcell S5P ARM Cortex A9 boards in their portfolio, and the latest is NanoPi S2 with Samsung S5P4418 quad core processor, three display interfaces, a camera interface, wireless connectivity through WiFi and Bluetooth 4.0, a 40-pin “Raspberry Pi” header, and more.

nanopi-s2

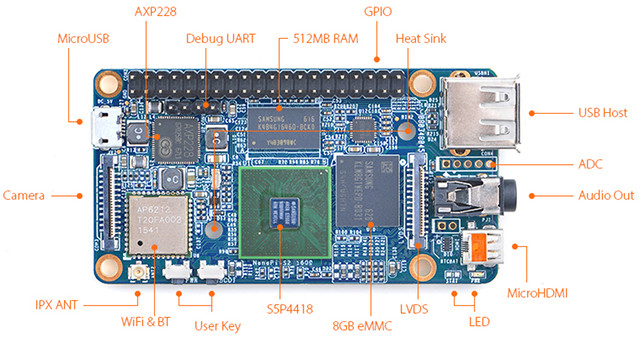

NanoPi S2 specifications:

  • SoC – Samsung/Nexcell S5P4418 quad core Cortex A9 processor @ 400 MHz to 1.4 GHz with Mali-400MP GPU
  • System Memory – 1 GB DDR3
  • Storage – 8GB eMMC flash  + micro SD slot
  • Video Output / Display I/F – micro HDMI port up to 1080p60, 24-pin LCD RGB interface, 24-pin LVDS interface
  • Audio – 3.5mm audio jack, micro HDMI
  • Camera – 24-pin DVP camera interface
  • Connectivity – 802.11 b/g/n WiFi + Bluetooth 4.0 classic & LE (AP6212 module); IPEX/u.FL antenna connector
  • USB – 1x USB 2.0 Host, 1x micro USB port for data and power
  • Expansion Headers
    • 40-pin Raspberry compatible header with GPIOs, UART, SPI, I2C, PWM, etc..
    • Unpopulated ADC header
  • Debugging – 4-pin serial header
  • Misc – 1x power LED, 1x system LED, 2x user keys, unpopulated RTC header, heatsink mounting holes
  • Power Supply – 5V/2A via micro USB port; AXP228 PMU with software shutdown and wake-up functions.
  • Dimensions – 75 x40 mm (8-layer PCB)

The hardware is quite similar to NanoPi 2 board, but it replaces one of the micro SD slot by an eMMC flash, adds an LVDS connector, an audio jack, an ADC header, and mounting holes with an heatsink.

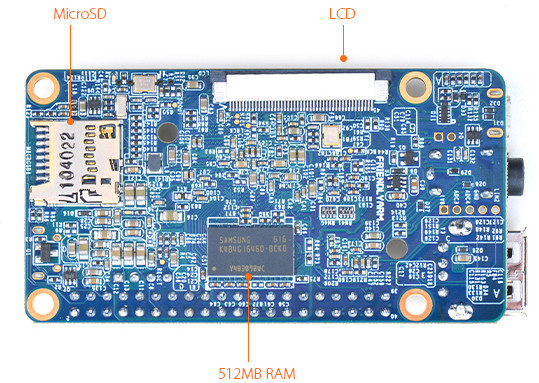

samsung-s5p4418-development-boardSoftware support for NanoPi S2 is basically the same as for NanoPi 2 with Android 5.1 and Debian 8 images provided, both relying on Linux 3.4. You’ll find hardware and software documentation on the Wiki.

NanoPi S2 board sells for $45 plus shipping directly on FriendlyARM website. Bear in mind that it does not sell with an heatsink, and I could find one in the “optional accessories” section (yet). [Update: The company confirmed it works with the heat sink for T2/T3]
