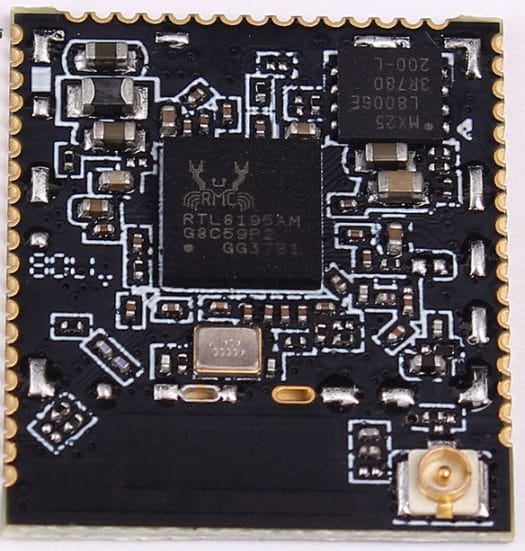

Last year, Realtek Ameba IoT SoCs and development kits launched with boards such as Ameba Arduino, and later, the family got some buzz thanks to $2 RTL8710AF modules like Pine64 Padi IoT stamp, which looked competitive priced against ESP8266 SoC, and featuring an ARM Cortex-M3 core. Back to 2017, ESP8266 appears to still be the preferred platform for makers, and the community around Reatek Ameba processor is relatively small, but maybe the solutions are being integrated into commercial products rather than hobbyists project. Today, as I browsed the web, I noticed that are also some Realtek RTL8195AM module with WiFi, and NFC starting with an “Realtek Ameba-RTL8195AM WiFi & NFC Module” I first found on DFrobot for $15 per unit, but after spending a bit more time searching, I ended finding what looks like the same model for $8.99 including shipping on IC Station.
- SoC – Realtek RTL8195AM ARM Cortex-M3 processor @ 166 MHz with 1MB ROM，2MB SDRAM，512KB SRAM
- Connectivity – 802.11 b/g/n 1×1 Wi-Fi up to 150 Mbps via u.FL antenna connector, NFC read/write
- Interfaces via half-holes:
- 10/100M Ethernet MII/ RMII/RGMII interface
- 1x USB OTG
- SDIO device/SD card controller
- Up to 30x GPIO
- 2x SPI master-slave, 3x UART (2x HS-UART, 1x log UART), 2x I2C, 4x PWM
- 2x I2S/PCM
- 2x ADC, 1x DAC
- Security – Hardware SSL engine in Realtek SoC
- Power Supply – 3.0V~3.3V
- Dimensions – 24 x 19mm
- Temperature range – -20℃~+85℃

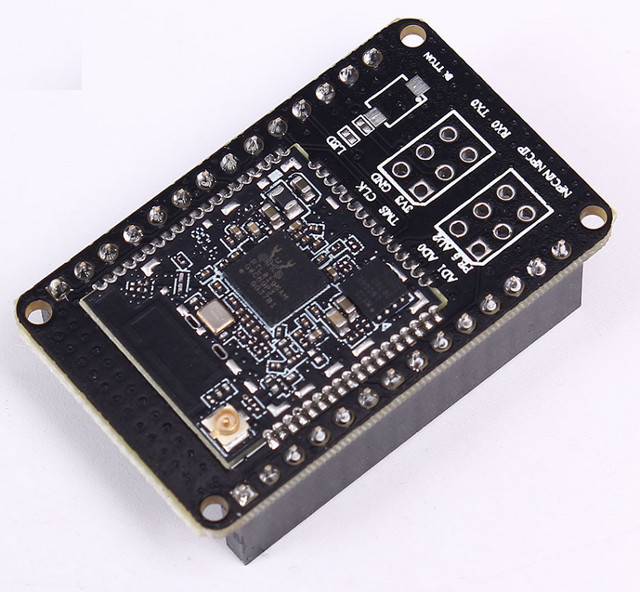

The module can be programmed with the Arduino IDE and Micropython, and you can have access to the SDK via Ameba IoT website. For evaulation, you may consider to order the module with breakout board instead going for $9.74 shipped.
