Intel Apollo Lake Windows 10 Benchmarks Before and After Meltdown & Spectre Security Update

So this week, there’s been a fair amount of news about Meltdown & Spectre exploits, which affects all major processor vendors one way or another, but especially Intel, and whose mitigations require operating systems and in some case microcode updates that decrease performance for some specific tasks.

Microsoft has now pushed an update for Windows 10, and since I’m reviewing MINIX NEO N42C-4 mini PC powered by an Intel Pentium N4200 “Apollo Lake” processor, and just happened to run benchmarks before the update, so I decided to run some of the benchmarks again to see if there was any significant difference before and after the security update.

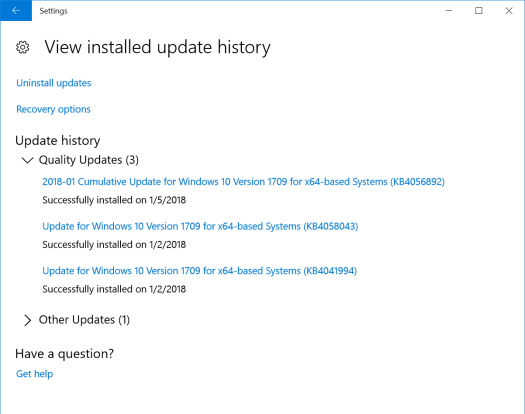

First I had to verify I had indeed received the update in the “installed update history”, and Windows 10 Pro was updated on January 5th with KB4056892, which is what we want, so let’s go ahead.

Benchmarks before Update

PCMark 10 is one of my favorite benchmark since it relies on typical program that many people would use on their desktop computer.

Click to Enlarge

Link to full results.

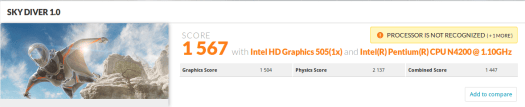

Let’s through 3DMark Sky Diver to get some 3D graphics performance.

Click to Enlarge

Link to 3DMark result.

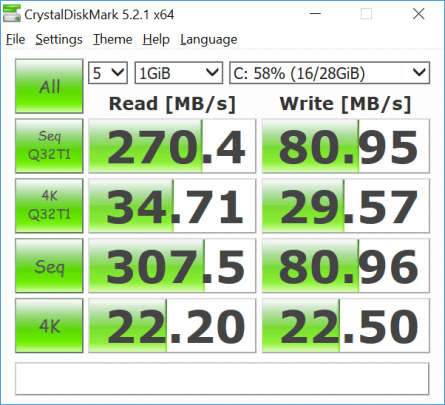

Finally, I’ve run CrystalDiskMark to test I/O performance of the internal eMMC flash.

Benchmarks after Update

Let’s see if there are any significant differences, bearing in mind there’s always some variation for each benchmark run.

Click to Enlarge

Link to full results.

Right the score is lower, but it’s really insignificant, and represents at 0.63% decrease in performance, which should likely have nothing to do with the update. So no difference before and after update here.

Click to Enlarge

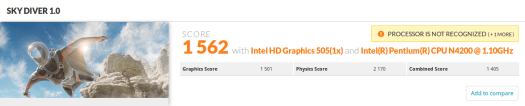

Same story for 3DMark Sky Diver 1.0, basically the same score as before the update. Link to 3DMark result.

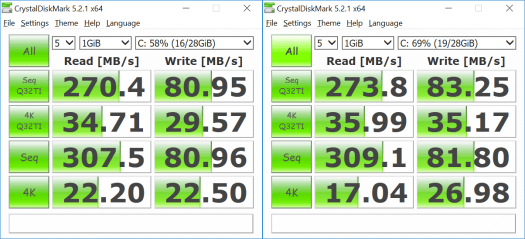

Before (left) and After (right) – Click to Enlarge

There’s normally a lot more variation for I/O benchmarks like CrystalDiskMark, so results are a bit  more difficult to analyze, and have both screenshot side-by-side. We can safely say there’s no difference for sequential read/write (Seq Q32T1 & Seq), and I even got slightly better numbers after the updates. Random I/O look fairly good after the update, except for “4K Read” test. I repeated it several times, and always got 14 to 17 MB/s after the update (23 to 37% slower), while the “4K write” was always higher. This should not matter to most use cases.

At this stage, I was expecting to draw a table showing a 5% difference after the update, but I won’t, because there’s no clear performance hit after the update, despite Apollo Lake architecture being impacted by Meltdown and Spectre. Maybe some other database specific tests would have shown a difference, or the security fixes may mostly impact the performance of higher-end processors.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

36 Replies to “Intel Apollo Lake Windows 10 Benchmarks Before and After Meltdown & Spectre Security Update”

  1. They are in-order cores. There wouldn’t be a performance impact because there’s no speculative OoO execution for Meltdown.

  2. He-he, try to measure power consumption and CPU temp before update and after 😉 Some people saying that they raised up to 30%…

  3. @blu
    Speculative execution is indipendent from OoO but often if not always all InOrder processors are without speculative execution.

    Then in the world there are Out of Order processor with speculative execution and others (sure for not Intel cpu, I don’t know if exist some Intel OoO procs without SpEx) without.

    For the bug we need speculative execution (probably with OoO) and some type of cache management.

  4. blu :
    @Fabry
    Please, name one in-order CPU without a branch predictor.

    Branch prediction doesn’t imply speculative execution. ARM in-order cores (A7, A53, etc.) will just flush the first 4 stages of the pipeline if the branch was mispredicted. The pipeline might be stalled but instructions won’t be speculatively issued on those cores.

  5. @Bogolisk
    Or are you saying that the branch predictor will merely direct the fetch logic for the duration of the next 4 clocks and then pipeline will stall to wait for the branch resolve? If so, have you actually tested that?

  6. @Bogolisk
    Seems to me like a branch mispredict flushes effectively the complete A53 pipeline:
    http://www.7-cpu.com/cpu/Cortex-A53.html ^f ‘Branch misprediction penalty’ (for an integer pipeline length of 8).
    If that’s the case then A53 does execute speculatively beyond the branch point, but not necessarily with loads/stores (which is what most likely helps it in the Specter case, where other in-orders like A8 are vulnerable).

  7. blu :
    @Bogolisk
    Whereas other pipelines do not flush (parts of) their pipelines if a branch is mispredicted? You lost me here.

    OoO : will speculatively issue instructions, mispredicted instructions will be removed before completion. speculative instructions are executed but will not complete (no result write-back) if mispredicted. Data can still be loaded from memory (and fill the cache) but not stored in destination register if mispredicted.

    in-order: will speculatively fetch and decode instructions but will NOT issue speculative instructions. speculative instructions are not allowed to reach the exec stage of the pipeline. there’s no speculative data load from memory.

    blu :
    @Da Xue
    Speculative execution is not limited to OoO.

    blu :
    @Fabry
    Please, name one in-order CPU without a branch predictor.

    Thus, in-order CPUs with branch predictor will not speculative execute anything.

  8. Branch prediction is typically used on non-speculative architectures in order to avoid pipeline bubbles.

    InOrder cpu can be speculative (and maybe many of them are speculative now) but since they are in order the speculative instructions never should be completed.
    The fact that jump has been mispredicted is known (if pipeline is long enough) before the first speculative instruction leaves the pipeline or at least reach the load/store stage.

    In OutOfOrder cpu the speculative instructions could be completed executed before the misprediction has been discovered.

    The bug needs that speculative instructions are completed executed or at least they reach the load/store stage in pipeline.
    So the OoO cpu are the best canditates for the bug.

    PS
    Cortex-A8 is an InOrder cpu but it is afflicted by bug
    But it is also the only one InOrder cpu which is mentioned until now

  9. @Fabry
    because the a8 issues speculative instructions while the a7 and a53 will stall if necessary. The misprediction penalty on the A8 is 9 cycles including the 5 execution stages E0 to E4 (E5 is completion).

  10. What I don’t understand is: Spectre could trick the victim to load data from RAM to the cache-line. But secrets are usually in private-mapped page. How does attacker read private page or its cache without root?

  11. @Drone
    Check the third link “update for Windows 10” in the introduction, it refers to (KB) 4056892 to mitigate the issue for Internet Explorer, Microsoft Edge, and Windows 10.

  12. Bogolisk :
    OoO : will speculatively issue instructions, mispredicted instructions will be removed before completion. speculative instructions are executed but will not complete (no result write-back) if mispredicted. Data can still be loaded from memory (and fill the cache) but not stored in destination register if mispredicted.
    in-order: will speculatively fetch and decode instructions but will NOT issue speculative instructions. speculative instructions are not allowed to reach the exec stage of the pipeline. there’s no speculative data load from memory.

    There’s nothing in the principle of in-order CPUs that dictates in-order CPUs cannot speculate in-order, until a branch is resolved and there is room in the pipeline. In-order CPUs can flush their pipelines just as well.

    blu :
    @Da Xue
    Speculative execution is not limited to OoO.

    Bogolisk :
    Thus, in-order CPUs with branch predictor will not speculative execute anything.

    Is the A8 by mistake on the list?

  13. Fabry :
    In OutOfOrder cpu the speculative instructions could be completed executed before the misprediction has been discovered.

    If by ‘completely executed’ you mean their registers written back and the ops retired — that cannot happen, either in OoO or in in-order.

    I concede that branch prediction alone does not indicate a pipeline can speculatively execute ops — its speculation might end at decode. But at the opposite end of spectrum sits the statement that an in-order pipeline cannot execute ops speculatively, which is another overgeneralisation.

  14. blu :

    Bogolisk :
    OoO : will speculatively issue instructions, mispredicted instructions will be removed before completion. speculative instructions are executed but will not complete (no result write-back) if mispredicted. Data can still be loaded from memory (and fill the cache) but not stored in destination register if mispredicted.
    in-order: will speculatively fetch and decode instructions but will NOT issue speculative instructions. speculative instructions are not allowed to reach the exec stage of the pipeline. there’s no speculative data load from memory.

    There’s nothing in the principle of in-order CPUs that dictates in-order CPUs cannot speculate in-order, until a branch is resolved and there is room in the pipeline. In-order CPUs can flush their pipelines just as well.

    blu :
    @Da Xue
    Speculative execution is not limited to OoO.

    Bogolisk :
    Thus, in-order CPUs with branch predictor will not speculative execute anything.

    Is the A8 by mistake on the list?

    No, but the A8 seems to be the only in-order ARM core that issues speculative instructions.

  15. No for “completely executed” I just meant that they could have completely used the execution units or load / store units and are now in the Ready To Retire stage where they wait for time to commit.
    Commit can not be already done because in OutOfOrder processors it is only the execution that is out of order, the commit is always for sure In Order.
    Furthermore, before the commit can take place the mis-prediction will be known and the speculative instructions deleted from the commit queue (ROB ReOrder Buffer).

  16. Bogolisk :

    Bogolisk :
    Thus, in-order CPUs with branch predictor will not speculative execute anything.

    Is the A8 by mistake on the list?

    No, but the A8 seems to be the only in-order ARM core that issues speculative instructions.

    Are you saying that based solely on the Spectre info?

    A8 is the only in-order ARM core that is susceptible to Spectre; whether it’s the only ARM core that issues speculatively cannot be derived from the Spectre info alone.

    And since posts on wordpress’ can appear with arbitrary delays, I’ll reiterate my question in case you missed it: I’m still interested to hear why you think A53 flushes just the first 4 stages, given its misprediction penalty is 7 clocks, with a pipeline length of 8 stages.

  17. @cnxsoft
    “@Drone, Check the third link “update for Windows 10” in the introduction, it refers to (KB) 4056892 to mitigate the issue for Internet Explorer, Microsoft Edge, and Windows 10.”

    Nope, that link first takes me to a EULA page then to a generic “Security Update Guide” lookup page.

    So I search for 4056892 and finally I find the links for Explorer, Edge, and Windows 10. But for 64-bit Windows 10 there’s no specific mention of the Meltdown\Spectre issue, not even the CVE. I’ve seen this KB4056892 on other sites too, but nobody has been able to point me to where this KB article mentions the Meltdown\Spectre patch. The KB does mention patch delays for AMD targets, and perhaps coincidentally today we know the Meltdown\Spectre Windows 10 patches are causing some AMD systems to BSoD. But still no Meltdown\Spectre like specifics otherwise.

  18. @Drone
    OK, that’s crazy. But apparently you need to click on the “update for Windows 10” link, accept the EULA which will take you to the generic Security Update Guide you mentioned, and then click on the first link again, and you should access “ADV180002 | Guidance to mitigate speculative execution side-channel vulnerabilities”.

  19. blu :
    @Bogolisk
    While on the subject of A8, ARM state the branch misprediction penalty on the A8 as 13 clocks.

    And I’m still interested to hear why you think A53 flushes just the first 4 stages, given its misprediction penalty is 7 clocks.

    because that’s what ARM said in A53 doc (no link sorry). Something like the core will stall so it’s up to up the compiler to prevent pipeline hazards…

  20. Oh the fun of updates 😉

    Intel’s patches for its processor bugs are themselves buggy.

    It is reported that datacentres have been told to delay installing them, while Intel issues patches to patch the patches.

    “We are working quickly with these customers to understand, diagnose and address this reboot issue,” says Navin Shenoy, GM of Intel’s data centre groupsaid in the statement. “If this requires a revised firmware update from Intel, we will distribute that update through the normal channels.”
