FriendlyELEC Core4418 is a Low Profile Samsung S5P4418 Board

Orange Pi Development Boards

Samsung (Nexell) S5P4418 & S5P6818 quad/octa core Cortex A9 processors used to have dismal Linux support with a very old & unsecure Linux 3.4 kernel, but in the last year or so software support has greatly improved, likely because those processors are used in some Samsung Artik IoT modules.

FriendlyELEC has been manufacturing several S5P boards starting from their NanoPi2 board launched in 2015, and more recently they introduced NanoPi Fire2A & Fire3 boards based on S5P4418 & S5P6818 processor respectively. But this month, they’ve launched two more S5P platforms, and today I’ll look at Core4418 board, which has a lower profile than any of their previous board since the RJ45 Ethernet jack and USB type A ports are not included.

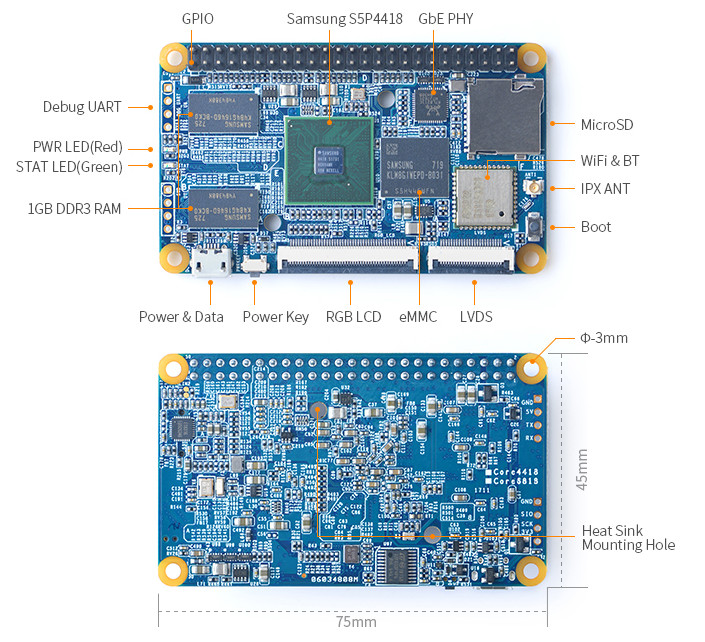

Core4418FriendlyELEC Core4418 specifications:

  • SoC – Samsung S5P4418 quad core Cortex A9 processor @ up to 1.4GHz, Arm Mali-400MP GPU
  • System Memory – 1GB DDR3
  • Storage – 8GB eMMC flash, micro SD Slot up to 128 GB
  • Connectivity – Gigabit Ethernet transceiver (no RJ45 port), 802.11 b/g/n WiFi + Bluetooth via AP6212 wireless module + u.FL connector
  • Display I/F- 45-pin RGB LCD connector, 24-pin LVDS connector
  • USB – 1x micro USB port for power and data, 1x USB host on header
  • 50-pin expansions header with I2C, SPI, UART, GPIOs, PWMs, Audio in/out, Gigabit Ethernet with LEDs, RTC battery in, and power signals
  • Debugging – 4-pin header for serial console
  • Misc – Power switch, reset button, power and status LEDs
  • Power Supply – 5V/2A via micro USB port
  • Power Management – Dynamic voltage scaling, software power on, RTC alarm power-on
  • Dimensions – 75 x 45 mm (6-layer PCB)
  • Weight – ~21 grams
  • Temperature Range – 0 to 80°C

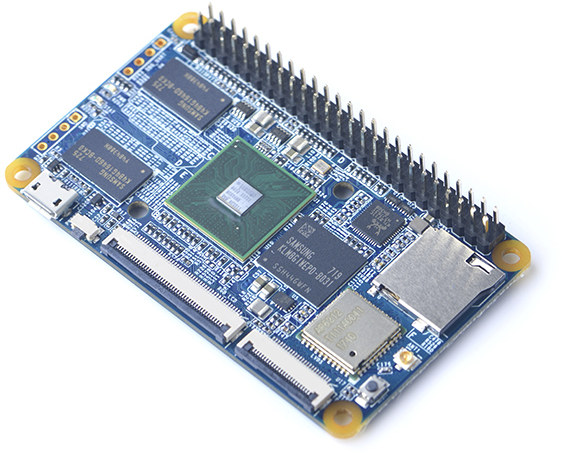

Low profile S5P4418 BoardThe board should be good if you have limited space for your project, or need some flexibility in the design.  The DVP camera interface usually found on other FriendlyELEC S5P boards is however gone. The company provides Lubuntu desktop and Ubuntu core based FriendlyCore  firmware images for the board. I could not find a Wiki for Core4418, but the instructions and software for Smart4418 CPU module – which I’ll cover in a separate post – should be compatible, and firmware images are actually the ones provided for NanoPi2 board.

Core4412 can be purchased together with is heatsink for $45 on FriendELEC store, where you’ll also find optional 4.3″ and 7″ touchscreen displays, and other accessories.

Core4412-LCD-DisplayThanks to theguyuk for the tip.

24
