Lanner NVA-3000 Machine Vision Computer is Equipped with 8 PoE+ Ports

Lanner Electronics, a company headquartered in Taiwan, and specializing in   network appliances and rugged industrial computers, has recently introduced NVA-3000 embedded computer powered by Intel Pentium N4200 or Atom x7-E3950 “Apollo Lake” processor, and targeting video surveillance & machine vision applications with 8 PoE+ ports.

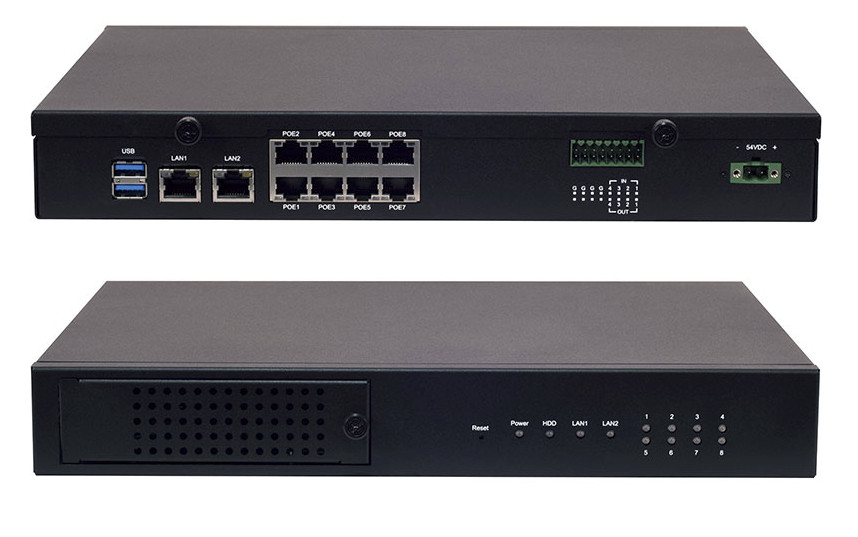

Machine Vision Computer
Click to Enlarge

Lanner NVA-3000 specifications:

  • SoC
    • Model NVA-3000A – Intel Pentium N4200 quad core Apollo Lake processor @ 1.10 / 2.50 Hz with 18 EU Intel HD graphics 505; 6W TDP
    • Model NVA-3000B – Intel Atom x7-E3950 quad core Apollo Lake processor @ 1.60 / 2.00 GHz with 18 EU Intel HD graphics 505; 12W TDP
  • System Memory – 4GB LPDDR4 2400MHz via 1x SO-DIMM slot
  • Storage
    • 32Mbit SPI Flash for BIOS, 2x SATA ports, 1x 3.5″ SATA/SSD drive bay,
    • eMMC flash
      • Model NVA-3000A – 8GB capacity
      • Model NVA-3000B – 64GB capacity
  • Network Connectivity
    • Ethernet controller – Intel I210IT, I210IS, Marvell 88E6390 Ethernet Switch, 88E1512 PHY
    • 2x Gigabit Ethernet (RJ45) + 8x RJ45 PoE+ ports
  • USB – 2x USB 3.0 type A ports
  • Expansion – Digital I/O – 4x DI, 8x DO with +5V TTL
  • Misc – 1x reset button, watchdog,  status LEDs, 2x system fans
  • Power input – ATX +54 VDC via terminal block
  • Dimensions – 310 x 220 x 44 mm (1U form factor)
  • Certifications – CE/FCC, Class B
  • Vibration – IEC 60068-2-64, 0.5Grms, random 5 ~500 Hz, 40 mins/axis
  • Temperature Range – Storage: -20°C to 60°C; operating: 0°C to 40°C

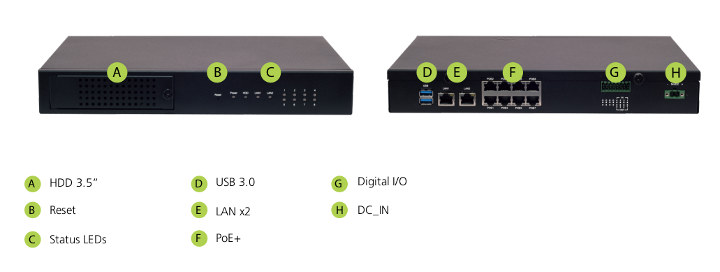

NVA-3000 Embedded ComputerThe company provides supports for WES7, Win 7 Pro FES, WE 8.1 Industry Pro, Win 10 IoT, and the Linux Kernel 3.12…

Pricing and available information has not been disclosed. You may find further details on the product page.

Via LinuxGizmos
