Battery powered MEGO Portable Power Supply fits into Breadboards

Breadboard power supplies like MB102 have been around for years, and some  even designed a variable power supply for breadboards, but EVO-IN-MOTION MEGO looks much neater as a fully enclosed power supply, 4 to 24V output, fitted with a LiPo battery, and a display to show current voltage.

MEGO enabled on-the-go breadboard projects without any cables for the power supply. Just connect the power supply, and you’re good to go with power delivered from the built-in battery.

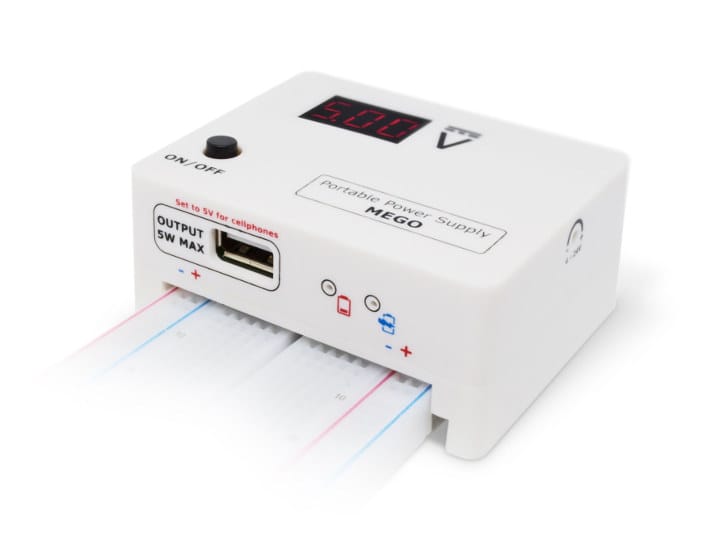

MEGO Portable Power Supply BreadboardMEGO power supply specifications:

  • Output Voltage – 4-24V DC
  • Maximum Power – 6W
  • Safety – Overload protection; short circuit protection
  • Typical Power Efficiency – 88%
  • Voltage Display Accuracy – <1%
  • Ripple Voltage – <1%
  • Load Regulation – 270mV
  • Battery – 7.4Whs (2,000 mAh @ 3.7V)
  • Misc – Power button;, adjust knob for output voltage; low battery and charging LEDs
  • Dimensions – 73 x 59 x 32 mm
  • Weight – 100 grams
  • Temperature Range – Operating: -15 to 45 °C; storage: -20 to 50 °C

MEGO ships with other cables that extend the use of the power supply to other boards (USB to alligator clips and USB to DC jack cable) and it can also act as a emergency power bank to charger mobile devices via the USB cable that comes with your smartphone, just remember to set voltage to 5V before doing so, or it may fry your phone. A micro USB cable is provided for charging the battery and a small screwdriver to adjust the voltage. You’ll find more details in the user manual.

MEGO Battery Breadboard Power SupplyMEGO launched on Kickstarter and Indiegogo last year, but it’s now sold on Tindie for $40 plus shipping.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies or become a Patron on Patreon

ROCK Pi 4C Plus

4 Replies to “Battery powered MEGO Portable Power Supply fits into Breadboards”

  1. Finally a power supply that can run a pi without showing the lighting bolt. Depending on the quality of your cable you can turn the voltage from 5.1V all the way up to 24 😛

    1. Maximum power is only 6 Watts though, so it may not be enough for a Raspberry Pi.

  2. Always take your breadboard and weld your electronics in the subway.

    At least I used those portable USB soldering guns which requires 5V 2A to weld my ESP8266 boards in the train, powered by a battery.

    Otherwise, a nice alternative is a laptop PSU connected to those Hidance STM32 based DC-DC converters:

    https://www.aliexpress.com/item/Digital-Control-power-supply-DC-50V-5A-Adjustable-Constant-Voltage-Constant-current-tester-voltmeter-multimeter-Ammeter/32724001562.html
