SDMC Unveils Amlogic S805Y Full HD Android TV 10 Media Box for Operators

The other day when I covered Amlogic A113L IoT/Smart audio processor, I did not realize I missed another processor from the company: Amlogic S805Y.

It got brought to my attention today, as SDMC recently launched the “DV9038 Quad Core 2K Google Android TV Media Box” based on the processor that I initially thought was a cost-down version of Amlogic S805X Full HD SoC without Ethernet support since that’s the main difference between S905X2 and S905Y2 processors, but as we’ll see below my first assumption was wrong.

DV9038 TV box specifications

Amlogic S805Y TV BoxLet’s first check out what the box has to offer:

  • SoC – Amlogic S805Y quad-core Arm Cortex-A53 processor @ up to  1.5GHz with penta-core Mali-450MP GPU up to 650MHz+
  • System Memory – 1GB DDR  (2GB optional)
  • Storage – 8GB eMMC flash (16GB, 32GB, 64GB optional)
  • Video & Audio Output
    • HDMI 2.0b with CEC, HDCP2.2, HDR 10, HLG HDR
    • 3.5mm AV port with composite video and stereo analog audio
  • Video Decoder – VP9 Profile-2 1080p60,H.265 HEVC 10-bit 1080p60,  H.264 1080p60, MPEG1/2/4, AVS+, WMV/VC-1, RealVideo8/9/10 etc…
  • Connectivity – 10/100M Ethernet, 2.4GHz 802.11  b/g/n Wi-Fi 4, optional dual-band WiFI, optional? Bluetooth 4.2 or higher
  • USB – 2x USB 2.0 ports
  • DRM – Widevine, Playready; optional Verimatrix
  • Misc – IR receiver, power LED
  • Power Supply – 5VDC/2A via power barrel jack
  • Dimensions – 100 x 100 x 18mm

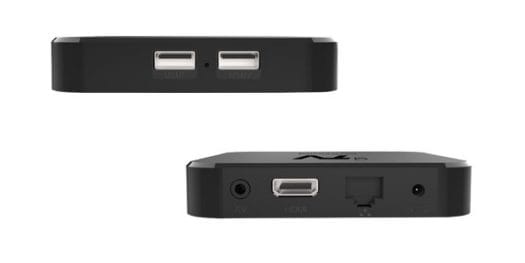

DV9038 TV Box PortsThe box supports Android 10 for Android TV, but the company mentions it “requires pre-authorization and/or separate approval for use. Delivery of Netflix device certification to Android TV required”. DV9038 can ship with various accessories depending on customer requirements, but SDMC suggests to get the device with a Bluetooth Voice Remote control, User manual, Power adapter, HDMI cable. More details about the device can be found on the product page.

Differences between S805X and S805Y Processor

The media box clearly comes with an Ethernet port, so the differences between S805X and S805Y lie somewhere else. So I asked SDMC for a list of differences between the two processors. It took a few days but we finally have a comparison table.

Amlogic S805Y vs S805X

So apparently the GPU should be a little faster due to a higher 750 MHz+ frequency (despite what the TV box specs say), but the most important part is support for different types of memory, and the capability to support up to 3GB RAM instead of just 1GB RAM for S805X. The table above also indicates S805Y supports SD cards, which S805X apparently could not, or at least not without an extra USB controller chip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
3 Comments
oldest
newest
TLS
TLS
4 years ago

And it’s not pin-to-pin compatible.

Pedro
Pedro
4 years ago

Mali-450 ??
launch a new product with technology from 8 years ago. no! no!

Da Xue
Da Xue
4 years ago

Some markets are price sensitive enough to require the differentiation.
