Amlogic S922X Digital Signage Board Comes with HDMI, LVDS, V-by-One, and eDP Video Interfaces

Thanks to its 4K video playback and output capability and high-speed interfaces such as PCIe, USB 3.0 and Gigabit Ethernet, Amlogic S922X is a suitable processor for 4K digital signage players.

One way is to get a TV box optimized for signage applications such as Rikomagic MK25, but if you want to integrate a board into your own display, XYT-6689 SBC may be an interesting option with LVDS, V-by-One and eDP (embedded DisplayPort) display interfaces, as well as many other features.

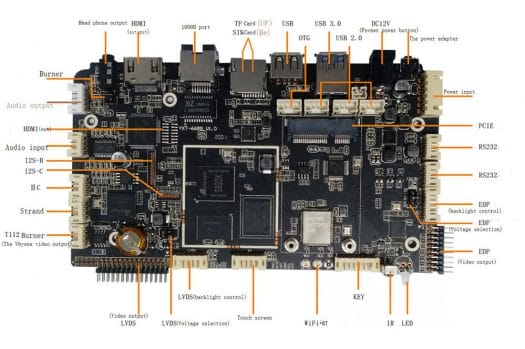

Amlogic S922X Digital Signage Board
Click to Enlarge

XYT-6689 S922X digital signage board specifications:

  • SoC – Amlogic S922X hexa-core big.LITTLE processor with 4x Arm Cortex A73 cores @ up to 2.0 GHz, 2x Arm Cortex A53 cores, Arm Mali-G52MP6 (6EE) GPU; 12nm manufacturing process
  • System Memory – 2GB or 4GB LPDDR4
  • Storage – 16GB to 64GB eMMC flash, microSD card slot up to 128 GB; maybe SATA (unsoldered “laptop” SATA interface on the backside of the board)
  • Video Output & Display Interface
    • HDMI 2.1 up to 4K @ 60 Hz; HDMI CEC, HDCP 2.2, and HDR support
    • 1-channel LVDS port + backlight header + touchscreen header
    • 1-channel eDP port + backlight header
    • V-By-One interface to T112 chip (more at the end of the article)
  • Video – AVE-10 engine with 4K UHD H.265/VP9/AVS2 video decoding up to 60 fps, Dolby Vision, Advanced HDR10, HDR10+, HLG, and PRIME HDR high-dynamic range support
  • Audio
    • 3.5mm audio jack
    • Audio input and Audio output headers
    • Unpopulated I2S headers
    • digital audio via HDMI
  • Connectivity
    • Gigabit Ethernet
    • Dual-band 802.11 b/g/n/ac 2×2 MIMO WiFi 5, Bluetooth 5.0 via Ampak AP6398S module
    • Optional 4G LTE via mPCIe socket and microSIM card slot
  • USB – 1x USB 3.0 Type-A port, 1x USB 2.0 Type-A  port, 1x USB OTG header, 3x USB 2.0 headers
  • Serial – 2x RS-232 headers
  • Expansion – mPCIe socket (for 3G/4G only?), I2C header, keypad header
  • Misc – Power button, power LED, IR receiver
  • Power Supply – 12V DC / 3A via power barrel jack or power input header (probably used for powering the board from the display)
  • Dimensions – TBD

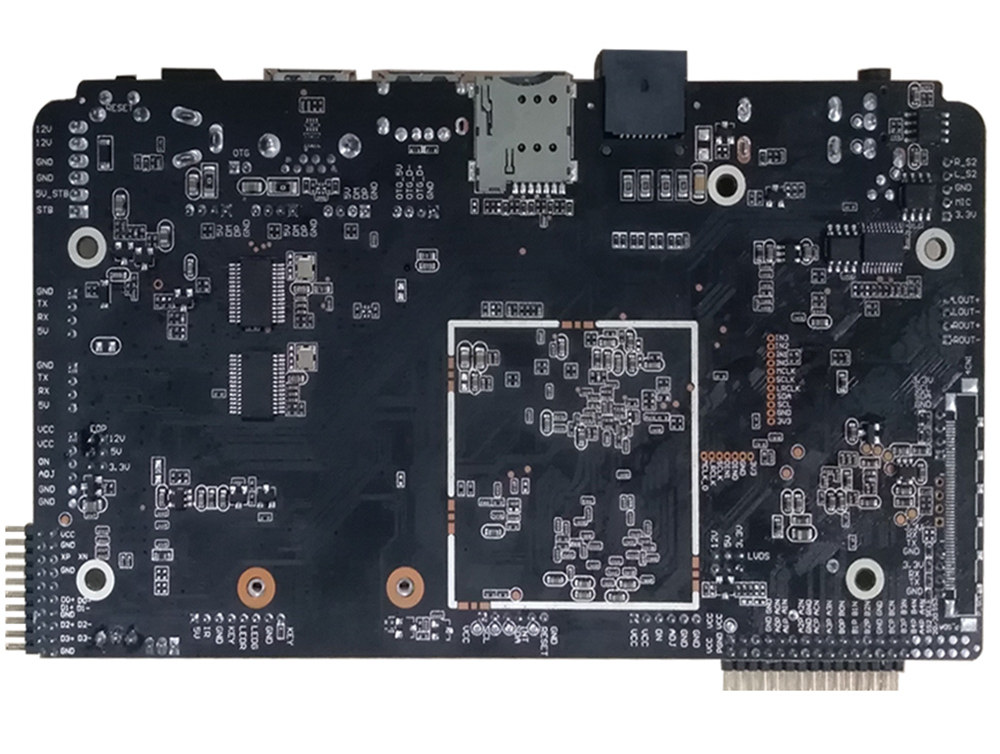

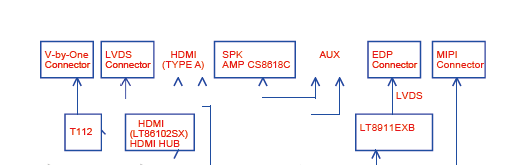

ONENUTS S922X BoardThe “strand” and “T112 burner” headers come with Rx, Tx and GND pins. But the company confirmed the board can be connected to yet-to-be-announced Texas Instruments T112 chip via V-by-One interface (LVDS successor), so the way I understand it is that T112 firmware may be upgradeable via the 4-pin “T112 burner” header. Shenzhen Tomato provided an extract from the schematics to show how the connection works.

V-By-One

We can see some other chips used in the design including Lontium Semi LT86102SX 1:2 HDMI/DVI splitter that appears to feed video signals to HDMI and LVDS, and LT8911EXB MIPI DSI to eDP controller.

The board supports Android 9.0 operating system. While it has primarily been designed for digital signage applications, it could also be integrated into other products and applications including industrial automation terminals, computer vision algorithms, virtual reality systems, game/entertainment equipment, and high-performance face recognition applications in the fields of finance, advertising, security, transportation, public transportation, etc…

XYT-6689 appears to be a white-brand board, but at the time of writing, I could only find it on Shenzhen Tomato website, and it’s available now, but the company does not provide public prices because clients usually ask for custom orders.
