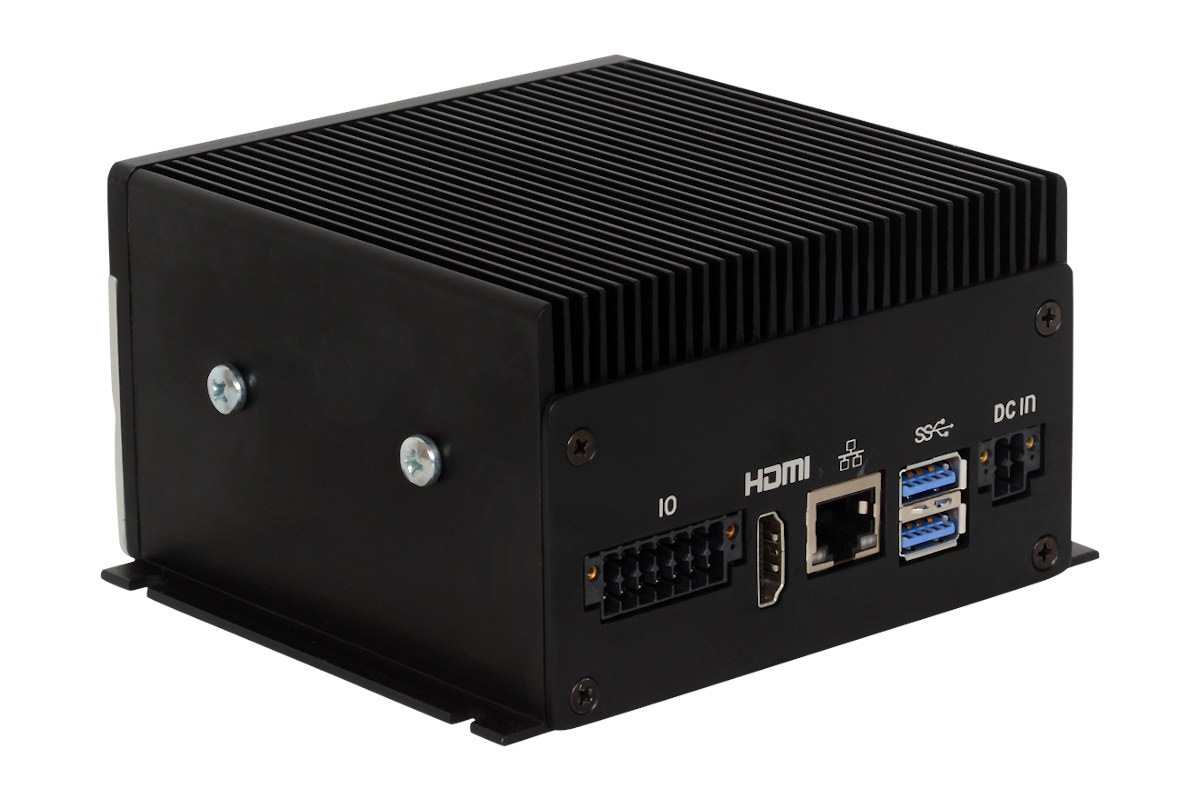

DSBOX-NX2 – An NVIDIA Jetson Xavier NX Industrial Fanless PC

Turkish company Forecr has launched DSBOX-NX2 NVIDIA Jetson Xavier NX based industrial fanless PC equipped with the company’s own DSBoard-NX2 carrier board and designed for “multi-stream deep learning edge analytics” and IIoT applications.

The compact embedded computer comes with 8GB RAM, up to 2TB SSD storage, as well as HDMI 2.0 output, Gigabit Ethernet, two USB 3.1 ports for high resolution cameras, serial ports, and some GPIOs among other features.

DSBOX NX2Forecr DSBOX-NX2 specifications:

  • System-on-Module – NVIDIA Jetson Xavier NX module with hexa-core NVIDIA Carmel ARM v8.2 64-bit processor, NVIDIA Volta GPU with 384 CUDA core & 48 Tensor Cores, 8 GB 128-bit LPDDR4x, 16GB eMMC flash
  • Storage – M.2 Key M SSD slot, MicroSD card slot
  • Video Ouput – 1x HDMI 2.0 up to 3840×2160 at 60 Hz
  • Networking
    • Gigabit Ethernet
    • Wireless – WiFi, Bluetooth, 4G LTE, 5G connectivity by extension sockets
  • USB – 2x USB 3.1 Type-A
  • Expansion
    • 1x M.2 Type-E Key, 1x M.2 Type-B Key
    • 14-pin connector with 2x digital inputs, 3x digital outputs, 1x CAN Bus, 1x RS232/422/485 (software configurable)
  • Misc – Optional power button or automatic power on
  • Power Supply – 9 to 28 VDC via 2-pin connector
  • Dimensions – 130 x 110 x 60 mm
  • Temperature Range – -25°C … +65°C

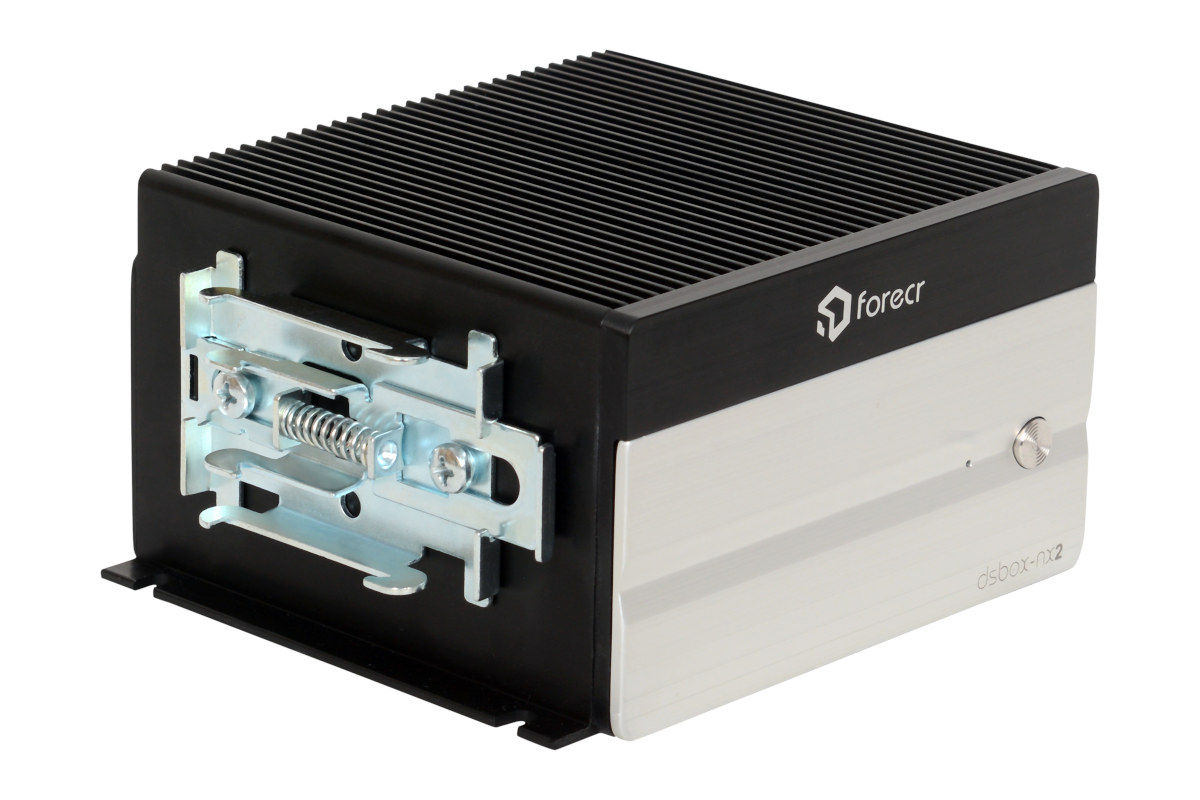

Jetson Xavier NX industrial fanless PCThe Xavier NX industrial fanless computer can be mounted to a DIN rail mount, a wall, or simply installed on a desk. It runs Ubuntu 18.04 via the Jetpack 4.5 SDK, and Forecr claims it can process 32 Full HD video streams with the Deepstream SDK.

The CAN bus and RS232/RS248/RS422 interfaces make it suitable for industrial automation connecting the system to PLC systems, servo motor controllers, sensors, actuators, and even vehicle information networks.

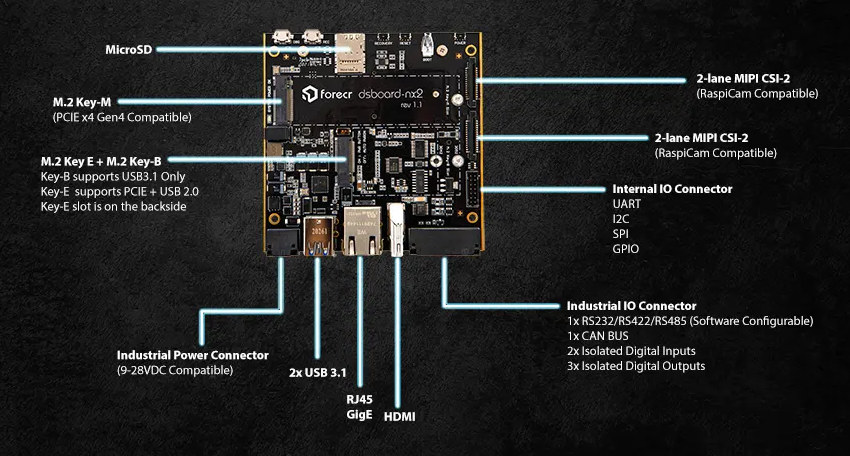

DSBoard-NX2 carrier board for Jetson Xavier NX

Forecr DSBox-NX2 is available now for €749 or around $905. If you’d like the DSBoard-NX2 carrier board to integrate into your own it is sold for  €200 ( about $242) without a Jetson module. You find additional information, including documentation and purchase links on the respective product pages for the embedded PC and carrier board.

Via LinuxGizmos

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
3 Comments
oldest
newest
David Jashi
4 months ago

Isn’t 749 EURO already in AGX price range?

bkydcmpr
bkydcmpr
4 months ago

Yes, NX is often sold at higher price on eBay, I guess the high price of AGX carrier board makes many turn to NX so they could lower the production cost.

Mina Ozerdem
4 months ago

Actually AGX Xavier dev kits are 750 euro price range and they are less expensive than production level modules itself. This product includes carrier board, production level module and thermally-proven aluminum enclosure. So when you look at the prices of the competitor products in the market, you can see the price of this product is quite reasonable.
