Board for 60 ESP-01 modules that update firmware from Github, mine “Duino Coins”

When I first saw the large ESP-01 V1.0 board on Facebook, I thought it was designed to speed up firmware updates of up to 60 ESP-01 modules. The developer, Thanormsin, just explained it would take 5 to 24V DC input to power all ESP8266 attached to it.

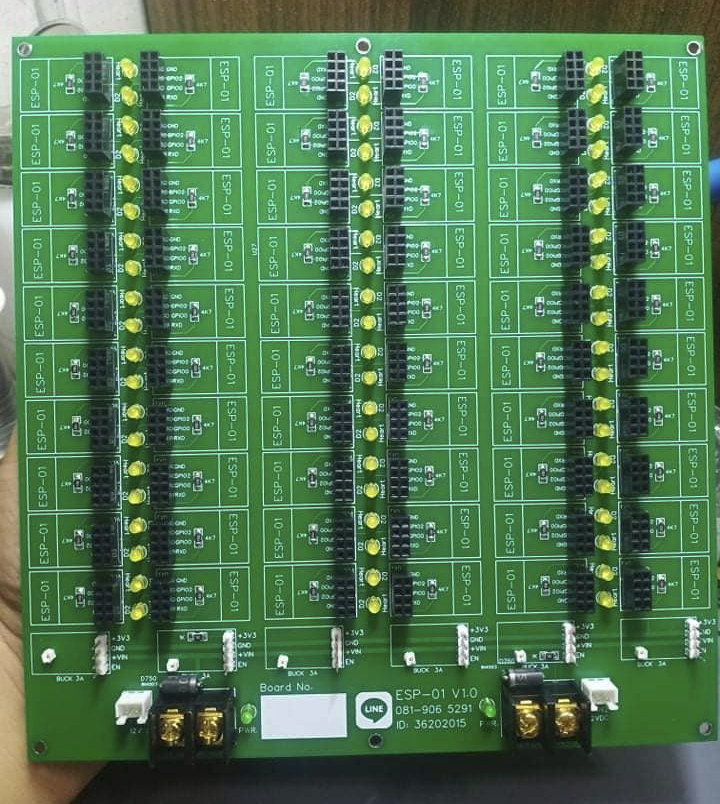

ESP-01 firmware update board

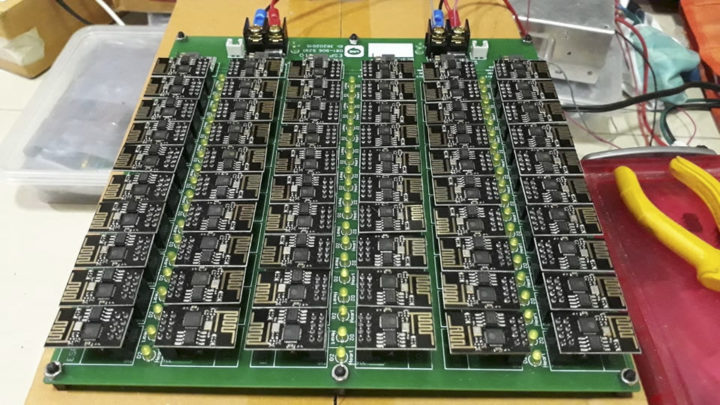

40 esp-01 modules firmware update

It looks cool to have so many But there was no PC interface to update the firmware, so it did not make sense to me, even if it could be used for OTA firmware updates, as the first time, one would have to manual update the firmware.

So I discussed with Thanormsin, and he explains to me his initial arrangement was a cable mess.

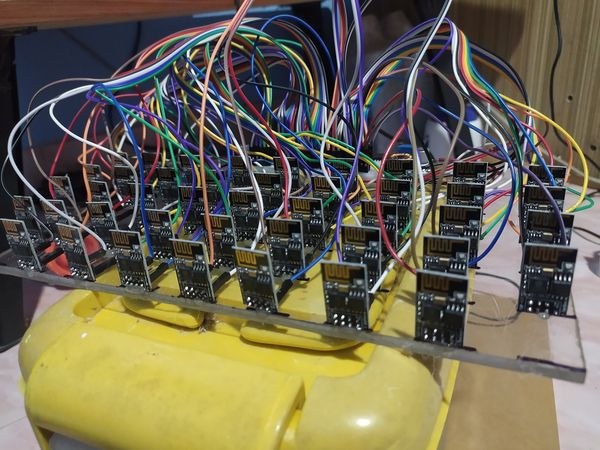

updating multiple ESP-01 modules: cable mess

That is why he designed a board to make it neater, and easier to manage. Each ESP-01 module can update firmware from the Internet, more especially from Github, as each time a new firmware version is uploaded to Github, the wireless module will automatically download and upgrade to the latest firmware.

He adapted the code from programmer131’s ESP8266_ESP32_SelfUpdate repository that flash code to ESP8266 or ESP32 hardware from a firmware file stored in Github.

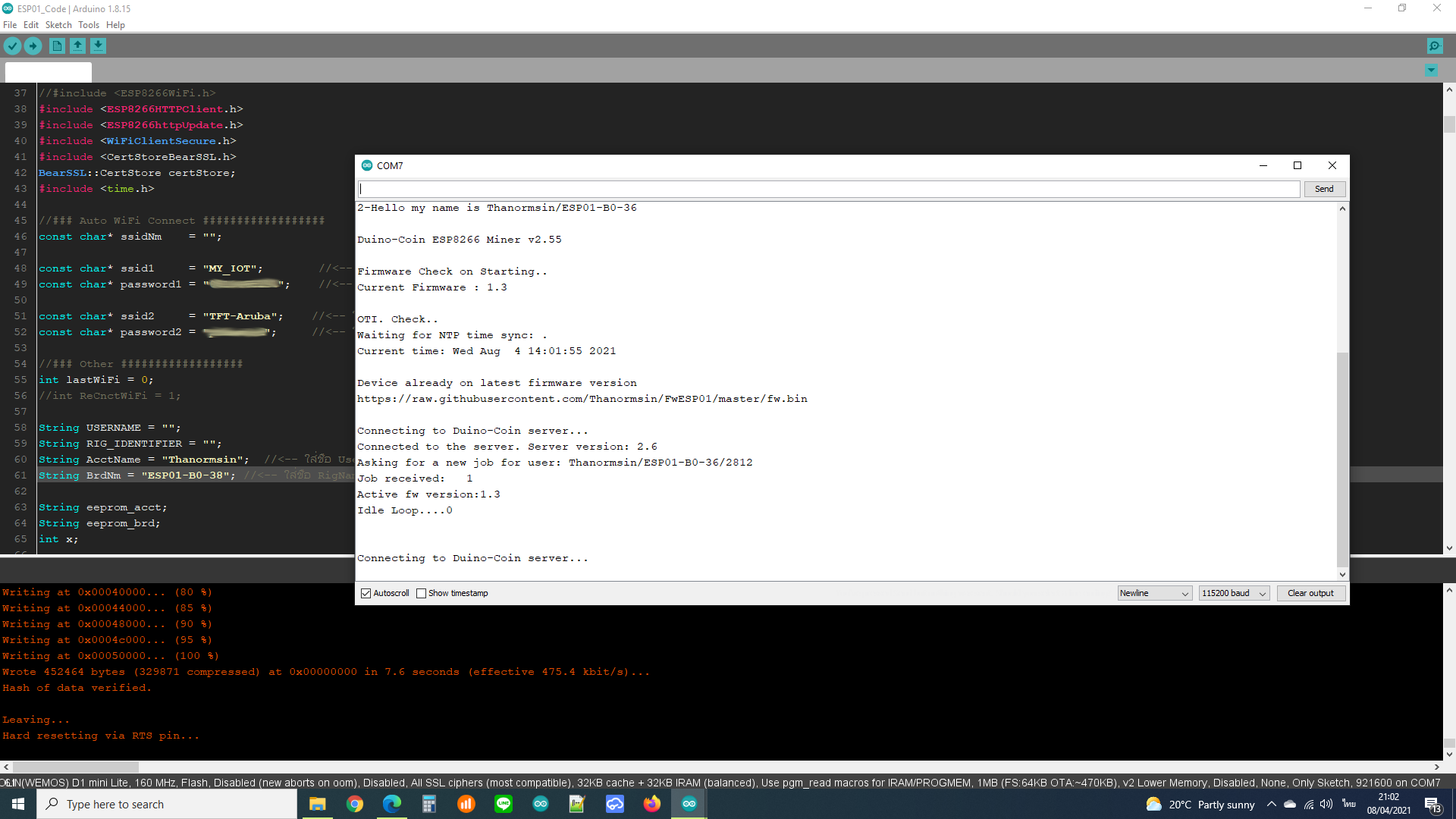

Arduino ESP-01 Github

That’s only once he shared a screenshot of his Arduino IDE windows, that I understood the board was meant to mine Duino coins. I had seen a few people play around with Duino coin and Chia on Facebook in recent months, but I did not immediately make the connection.

Duino coin is designed to be mined on low-cost hardware like Arduino, ESP8266/ESP32, Raspberry Pi, and so on. There’s a self-hosted exchange to convert Duino Coin into other cryptocurrencies like Bitcoin Cash or Ripple. The developer says that Litecoin, Ethereum, Bitcoin, Dogecoin, or other coins with high fees won’t be added to the exchange.

Via Lamloei Facebook Group

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
13 Comments
oldest
newest
Sander
Sander
2 years ago

So why does Thanormsin have this ESP-upgrade board? Does he/she sell ESP-boards, and puts a firmware on it before shipping? Or … ?

David Willmore
David Willmore
2 years ago

The other side of the board is completely wasted space.

Also, WTF? Duinocoin? Can’t a larger processor mine these a few thousand times faster? Is this some kind of art project to point out the pointlessness of crypto coins?

willy
willy
2 years ago

I’ve had a look at the project description and even some parts of the code. To put it simply they don’t really focus on performance by applying hard limits to different types of devices, and tying them with fixed difficulties. It seems that it solely works based on users’ laziness who will prefer to assemble many boards than writing their own multiplexed miner :-/

David Willmore
David Willmore
2 years ago

So, you’re saying it’s time to fire up that antique CM-1 in the basement? 😉

bhat
2 years ago

And their CPU miner implementation is so inefficient…

bhat
2 years ago

In theory, a more powerful computer can definitely simulate a less powerful computer (e.g. an Arduino). You can easily emulating 100+ Arduino on a Raspberry Pi. This coin system does not make any sense.

By the way I checked their miner’s source code. The hashing algorithm only involves a single SHA-1 operation (just why). So emulating the speed of an Arduino to mine this coin is definitely doable.

willy
willy
2 years ago

Yep absolutely. This coin only needs to be known to get severely attacked. Worse, due to the accepted very low difficulty for small machines, I suspect that attacks to the chain itself become quite possible. Well, at least as long as it runs on a single server this risk is limited but that looks extremely brittle. I guess the guy has a lot of fun working on this, though, and we must admit that it’s a nice accomplishment for such a young person. Let’s not be too harsh and leave him some time to learn from his mistakes 🙂

bhat
2 years ago

Following your idea, I took the time to implement a multiplexed miner for Duino coin.
It is not only doable, but also trivially easy.
(Also I happened crash the whole blockchain when meddling with its mining nodes lol)

Ignas Kiela
Ignas Kiela
2 years ago

Fun update after a month: the coin is broken. See https://twitter.com/David3141593/status/1442883432925773829

Mike R
Mike R
1 year ago

Are there gerber files avalible for you board, or do you have some for sale?

Thanks
