Canaan K510 CRB RISC-V AI development kit ships with dual-camera module and LCD display

Last summer, Canaan introduced the Kendryte K510 tri-core RISC-V AI processor, now also known as Canaan K510, as an updated version of the Kendryte K210 with a much higher 3 TOPS of performance, but at the time, there were no development board and SDK.

But I’ve now just been informed of the availability of the Canaan Kendryte K510 CRB (customer reference platform) AI development kit with camera module and LCD display, as well as a software development kit with U-Boot, Linux, and AI tools which can be used to develop smart audio and computer vision applications.

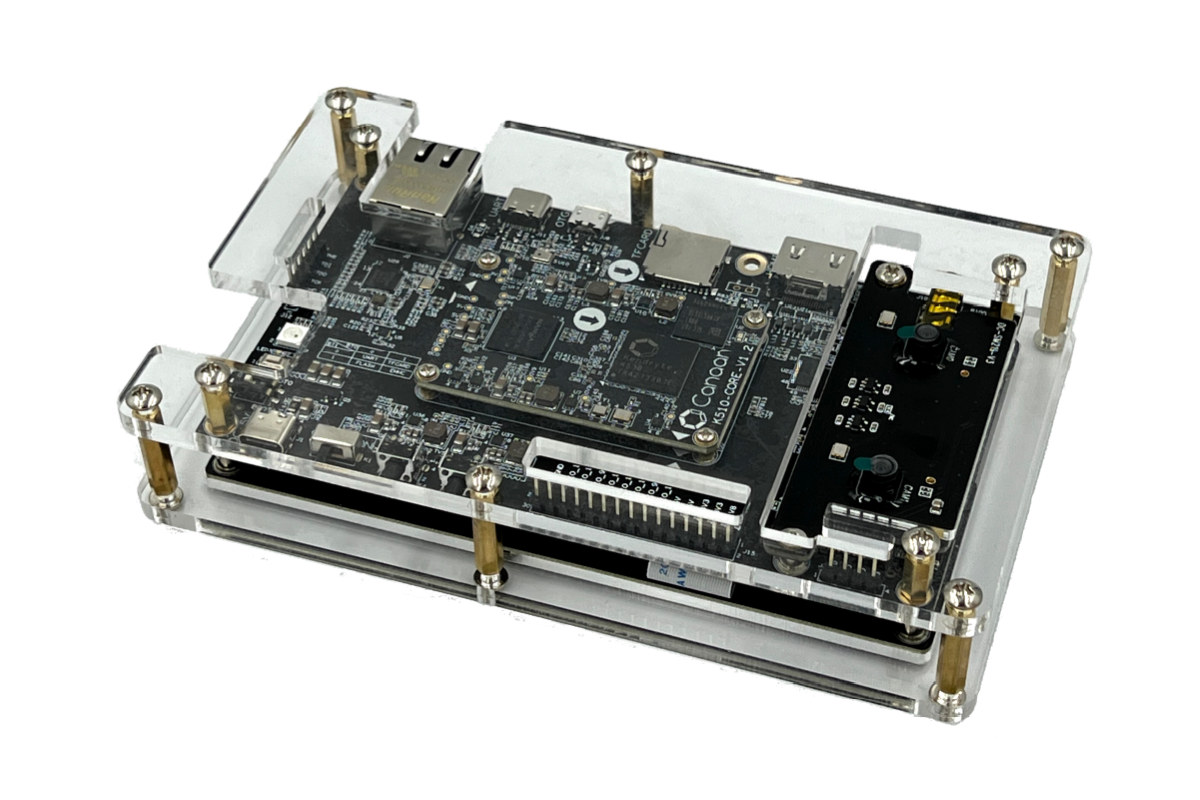

Canaan K510 dual-core RISC-V AI development board

Kendryte K510 CRB-Kit development kit specifications:

  • SoC – Canaan Kendryte K510 dual-core RISC-V64 CPU up to 800MHz and 1x RISC-V DSP up to 800MHz for up to 3 TOPS AI performance, ultra-low-power wake-up VAD, H.264 video encoding up to 2 channels @ 1080p60
  • System Memory – 512 MB LPDDR3 @ 1600 MHz
  • Storage – 16GB eMMC 5.1 flash, MicroSD card socket
  • Video Output – HDMI and built-in LCD display
  • Video Input – 2x MIPI CSI, 1x DVP interface, built-in camera board with 2 sensors
  • Audio – 3.5mm audio jack
  • Networking – Gigabit Ethernet RJ45 port, and wireless module
  • USB – Micro USB OTG 2.0 port
  • Debugging – USB-C to UART interface, JTAG header
  • Expansion – GPIO expansion header with UART, SPI, etc…
  • Misc – LED, Reset and Boot buttons, on/off switch
  • Power Supply – 5V via USB Type-C port

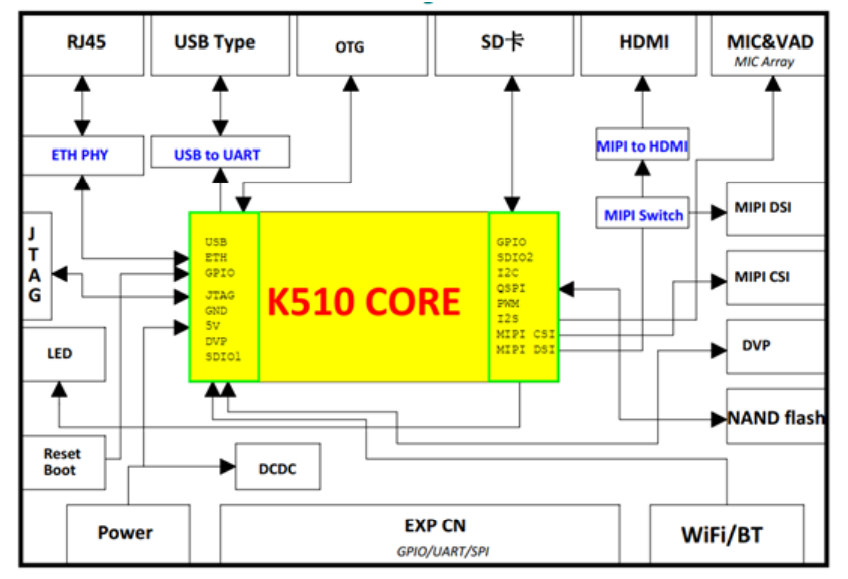

Canaan K510 development board block diagram

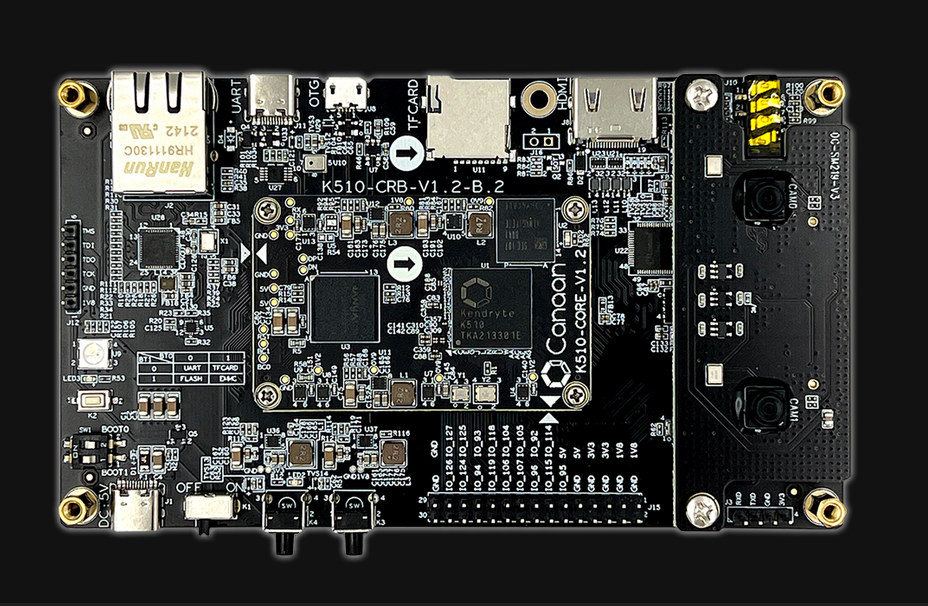

Looking more closely at the board, we can see the K510-CRB-V1.2 carrier board and the K510-CORE-V1.2 system-on-module.

K510-CRB-V1.2 and K510-Core-V1

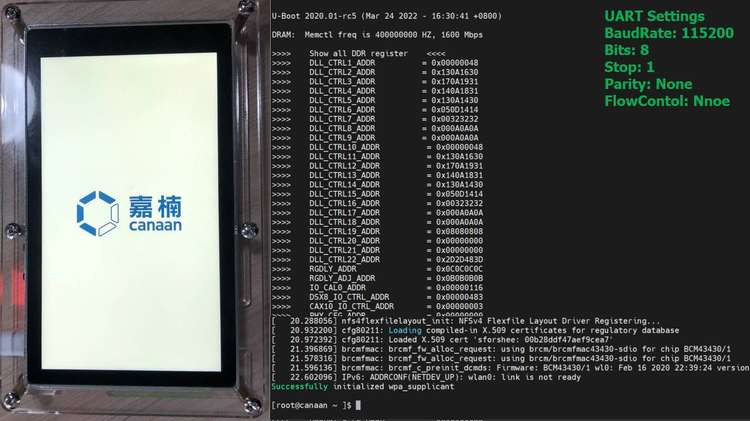

The SDK (K510 buildroot) can be found on Github with instructions in Chinese only at this time, and a relatively short K510 technical reference manual (575 pages PDF) can also be found on Google Drive. The default Linux image comes with a face detection demo that can be started from the serial console.

Canaan K510 Linux

Another Github repository has more detailed hardware and software documentation, and the company posted a few demos such as license plate recognition and face detection on their Bilibili account (That’s the equivalent of YouTube in China).

A few more details (in English) may be found on the product page. The K510 CRB development kit is sold for $199 on Analoglamb. The price is relatively high, but I suppose it’s for people wanting early access to the platform, and later this year, we should probably get more affordable K510 development boards.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
Noloqoq
Noloqoq
2 years ago

Nice to see a second, after D1, available RISC-V general purpose core capable of running Linux. Hope there will be 1 or 2GB boards version soon.

Don’t know what is their GPU, but it looks like they are wrote a Mesa DRM (Direct Rendering Manager) compatible driver: https://github.com/kendryte/k510_docs/blob/main/zh/K510_Drm_Developer_Guides.md

Forty-Bot
Forty-Bot
2 years ago

Has anyone found a copy of the “K510 Register Description”?

Tico
Tico
2 years ago

looks interesting. Where to buy it?

jimmy huang
jimmy huang
2 years ago

amazon or aliexpress, just search “kendryte k510 crb” you’ll see it
