X1501 Pico SoM – MIPS, Linux in a 16x16mm module

We’ve just written about the Notkia phone repurposing Nokia 168x phones with a new PCB featuring an Ingenic X1000E MIPS processor running mainline Linux, but it turns out the developer (Reimu NotMoe, CTO of SudoMaker) has also designed the X1501 Pico SoM, a tiny 16×16 system-on-module equipped with Ingenic X1501 MIPS system-in-package (SiP).

The module can be that small because the single-core 1GHz Ingenic 1501 SiP embeds 8MB LPDDR, as well as apparently a 16Mbit NOR flash that stores stripped-down versions of U-boot and the Linux kernel, plus a minimal, busybox-based rootfs.

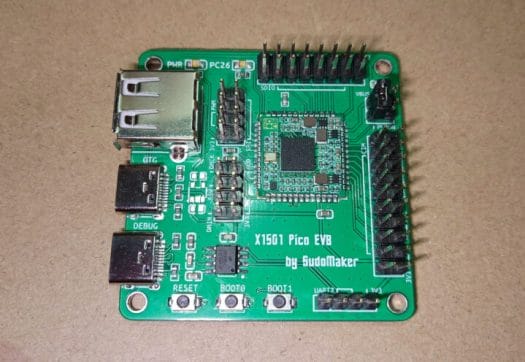

SudoMaker X1501 Pico EVB
X1501 Pico soldered to EVB

X1501 Pico system-on-module specifications:

  • SoC – Ingenic X1501 MIPS32r2 processor @ 1GHz, a MIPSr2 real-time core @ 300 MHz (not shown in datasheet), 8MB LPDDR and 16KB tightly coupled SRAM, 16Mbit NOR flash
  • Castellated holes with USB 2.0 OTG, I2C, SPI, SDIO and DVP, analog mono audio output & digital microphone input
  • EFUSE based Secure Boot
  • Power Management
    • Supply Voltage – 3.0 to 6.0V range for USB, Li-ion, or AA batteries
    • 3.3V/1A buck converter
  • Dimensions – 16 x 16 x 2mm
Ingenic X1501

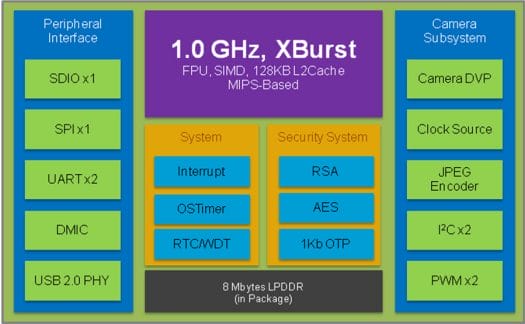

Ingenic X1501 block diagram

The 16MB NOR flash is not listed/shown in the datasheet, but there’s no SPI flash chip on the top of the module (and no photo for the bottom), and Reimu NotMoe refers to it as the “internal NOR flash on X1501“. The IoT processor was originally designed to run real-time operating systems, and 16Mbit (2MB) flash is really tight for Linux. Yet it’s possible to run Linux, and the developer explains the storage breakdown and enabled features in the comments section of the Hackaday post that alerted us of the module:

The uboot is stripped down to around 100KB, and a fresh 5.18 kernel with a few USB gadgets and [HID or ALSA] enabled fits in 1MB. So there’s about 800KB for user code – that’s plenty if you use squashfs for filesystem, and dietlibc or musl for libc. And yes, of course it runs busybox. It aims to be a much faster and easier-to-use replacement of the MCUs with a similar physical size, not a full featured Linux system.

I’ve never heard about the Ingenic X1501 SiP, but the design is close enough to the Ingenic X1000 processor supported in mainline, with fewer pins, a smaller DRAM size, and the extra NOR flash, so only a few changes are needed, and the processor and module will be added to Linux 5.19, at least with partial support.

More details may be found on Hackaday.io, and SudoMaker expects to launch the module and EVB on Crowd Supply in the future.
