MYIR MYC-J1028X CPU module features NXP LS1028A dual Cortex-A72 SoC with time-sensitive networking (TSN)

MYIR has introduced the MYC-J1028X CPU module based on NXP LS1028A dual Cortex-A72 processor with time-sensitive networking (TSN) support, as well as the MYD-J1028X development board with five Gigabit Ethernet ports, and other interfaces to evaluate the solution.

The MYC-J1028X is equipped with 2GB DDR4, 8GB eMMC flash, a 32Kbit EEPROM, and a temperature sensor by default, and exposes all I/Os through a 314-pin MXM 3.0 edge connector. The module also comes with footprints to solder a QSPI NAND Flash, XSPI NOR Flash, and/or ECC memory. Typical applications include industrial routers, industrial control, edge computing, automotive electronics, industrial IoT, and more.

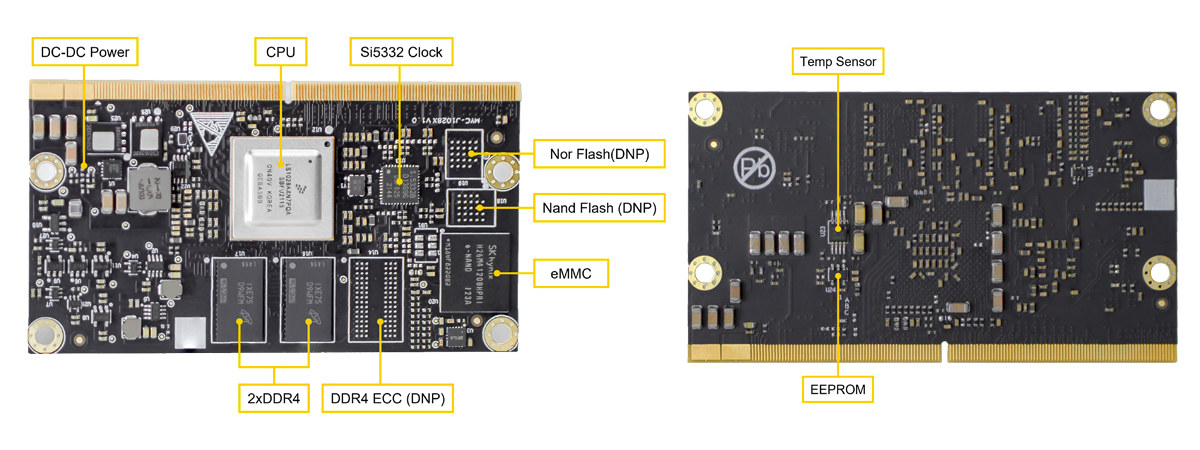

MYC-J1028X CPU module

LS1028A CPU Module

MYC-J1028X SoM specifications:

  • SoC – NXP Layerscape LS1028A (LS1028AXN7PQA) dual-core Cortex-A72 processor @ 1.5 GHz with 3D GPU, integrated TSN Ethernet switches and Ethernet controllers
  • System Memory – 2GB DDR4 (optional 3GB / 4GB DDR4); optional DDR4 ECC
  • Storage
    • 8GB eMMC flash (optional 16GB / 32GB)
    • QSPI NAND Flash (not populated by default)
    • XSPI NOR Flash (not populated by default)
    • 32Kbit EEPROM
  • 314-pin MXM 3.0 edge connector with
    • Storage – 1x SATA 3.0
    • Display I/F – 1x DP1.3/eDP1.4 up to 4Kp60
    • Audio – 6x SAI
    • Networking (SerDes) – 1x SGMII, 1x QSGMII
    • USB – 2x USB 3.0
    • Serial – 2x UART, 6x LPUART, 2x CAN-FD
    • 2x PCIe 3.0
    • 2x SDIO
    • Low speed I/Os – 8x I2C, 3x SPI, GPIOs
    • Debugging – 1x JTAG
  • Misc – Temperature sensor
  • Power Supply – 5V/2A
  • Dimensions – 82 x 45mm (12-layer PCB)
  • Temperature Range – -40 to 85°C (industrial grade)
MYC-J1028X block diagram
Block Diagram

MYiR provides a Ubuntu 18.04 with Linux 5.4.47 and a Yocto 3.2.1-built “Real-time Edge” image with Linux 5.10.9. Both with a complete SDK with open-source drivers available to customers, or in other words, not public.

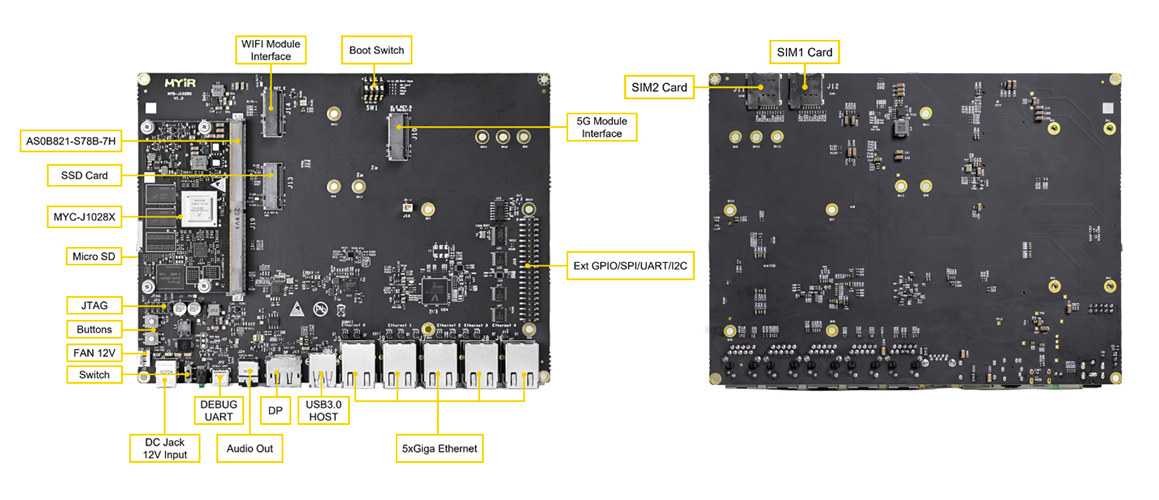

MYD-J1028X development board

LS1028A development board 5x GbE portsSpecifications:

  • SoM – MYiR MYC-J1028X as described above, and fitted with a thick heatsink
  • Storage
    • M.2 Key B SATA 3.0 socket
    • MicroSD card slot
  • Video Output – DisplayPort up to 4Kp60
  • Audio – 3.5mm audio jack
  • Networking
    • 5x Gigabit Ethernet RJ45 ports with TSN support
    • Optional WiFi via M.2 socket (See Expansion section)
    • Optional 5G module via M.2 socket (see Expansion section) + 2x SIM card slots
  • USB – 1x USB 3.0 Host port
  • Expansion
    • 40-pin Raspberry Pi-compatible expansion header with GPIO, SPI, 2x UART, I2C and supporting MY-WIREDCOM RPI RS485, RS232 and CAN module
    • M.2 Key B socket (USB 3.0) for optional 5G module
    • M.2 Key E PCIe 3.0 socket for optional WiFi module
    • M.2 Key B SATA 3.0 socket
  • Debugging – Debug UART (TTL, USB Type-C connector)
  • Misc – Power switch, reset and user buttons, power LED
  • Power Supply – 12V/2A via DC jack
  • Dimensions – 200mm x 150mm (4-layer PCB)
  • Temperature Range – -40 to 85°C (industrial grade)

LS1028A CPU module heatsink

MyIR MYC-J1028X LS1028A CPU module is sold for $179 for single unit orders in its default configuration, and the MYD-J1028X development board goes for $279 with the baseboard, module, USB cable, 12V/2A power adapter, and a Quick Start Guide. You’ll find more details and purchase links on the product page.
