SolidRun launches 16-core LX2162A LX2-Lite SOM and ClearFog LX2-Lite development board

SolidRun has launched the LX2-Lite SOM based on NXP Layerscape LX2-Lite SoC with up to 16 Arm Cortex-A72 cores, together with ClearFog LX2-Lite development platform equipped with two SFP28 cages up to 25Gbps each, two SFP+ cage up to 10Gbps each, and eight Gigabit Ethernet RJ45 ports for networking applications.

With a footprint measuring just 58 x 48mm, or about 25% the size of a standard COM Express 7 module, the company claims the LX2-Lite Mini SOM, based on LX2162A, is the smallest 16-core SOM platform in the world, and the module and development board target high-performance SD-WAN, network security, and industrial control solutions.

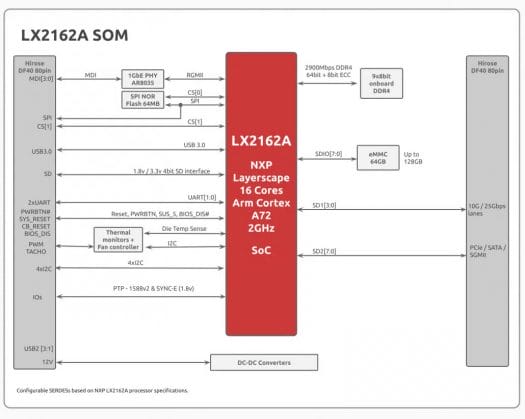

SolidRun LX2-Lite SOM

Specifications:

  • SoC (one of the other)
    • NXP Layerscape LX2082A with 8x Cortex A72 cores @ 2.0 GHz
    • NXP Layerscape LX2122A with 12x Cortex A72 cores @ 2.0 GHz
    • NXP Layerscape LX2162A with 16x Cortex A72 cores @ 2.0 GHz
  • System Memory – Up to 32GB DDR4 (single channel); Note: dual-channel 64GB RAM is available upon request
  • Storage – 8GB eMMC flash, 8MB SPI flash
  • 3x Hirose DF40 board-to-board connectors with
    • Storage – SD, PCIe-SSD, up to 4x SATA ports (Configurable SD2 SERDESs), 1x SD/MMC
    • Ethernet
      • 4x 25 GbE or 1x 100 GbE
      • 4x 10GbE w/ built in PHY
      • Up to 8x Gigabit Ethernet with Sync-E, 1588-V2 support (Configurable SD2 SERDESs)
    • USB – 1x USB 3.0
    • PCIe – Up to 8x PCIe Gen 3.0 via 2 controllers (Configurable SD2 SERDESs)
    • Low-speed I/Os – 4x I2C, 2x UART, GPIO
    • Debugging – JTAG
    • I/O voltage – 3.3V/1.8V
  • Supply Voltage – 12V
  • Dimensions – 55 x 48 mm
  • Temperature – 0°C to 70°C
  • Humidity – 10% – 90% (non-condensing)

Software-wise, the module supports Linux, DPDK (Data Plane Development Kit), UEFI, and NXP Layerscape Secure Boot. Debian, Ubuntu, and Yocto-built Linux operating systems can run on the platform. With the launch of LX2-Lite SOM, we now have more details including hardware and software documentation.

The module was previously introduced in August 2021 as the SolidRun LX2162A SOM, as a more compact and cost-optimized version of the company’s COM Express Type 7 computer-on-module based on NXP LX2160A 16-core Arm Cortex A72 communication processor with the differences between the two summarized in the table below.

LX2162A SOM vs LX2160A COM Express

ClearFog LX2-Lite development platform

The ClearFog LX2-Lite is the cost-down version of the ClearFox CX-LX2K networking SBC replacing the LX2160A SOM with the new LX2162A LX2-Lite SOM, and trimming out some ports.

ClearFog LX2-Lite

Key features of ClearFog LX2-Lite:

  • Supported SOM – LX2-Lite SOM
  • Storage – MicroSD card for initial boot
  • Networking
    • 2x SFP+ cages (25GbE each)
    • 2x SFP+ cages (up to 10GbE each)
    • 8x RJ45 ports (1GbE each)
    • Optional mPCIe wireless modules plus SIM card socket for 4G LTE, 5G, WiFi 6
  • USB
    • Micro USB debugging port
    • Mini USB to STM32 for remote management
    • 1x USB 3.0 port
  • Expansion – GPIO header, 2x mPCIe sockets
  • Misc – Optional RunBMC compliant socket, reset and power button, RTC+battery
  • Power – 12V via DC jack or ATX power connector
  • Dimensions – 170 x 137mm

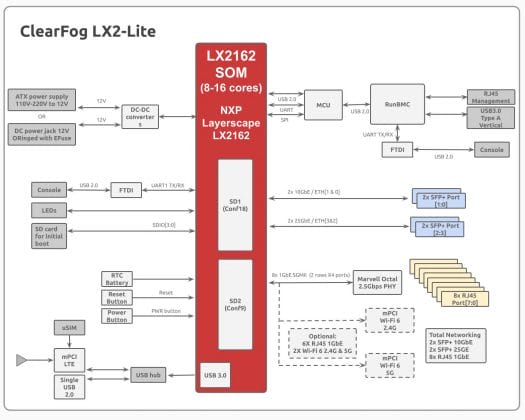

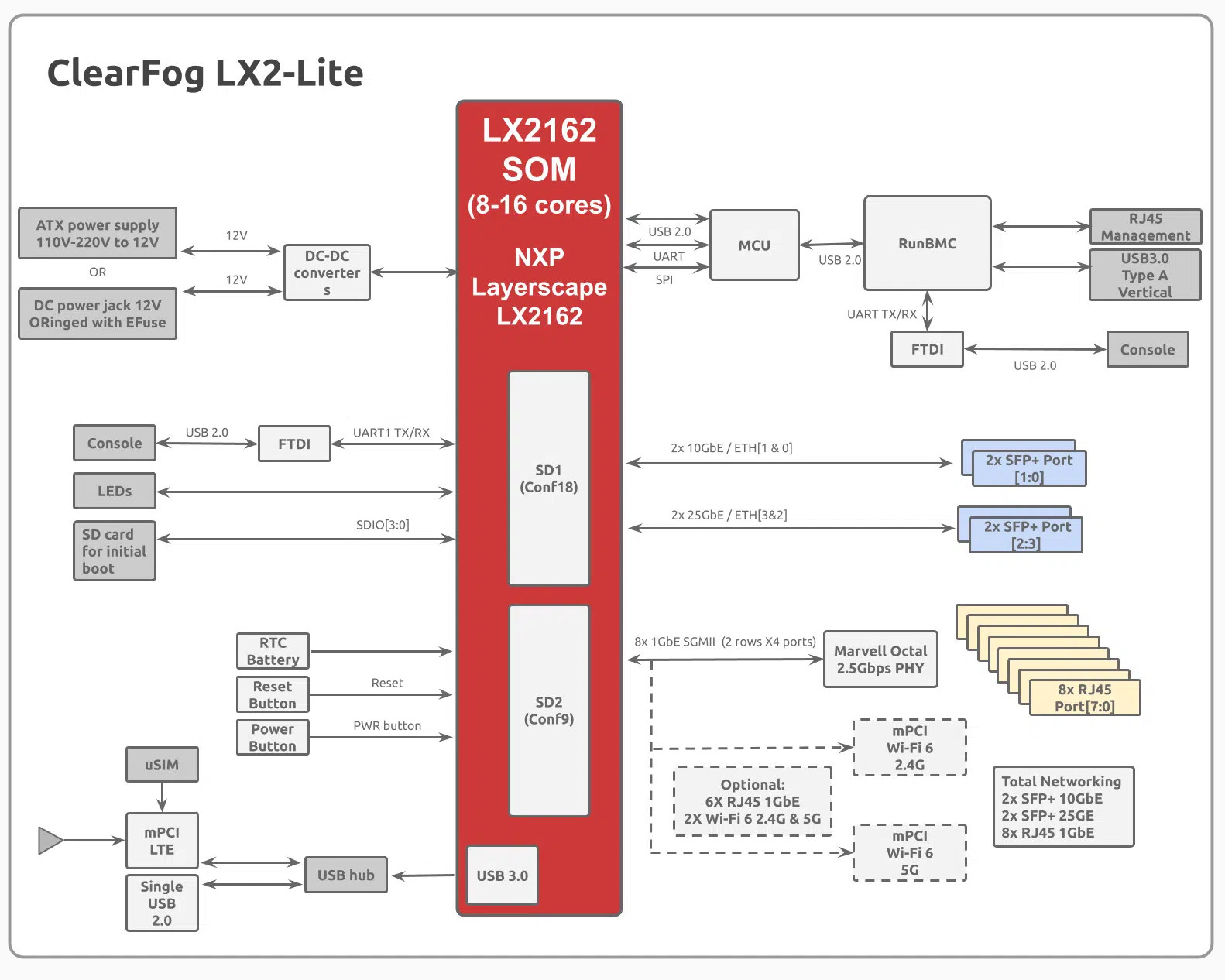

ClearFog LX2 Lite block diagram

While pricing for the SOM has not been determined or made public yet, the ClearFog LX2-Lite development platform is available now for $870 with 8GB RAM and $1,197 with 32GB RAM. Both kits ship with the ClearFog LX2162A carrier board, LX2162A SOM, a 12V/1.5A power adapter, a 16GB MicroSD card as well as a heatsink and fan

More details can be found on the product page and press release.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
tkaiser
tkaiser
2 months ago

> ship with the ClearFog LX2162A carrier board, LX2162A SOM, a 12V/1.5A power adapter

A 18W power brick for something where the SoM is already labeled ‘Max 40W’?

Joel
Joel
2 months ago

They’ve been all over the place on power since the Honeycomb board first came out. I really wanted one and got in contact with SolidRun, and they couldn’t tell me what the power draw was. I was even speaking to one of their hardware engineers. It was very strange. It’s almost like they subcontracted out the project to another company and had never seen the board.

Also the price is just totally out to lunch. The original board is still $750, and they just RAISED the price on the ancient 4 core MacchiatoBin board.

Willy
Willy
2 months ago

Wow, I had been considering ordering a Clearfog CN9130 to replace my old clearfog and have something more up to date in my computer bag, but indeed its price has exploded ($301), that’s not an option at all anymore!!!

Willy
Willy
2 months ago

I noticed it as well this week-end on their site and I think it’s a nice addition to the Clearfog family. I’m quite surprised by the choice of splitting the SFP+ in two groups of 10 and 25G instead of using 4x25G that the SoM supports. Another point, if you look closely, the baseboard uses 2.5G PHYs for the GbE ports, while the SoM is limited to 1 GbE. I suspect they intend to later reuse the same baseboard with future SoM that might provide other options.

Theguyuk
Theguyuk
2 months ago

So the 8 core version is like a RPI4 on super steroids.

Nate Carlson
Nate Carlson
2 months ago

That’s an impressive price point for the specs. It’ll be interesting to see what operating systems are supported.

Willy
Willy
2 months ago

Pretty sure these will be the same as on the Honeycomb. Currently running ubuntu 20.04 on mine, and it’s fully functional on 5.10-mainline+44 patches for the 10G ports, which is extremely reasonable!
