SolidRun RZ/G2LC SOM is powered by Renesas RZ/G2LC processor for AI-enhanced HMI applications

SolidRun RZ/G2LC SOM is a system-on-module based on Renesas RZ/G2LC single or dual-core Cortex-A55/M33 processor and designed for AI-enhanced human-machine-interface (HMI) applications, industrial and building automation, video surveillance, IoT, etc…

The module is also equipped with 1GB DDR4 RAM, 8GB eMMC flash, and a wireless module with dual-band WiFi 4 and with Bluetooth 4.2 all packed into a tiny footprint measuring just 47 x 30mm that makes it suitable for space-constrained devices such as video doorbells and compact IP cameras.

Renesas RZ/G2LC system-on-module

SolidRun RZ/G2LC SOM specifications:

  • SoC – Renesas RZ/G2LC single or dual-core Arm Cortex-A55 processor @ up to 1.2 GHz with, 1x Cortex-M33 real-time core, Arm Mali-G31 GPU, H.264 video decoder
  • System Memory – 1GB DDR4 with inline ECC (up to 2GB)
  • Storage – 8GB eMMC flash (up to 64GB), QSPI
  • Networking
    • Wired – Analog Devices ADIN1200 10/100 Mbps Ethernet PHY (CNXSoft remark: As shown in the block diagram below, but that’s an odd choice because all Renesas RZ/G2L processors support Gigabit Ethernet)
    • Wireless – 802.11 a/b/g/n WiFi 4 and Bluetooth 4.2 wireless module with u.FL antenna connector
  • 3x high-density Hirose DF40 board-to-board connectors with
    • Storage I/F – Up to 2x SD/MMC (Note WiFi uses one SDIO if populated)
    • Display I/F – 1x MIPI DSI
    • Camera I/F – 1x MIPI CSI-2
    • Audio – 1x Digital audio serial interface
    • Networking – 10/100Mbps Ethernet
    • USB – 2x USB 2.0 host port
    • 2x CAN Bus
    • Low-speed I/Os – 3x I2C, 2x SPI, 3x UART, GPIO, PWM
    • Debugging – JTAG test point header
  • Supply Voltages
    • Main Voltage – 5V
    • I/O Voltage – 3.3V
  • Dimensions – 47 x 30 mm
  • Temperature Range –  Commercial: 0°C to 70°C; industrial: -40°C to 85°C
  • Humidity (non-condensing) – 10% – 90%
SolidRun RZ/G2LC SOM block diagram
Block Diagram

SolidRun will offer long-term Linux support through the Renesas CIP Linux distribution that gets updates for at least 10 years once a processor is released. SolidRun RZ/G2LC SOM is pin-to-pin compatible with the company’s NXP i.MX8 Mini SOM so customers can switch between the two as needed for a specific application, and the new SoM also works with the Hummingboard Pulse carrier board. An RZ/G2LC Starter Kit is also in the works, but no details are available at this time.

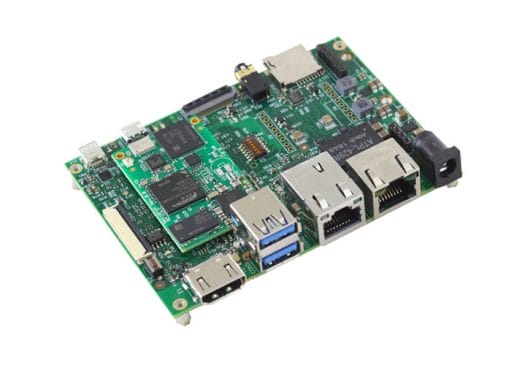

Hummingboard Pulse Renesas RZ/G2LC SOM
Hummingboard Pulse fitted with SolidRun RZ/G2LC SOM

SolidRun RZ/G2LC SOM is available today for $67 USD and up depending on configuration and volume. Visit the product page for more details.

Thanks to TLS for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Notify of
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
1 Comment
Ray Knight
Ray Knight
1 year ago

> Wired – Analog Devices ADIN1200 10/100 Mbps Ethernet PHY (CNXSoft remark: As shown in the block diagram below, but that’s an odd choice because all Renesas RZ/G2L processors support Gigabit Ethernet)

That is likely based on this device support for 10BASE-T1L which allows for a single pair to provide both power and data.
