Silicon Labs announces MG27 and BG27 Bluetooth LE & 802.15.4 SoCs for small devices, healthcare

Silicon Labs has just announced the tiny BG27 Bluetooth LE and MG27 multiprotocol wireless SoCs designed for small devices, and they will be especially useful in connected health applications, or the so-called Internet of Medical Things (IoMT), as well as wearables, sensors, switches, smart locks, and commercial and LED lighting.

Both chips feature a Cortex-M33 core clocked at 76.8 MHz, up to 768KB flash, and up to 64KB RAM, but the BG27 only supports Bluetooth LE, Mesh, and propriety 2.4 GHz connectivity, while the MG27 also adds an 802.15.4 radio for Zigbee, OpenThread, and Matter protocols

BG27 Bluetooth LE SoC
BG27 next to a pill

Silicon Labs BG27 and MG27 specifications:

  • CPU – Arm Cortex-M33 @ 76.8 MHz with DSP instruction and floating-point unit
  • Memory – Up to 64 kB RAM data memory
  • Storage – Up to 768 kB flash program memory
  • 2.4 GHz Radio
    • BLE 5.3
    • Bluetooth mesh
    • Proprietary 2.4 GHz
    • MG27 adds
    • Modulation – (G)FSK with fully configurable shaping, OQPSK DSSS, (G)MSK
    • Radio Performance
      • -102.3 dBm sensitivity @ 250 kbps O-QPSK DSSS
      • -106.7 dBm sensitivity @ 125 kbps GFSK
      • -98.9 dBm sensitivity @ 1 Mbit/s GFSK
      • -96.2 dBm sensitivity @ 2 Mbit/s GFSK
      • TX power up to 8 dBm
  • Peripherals
    • 16-bit Analog to Digital Converter (IADC)
    • Analog Comparator (ACMP)
    • Up to 26 GPIO
    • 8-channel DMA Controller
    • 12-channel Peripheral Reflex System (PRS)
    • 3x 16-bit Timer/Counter with 3 Compare/Capture/PWM channels
    • 2x 32-bit Timer/Counter with 3 Compare/Capture/PWM channels
    • 32-bit Real Time Counter
    • 24-bit Low Energy Timer for waveform generation
    • 1x Watchdog Timer
    • 2x USART  (UART/SPI/SmartCard (ISO 7816)/IrDA/I2S)
    • 1x Enhanced UART Tx/Rx (EUART)
    • 2x I2C interface with SMBus support
    • Digital microphone interface (PDM)
    • Precision Low-Frequency RC Oscillator to replace 32 kHz sleep crystal
    • RFSENSE with selective OOK mode
    • Die temperature sensor with +/- 1.5 °C accuracy after single-point calibration
    • Coulomb counter integrated into DC-DC
  • Security Features
    • Hardware Cryptographic Acceleration for AES128/192/256, SHA-1, SHA-2/256, ECDSA+ECDH(P-192, P-256)
    • True Random Number Generator (TRNG)
    • Arm TrustZone
    • Secure Boot (Root of Trust Secure Loader)
    • Secure Debug Unlock
    • DPA Countermeasures
    • Customer Key Management with PUF
    • E-Tamper
    • Secure Attestation
  • Supply Voltage
    • 1.8 V to 3.8 V single power supply for devices with Buck DC-DC
    • 0.8 V to 1.7 V single power supply for devices with Boost DC-DC
  • Power consumption
    • 4.0 mA RX current (250 kbps O-QPSK DSSS)
    • 3.6 mA RX current (1 Mbps GFSK)
    • 4.1 mA TX current @ 0 dBm output power
    • 9.2 mA TX current @ 6 dBm output power
    • 11.3 mA TX current @ 8 dBm output power
    • 29 μA/MHz in Active Mode (EM0) at 76.8 MHz
    • 1.6 μA EM2 DeepSleep current (64 kB RAM retention and RTC running from LFRCO)
    • 0.18 μA EM4 current
  • Packages
    • QFN40 5 x 5 x 0.85 mm, 0.4mm pitch
    • QFN32 4 x 4 x 0.85 mm, 0.4mm pitch
    • Extra package option for BG27 – WLCSP39 2.291 x 2.624 x 0.5 mm, 0.35 mm pitch
  • Temperature Range – -40°C to 125°C
MG27 Block Diagram
MG27 Block Diagram

The new wireless microcontrollers are programmable through Simplicity Studio for Windows, macOS, and Linux. The IDE provides access to MCU and wireless tools, documentation, software,
source code libraries, and more.

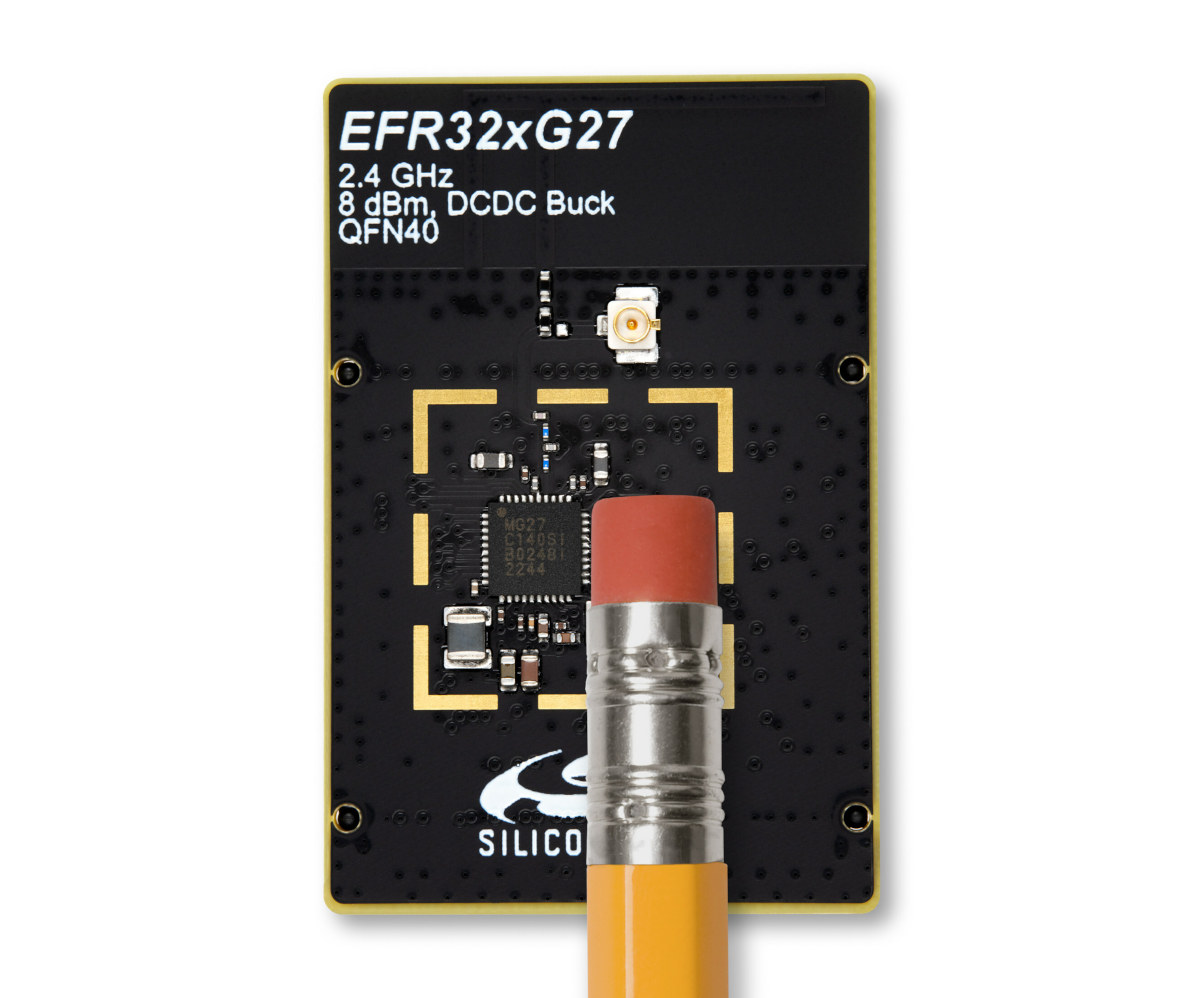

I was unable to find any BG27 or MG27 development kits at this time, but the press release includes a photo of an EFR32xG27 module fitted with an MG27 chip in a QFN40 package.

MG27 wireless module

We’ve previously written about ingestibles such as the BodyCap e-Celsius performance pill designed to monitor the body temperature of athletes, and the BG27 and MG27 microcontrollers seem to be especially well suited to the task. Athletes would just swallow the pill which contains a wireless microcontroller, sensors, and power circuit, to transmit data through a match, and it would exit from the usual place…

Silicon Labs has a more detailed blog post about potential healthcare applications such as smart tooth implants, battery-operated patches, wearable electrocardiograms (ECG), and continuous glucose monitors (CGM). Smart ingestibles pills could also be used for medicine intake monitoring, or even compliance, to make sure a patient has taken his/her medicines, and it raises ethical issues, as non-compliance could lead to fines, losing one’s health insurance, getting fired from one’s job, losing government benefits, or even getting locked inside your own little smart home. In order words, “you’ll take that compulsory pill, and you’ll be happy!” 🙂

More details about the new BG27 and MG27 can be found on the respective product pages. The company also introduced the BB50 general-purpose 8-bit 8051 MCU without wireless connectivity in order to “increase design flexibility while reducing cost and complexity”, as I understand those are software compatible with the wireless parts.
