Beelink SER6 Pro 7735HS Review – Windows 11 benchmarks, USB4 port tested with NVIDIA RTX 3050 eGPU’s

Beelink SER6 Pro 7735HS review

Previously I reviewed Beelink’s SER6 Pro mini PC when it was released with an AMD Ryzen 7 6800H processor, mentioning that a ‘refreshed’ model had since been released. Beelink have kindly sent me this updated model which now uses an AMD Ryzen 7 7735HS. Given this is virtually an identical processor with just a 50 MHz improvement to the boost frequency, this review will look at confirming that the Windows performance is just as good as before and also revisiting the issues faced previously with the USB4 port. Spoiler alert: the USB4 now works perfectly!

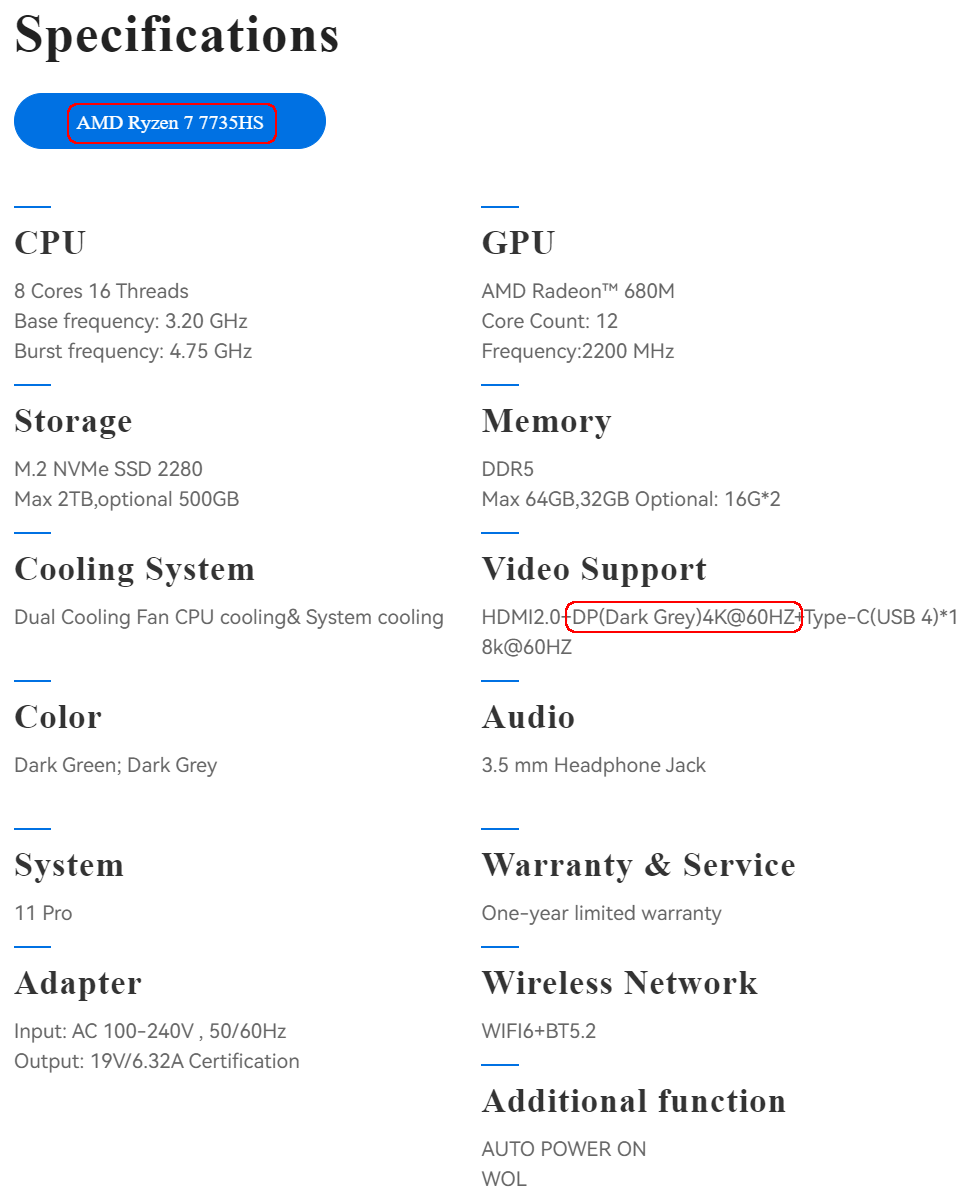

Beelink list the SER6 Pro 7735HS specifications as:

Beelink SER6 Pro 7735HS specifications

with the only differences to the original SER6 Pro being firstly the AMD Ryzen 7 7735HS processor which has a Max Turbo Frequency of 4.75GHz, and secondly that two variations are also available: one with ports exactly the same as the original SER6 Pro and the other which swaps out an HDMI port for a DisplayPort.

Product overview

Overview of hardware

The Beelink SER6 Pro mini PC physically consists of a 126 x 113 x 42mm (4.96 x 4.45 x 1.65 inches) square metal case with a colored breathable/waterproof fabric-covered top. As an actively cooled mini PC, it uses AMD’s Rembrandt-R (or Rembrandt Refresh) Ryzen 7 7735HS processor which is an eight-core 16-thread 3.2 GHz mobile processor boosting to 4.75 GHz and includes AMD Radeon 680M graphics that has 12 graphics cores at a frequency of 2200 MHz.

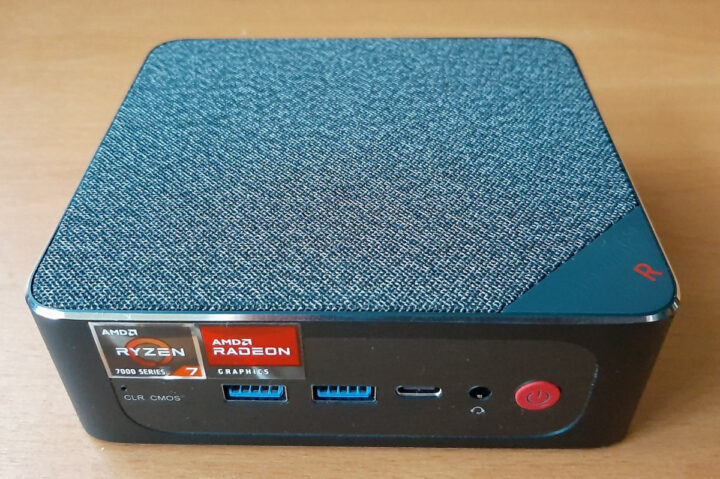

The front panel has an illuminated power button, a 3.5mm headphone jack, a USB4 port, dual USB 3.2 Gen 2 ports, and a reset pin-hole ‘CLR CMOS’. The rear panel includes a 2.5 gigabit Ethernet port, a USB 3.2 Gen 2 port, a USB 2.0 port, and a power jack. Also included on the rear panel, but depending on the variation, are either dual HDMI 2.0 ports or an HDMI 2.0 port and a DisplayPort 1.4 (the review model):

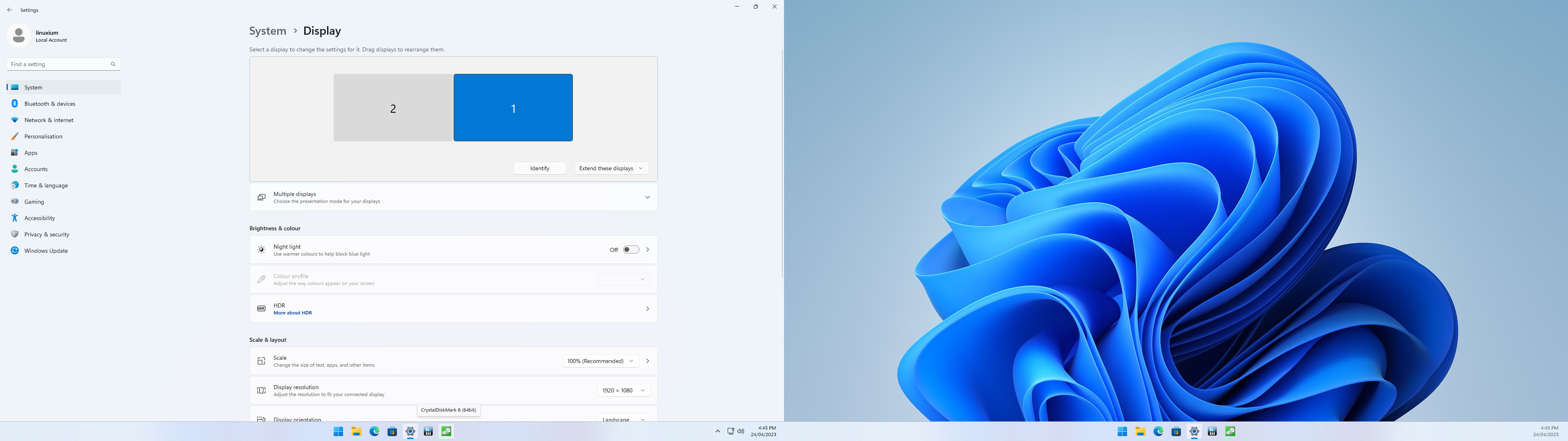

Beelink SER6 Pro 7735HS HDMI DisplayPort Windows 11

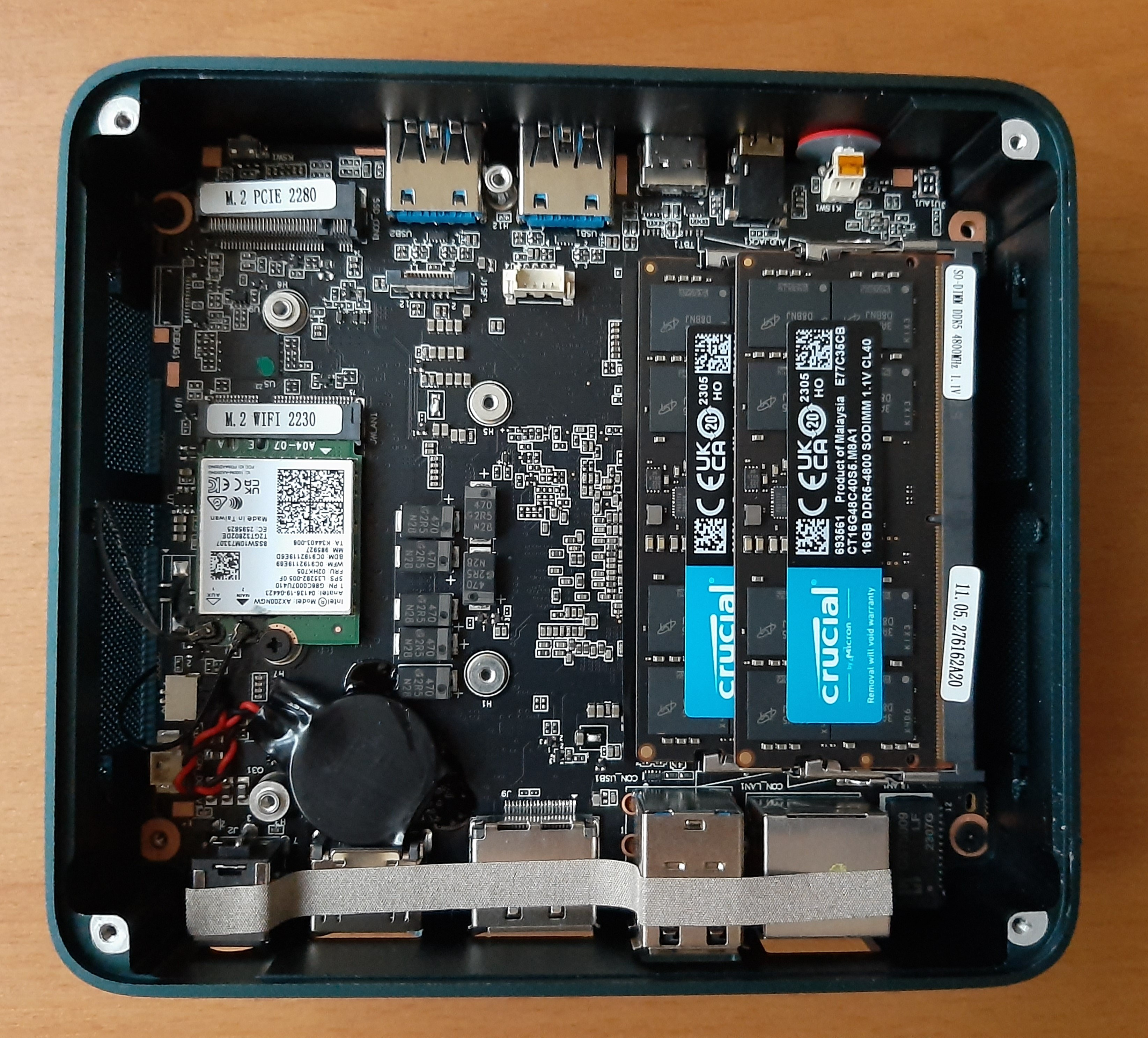

Internally included is an M.2 2280 NVMe PCIe Gen 4.0 SSD drive (the review model included a 500 GB Kingston SNV2S/500G drive complete with Windows 11 Pro installed) and this in turn covers an M.2 2230 WiFi 6 (or 802.11ax) Intel AX200 card which also provides Bluetooth 5.2. There are also two SODIMM memory slots supporting up to 64 GB of memory and the review model included two sticks of Crucial 16 GB DDR5 4800 MHz memory for a total of 32 GB:

Beelink SER6 Pro 7735HS motherboard



Also included in the bottom of the device is a plastic bay that supports adding a 2.5” SATA drive for increased storage and the bay also incorporates a small fan to cool both the drive and the motherboard/memory above it.

SER6 Pro Ryzen 7 7735HS Windows 11 About

In the box, you get a 120.08W (19.0V 6.32A) power adapter and cord, both a short and a longer HDMI cable, a VESA mounting bracket together with a small packet of miscellaneous screws, a replaceable but different colored fabric top and a multilingual user manual.

Overview of software

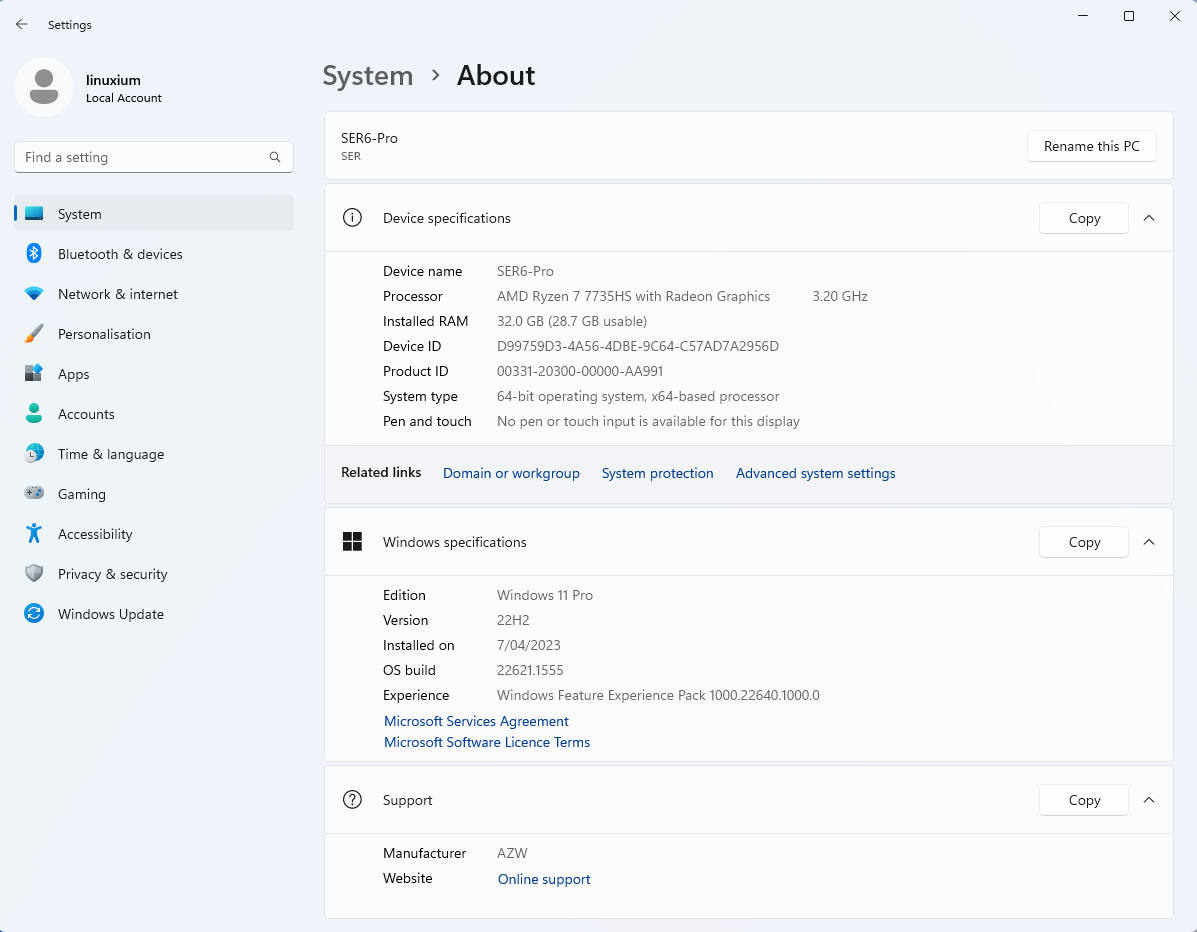

The Beelink SER6 Pro came installed with a licensed copy of Windows 11 Pro version 21H2 build 22000.1281 which I upgraded to the latest 22H2 build 22621.1555 for testing purposes:

SER6 Pro Ryzen 7 7735HS Windows 11 About

Key Observations

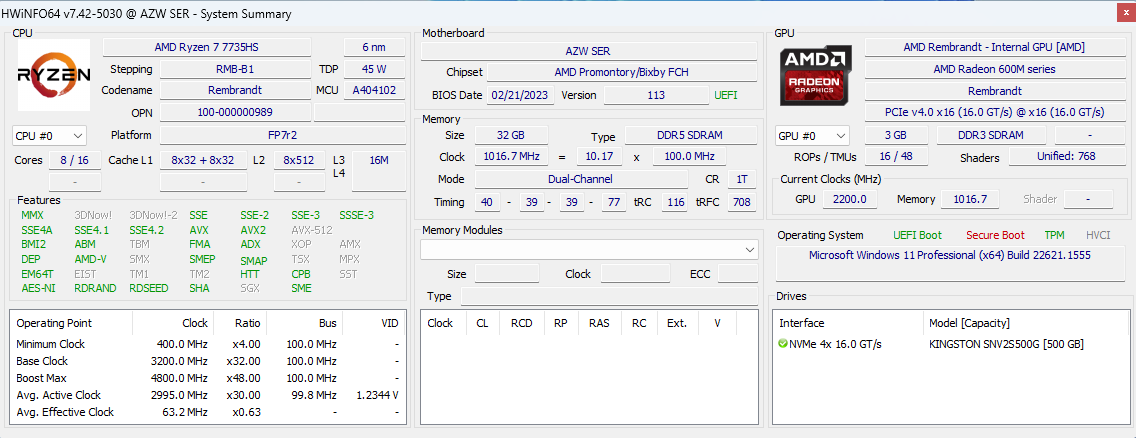

A quick look at the hardware information shows it is aligned with the specification:

HWiNFO64 AZW SER Ryzen 7 7735HS

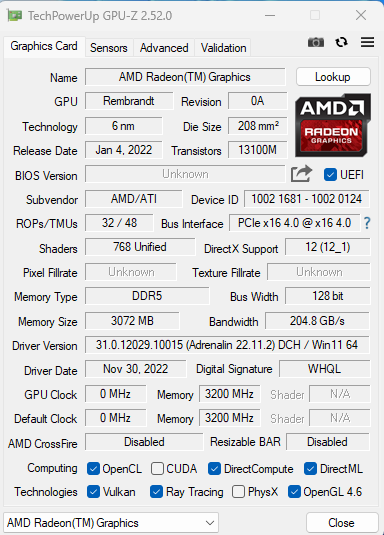

AMD Radeon Rembrandt GPU-Z

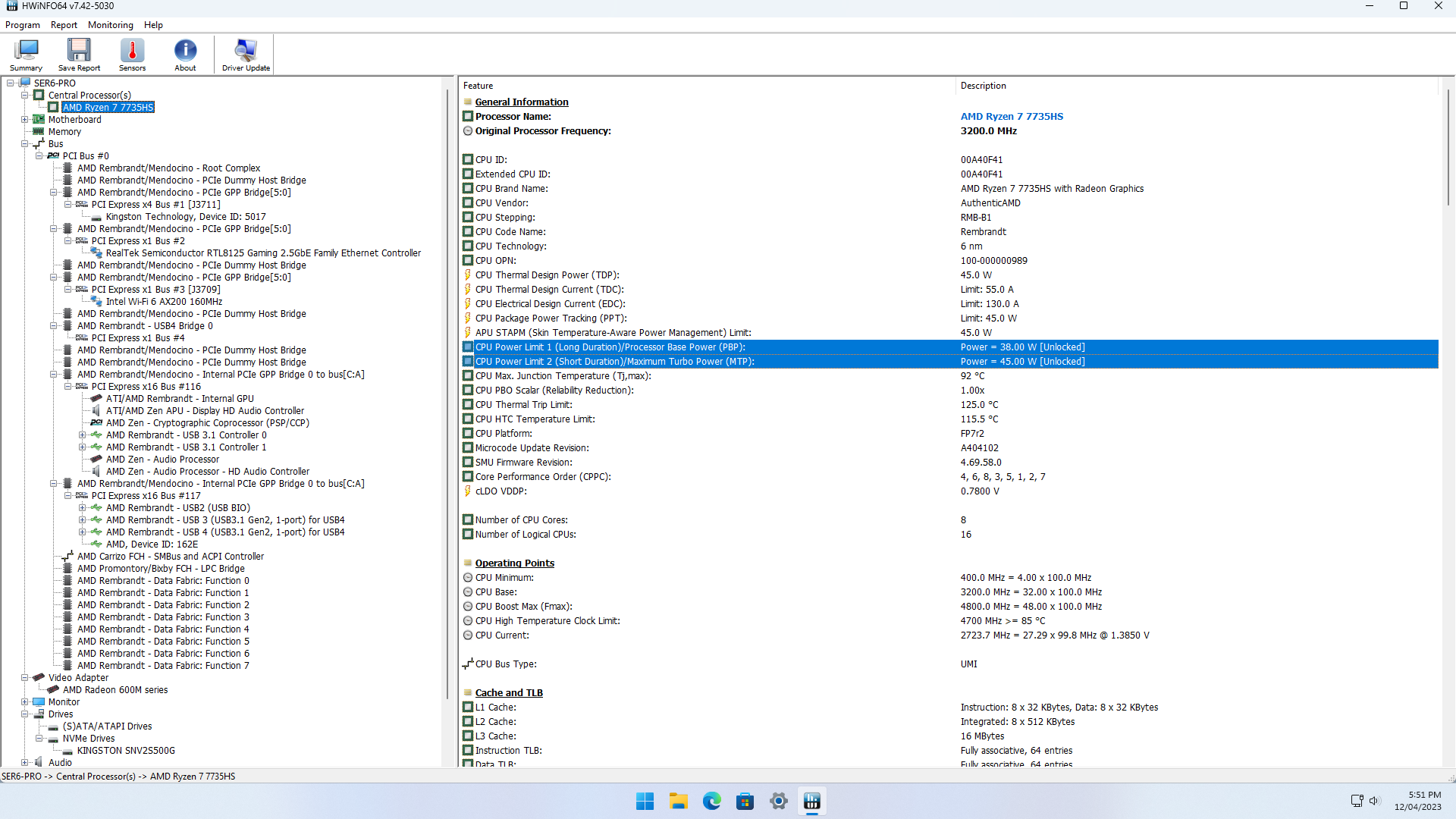

The processor’s ‘Power Limits’ (PL) are configured with ‘PL1’ set to 38 watts and ‘PL2’ set to 45 watts which is the same as the Thermal Design Power (TDP):

AMD Ryzen 7 7735HS CPU Power Limit 1 Limit 2

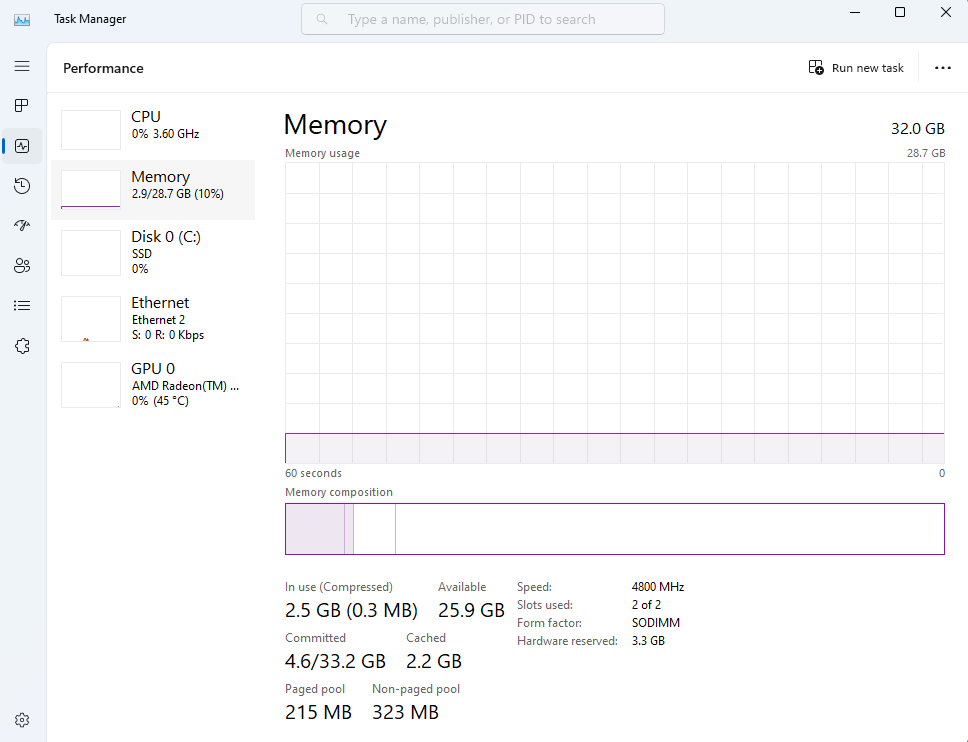

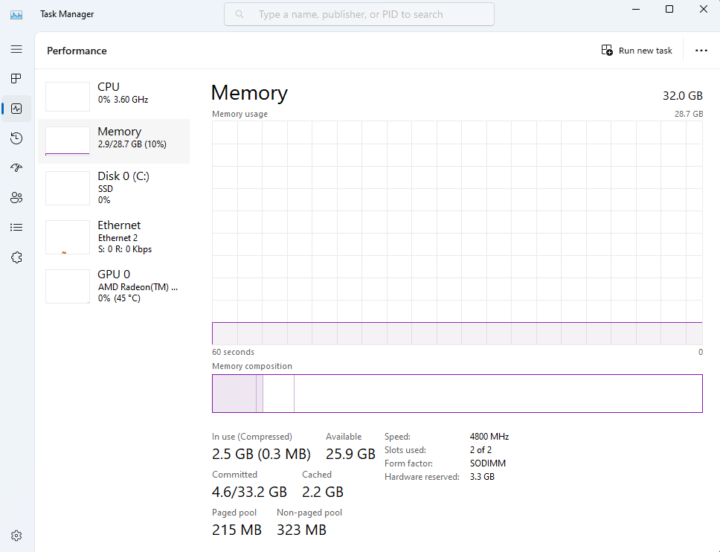

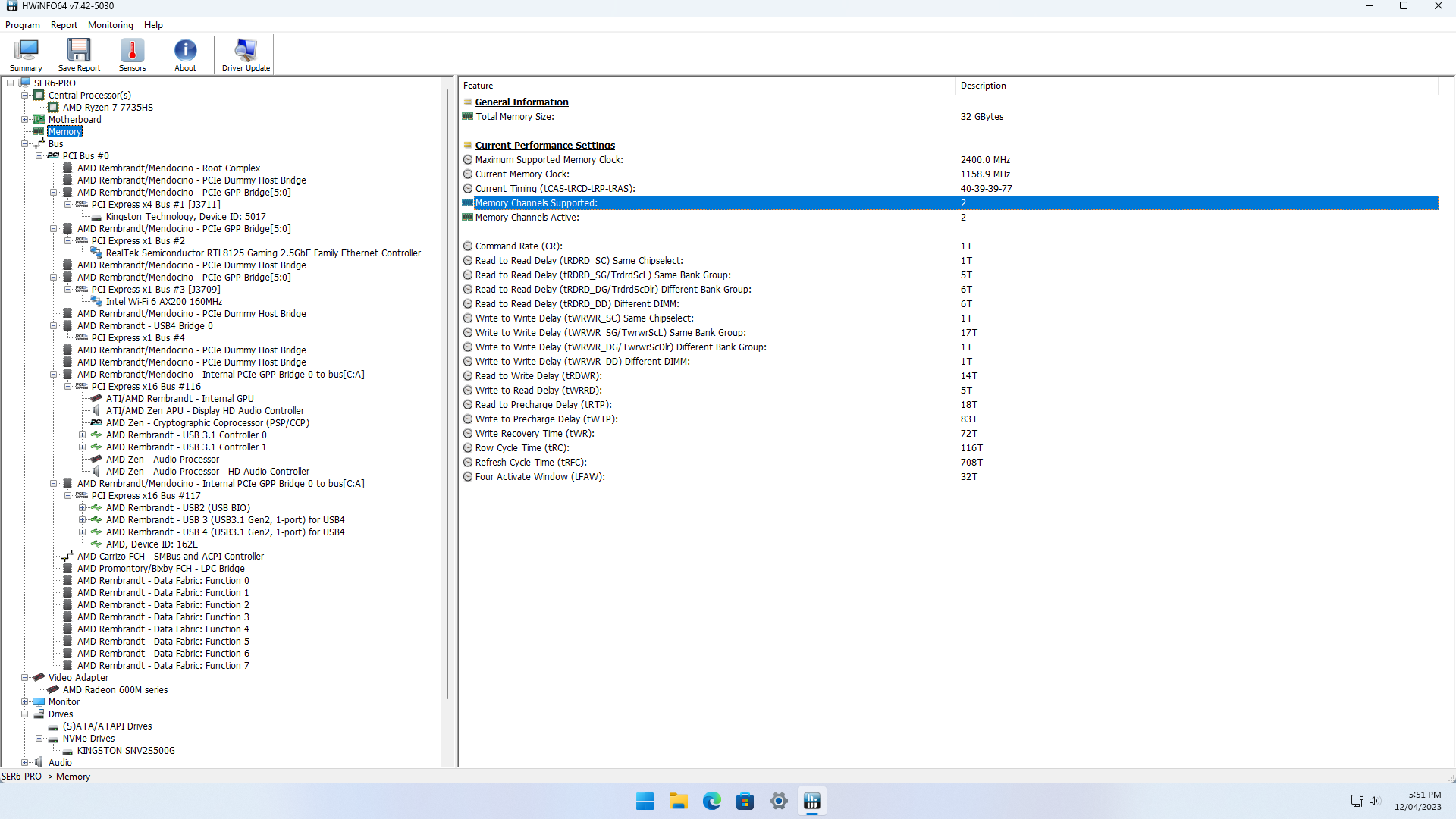

The memory is configured to run at its maximum speed of 4800 MHz:

4800 MHz DDR5 memory Windows 11 Beelink SER6 Pro 7735HS dual channel memory

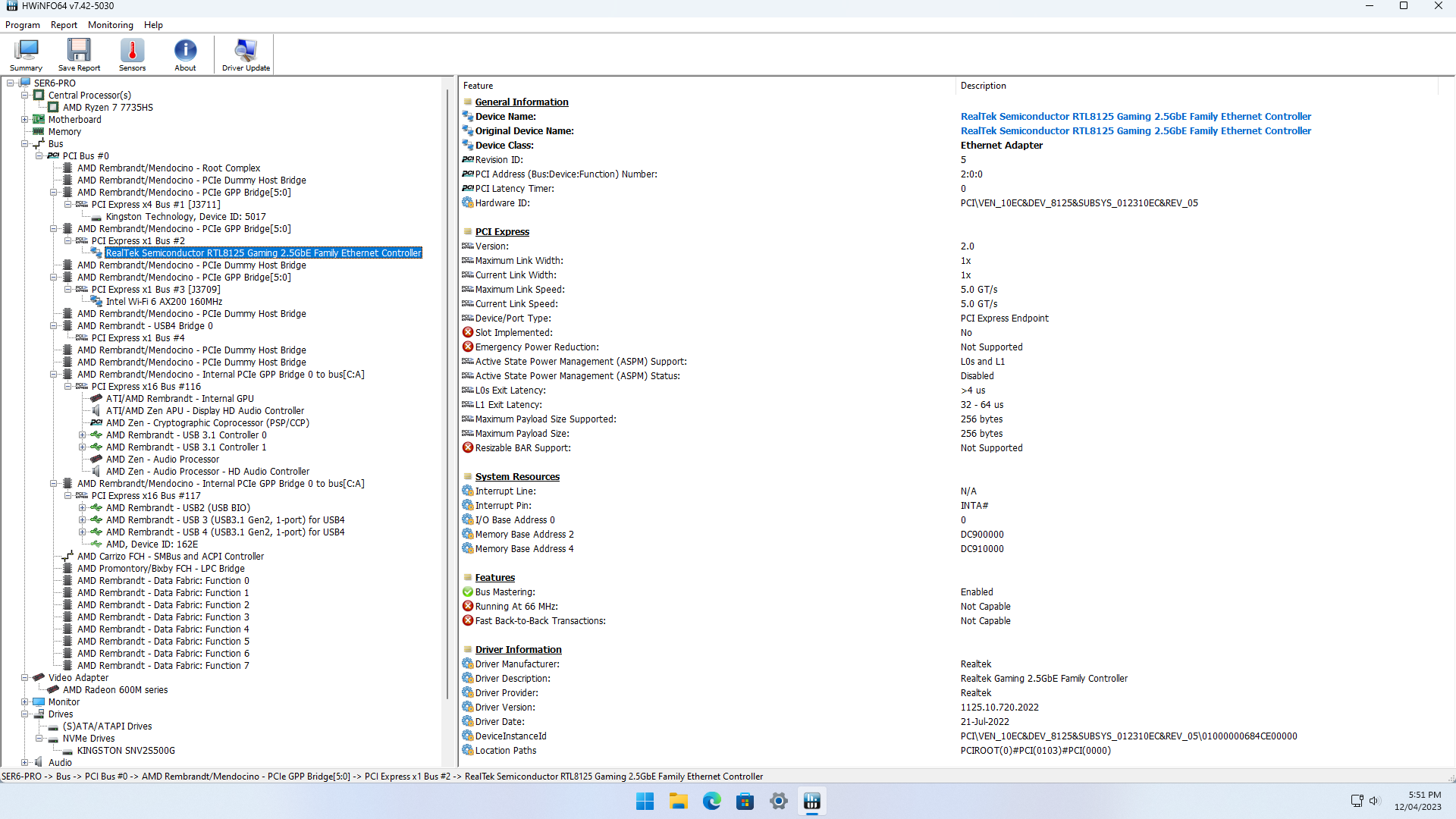

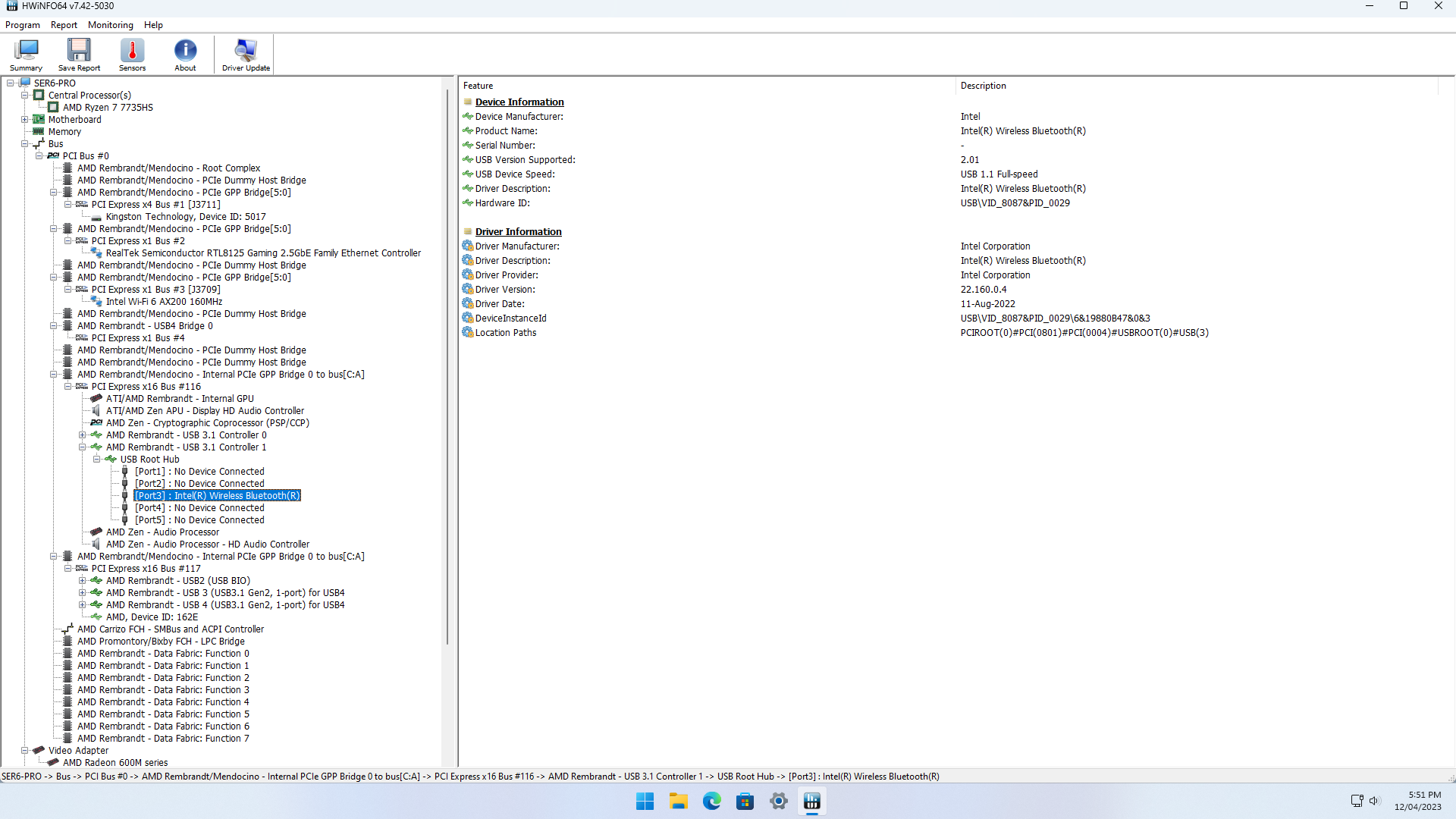

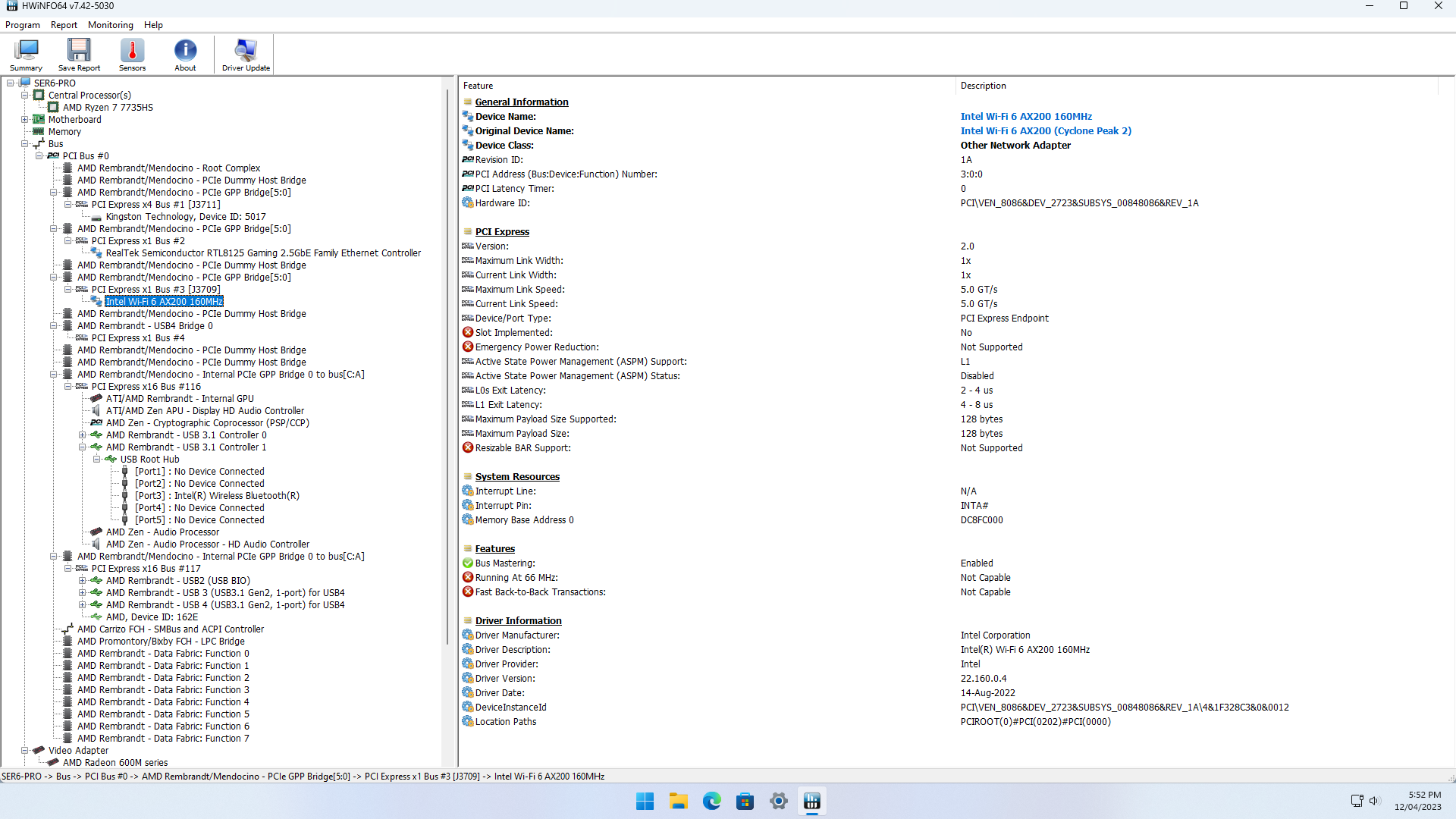

The 2.5 gigabit Ethernet uses a Realtek RTL8125 network interface controller and the WiFi 6 uses an Intel Cyclone Peak AX200 M.2 2230 card which supports 2×2 WiFi 6 technology which theoretically could deliver a throughput of up to 2.4 Gb/s as well as providing support for Bluetooth 5.2:

RTL8125 Gaming 2.5GbE controller Windows 11

WiFi 6 AX200 Windows 11

Beelink SER6 Pro 7735HS Bluetooth Windows 11

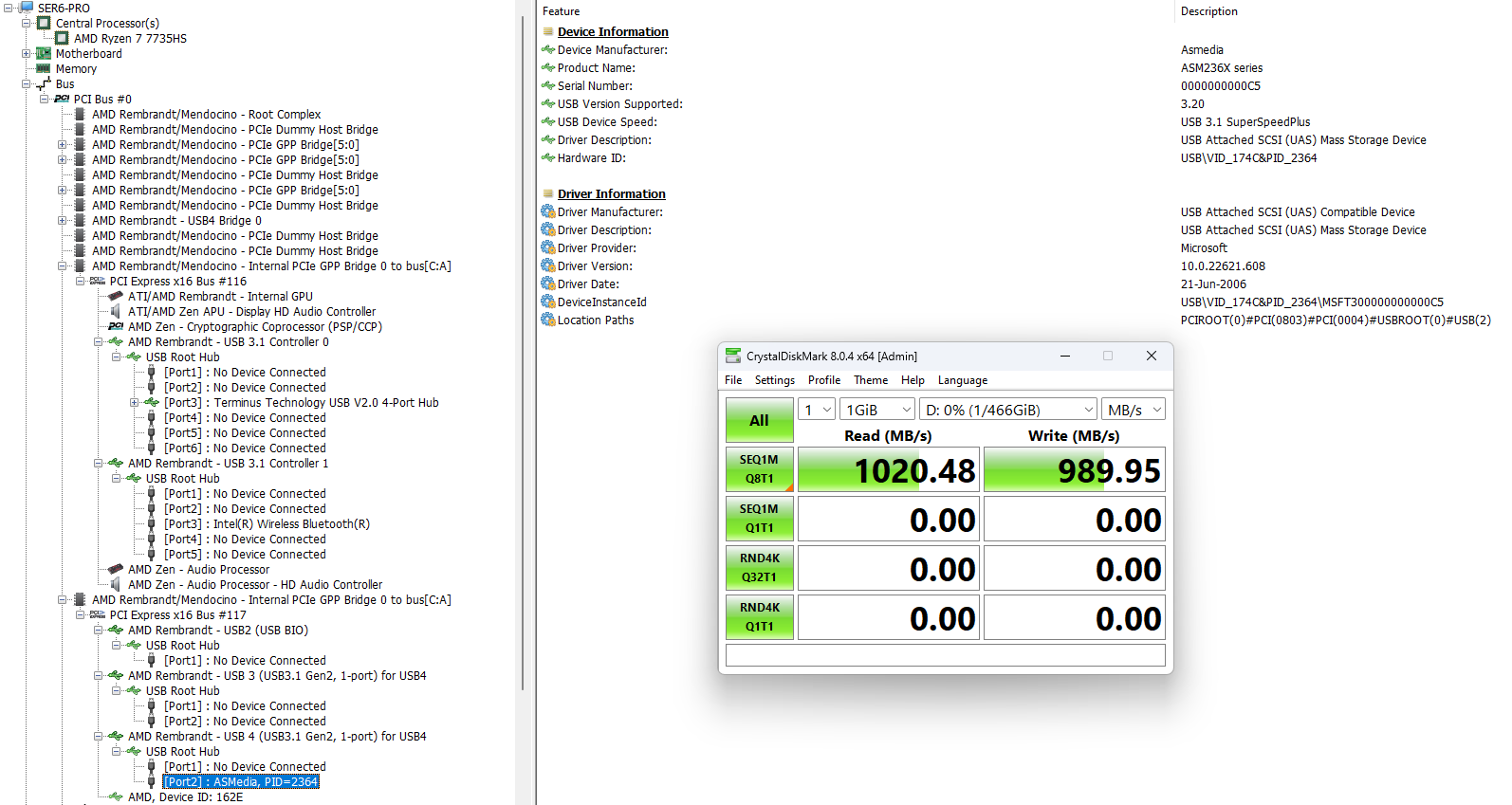

The specification lists all of the Type-A USB ports as 3.2 Gen 2 so I tested them  using a Samsung 980 PRO PCle 4.0 NVMe M.2 SSD housed in an ‘USB to M.2 NVMe adapter’ (ORICO M2PAC3-G20 M.2 NVMe SSD Enclosure) which showed that all the ‘blue’ USB ports were indeed USB 3.2 Gen 2×1 i.e. 10 Gbit/s:

Beelink SER6 Pro 7735HS USB 3.1 port

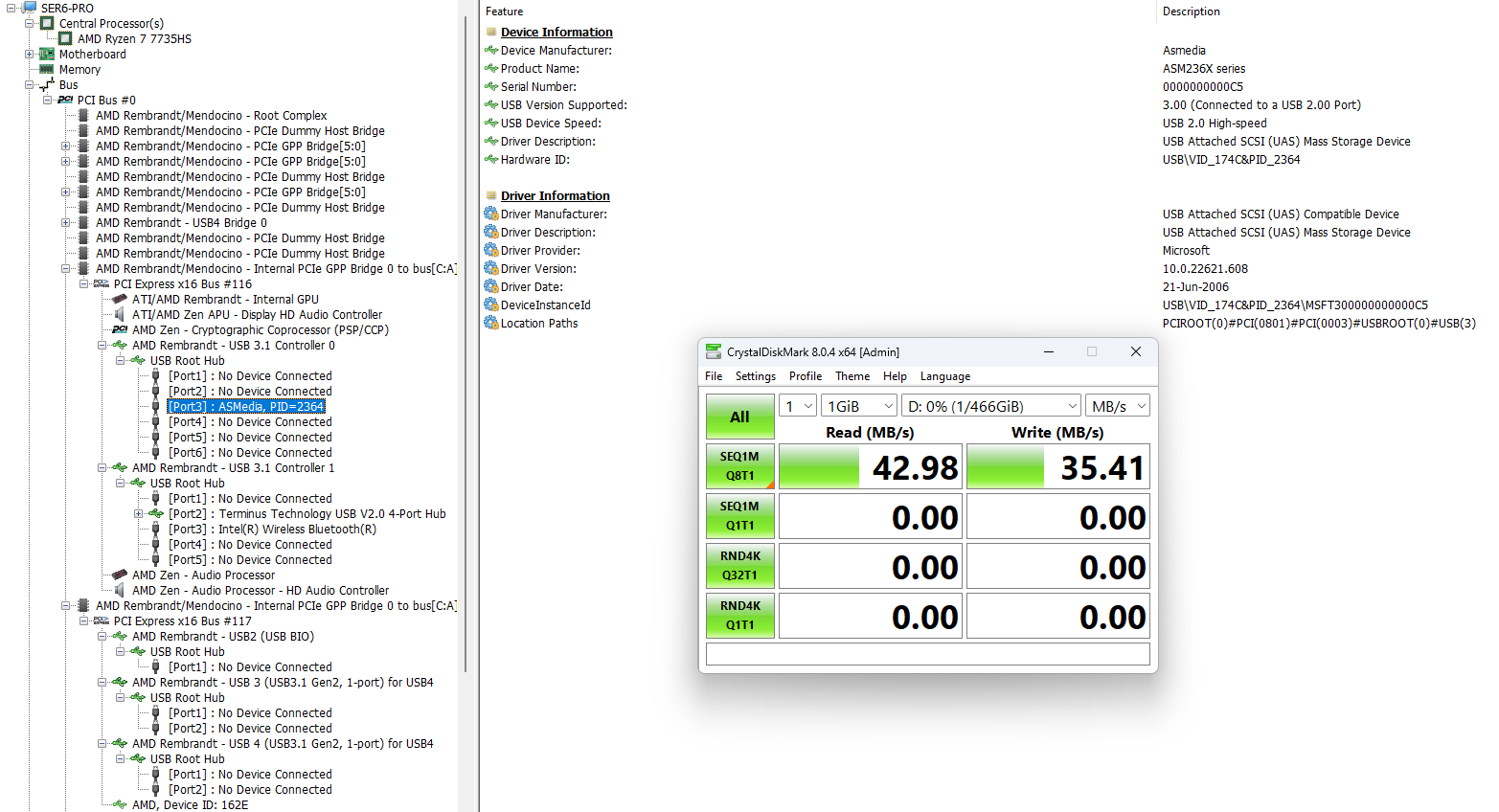

and that the ‘black’ rear USB port was the USB 2.0 port:

Beelink SER6 Pro 7735HS USB 2.0 black port

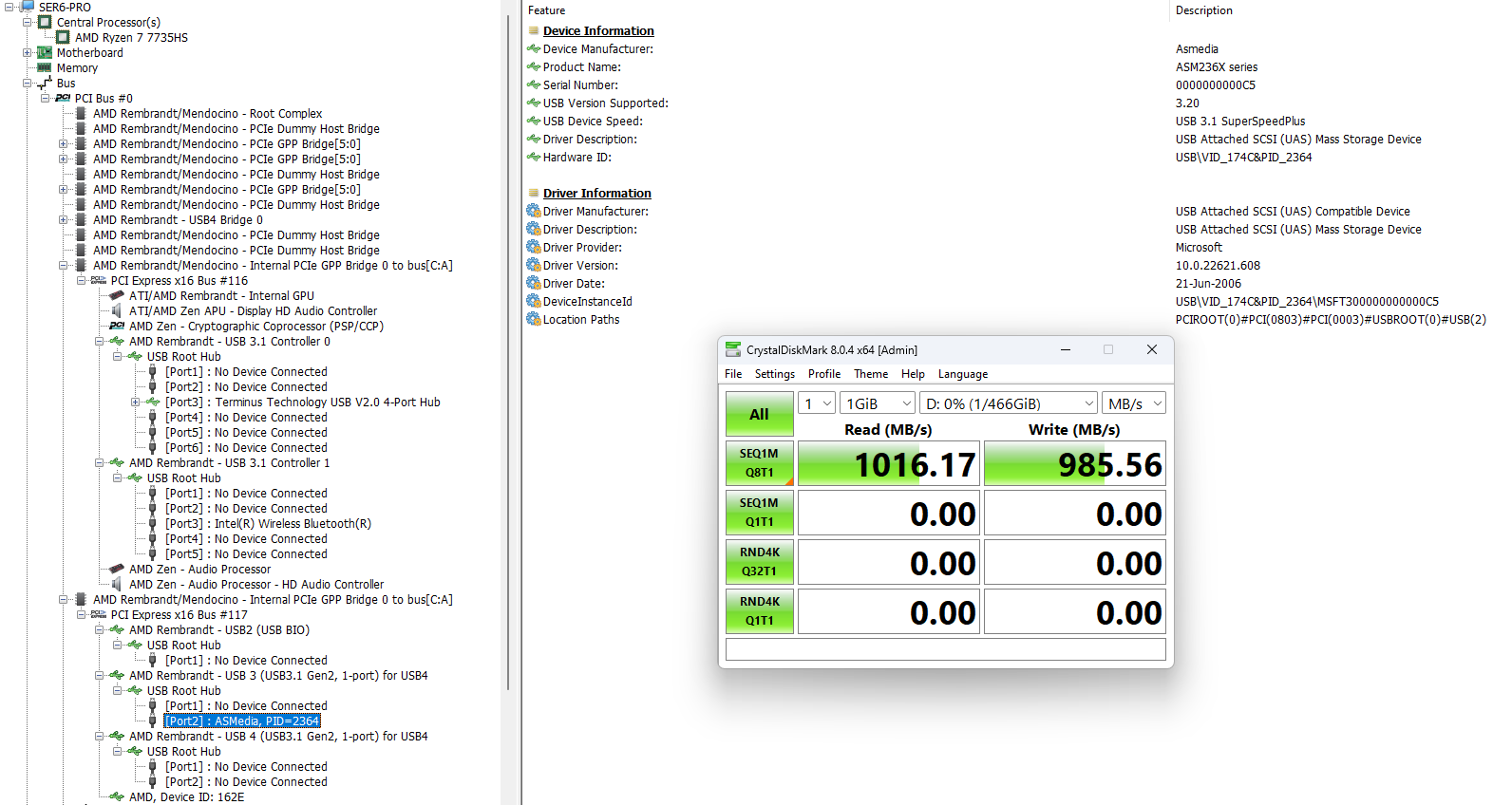

There is also a USB4 port which when tested also ran as USB 3.2 Gen 2×1 i.e. 10 Gbit/s:

Beelink SER6 Pro 7735HS USB4 port 10Gbps



I first set the power mode to ‘High performance’ and ran some well-known benchmarking tools to look at performance under Windows.

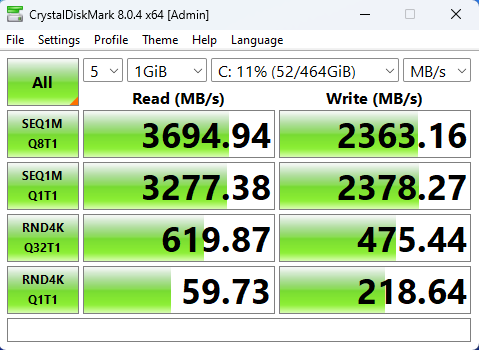

Storage performance from the M.2 NVMe was:

CrystalDiskMark 500 GB NVme SSD

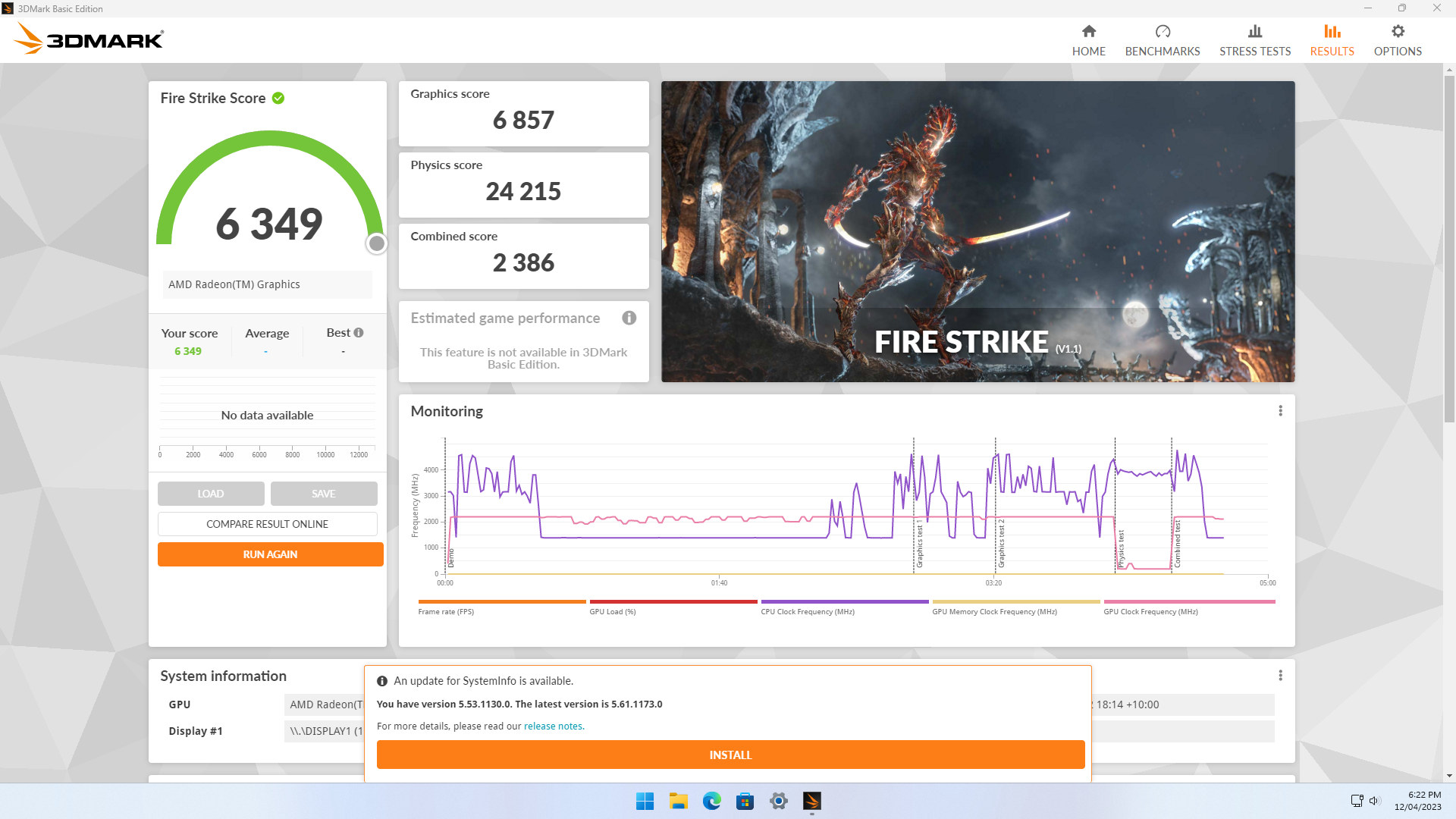

The overall Windows performance was:

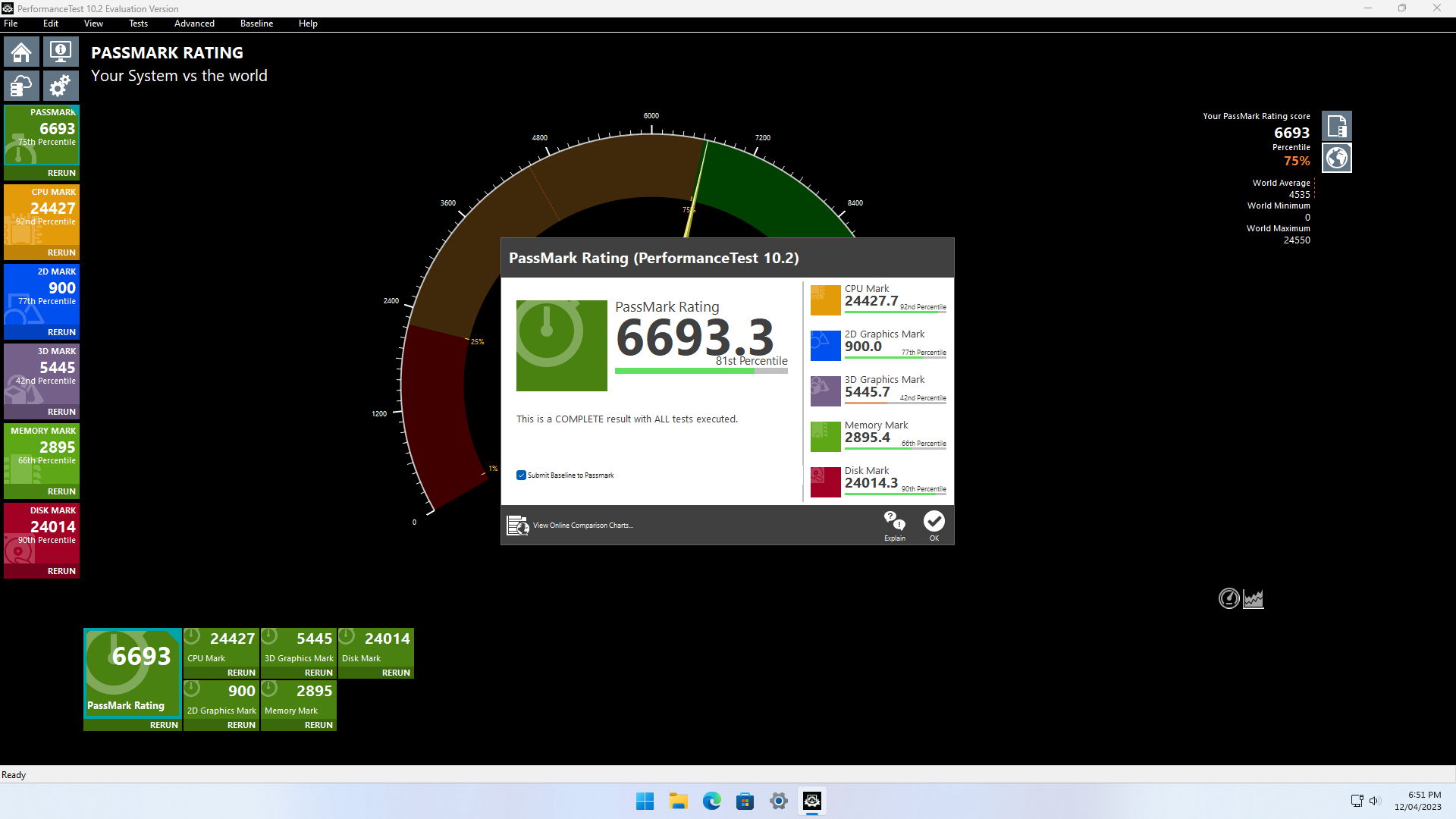

Beelink SER6 Pro 7735HS 3DMark Fire Strike benchmark Beelink SER6 Pro 7735HS PassMark PerformanceTest 10.2 benchmark

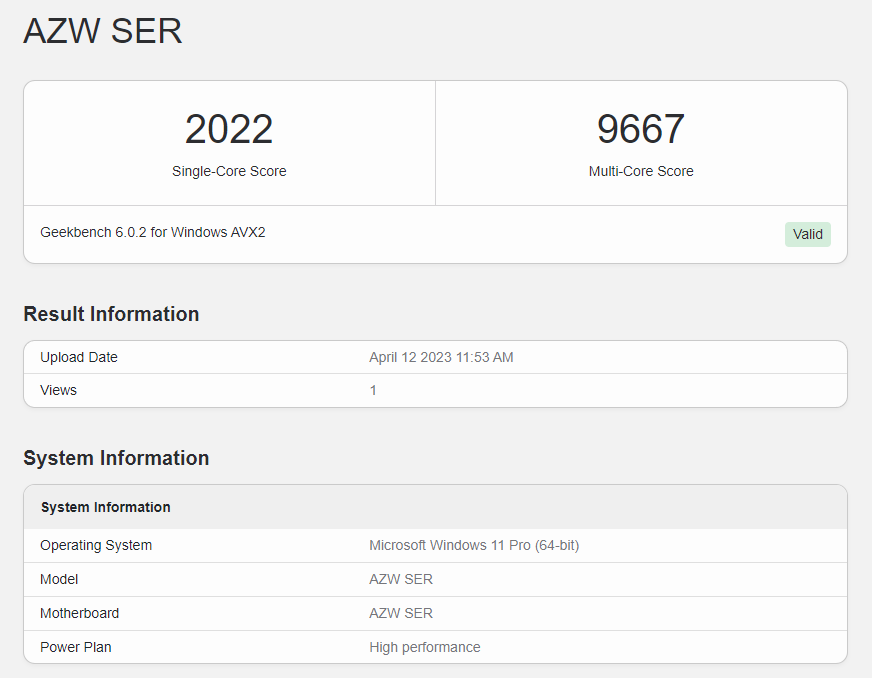

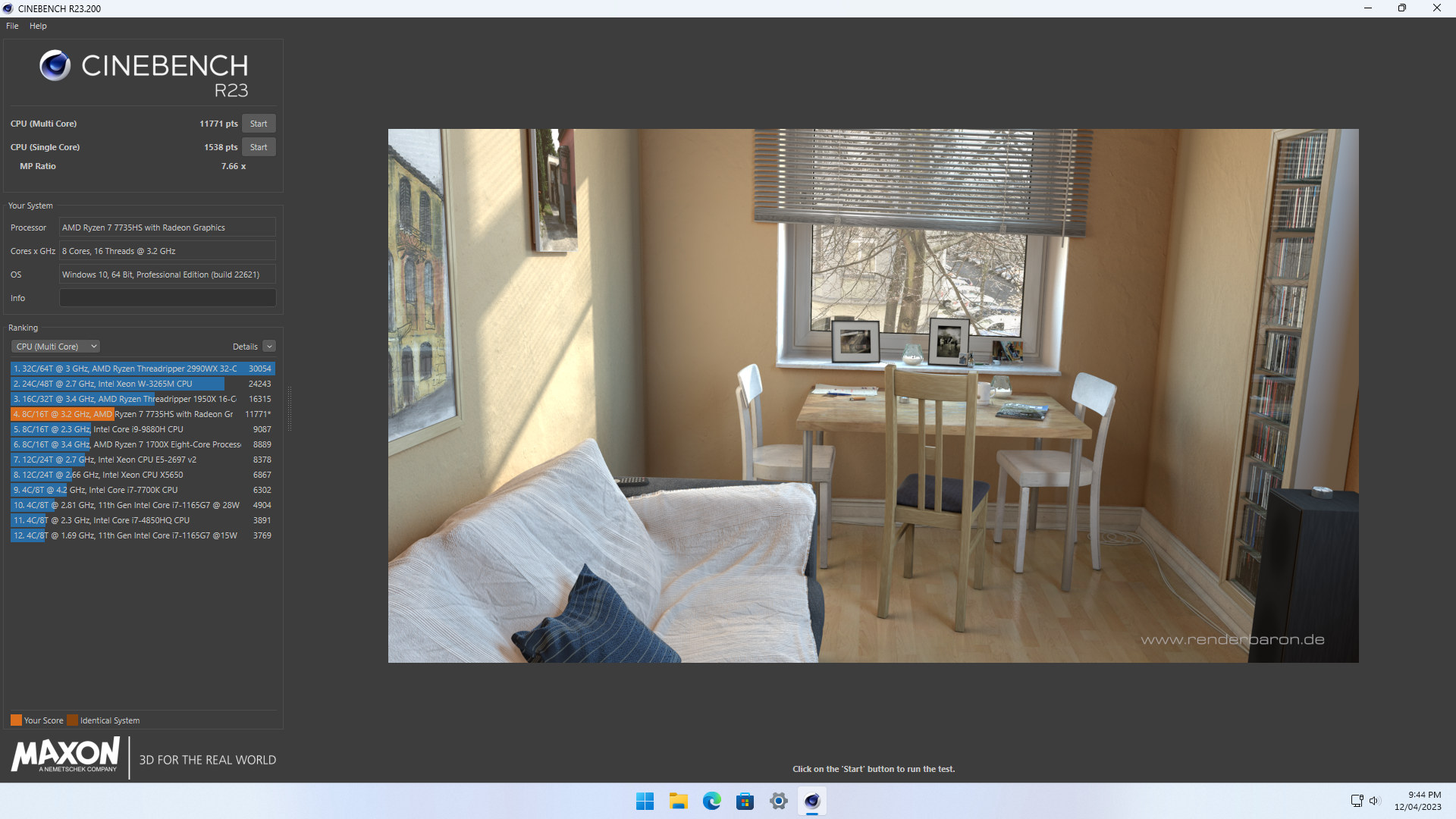

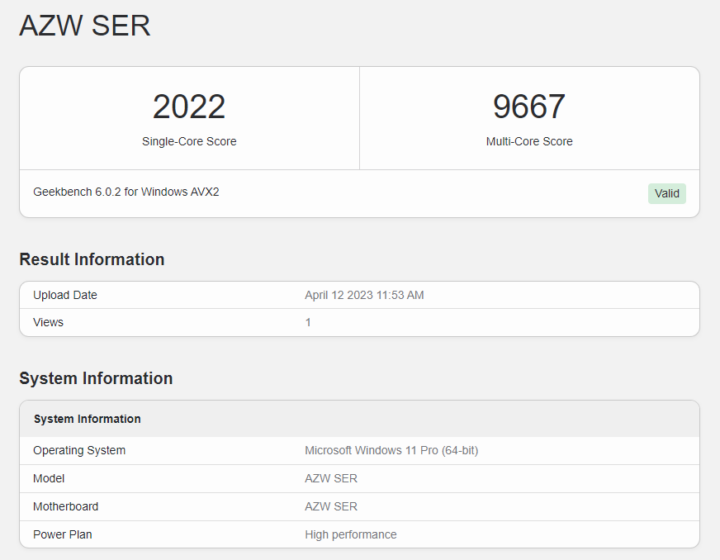

with CPU performance measured as:

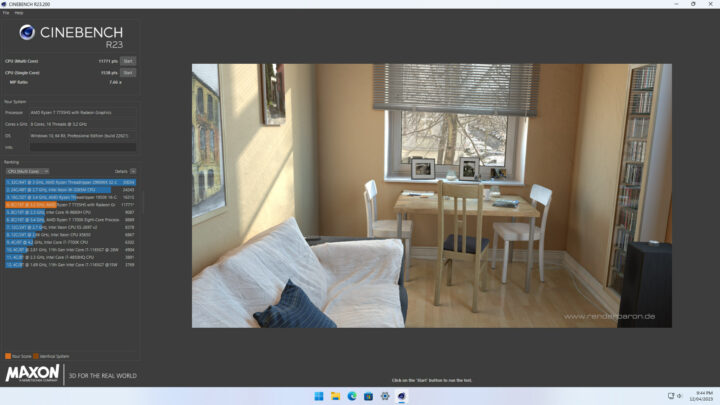

Beelink SER6 Pro 7735HS Cinebench R23 benchmark Geekbench 6.0.2 AMD Ryzen 7 7735HS Windows 11 Pro

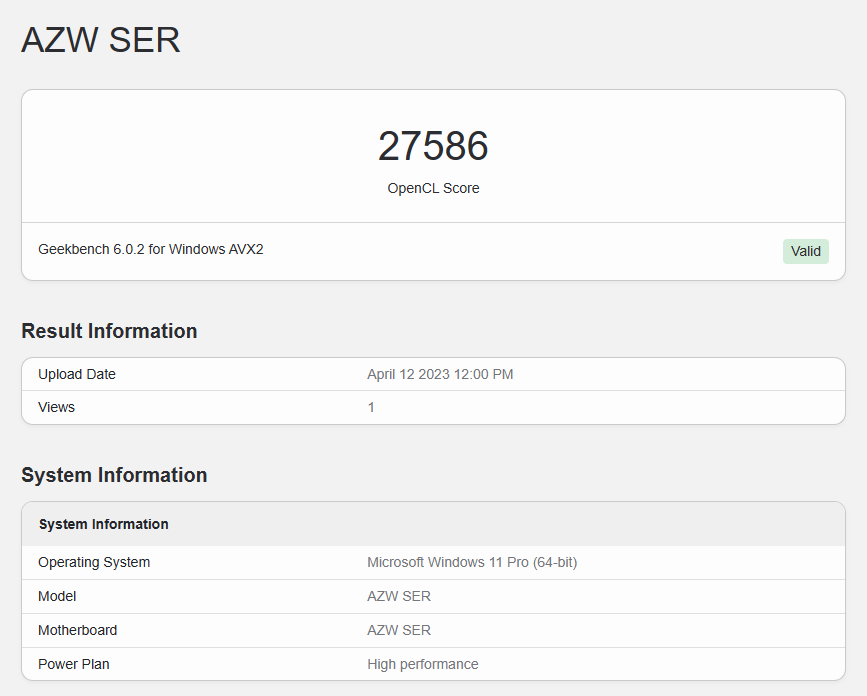

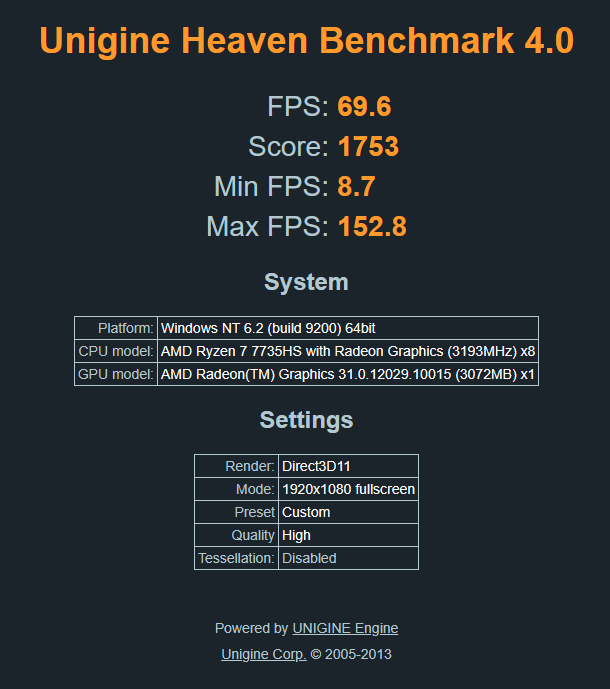

and iGPU performance measured as:

Geekbench 6.0.2 GPU AMD Ryzen 7 7735HS Windows 11 Pro Beelink SER6 Pro 7735HS Unigine Heaven Benchmark 4.0

For real-world testing of the iGPU, I played various videos in Edge and there were no issues encountered playing videos up to 4K 60 FPS:

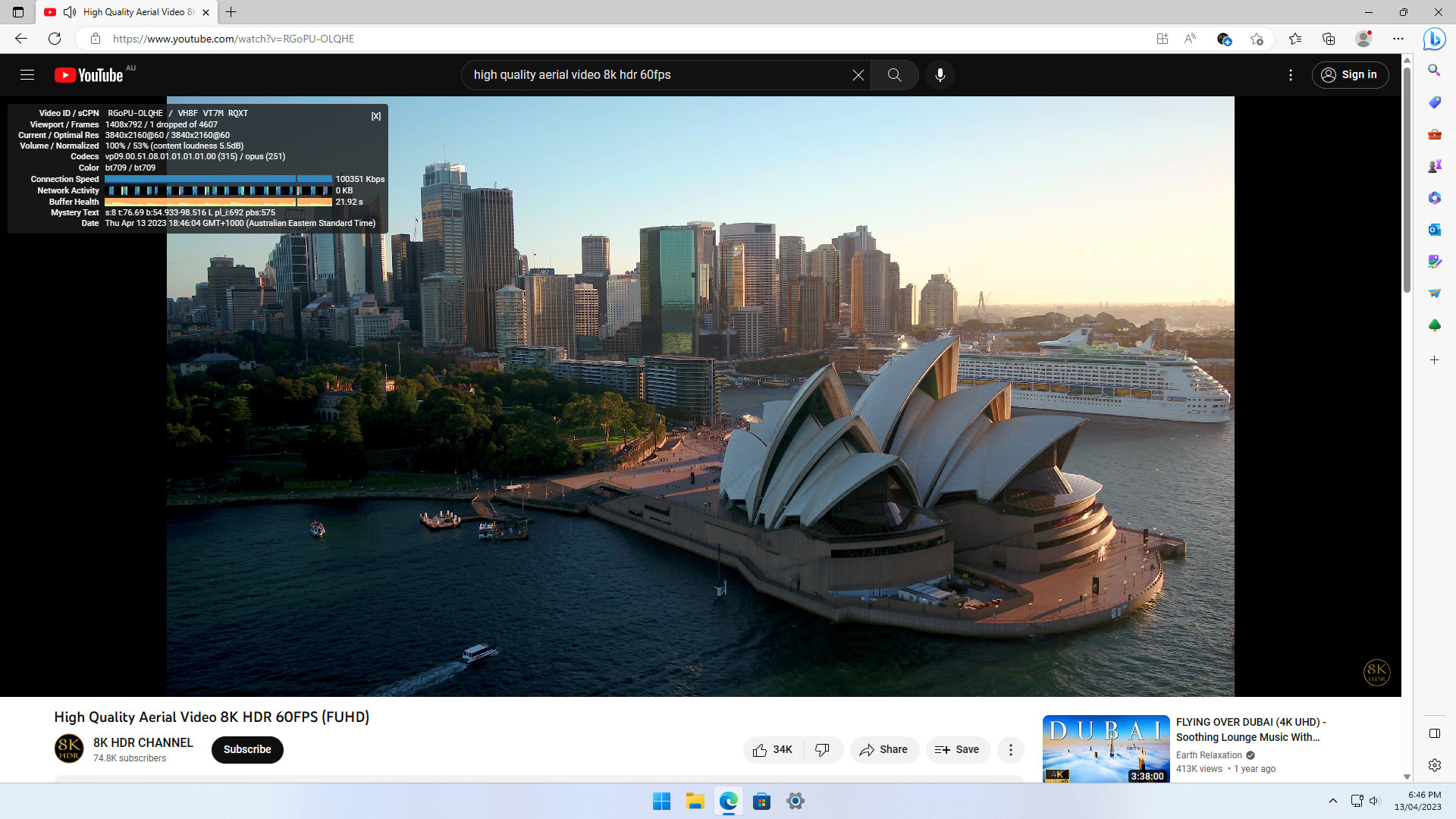

Beelink SER6 Pro 7735HS YouTube 8K Windows 11 Edge

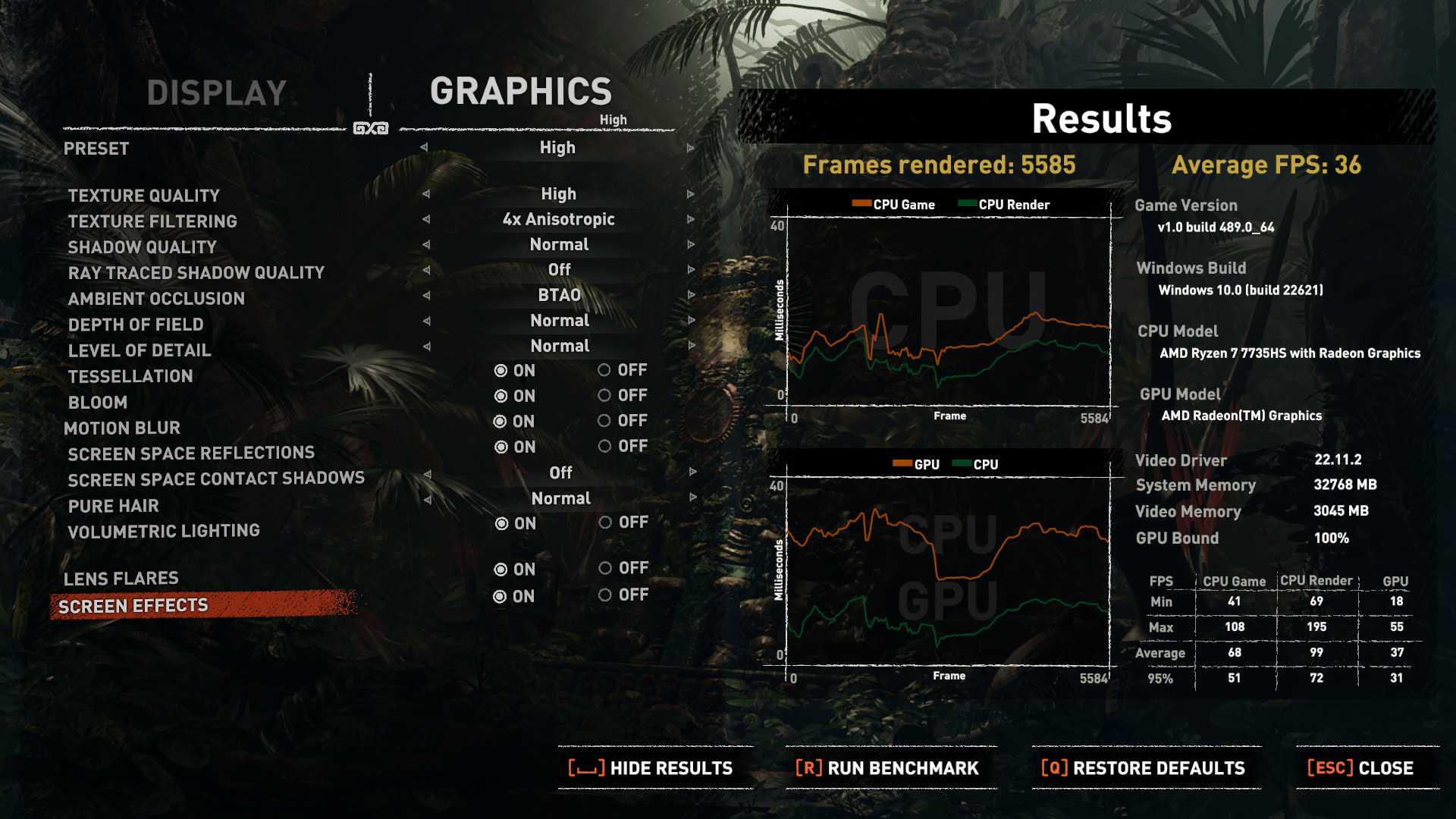

I also briefly looked at gaming by testing Shadow Of The Tomb Raider (SOTTR) under Steam. At ‘1920×1080’ resolution using the ‘high’ preset default settings, the built-in benchmark averaged 36 FPS:

Beelink SER6 Pro 7735HS Gaming Shadow Of The Tomb Raider Windows 11

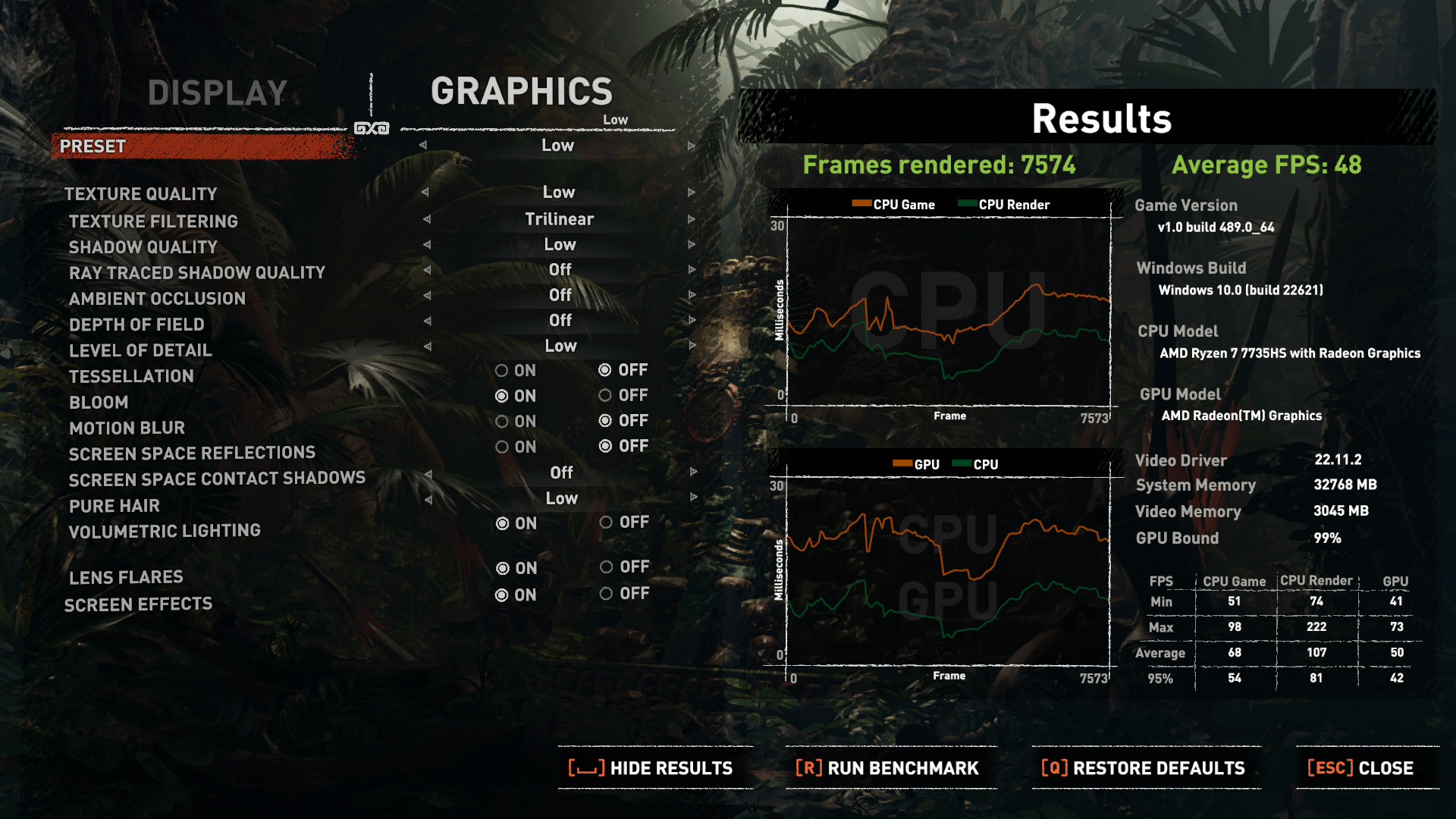

With the ‘low’ preset default settings the benchmark average improved to 48 FPS:

Beelink SER6 Pro 7735HS Gaming Shadow Of The Tomb Raider Low Preset

Network Performance Check

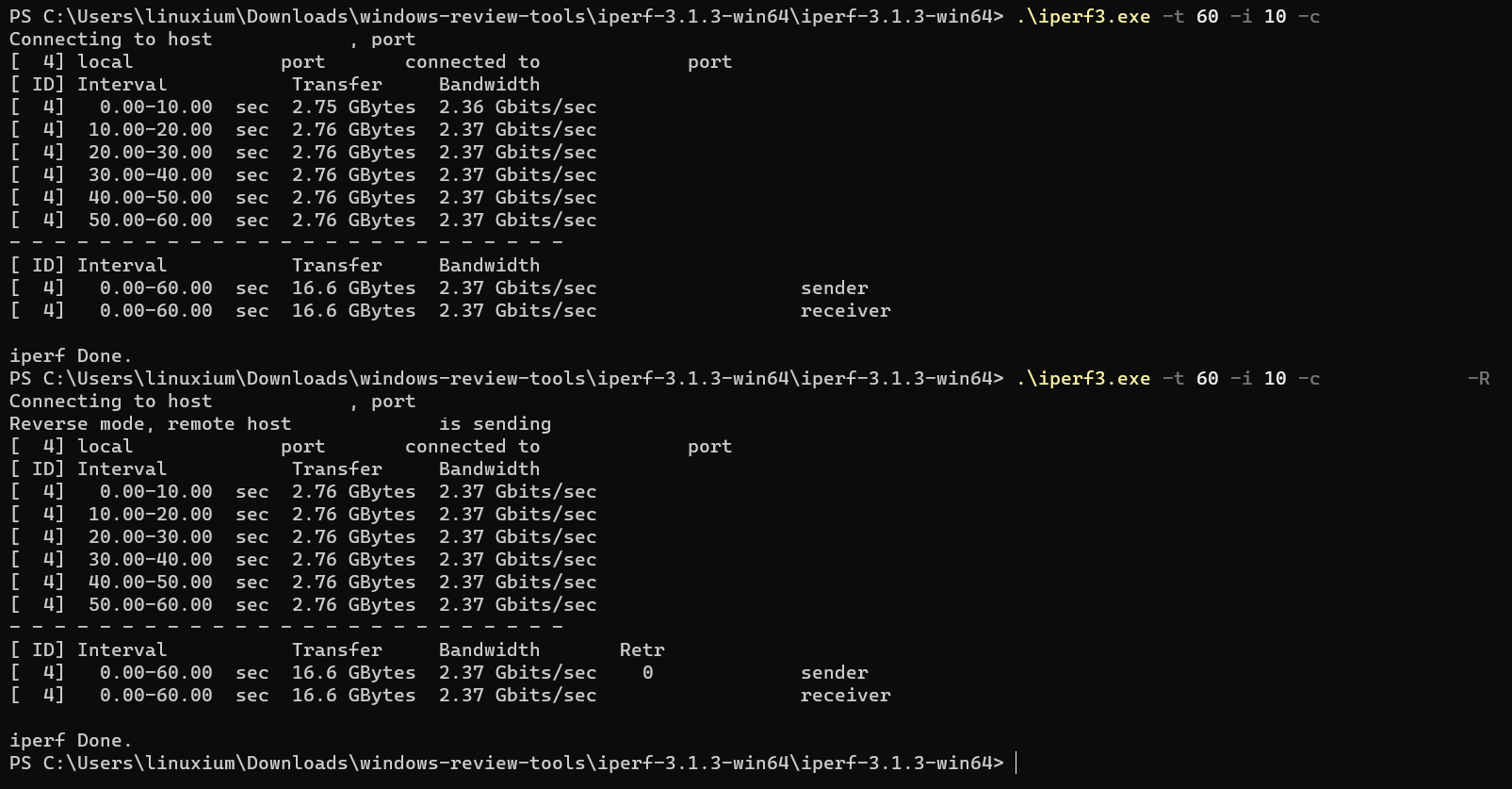

Network connectivity throughput was measured using ‘iperf3’. The 2.5 gigabit Ethernet port performed as expected at around 2.37 Gb/s:

iperf3 2.5GbE Beelink SER6 Pro 7735HS

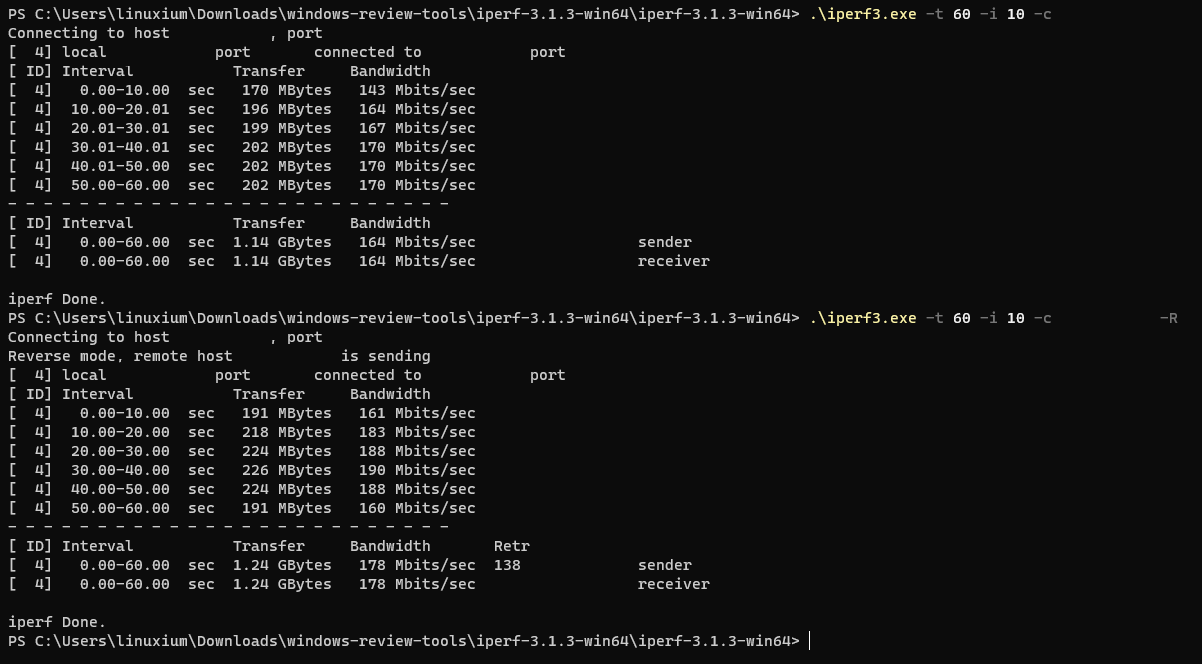

WiFi performance was also as expected with download on the 2.4 GHz band averaging 178 Mb/s and upload averaging 164 Mb/s:

iperf3 WiFi 2.4GHz Beelink SER6 Pro 7735HS

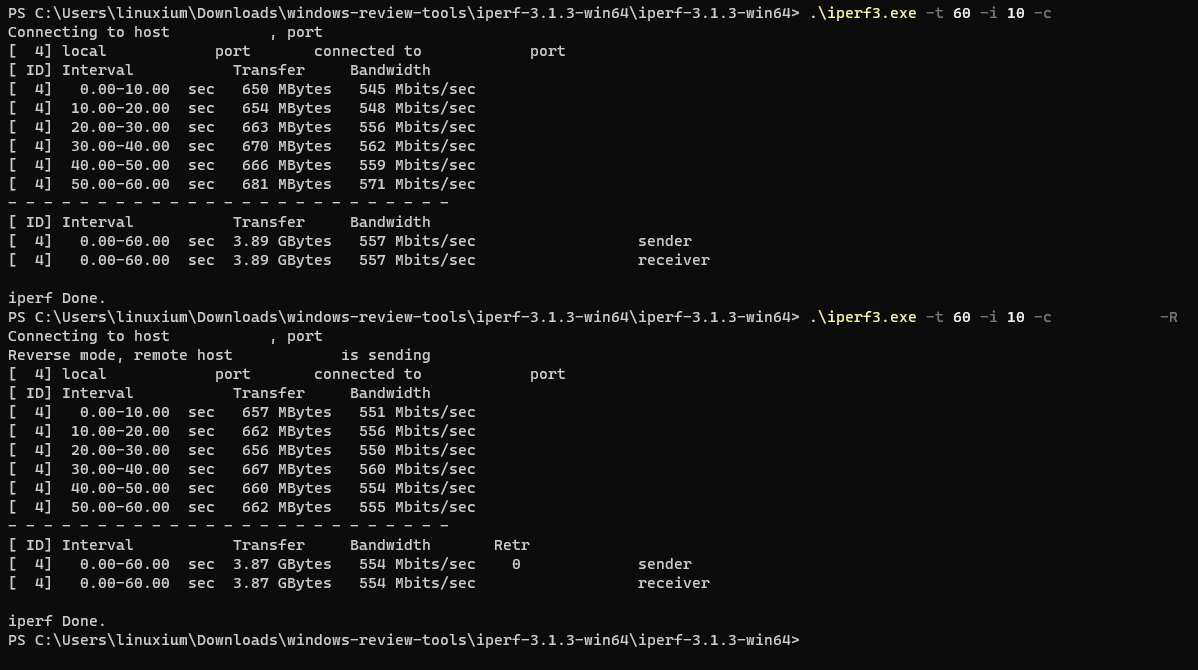

For the 5 GHz band, download was 554 Mb/s and upload averaged 557 Mb/s:

iperf3 WiFi 6 Beelink SER6 Pro 7735HS

Thermal Performance Check

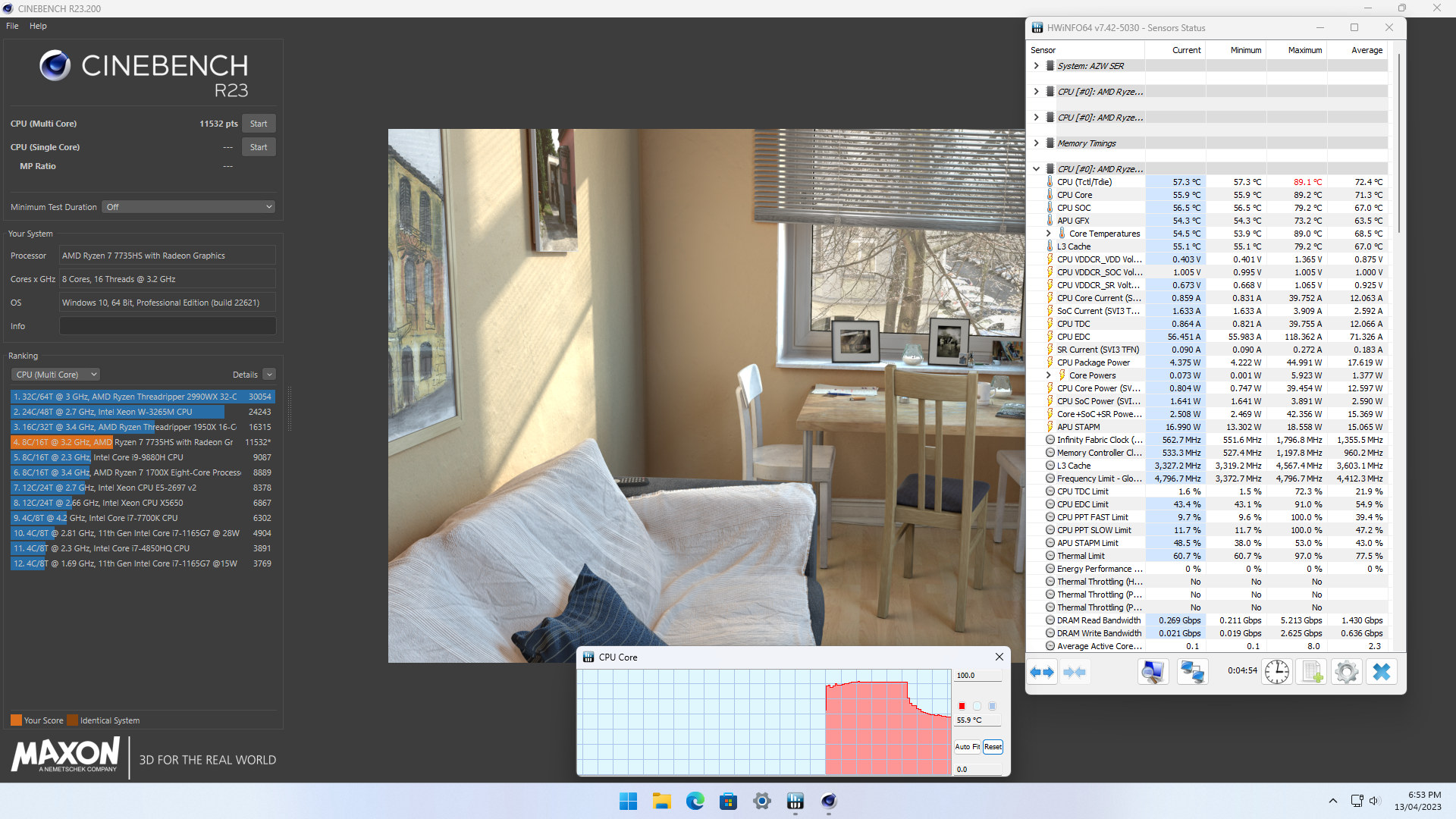

Running Cinebench R23 saw the CPU temperature rise to a peak of 89.1°C:

Beelink SER6 Pro 7735HS temperature test

The Beelink SER6 Pro includes two fans which are hardly audible during normal use and only reached 42 dBA on my sound meter next to the device during the testing.

USB4 Revisited

Unlike when I tested the original Beelink SER6 Pro, this time there were no problems when connecting an eGPU to the device’s USB4 port:

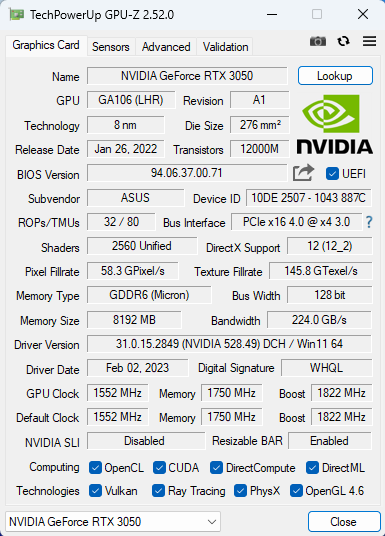

Beelink SER6 Pro 7735HS eGPU NVIDIA Geforce RTX 3050

As a result, I was able to test the USB4 port using the same mix of eGPUs (XG Station Pro and ADT-Link R43SG), Thunderbolt (TB) 3 and TB4 cables, and different Thunderbolt enclosures (with JHL6340 and JHL7540 controllers) similar to when struggling to test the original SER6 Pro.

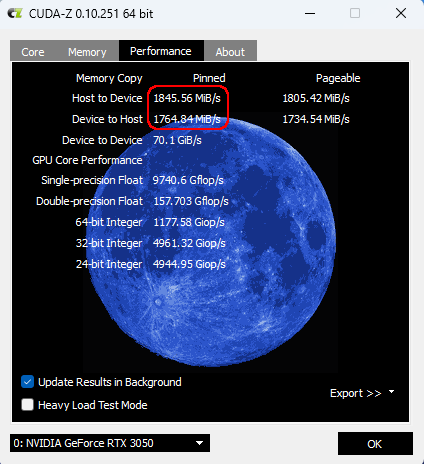

Using a TB3 cable with the ADT-Link R43SG eGPU connected using a JHL6340-based enclosure yielded the now expected 20 Gb/s result:

CUDA-Z TB3 20Gbps

Replacing the cable with a TB4 one doubled the performance to 40 Gb/s:

CUDA-Z TB4 40Gbps

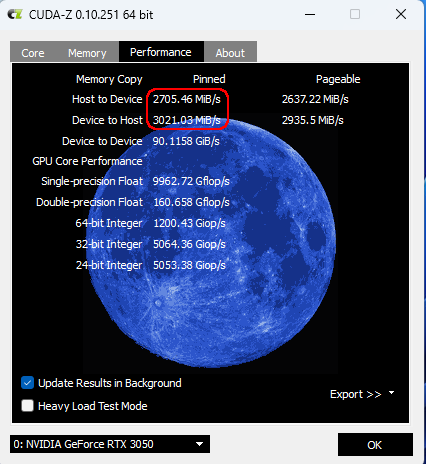

Finally, switching the enclosure to use a JHL7540-based one resulted in the best performance just like before:

CUDA-Z JHL7540 NVMe enclosure

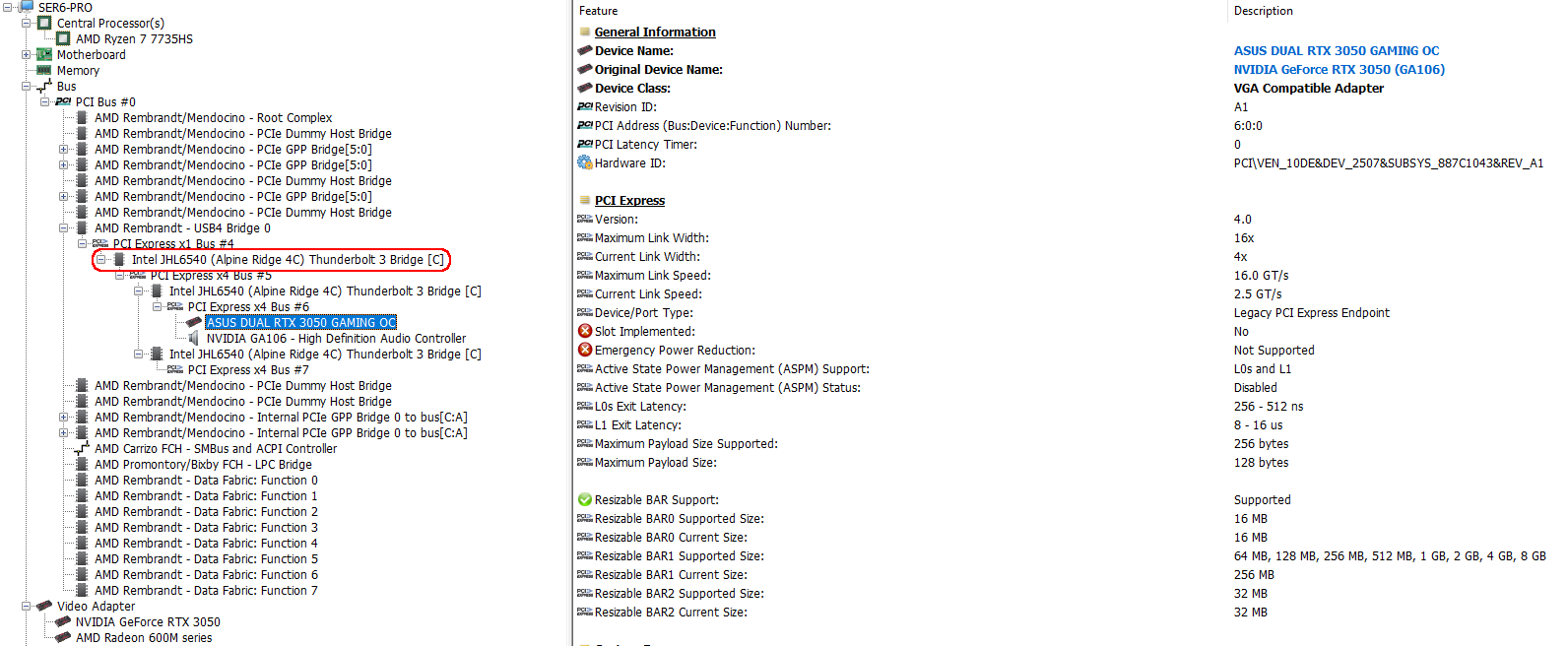

I first tested SOTTR gaming performance using the XG Station Pro (which uses a JHL6340 controller) together with a TB4 cable:

XG Station Pro JHL6540 Thunderbolt 3 Windows 11

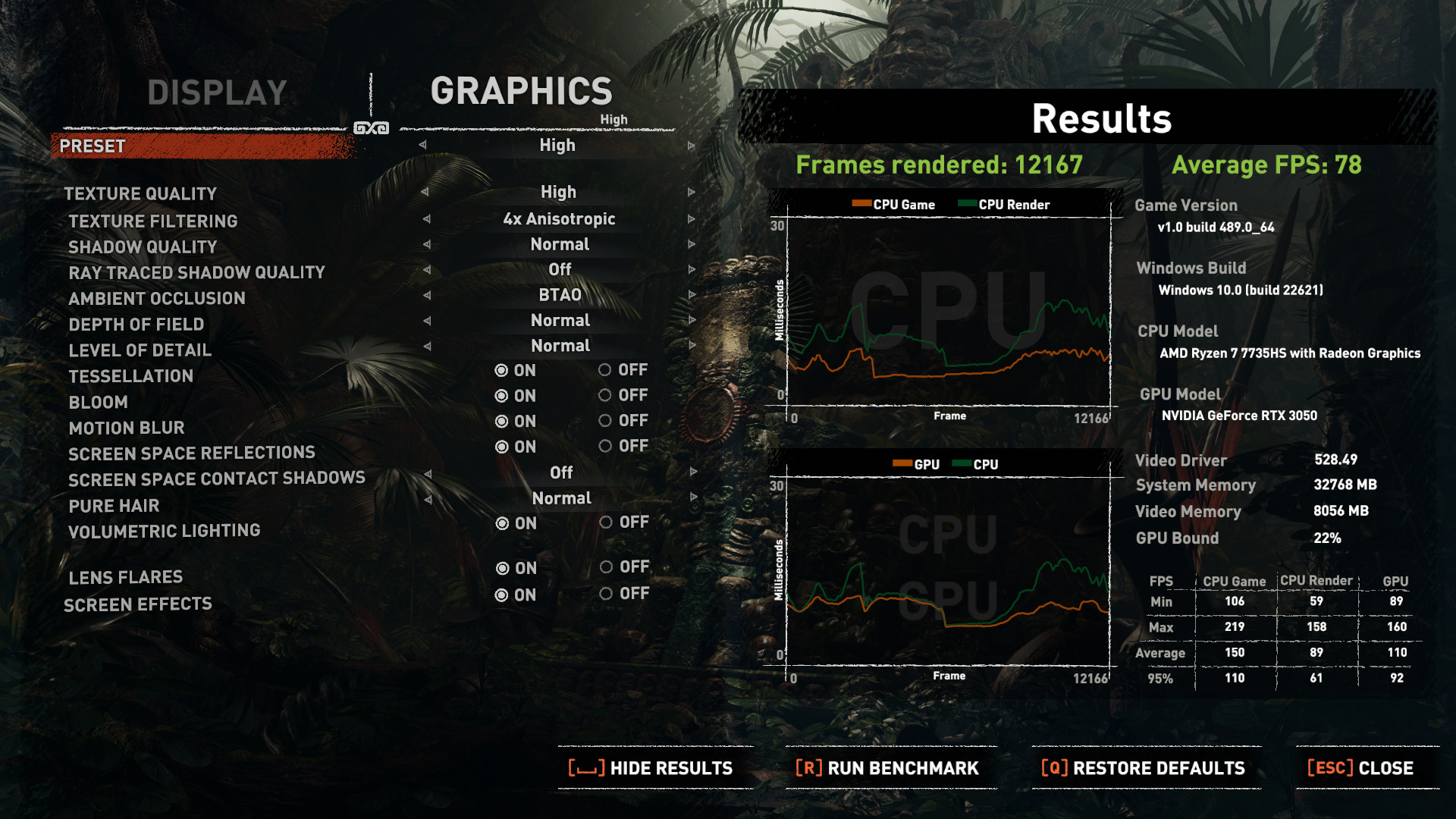

which gave an average FPS of 78 with ‘high’ preset:

Beelink SER6 Pro 7735HS eGPU Shadow Of The Tomb Raider High Preset

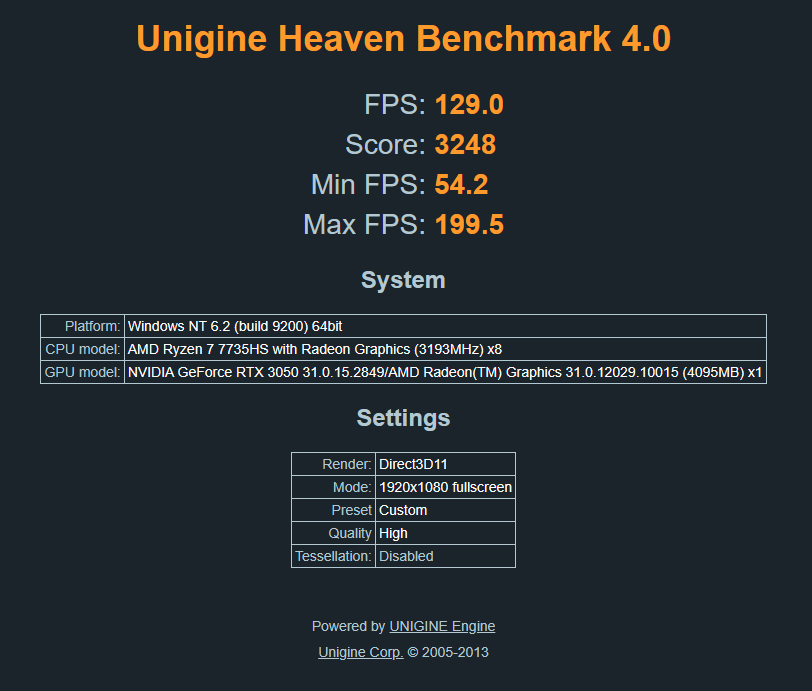

I followed this by running Unigine Heaven which resulted in an average FPS of 129.0:

Unigine Heaven Benchmark 4.0 Ryzen 7 7735HS GeForce RTX 3050

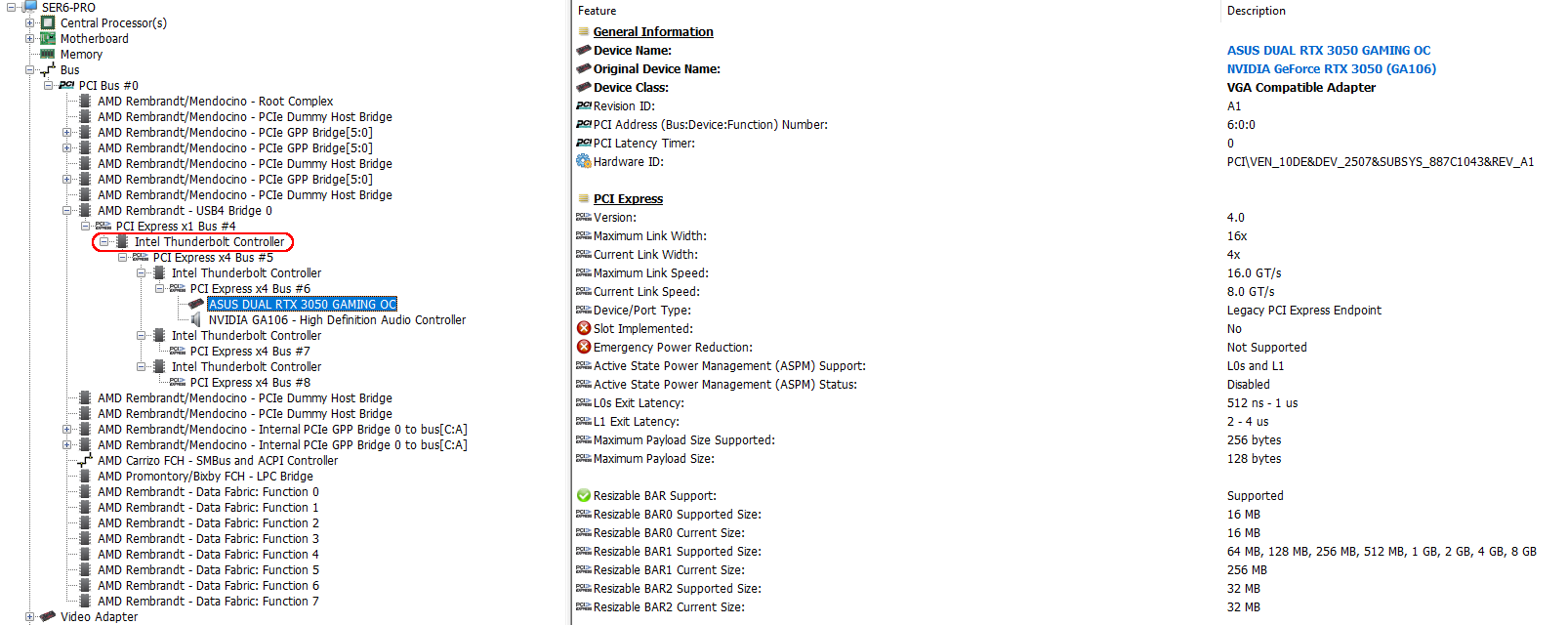

I then reconnected the ADT-Link R43SG eGPU using a JHL7540-based enclosure with a TB4 cable:

ADT-Link R43SG JHL7540 Thunderbolt 4 Windows 11

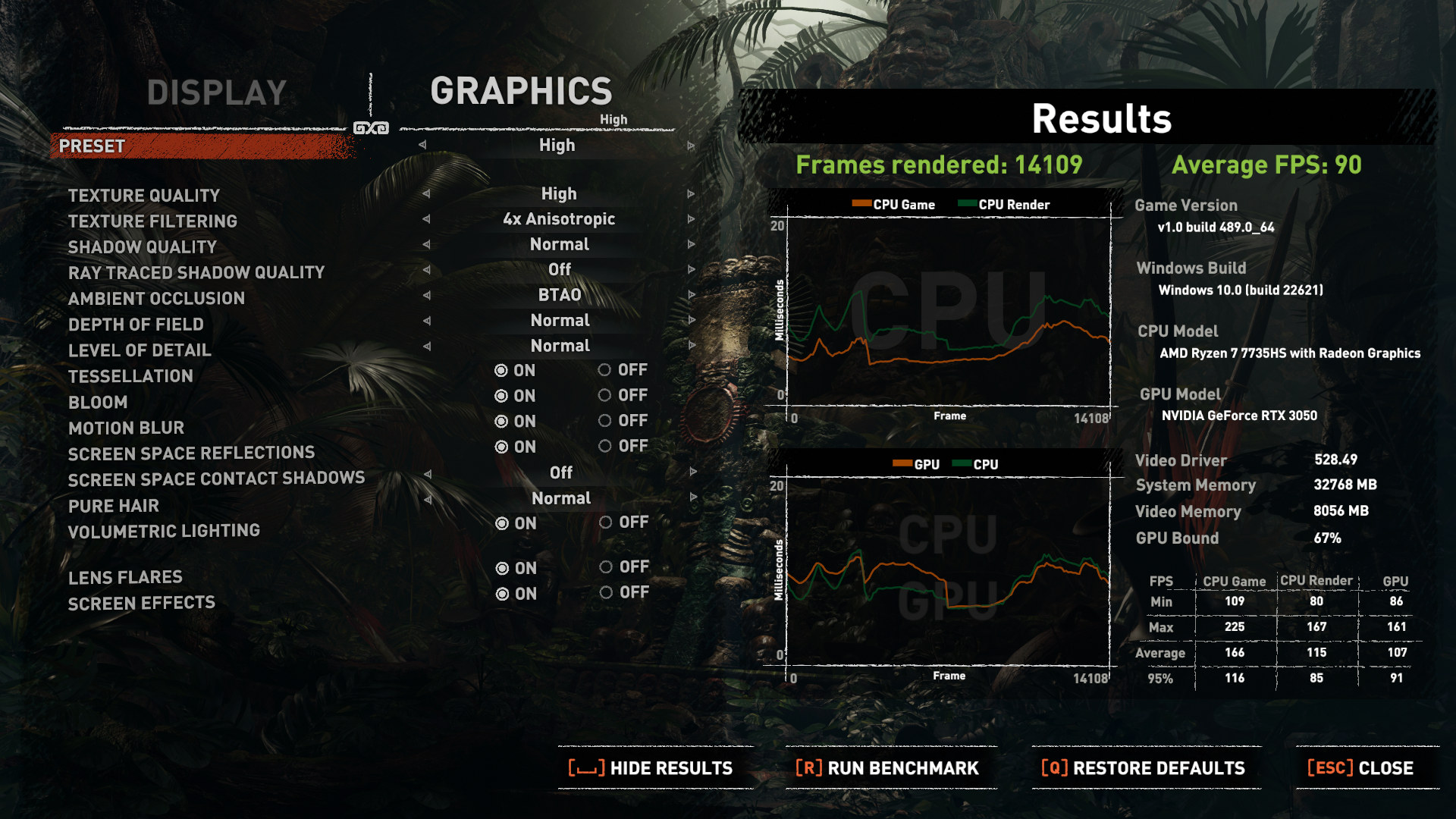

which resulted in an improved average FPS of 90 in SOTTR:

Beelink SER6 Pro 7735HS ADT-Link R43SG eGPU Shadow Of The Tomb Raider High Preset

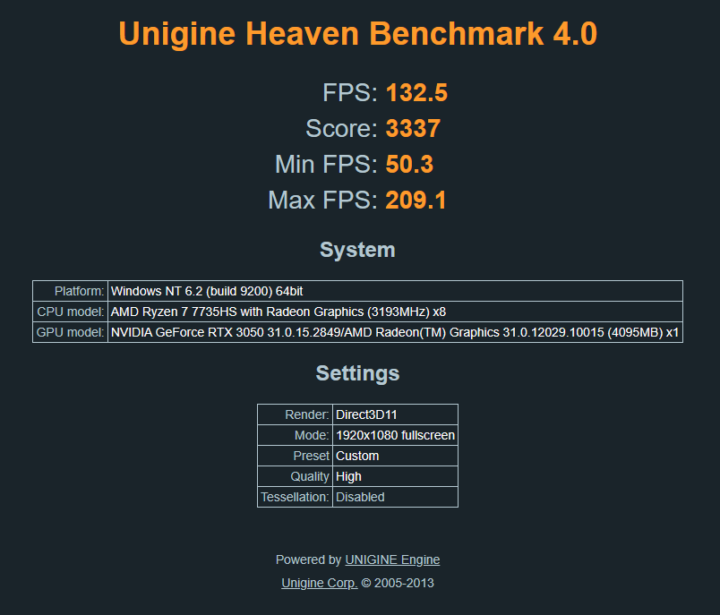

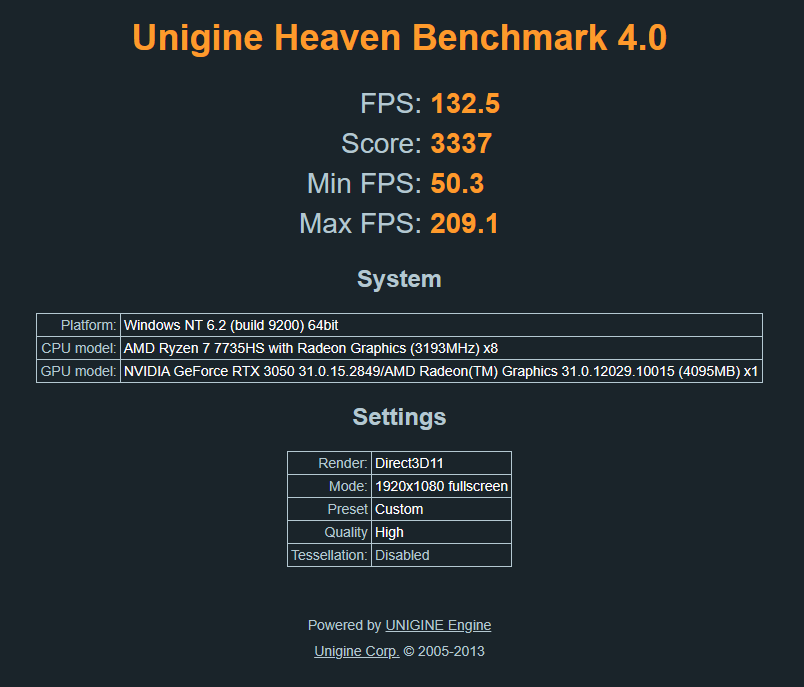

and an improved average FPS of 132.5 in Unigine Heaven:

Unigine Heaven Benchmark 4.0 Ryzen 7 7735HS GeForce RTX 3050 eGPU Thunderbolt 4

Interestingly these eGPU results are noticeably lower than those from the original SER6 Pro testing. Prior to making a direct comparison of all the results, I first ran Geekbench 5.4.6 to ensure like-for-like:

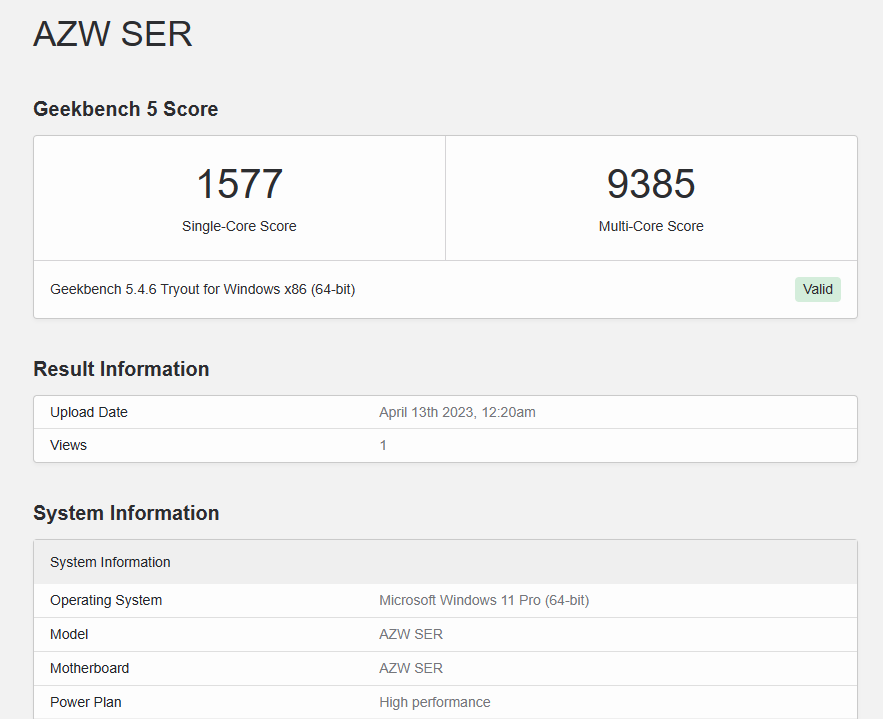

Geekbench 5 CPU performance eGPU

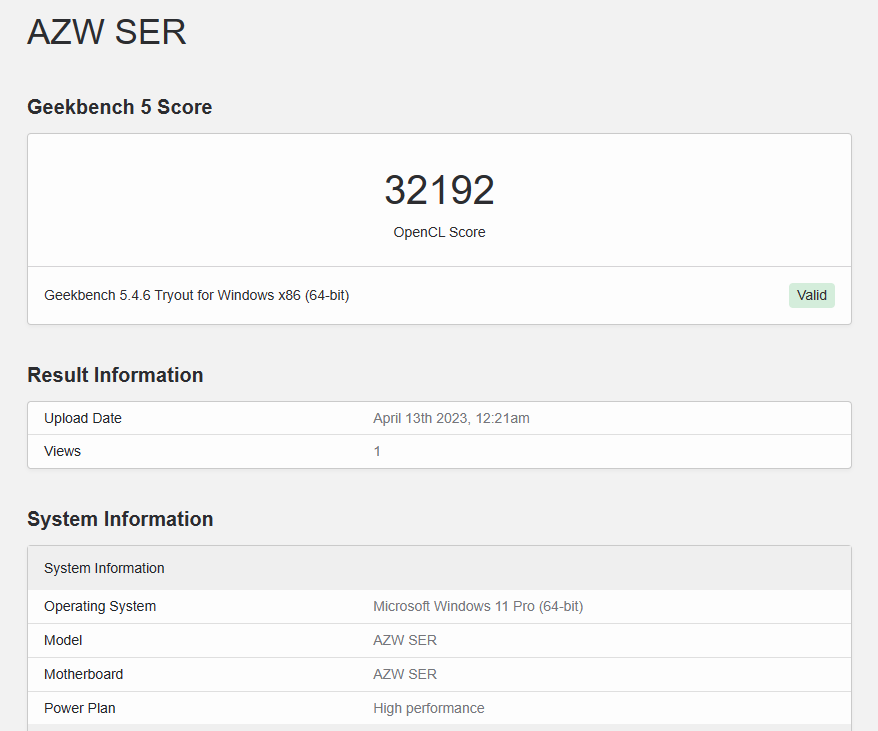

Geekbench 5 OpenCL GPU performance eGPU

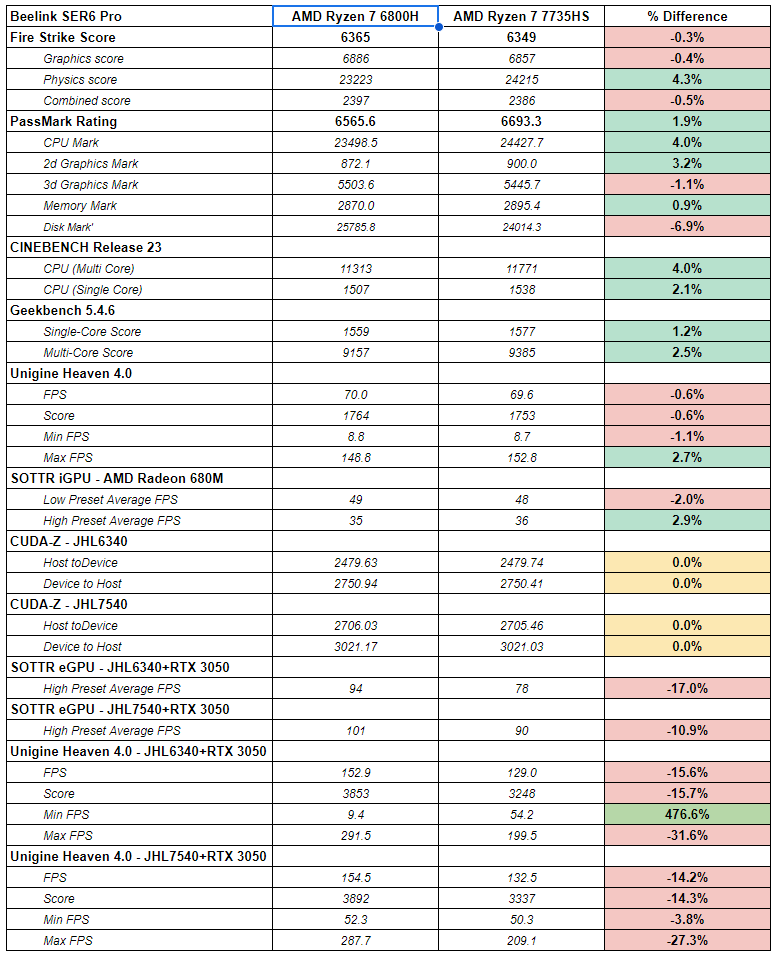

The actual comparison shows that the ‘device-only’ benchmarks were virtually identical between the two processors:

AMD Ryzen 7 6800H vs AMD Ryzen 7 7735HS

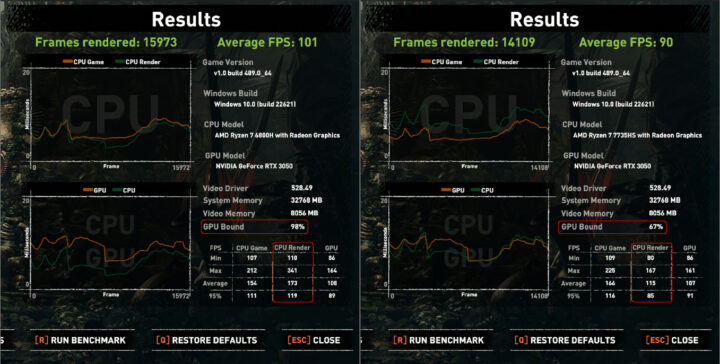

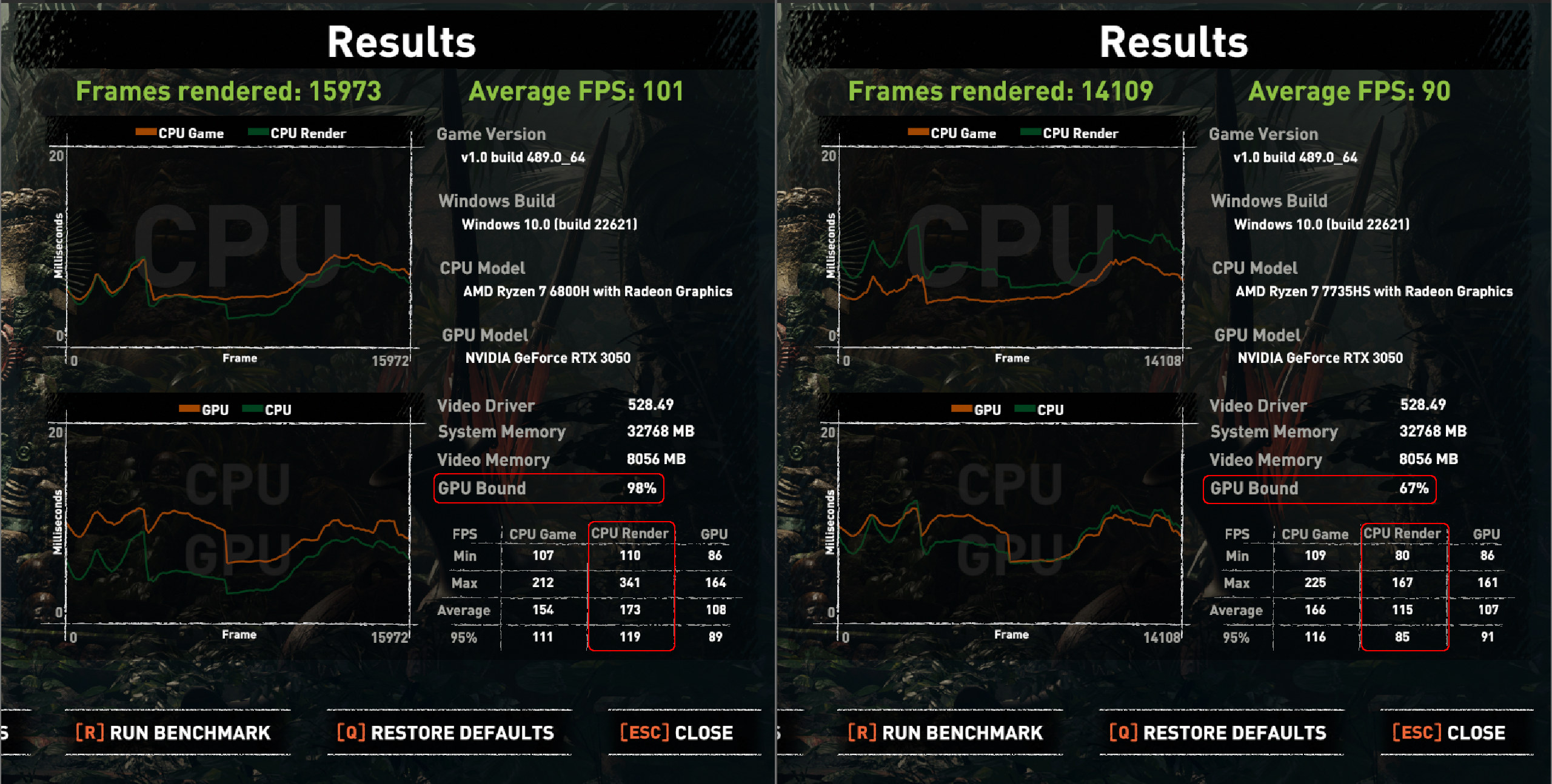

however, the eGPU performance appears to be affected due to poorer CPU rendering:

Beelink SER6 Pro 6800H vs SER6 Pro 7735HS eGPU gaming

The exact cause for this remains unknown even after further testing. But it must be noted that the original SER6 Pro results were only obtained after a clean Windows installation and addressing the many issues encountered in getting the eGPU to be recognized which required the repeated installation and removal of various drivers before it finally worked. Consequently, the credibility of the original eGPU results is in doubt and probably should be ignored for the time being as the point of the testing was to confirm that the USB4 worked.

Summary

The performance of the Beelink SER6 Pro 7735HS is very good and the inclusion of a DisplayPort allows further flexibility for monitor/display choice. The fully working USB4 port provides the additional functionality of TB4 although without the guarantee of speed compatibility which is evident when using TB3 cables with the port. Attention to the various port versions should be taken, as, for example, to be able to use three HDMI monitors, both an 8K USB-C to HDMI cable and a DisplayPort 1.4 to HDMI adapter are required as well as an HDMI cable.

I’d like to thank Beelink for providing the Beelink SER6 Pro 7735HS for review. This refreshed version can be found on Beelink store for $649, as well as on Amazon and Aliexpress.
