Helix 511 fanless industrial embedded computer features Intel Celeron 7305 up to Core i7-12800HL CPU

OnLogic Helix 511 edge computer features an Intel Alder Lake processor from Celeron 7305 up to a Core i7-12800HL CPU with up to 64GB DDR5, M.2 SATA or NVMe storage and designed for use in manufacturing, automation, energy management, and other edge and IoT applications.

The fanless industrial embedded computer also comes with two 2.5GbE ports, support up to four independent displays via DisplayPort and Thunderbolt 4 connectors, is equipped with six USB 3.2 ports, as well as optional digital I/O or serial ports for expansion.

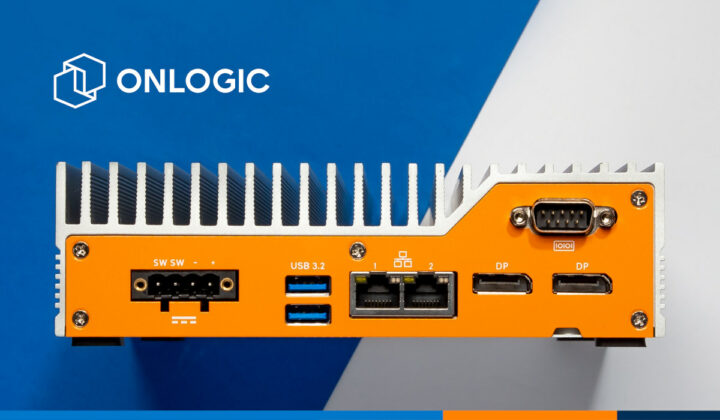

Onlogic HX511

Helix 511 specifications:

  • Alder Lake SoC
    • Intel Celeron 7305 penta-core processor @ 3.10GHz / 4.20GHz (Turbo) with 48EU Intel UHD graphics – PBP: 15W, up to 55W MTP
    • Intel Core i3-12300HL octa-core/12-thread processor @ 2.00GHz  / 3.30GHz / 4.40GHz (Turbo) with Intel UHD graphics – PBP: 45W, up to 65W MTP
    • Intel Core i5-12600HL 12-core/16-thread processor @ 2.70GHz / 3.30GHz / 4.50GHz (Turbo) with Intel Iris Xe graphics – PBP: 45W, up to 65W MTP
    • Intel Core i7-12800HL 14-core/20-thread processor @ 2.40GHz / 3.70GHz / 4.80GHz (Turbo) with Intel Iris Xe graphics – PBP: 45W, up to 65W MTP
  • System Memory – Up to 64GB DDR5 @ 4800 MHz via 2x SO-DIMM sockets
  • Storage – 1x M.2 M key 2280 socket for SATA/NVMe PCIe Gen 4
  • Video Output
    • 2x DisplayPort outputs
    • 2x Thunderbolt 4 ports
    • Up to 4x independent displays
  • Networking
    • 2x 2.5GbE RJ45 ports via Intel I225-IT or Intel I225-LM controllers
    • Optional wireless and cellular connectivity
    • Micro SIM card slot
    • 6x antenna holes
  • USB – 2x Thunderbolt 4 ports, 6x USB 3.2 Gen 2 ports
  • Serial – 1x DB9 COM (RS232/422/485) or CAN port
  • Expansion
    • Optional 8-bit DIO port
    • Optional multi-COM and system panel connector
  • Misc
    • Power button
    • System Monitoring – AMT Support when configured with i5 processor and up
  • Power Supply – 12~24V DC via 4-pin terminal block
  • Dimensions – 225 x 50.8 x 177 mm (Aluminum & steel enclosure)
  • Temperature Range – 0 ~ 50°C
  • Operating Humidity – 0% ~ 90% (non-condensing)
  • Expected Life Cycle – 5 Years
  • Regulatory Information
    • FCC 47 CFR Part 15
    • CB scheme
    • CAN ICES-003(A) / NMB-003(A) (Class A)
    • CISPR 32 / 35 (EN 55032 / EN 55035 Class A)
    • FCC/CE Class B upon request
    • UL/EN/IEC 62368-1 (UL E490677) NRTL + CB
    • UL/EN/IEC 60950-1(UL E490677) NRTL + CB
    • IEC 60601-1-2 (4th edition)
    • IEC 60945
    • ETSI EN 301 489 (parts 1; 17; 52)
    • ETSI EN 301 328
    • ETSI EN 301 893
    • ETSI EN 300 908
    • EN 62311:2020
  • Warranty – 2 years included; 3 or 5-year options available

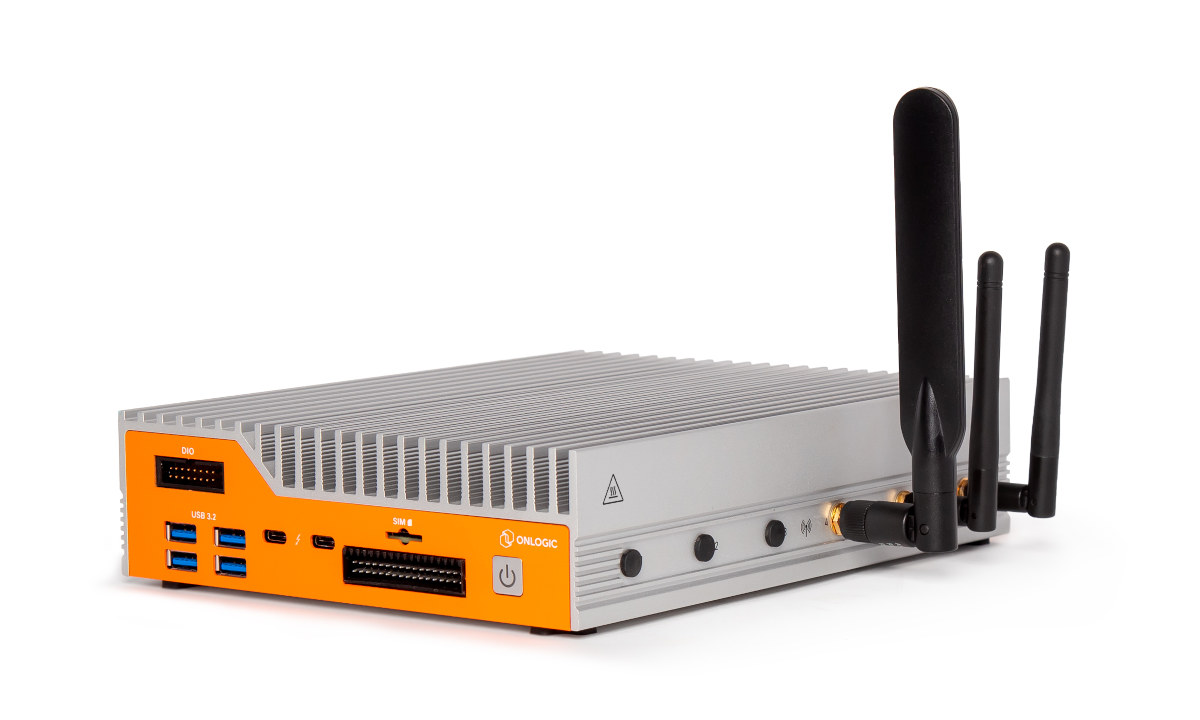

Helix 511 Edge Computer

OnLogic provides Windows 10 IoT, Windows 11 Professional, Ubuntu 22.04 Linux, or Red Hat Enterprise Linux operating systems for the Helix 511, but notes that Ubuntu Desktop and Server 22.04 do not currently support audio output over DisplayPort for systems using Intel 12th generation P/S-series processors.

The OnLogic Helix 511 fanless industrial embedded computer is available for purchase now starting at $1,225 for a system with a Celeron 7305 with 8GB RAM and a 64GB M.2 SATA SSD without an operating system. Additional information may be found in the press release.
