Cincoze DV-1100 is a rugged embedded computer with Raptor Lake or Alder Lake SoC for industrial and railway applications

Cincoze DV-1100 is a rugged embedded computer powered by a choice of Intel 13th Gen Raptor Lake or 12th Gen Alder Lake S Series embedded processors with up to 32GB DDR5 DO-DIMM memory, various NVMe and SATA storage options, up to three display interfaces, 2.5GbE and GbE networking, optional WiFi, Bluetooth, 4G LTE, and/or 5G wireless connectivity, six USB ports for expansion, and more.

The system is housed in a fanless enclosure made of extruded aluminum with heavy-duty metal that’s good enough for 35W processors, but an additional fan kit is required for 65W processors. As a rugged embedded system designed for industrial environments, the Cincoze DV-1000 takes 9 to 48V DC input, integrates two RS232/RS422/RS485 COM ports, complies with the MIL-STD-810H shock and vibration standard plus various other industrial and railways standards, and can operate in a wide  -40°C to 70°C temperature range.

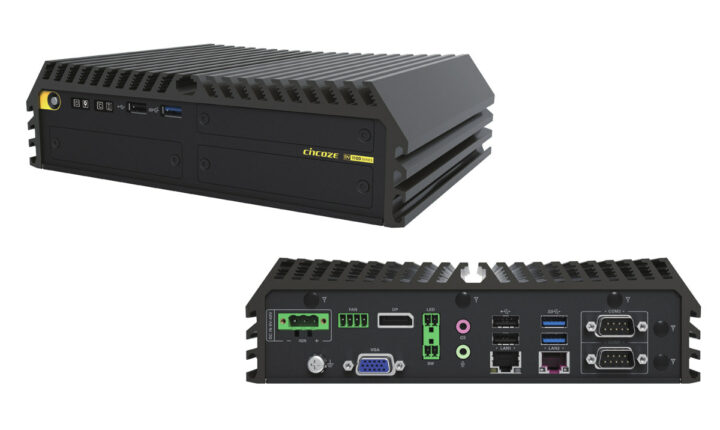

Cincoze DV-1100 Rugged Embedded Computer

Cincoze DV-1100 specifications:

  • SoC (multiple options)
    • 13th Generation Intel Raptor Lake-S Series embedded CPU with Intel UHD Graphics 770 (Core i9/i7/i5) or Intel UHD Graphics 730 (Core i3):
      • Intel Core i9-13900E 24 Cores Up to 5.2 GHz; TDP: 65W
      • Intel Core i7-13700E 16 Cores Up to 5.1 GHz; TDP: 65W
      • Intel Core i5-13500E 14 Cores Up to 4.6 GHz; TDP: 65W
      • Intel Core i5-13400E 10 Cores Up to 4.6 GHz; TDP: 65W
      • Intel Core i3-13100E 4 Cores Up to 4.4 GHz; TDP: 65W
      • Intel Core i9-13900TE 24 Cores Up to 5.0 GHz; TDP: 35W
      • Intel Core i7-13700TE 16 Cores Up to 4.8 GHz; TDP: 35W
      • Intel Core i5-13500TE 14 Cores Up to 4.5 GHz; TDP: 35W
      • Intel Core i3-13100TE 4 Cores Up to 4.1 GHz; TDP: 35W
    • 12th Generation Intel Alder Lake-S Series embedded CPU with Intel UHD Graphics 770 (Core i9/i7/i5), Intel UHD Graphics 730 (Core i3), or Intel UHD Graphics 710 (Pentium/Celeron):
      • Intel Core i9-12900E 16 Cores Up to 5.0 GHz; TDP: 65W
      • Intel Core i7-12700E 12 Cores Up to 4.8 GHz; TDP: 65W
      • Intel Core i5-12500E 6 Cores Up to 4.5 GHz; TDP: 65W
      • Intel Core i3-12100E 4 Cores Up to 4.2 GHz; TDP: 60W
      • Intel Core i9-12900TE 16 Cores Up to 4.8 GHz; TDP: 35W
      • Intel Core i7-12700TE 12 Cores Up to 4.7 GHz; TDP: 35W
      • Intel Core i5-12500TE 6 Cores Up to 4.3 GHz; TDP: 35W
      • Intel Core i3-12100TE 4 Cores Up to 4.0 GHz; TDP: 35W
      • Intel Pentium G7400E 2 Cores Up to 3.6 GHz; TDP: 46W
      • Intel Pentium G7400TE 2 Cores Up to 3.0 GHz; TDP: 35W
      • Intel Celeron G6900E 2 Cores Up to 3.0 GHz; TDP: 46W
      • Intel Celeron G6900TE 2 Cores Up to 2.4 GHz; TDP: 35W
  • Chipset – Intel H610E
  • System Memory – Up to 32GB DDR5 4800MHz SO-DIMM
  • Storage
    • M.2 SSD via M.2 Key M Type 2280 socket (PCIe Gen 4×4 NVMe SSD or SATA 3.0 SSD)
    • Up to 2x M.2 SSDs via M.2 Key B sockets (PCIe Gen 3×2 NVMe SSD or SATA 3.0 SSD)
    • 2.5-inch SATA 3.0 HDD/SSD bay
  • Video Output
    • DisplayPort connector up to 3840 x 2160 @ 60Hz
    • VGA connector up to 1920 x 1200 @ 60Hz
    • CMI interface for optional CMI-DP or CMI-HDMI expansion module
    • Support for triple independent display setups
  • Audio
    • Realtek ALC888, High Definition Audio
    • 3.5mm Line-out jack
    • 3.5mm microphone jack
  • Networking
    • 2.5GbE RJ45 port via Intel i225
    • Gigabit Ethernet RJ45 port via Intel i219
    • Optional WiFi and Bluetooth via M.2 Key E module (see Expansion)
    • Optional 4G LTE/5G via M.2 Key B module (see Expansion) and front-accessible  dual Nano SIM socket
    • 5x antenna holes
  • USB
    • 10 Gbps USB 3.2 Gen 2×1 Type-A port
    • 2x 5 Gbps USB 3.2 Gen 1×2 Type-A ports
    • 3x 480 Mbps USB2.0 Type-A ports
  • Serial – 2x RS-232/422/485 DB9 COM ports with Auto Flow Control (supports 5V/12V)
  • Expansion
    • M.2 Key E 2230 socket (PCIe Gen 3×2 / USB2.0) for Wireless/Intel CNVi module expansion
    • M.2 Key B 3042/3052 socket (PCIe Gen 3×2 / USB3.2 Gen2 x1 / USB2.0 / SATA) for 5G/Storage/Add-on Card Expansion
    • 1x M.2 Key B Type 2242 Socket (PCIe Gen 3×2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion
    • CMI (Combined Multiple I/O) Interfaces
      • 1x CMI Interface for optional CMI-Display Module Expansion
      • 2x CMI Interfaces for optional CMI-COM/DIO Module Expansion
    • CFM (Control Function Module) Interface – 1x CFM IGN Interface for optional CFM-IGN Module Expansion
  • Misc
    • 4-pin terminal block for external fan (Support Smart Fan by BIOS)
    • Clear CMOS Switch
    • Reset Button
    • Instant Reboot – 0.2sec Instant Reboot Technology
    • Watchdog Timer
    • ATX Power On/Off button
    • AT/ATX mode switch
    • SuperCap for CMOS battery maintenance-free operation
  • Power Input – 9 – 48V DC via 3-pin terminal block
  • Remote Power
    • On/Off via 2-pin terminal block
    • Remote Power LED via 2-pin terminal block
  • Dimensions – 224.1 x 162 x 62 mm
  • Weight – 2.52 kg (Extruded aluminum with heavy-duty metal)
  • Reliability & Protection
    • Reverse Power Input Protection
    • Over Voltage Protection
      • Range: 51~58V
      •  Protection Type: shut down operating voltage, re-power on at the preset level to recover
    • Over Current Protection – 15A
    • MTBF – TBC hours
    • Database: Telcordia SR-332 Issue3, Method 1, Case 3
  • Temperature Range
    • Operating
      • 35W TDP processor – -40°C to 70°C
      • 65W TDP Processor – TBC (external fan kit required)
      • PassMark BurnInTest: 100% CPU, 2D/3D Graphics without thermal throttling
      • With extended temperature peripherals; Ambient room temperature with airflow
      • According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
    • Storage – TBC
  • Relative Humidity –  TBC
  • Shock and Vibration – MIL-STD-810H
  • EMC
    • CE, UKCA, FCC, ICES-003 Class A
    • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
    • EN 50155 (EN 50121-3-2 Only)
    • E-mark (Pending)
  • EMI
    • CISPR 32 Conducted & Radiated: Class A
    • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
    • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
    • EN/BS EN 61000-3-3 Voltage fluctuations & flicker
    • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
  • EMS
    • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
    • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
    • EN/IEC 61000-4-6 CS: 10V (Compliant with the standard when utilizing a shielded cable)
    • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A
      EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz



Cincoze CMI modules: DisplayPort, HDMI, RS232, DIO

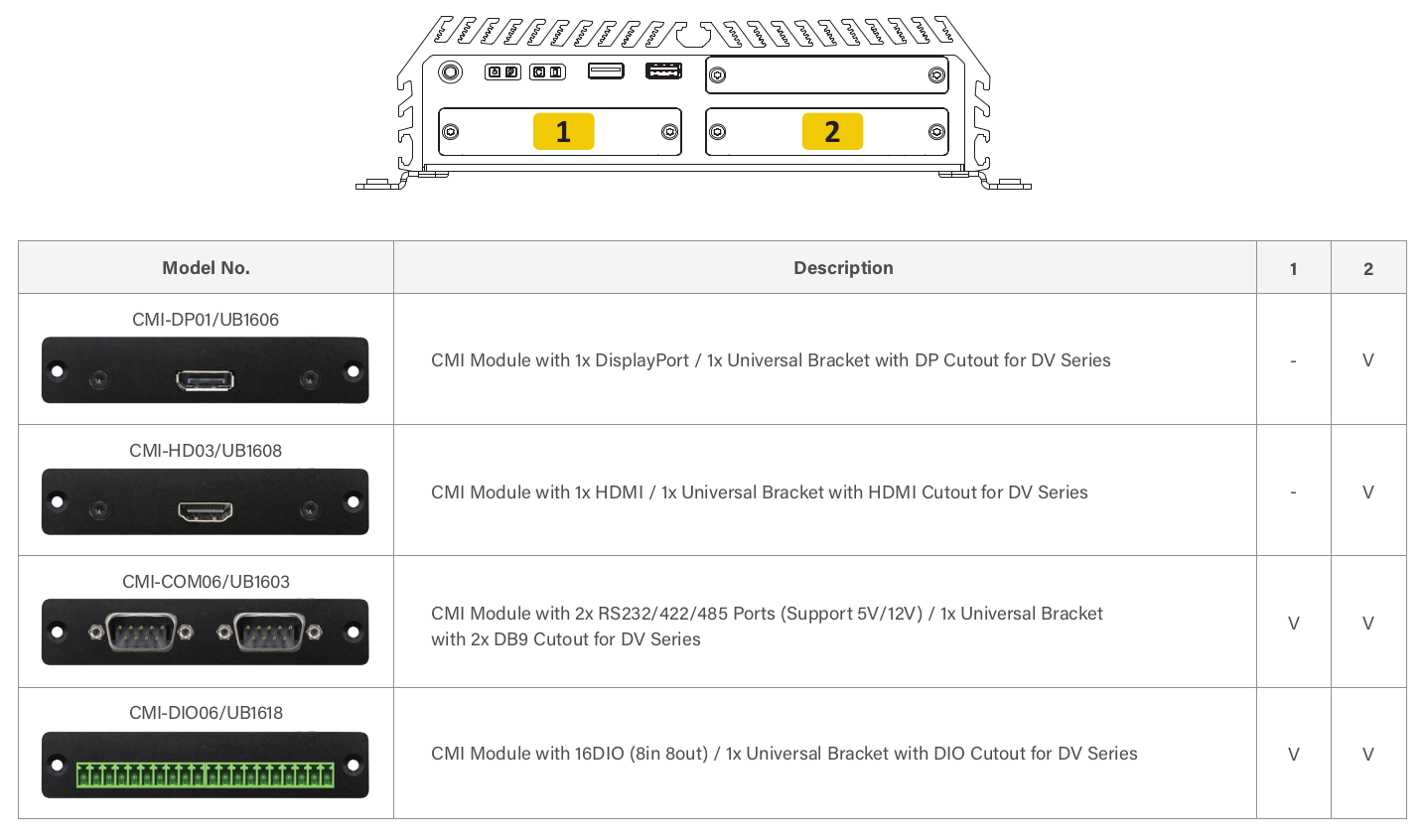

Optional CMI expansion modules

Cincoze provides wall, DIN Rail, and VESA mounting options for the embedded computer, as well as various CMI modules as shown in the table above for DisplayPort, HDMI, serial, or DIO expansion. The product page lists Windows 10 as being supported by default, with Linux available upon request. But resellers provide a longer list of operating systems:

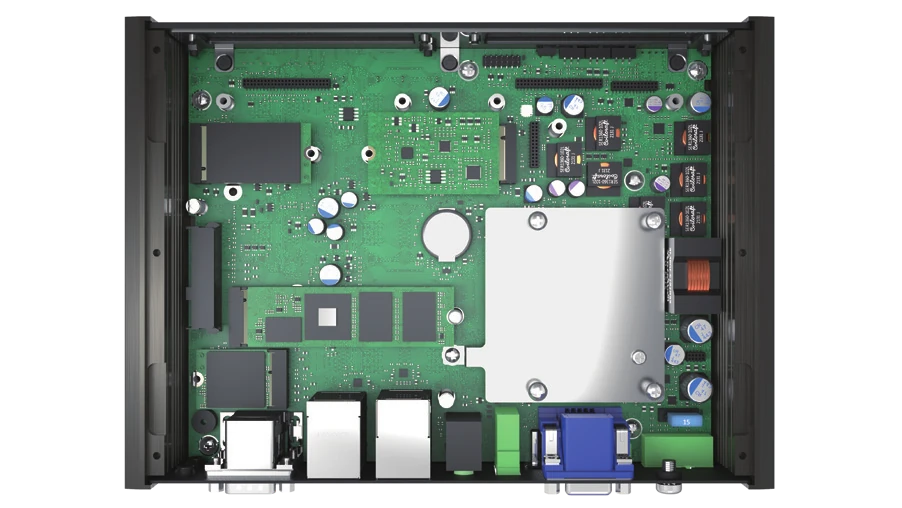

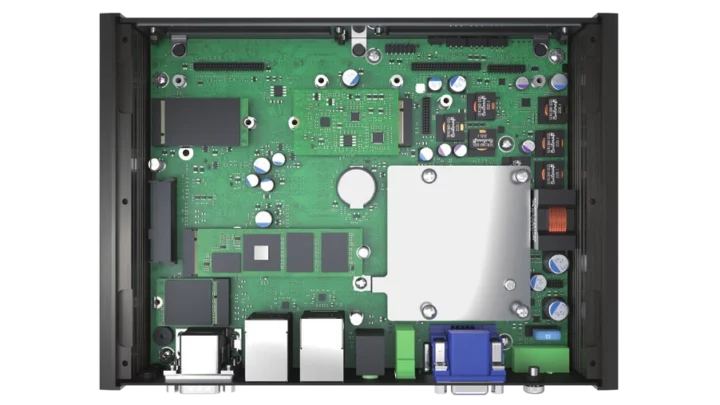

Cincoze DV1100 internal design

Cincoze says the DV-1100 is suitable for smart manufacturing, machine vision, railway computing, and other space-constrained applications where stability and reliability are critical. More details may be found on the product page. Cincoze does not sell samples of the rugged embedded computer on their website, but MITXPC does, starting at $1,099.95 and up and you can add options such as CPU, memory, storage, CMI module, OS, etc… to build a complete system matching your requirements and check out the final price.
