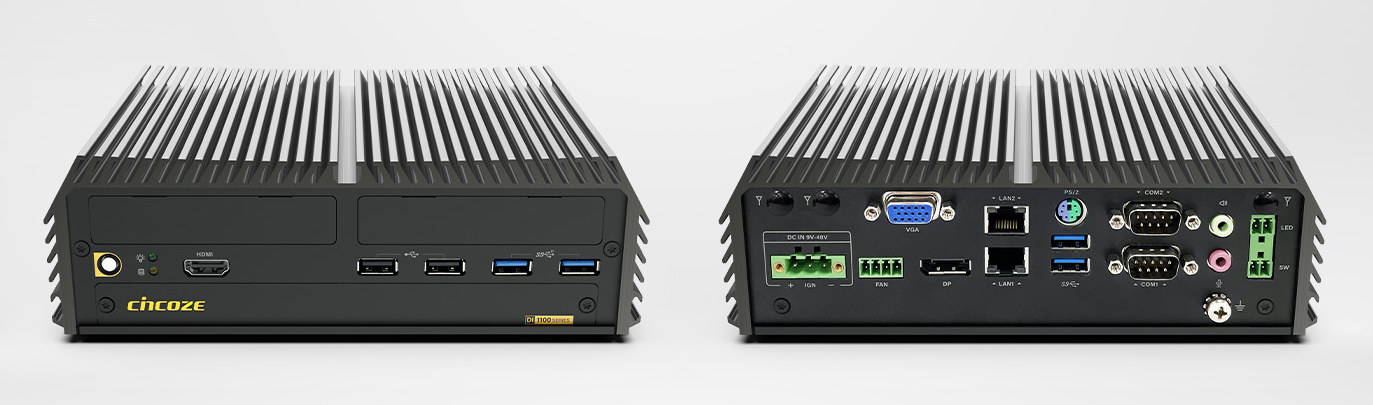

Cincoze DI-1100 is a fanless embedded computer with an optional external fan

Cincoze DI-1100 is a rugged, modular embedded computer powered by an Intel Whiskey Lake processor that comes in a fanless metal enclosure with heat dissipation fins, but the company also offers an external fan that clips on top of the metal case for additional cooling when using high-power peripherals such as PoE cameras.

Designed for autonomous robots, in-vehicle use, environmental monitoring, and other industrial applications, the computer supports -40 to 70°C wide temperature range, 9 to 48 VDC input voltage range, and comes with plenty of I/Os including two Gigabit Ethernet ports, six USB ports, two RS232/422/485 interfaces, as well as mini PCIe sockets, and CFM and CFI expansion modules.

Fanless embedded computer with external fanCincoze DI-1100 specifications:

  • Intel Whiskey Lake SoC (one or the other)
    • Intel Core i7-8665UE quad-core processor up to 4.4 GHz with Intel UHD Graphics 620; 15W TDP
    • Intel Core i5-8365UE quad-core processor up to 4.10 GHz with Intel UHD Graphics 620; 15W TDP
    • Intel Core i3-8145UE dual-core processor up to 3.90 GHz with Intel UHD Graphics 620;  15W TDP
  • System Memory – 1x DDR4 SO-DIMM socket for up to 64GB 2400MHz RAM (un-buffered and non-ECC)
  • Storage
    • 1x 2.5-inch Front Accessible SATA HDD/SSD Bay (SATA 3.0)
    • 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
    • Support RAID 0/1
  • Video Output
    • 1x HDMI 2.0 connector up to 4096 x 2304 @ 60Hz
    • 1x DisplayPort connector up to 4096 x 2304 @ 60Hz
    • 1x VGA connector up to 1920 x 1200 @ 60Hz
  • Audio
    • Realtek ALC888, high-definition audio
    • 1x Line-out jack, 1x Mic-in jack
  • Networking
    • Dual Gigabit Ethernet via Intel I219 (GbE1) and Intel I210 (GbE2)
    • Optional WiFI and Bluetooth via mPCIe socket
    • Optional 3G, 4G LTE via mPCIe socket plus 2x SIM card sockets
  • USB
    • 2x 10 Gbps USB 3.2 Gen2 Type-A ports
    • 2x 5 Gbps USB 3.2 Gen1 Type-A ports
    • 2x 480 Mbps USB 2.0 Type-A port
  • Serial – 2x RS-232/422/485 DB9 connectors with auto flow control (supports 5V/12V)
  • Misc
    • 1x PS/2 6-pin Mini-DIN
    • 4-pin external FAN terminal block
    • Clear CMOS switch
    • ATX power button, AT/ATX mode switch
    • Reset button with 0.2sec Instant Reboot technology
    • Remote power on/off with LED (2x 2-pin terminal blocks)
    • Watchdog timer
  • Expansion
    • 2x Full-size Mini-PCIe Socket
    • CMI (Combined Multiple I/O) Interface
      • 1x high-speed CMI Interface for optional CMI Module Expansion
      • 1x low-speed CMI Interface for optional CMI Module Expansion
    • CFM (Control Function Module) Interface – 1x CFM IGN Interface for optional CFM-IGN module for 12V/24V power ignition sensing
  • Power Supply
    • 9 – 48V DC via 3-pin terminal block
    • Total Power Budget – 120W
    • Over Voltage Protection
      • Protection Range: 51 to 58V
      • Protection Type: shut down operating voltage, re-power on at the preset level to recover
      • Over Current Protection – 15A
      • Surge Protection – 3.84 kV (impedance 12-ohm 1.2/50us waveform)
  • Dimensions – 203 x 142 x 66.8 mm (fanless, unibody design, extruded aluminum with heavy-duty metal)
  • Weight – 1.74 kg
  • Temperature Range – Operating: -40°C to 70°C; storage: -40°C to 85°C
  • Relative Humidity – 95% RH @ 70°C (non-condensing)
  • MTBF – 513,628 hours predicted with Telcordia SR-332 Issue3, Method 1, Case 3
  • Certifications
    • Shock & vibration – MIL-STD-810G
    • EMC – CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway), E-mark
    • Safety – IEC/EN 62368-1

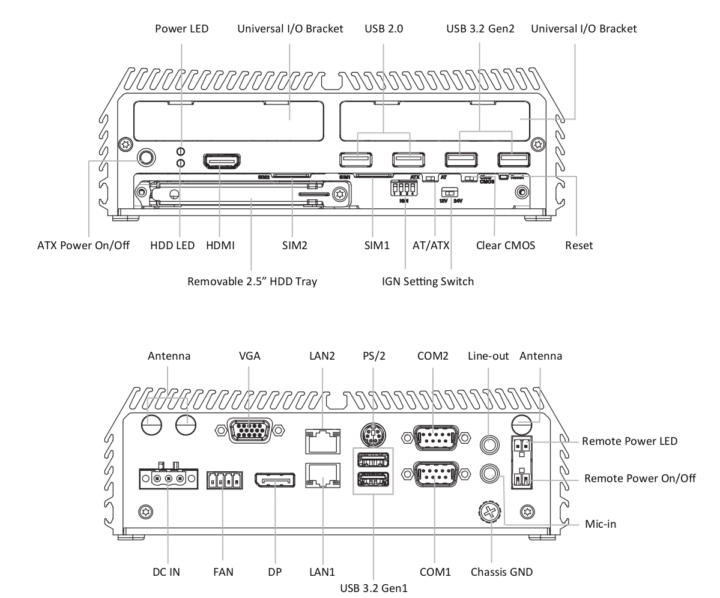

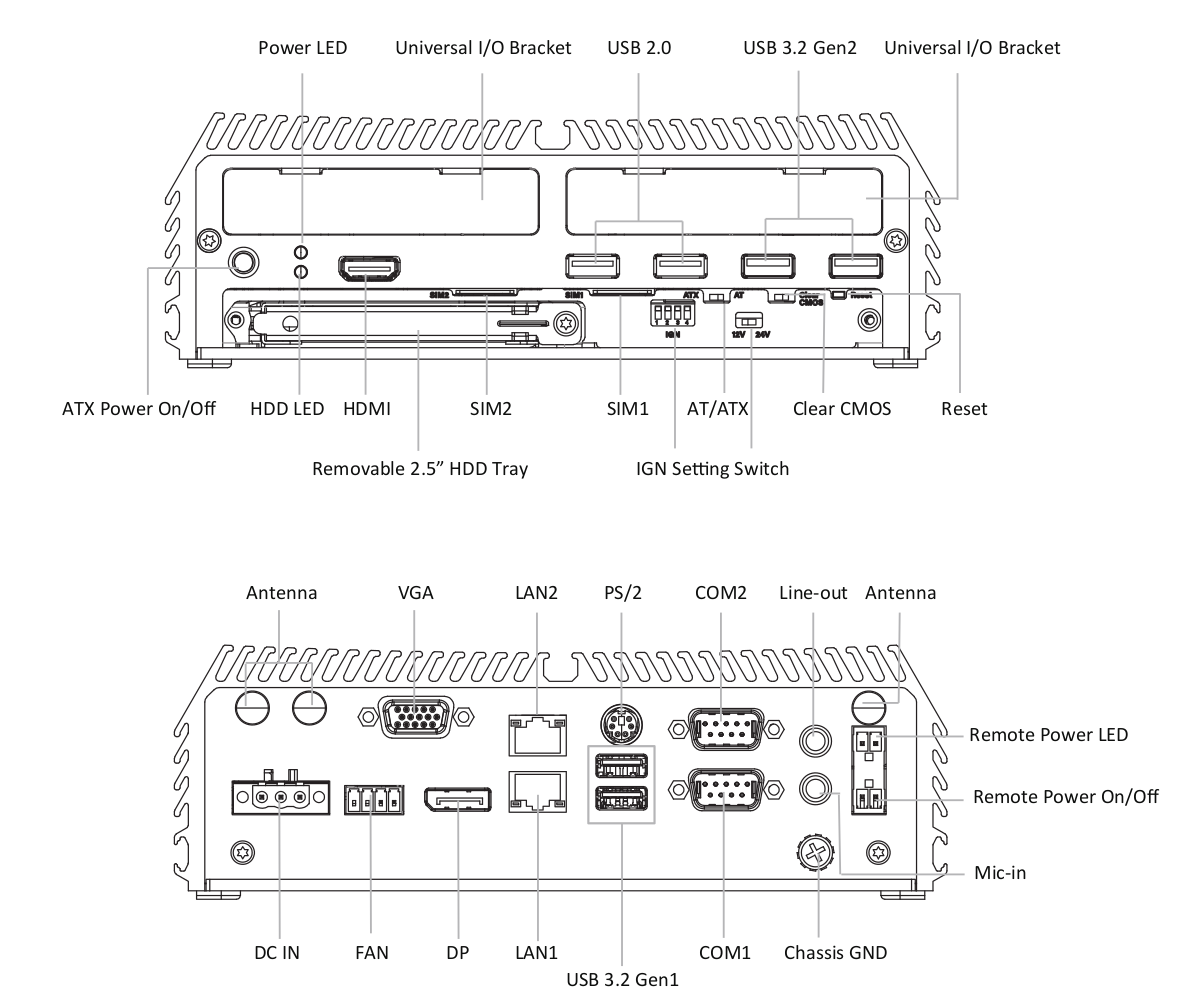

Cincoze fanless embedded computer

Four mounting options are offered with the system with wall, side, DIN Rail, and VESA mounting. The company offers Windows 10 and Linux operating systems and tested the operating temperature with PassMark Burn-In Test (100% CPU, 2D/3D Graphics) without experiencing thermal throttling.

It’s unclear whether this kind of hybrid fanless + fan design is as efficient as internal cooling, but it should retain one advantage of fanless systems in industrial environments: keeping the dust and corrosive substances out of the enclosure.

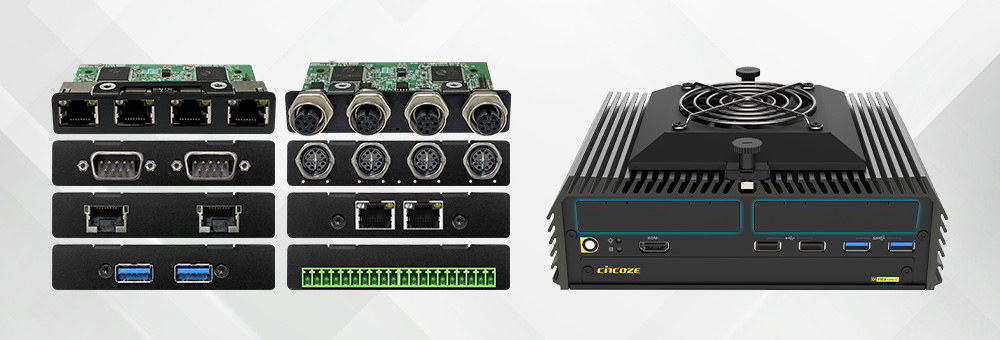

Cincoze CMI/ CMF modules

CMI (Combined Multiple I/O) and CFM (Control Function Module) are proprietary expansion modules from Cincoze that can be used to add features such as dual 10 GbE LAN (M12 A-coded or M12 X-coded), power ignition sensing, four PoE ports, and other interfaces to the company’s rugged computers. You’ll find the full list of options on the company’s accessories page.

No pricing nor availability information was provided for the Cincoze DI-1100 rugged computer. More details may be found on the product page and press release.

YouTube video player

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

2 Replies to “Cincoze DI-1100 is a fanless embedded computer with an optional external fan”

  1. I asked the company the meaning of “0.2 sec Instant Reboot technology”.

    Answer:

    This 0.2 sec reboot feature can make the capacitor running fast discharge. Cincoze embedded computer like DI-1100 could be integrated into a machinery or automation control equipment such as automatic binding machine, stone processing machine, etc. When abnormal events occur, the rest parts in a machine such as PLC, motor server, and inverter can reboot instantly. DI-1100 also only takes 0.2 sec to reboot and synchronize with other parts, which can optimize the boot/reset process to reduce the boot time of the whole machinery system.
