Allwinner T113-i industrial gateway supports Ethernet, WiFi, Bluetooth, 4G LTE, offers RS232, RS485, CAN Bus, DI/DO interfaces

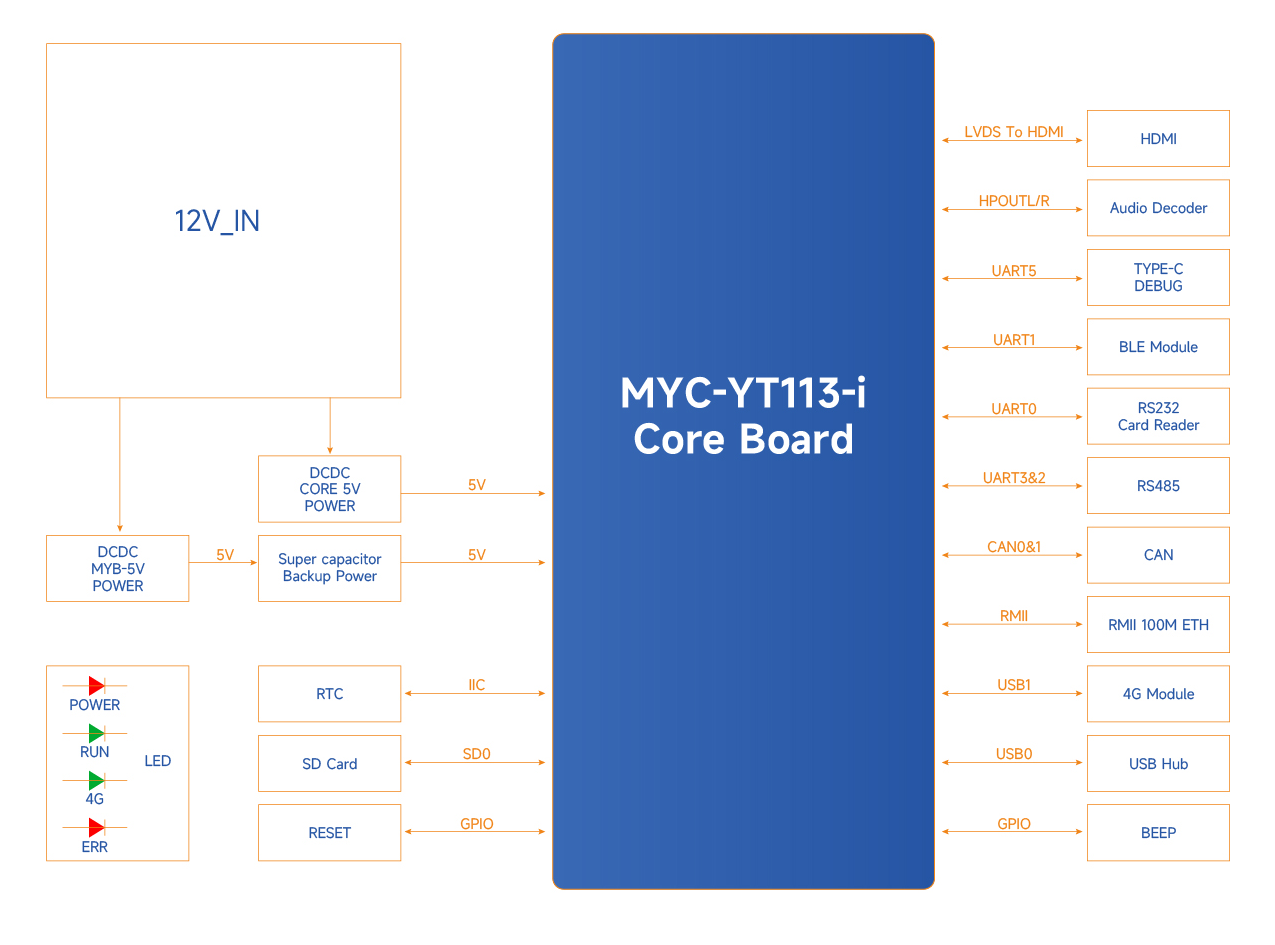

MYiR Tech’s MY-EVC700S-V2 is an industrial gateway powered by Allwinner T113-i dual-core Cortex-A7 microprocessor (MPU), and equipped with up to 512MB DDR3, 4GB eMMC flash, and 32KB EEPROM.

The fanless industrial-grade gateway offers RS232, RS485, CAN Bus, DO, and DI through terminal blocks, Fast Ethernet, WiFi, Bluetooth, and 4GB LTE connectivity, HDMI and LVDS display interfaces, a few USB ports, and more.

MY-EVC700S-V2 specifications:

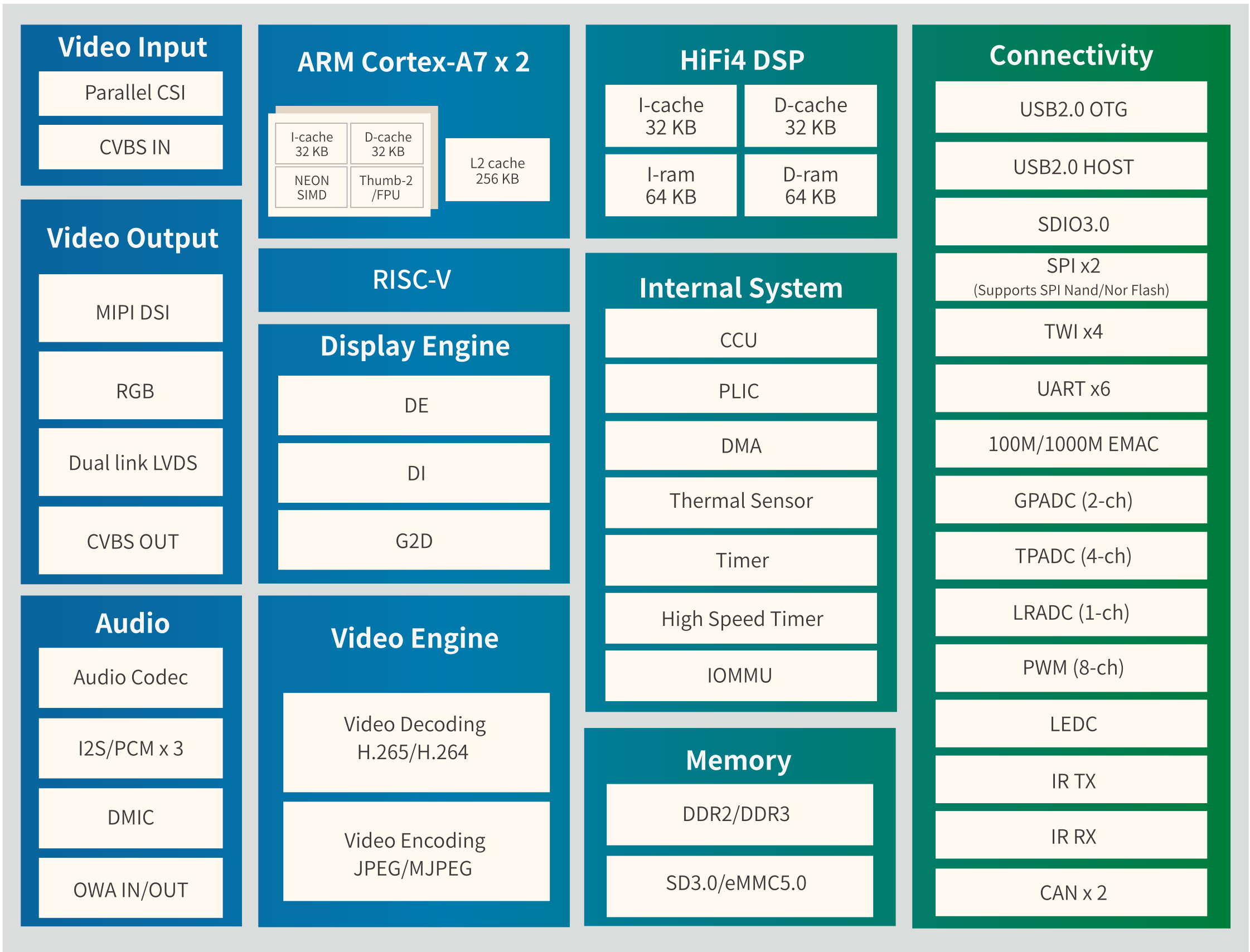

SoC – Allwinner T113-i
- CPU
  - Dual-core Arm Cortex-A7 clocked at up to 1.2 GHz
  - 64-bit XuanTie C906 RISC-V real-time core
- DSP – HiFi4
- VPU
  - Video decoder – H.265 up to 4K @ 30 FPS, H.264 up to 4K @ 24 FPS, MPEG-1/2/4, JPEG, Xvid, Sorenson Spark up to 1080p60
  - Video encoder – JPEG/MJPEG up to 1080p60
- Package – LFBGA 337 balls, 13 x 13 mm
System Memory – 512MB DDR3
Storage
- 4GB eMMC flash
- 32KB EEPROM
- MicroSD card slot
Display Interfaces
- LVDS-to-HDMI interface (optional)
- LVDS connector (that looks like a DVI connector)
Audio – 3.5mm audio jack
Networking
- 10/100Mbps Ethernet RJ45 port
- WiFi/Bluetooth module
- USB-based 4G LTE mini PCIe module (Quectel EC200MCNLF-I03-MN0CA)
- 2x antenna connectors, one for WiFi/Bluetooth, one for 4G LTE
USB – 2x USB 2.0 host ports

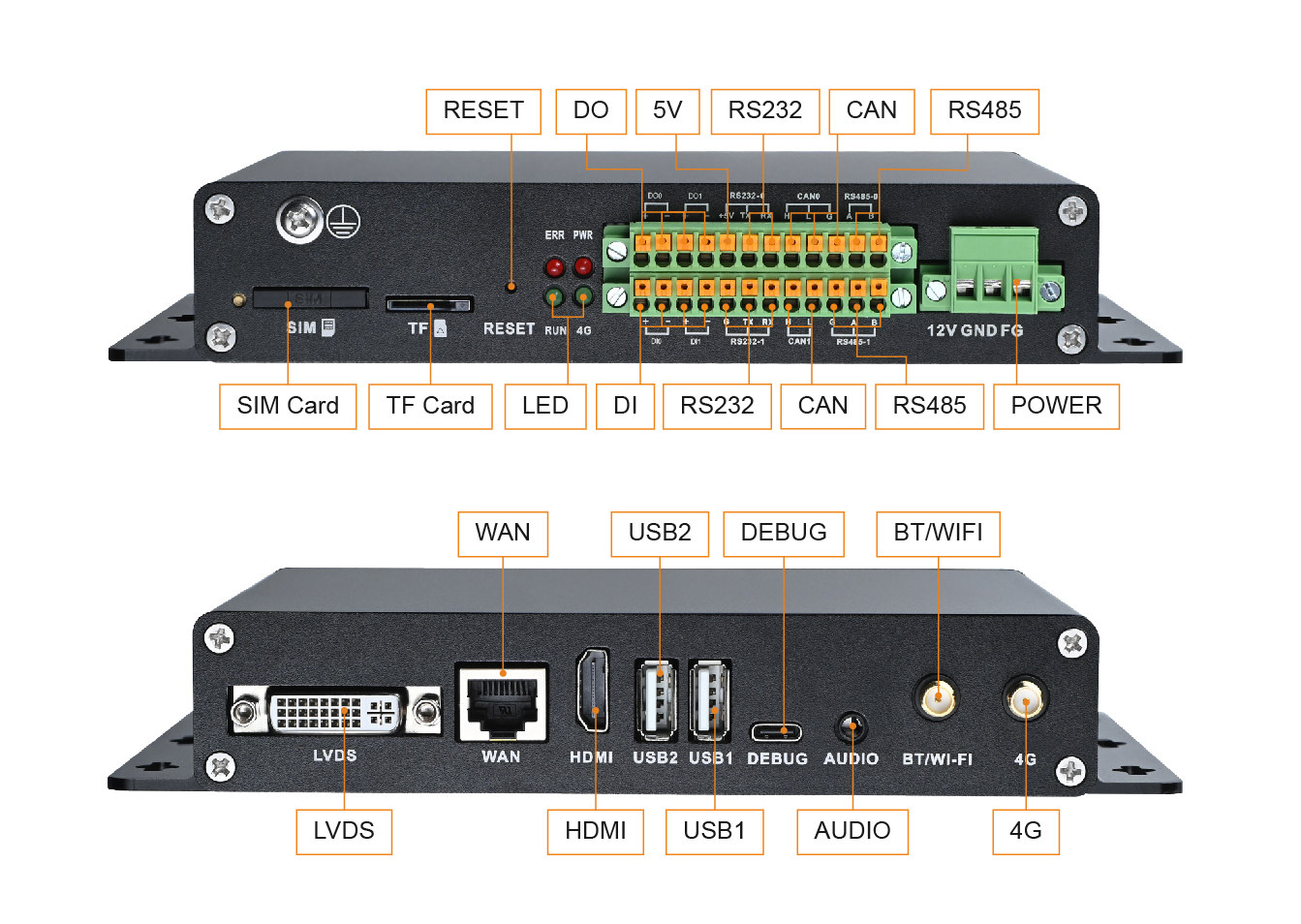

I/Os via terminal blocks – 2x RS232, 2x isolated RS485, 2x isolated CAN, 2x DI, 2x DO
Debugging – USB-C debug connector (for serial console, I assume)
Misc
- Reset button
- 4x LEDs (PWR, ERR, RUN, 4G)
- RTC
Power Supply – 9V to 15V DC via 3-pin terminal block (Rated voltage: 12V DC)

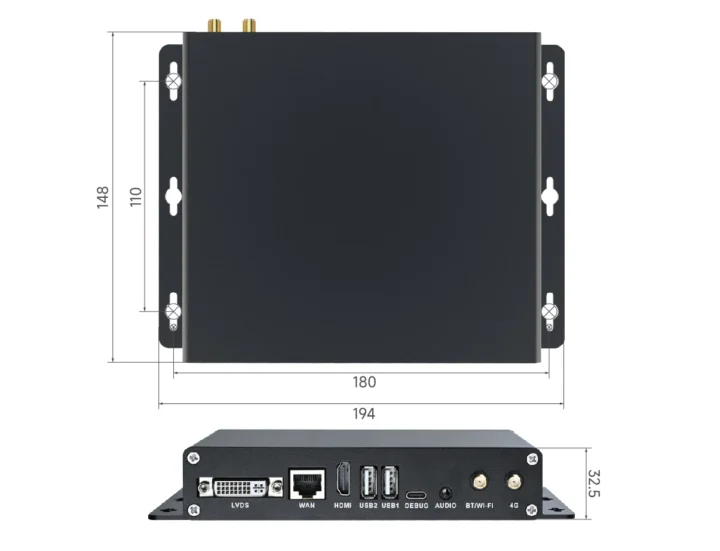

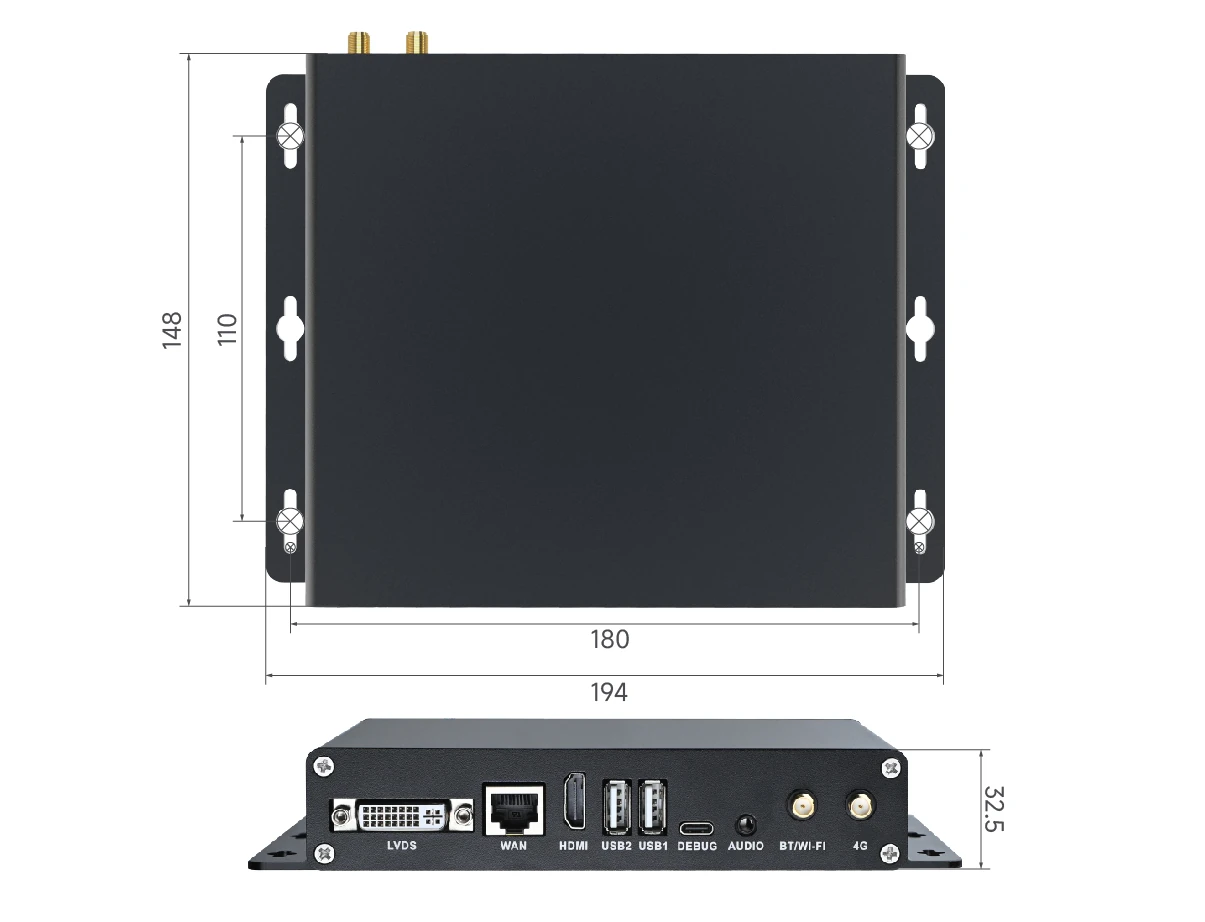

Dimensions – 194 x 158 x 32.5mm (metal enclosure)
Temperature Range – -40°C to +85°C
Certifications – CE certified

The Allwinner T113-i industrial gateway ships with a customized Linux image. MYiR provides a Linux BSP for the gateway with source code for u-boot 2018.05, Linux kernel 5.4.61 (end of life in December 2025), and hardware drivers. As usual, the BSP is not public, and only offered to customers.

As I started writing this article, I was convinced we had already covered the Allwinner T113-i a few times, but I was wrong, and instead we wrote about the similar Allwinner T113-S3 MPU, the 100ASK-T113-Pro industrial SBC, and MYiR MYC-YT113X low-cost CPU module. Allwinner provides a product brief for the “i” variant, and Forlinx wrote an article comparing the Allwinner T113-S3 and T113-i SoCs while introducing the company’s FET113i-S system-on-module. Basically, the T113-i supports up to 2GB external RAM (instead of 128MB on-chip), can operate in the industrial temperature range (-40°C to +85°C), adds a real-time RISC-V slave core, and packages are also different (T113-i is LFPGA, T113-S3 is TQFP).

MYiR Tech sells for MY-EVC700S-V2 gateway for $129. You’ll find more information and a purchase link on the product page.
