Seeed Studio reComputer R1025-10 industrial IoT gateway supports Ethernet, RS485, 4G LTE, LoRa, Zigbee, Wi-Fi, BLE

The reComputer R1025-10 is a Raspberry Pi CM4-based DIN Rail industrial gateway and edge IoT controller designed by Seeed Studio. The company mentions that the R1025-10 is the first module in the reComputer R1000 series and it’s equipped with 4GB RAM and 32GB of eMMC version of the CM4 module. That simply means the company will launch Edge IoT controllers in the series which will host different variants of the CM4 module.

The R1025-10 gateway is features rich and includes two Ethernet interfaces, three isolated RS485 interfaces, and a variety of optional wireless modules including 4G, LoRa, Zigbee, or Wi-Fi/BLE. Other features include an HDMI port, two USB Type-A ports, and a USB Type-C 2.0 port.

Previously we have covered many Din Rail IoT gateways like the IOT-DIN-IMX8PLUSCytron IRIV PiControl, the Robustel EG5101 and EG5200 and many others feel free to check those out if you are looking for similar products.

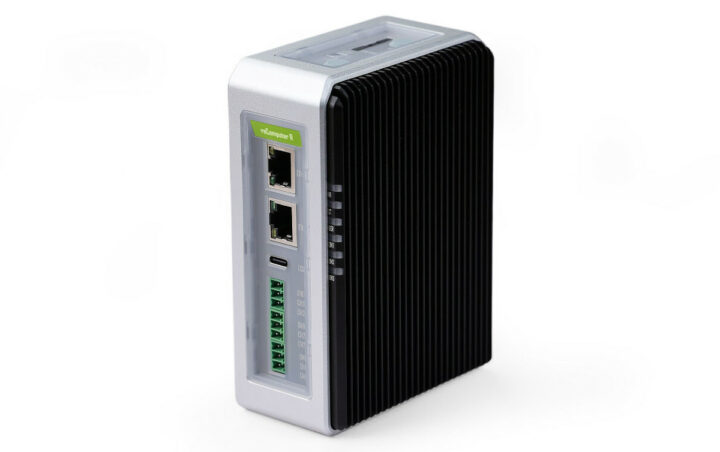

Seeed Studio reComputer R1025 industrial IoT gateway

reComputer R1025-10 IoT gateway specifications:

  • SoM  Raspberry Pi CM4
    • SoC – Broadcom BCM2711 quad-core Cortex-A72 processor @ 1.5GHz
    • Memory – 4GB DDR4 (1GB/2GB/4GB/8GB options for R1000 series)
    • Storage  – 32GB eMMC storage (8GB/16GB/32GB options for the R1000 series)
    • Optional wireless module
  • Storage – M.2 slot for M.2 NVMe SSD
  • Video Output – 1 x HDMI 2.0 4Kp60
  •  Networking
    • Wired
      • Gigabit Ethernet RJ45 port with optional PoE
      • 10/100Mbps Ethernet RJ45 port (IEEE802.3/802.3u)
    • Wi-Fi 2.4/5.0 GHz on-chip Wi-Fi (optional)
    • BLE 5.0 on-chip BLE (optional)
    • LoRa: USB LoRa/SPI LoRa (optional)
    • Cellular: 4G LTE (optional)
    • Zigbee: USB Zigbee (optional)
  • USB
    • 2 x USB-A 2.0 host
    • 1 x USB-C 2.0 for flashing OS
  • Encryption – TPM 2.0 via ATECC608A chip (optional)
  • Additional Features
    • Hardware Watchdog – 1~255s
    • High Accuracy RTC
    • 1 x Buzzer
    • 6 x LED indicators
    • Reset Button
    • SuperCAP UPS LTC3350 Module (optional)
  • Powering options
    • Input – 2-pin Terminal Block
    • Supply Voltage: 12 – 24V AC / 9 – 36V DC
    • PoE (as powered device): IEEE 802.3af Standard 12.95W PoE
    • Power Consumption: Idle: 2.88W; Full Load: 5.52W
  • EMC Standards
    • ESD – EN61000-4-2, Level 3
    • EFT – EN61000-4-4, Level 2
    • Surge – EN61000-4-5, Level 2
  • Environmental specifications
    • Ingress Protection – IP40
    • Operating Temperature: -30~70°C
    • Operating Humidity – 10~95% RH
    • Storage Temperature: -40~80°C
  • Certifications – CE, FCC, TELEC, RoHS
  • Production Lifetime – Until December 2030
  • Dimensions – 130 x 93 x 45 mm

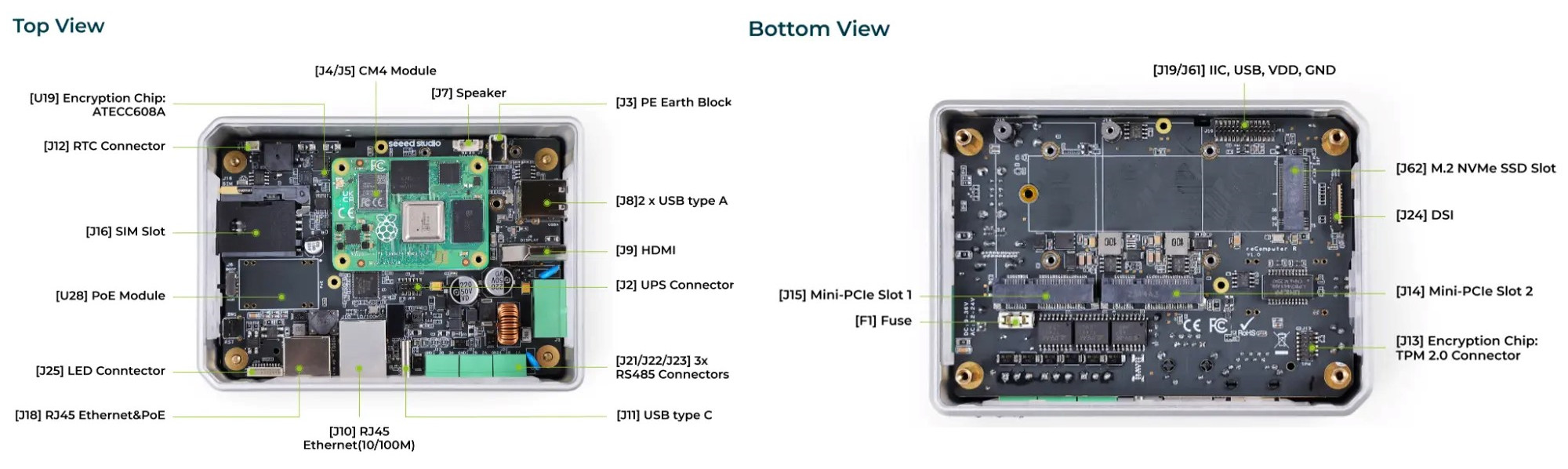

reComputer R1000 Top and Bottom View with Specifications

The company mentions that the body of the module is made up of high-impact resistant materials of 6061 aluminum alloy casing with transparent PC side panels to withstand harsh conditions. the device also has vibration and shock resistance standards and exceeds Electrostatic Discharge (ESD), Electrical Fast Transient (EFT), and Surge immunity levels.

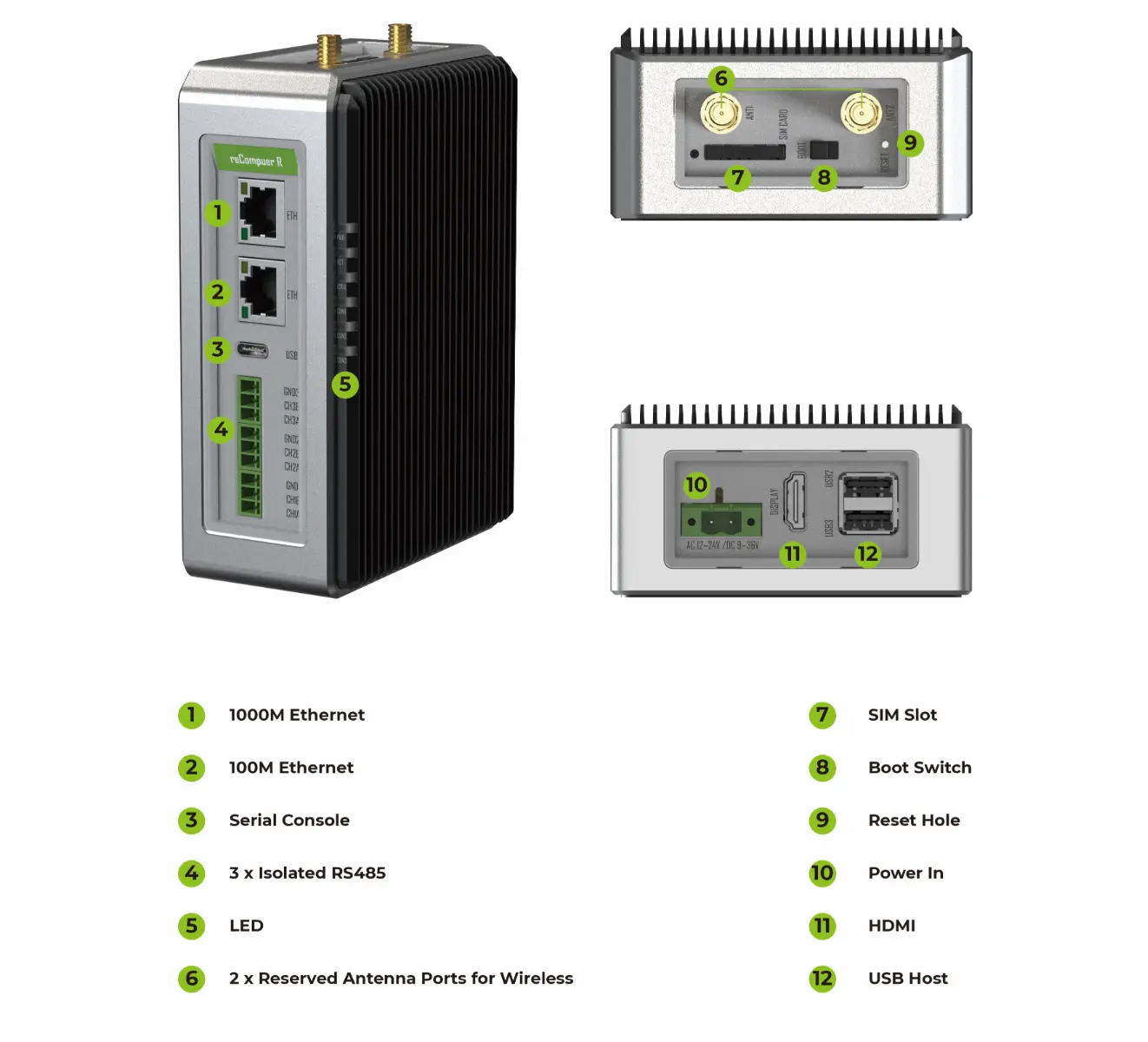

11

The R1025-10 is a ready-to-deploy Industrial IoT (IIoT) controller with pre-configured firmware, simplifying setup and reducing time to deployment. Additionally, it offers flexible installation options with both wall mount and DIN rail mount compatibility.

The module has support for Modbus UDP/TCP and BACnet protocols, making it suitable for controlling HVAC systems and other subsystems like lighting, sensors, and access control in smart buildings. It also supports Yocto and Buildroot meaning you can customize Linux distribution to run on your device and provide a convenient solution for managing software updates. There is also support for Fleet management tools like Mender for easy device management and deployment. But at the time of writing, the GitHub page does not provide any specific OS image software for this specific gateway.

For more information about the reComputer R1025-10 IoT gateway, please visit the Getting Started guide with a hardware overview, project examples, additional module information, and other helpful resources. The reComputer R1025-10 Edge IoT Controller is currently available for backorder for $209.00 and is expected to ship on May 31, 2024.
