Emtrion SBC-SAMA5D36 ARM Cortex A5 Linux Development Board Comes with Dual Ethernet, HDMI Output

A few months ago, I reviewed Atmel Xplained SAMA5D3 development board powered by SAMA5D36 Cortex A5 processor. The kit is supported by the Yocto Project, so I could build and run Poky distribution with a recent Linux kernel (it support mainline), it features Arduino compatible headers, and I found the board to be a nice platform for headless applications, or applications that require an LCD display. However, if you wanted to connect an HDMI display you’d be out of luck, unless you design your own LCD to HDMI add-on board. Emtrion SBC-SAMA5D36 could be an interesting alternative, as it features very similar specifications, but adds an HDMI output port.

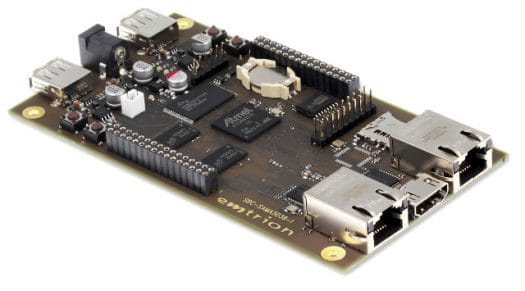

SBC-SAMA5D36 Development Board (Click to Enlarge)
SBC-SAMA5D36 Development Board (Click to Enlarge)

Emtrion SBC-SAMA5D36 specifications:

  • MPU – Atmel SAMA5D36 single core Cortex-A5 @  536 MHz
  • System Memory – 256 MB RAM
  • Storage – 512 MB NAND Flash, up to 16 MB NOR Flash, and micro SD Card socket
  • Connectivity – 100Base-TX Ethernet,  10/100/1000Base-TX Ethernet (Gigabit Ethernet)
  • Video Output – HDMI, LCD connector and 4-wire touch
  • USB –  2xUSB Host,  1x USB Device
  • Other I/Os:
    • I2S Audio Interface
    • 5x serial ports (LVTTL)
    • up to 52 GPIOs
    • 2x CAN buses
  • Misc – 2x user buttons, 4x user LEDs, RTC (battery buffered)
  • Power Supply – 5V.
  • Power Consumption –  Typ. 1 W
  • Dimensions – 135mm x 74mm

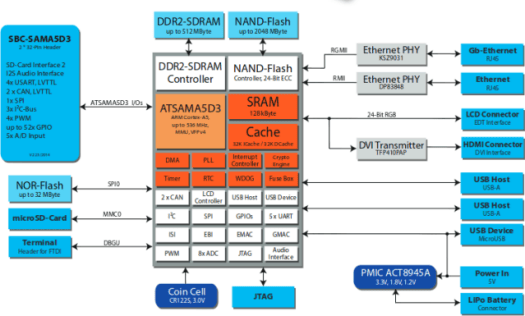

Block Diagram (Click to Enlarge)
Block Diagram (Click to Enlarge)

The board is said to support Debian 8.0 (Jessie), as well as build frameworks such as the Yocto Project and Buildroot. Just like Atmel SAMA5D3 Xplained, SBC-SAMA5D36 is supported in Linux mainline, except the LCD driver which is work in progress. The SDK includes a pre-configured rootFS based on Debian 8, Qt 5.2 support, GNU toolchain, build scripts, a VMware virtual machine for development and various software and hardware documents.

The board is available now for around 100 Euros for a single unit, and around 80 Euros for 1k order. You can find more information, including the hardware manual, on the company’s blog, and SBC-SAMA5D36 product page.
