Unboxing of Ugoos UM3 Android and Ubuntu ARM mini PC

Ugoos UM3 is another minic PC powered by Rockchip RK3288 SoC with 8GB storage, 2GB RAM. It has Wi-Fi, but no Ethernet, so it looks like the offspring between a full-sized TV box and an HDMI stick. The company sent me a sample for evaluation pre-loaded with a dual boot image with Android 4.4 & Ubuntu 14.10. I’ll start by unboxing, and opening the device, before testing the dual boot image another day.

Ugoos UM3 Unboxing

The company sent me the device via DHL in a package for RK3066 / RK3188 devices, but I guess end-users will get an update package that will probably look similar.

Ugoos_UM3_Package

I was surprised how tiny the device was when I first took it out of the box, and with a black body and red cover, it’s probably the cutest too.

Ugoos UM3 and Accessories (Click to Enlarge)
Ugoos UM3 and Accessories (Click to Enlarge)

It comes with a 5V/2A power supply and corresponding USB to micro USB cable, HDMI and AV cables, an IR extension cable, an IR remote control requiring two AAA batteries (not included), and a user’s manual in English with some pictures of older Ugoos devices.

Ugoos Um3 (Click to Enlarge)
Ugoos Um3 (Click to Enlarge)

Looking at the device itself (did I say it looks really cool?), we’ll find a reset pihole, a Wi-Fi connector, micro SD card on the rear panel, an HDMI female port on one side, micro USB OTG/DC, AV port, and IR port on the other side, and two USB ports on the front panel.

I’ve also shot an unboxing video.

Ugoos UM3 Internal Pictures

A good looking device is good, but the most important is what’s inside, so I opened with a green plastic tool. It took me a little while to open it, but you just have to slide a thin and hard object between the red cover, and black casing to pop-up the cover.

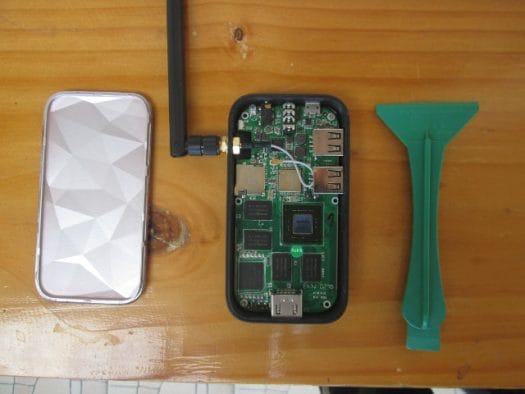

Ugoos UM3 Opened and Tool (Click to Enlarge)
Ugoos UM3 Opened and Tool (Click to Enlarge)

I’ve also take a closer picture of the board to have a look at the components.

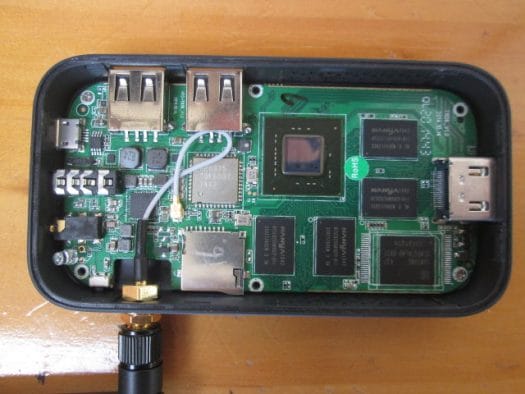

Ugoos UM3 Board (Click to Enlarge)
Ugoos UM3 Board (Click to Enlarge)

The first thing I’ve noticed is the lack of heatsink on RK3288 processor, and based on how hot RK3288 gets on other devices, it’s a little worrying… The board is called TRD6_V1.0, and has been manufactured/designed on 2014/10/14. The Wi-Fi module is AP6335 with support for 802.11 b/g/n/ac and Bluetooth 4.0 as advertised, 4 NANYA NT5CB256M16CP-DII DDR3-1600 chips provide the 2GB RAM, and a SAMSUNG KLM8G1WEMB-B031 eMMC flash the 8GB internal storage. The flash delivers a read speed of 100MB/s, and a write speed of 6MB/s only, according to a SAMSUNG eMMC document.

I’m not sure I’ll do my usual full review, but I’ll definitely shot a video with the Android and Lubuntu image, make temperature measurements, and verify stability under load (3D games, full movie playback).

If you plan to buy in quantities, you may want to check out Ugoos UM3 product page. Few shops currently sell to individuals, and I could only find it on Dealsprime for $109 including shipping, and on “Ugoosshop” for 124.95 Euros. [Update: GeekBuying now sells it for $129]
