Android 4.4 and Ubuntu 14.10 Tested on Ugoos UM3 mini PC (Rockchip RK3288)

Orange Pi Development Boards

A few days ago I posted pictures of Ugoos UM3, a cute mini PC powered by Rockchip RK3288 quad core Cortex A17 processor, with 2GB RAM, 8GB internal storage, a few USB ports, and Wi-Fi 802.11 b/g/n/ac connectivity. There are so many Rockchip RK3288 based TV boxes and sticks on the market, that it has become difficult to differentiate, so Ugoos has decided to support not only Android 4.4 like all their competitors, but also Ubuntu 14.10, and they’ve provided an alpha release of dual boot Android / Ubuntu images for Ugoos UT3 and UM3 models.

Yesterday, I flashed the latest Android/Ubuntu firmware for UM3, and tested the image, so today I can report my findings. First of all, I’d like to point out that I received an earlier sample with various flaws that I reported to Ugoos, and they’ve already committed to fixes:

  • 5V/2A power adapter is not powerful enough to drive the box and an external hard drive, leading to HDMI TV blinking, and reboots. Fix: Change power adapter to 5V/3A.
  • No heatsink leading to 100+ C temperature and reboot in Antutu benchmark, even with better power supply. Fix: All finished UM3 have an heatsink (metal plate) as shown below.
    Ugoos_UM3_metal_plate
  • Confusing OTG/DC marking on micro USB DC only port, and no marking on actual USB OTG port. Fix: The case will be update to show where the full-sized USB OTG port is.

So now that we’ve got these engineering sample issues out of the way, let’s talk a bit about the firmware. If you’d rather not read, and just watch the video, scroll down to the bottom of this post. Right after flashing, the firmware will boot to Android by default.

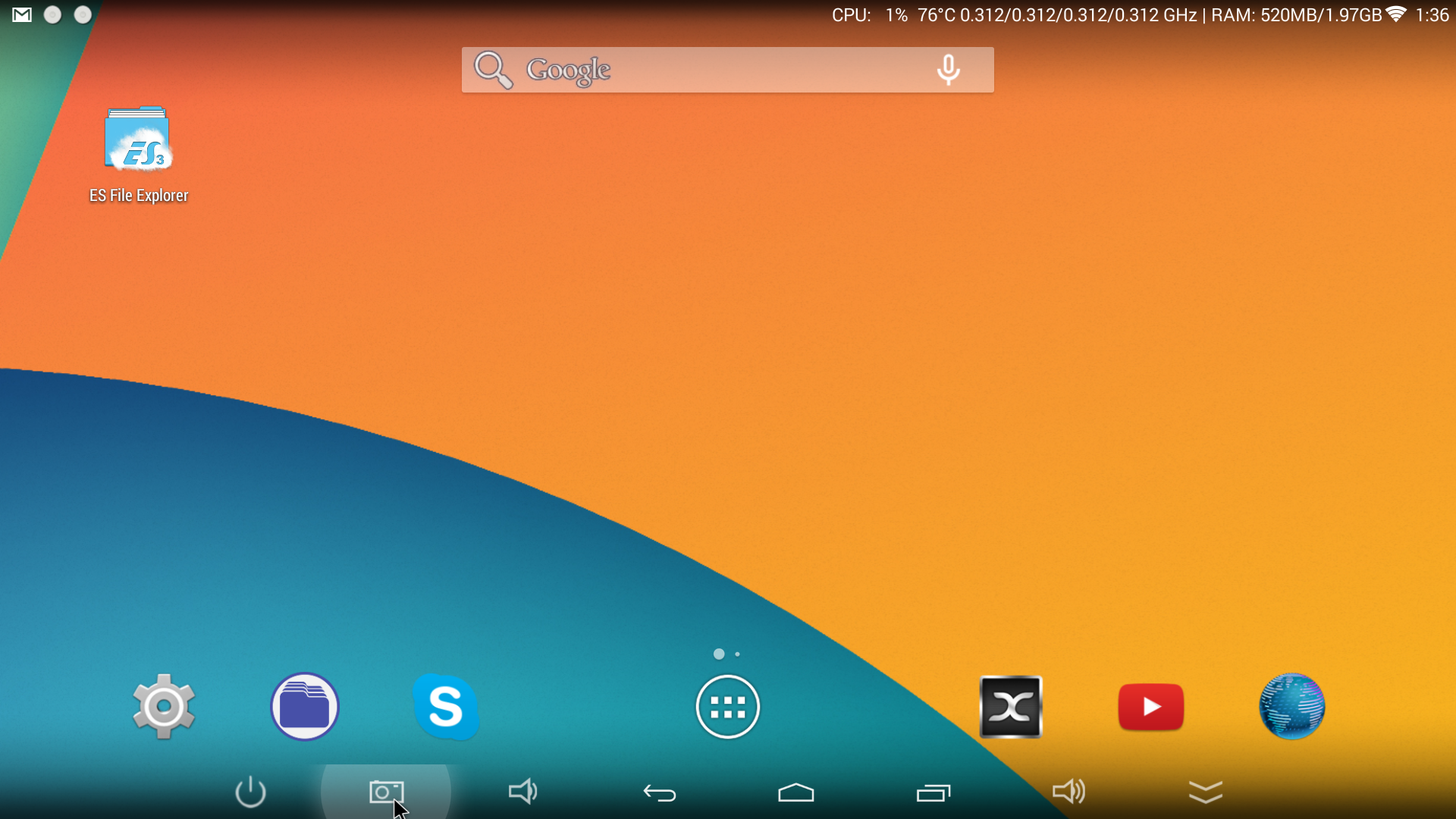

Android Home Screen (Click for Original Size)
Android Home Screen (Click for Original Size)

The system has actually two launchers pre-installed, the stock Android home screen as pictured above, and the same TV-friendly user interface as Nagrace HPH NT-V6. The company has also added “Ugoos” settings to the firmware which are options to display CPU usage (overall or per cores), cores frequency, and memory usage. There are two partitions reserved for Android out of the 8GB flash: a 0.95 GB partition for apps, and a 2.17 GB partition for data. I’ve tried Antutu benchmark, but either the 5V/2.5A power supply I used is not powerful enough (even when no hard drive is connected), or the temperature went above 100 C for too long, and the system simply reboots. I did not use my 5V/8A power supply since I have not made a 5.5/2.1mm power barrel to micro USB adapter yet.

That’s all I did with Android, then I clicked on the power button in the task, and selected Switch System option. Within 45 seconds, I got to login prompt for user ugoos, enter the password (ugoos), ans started to play around.

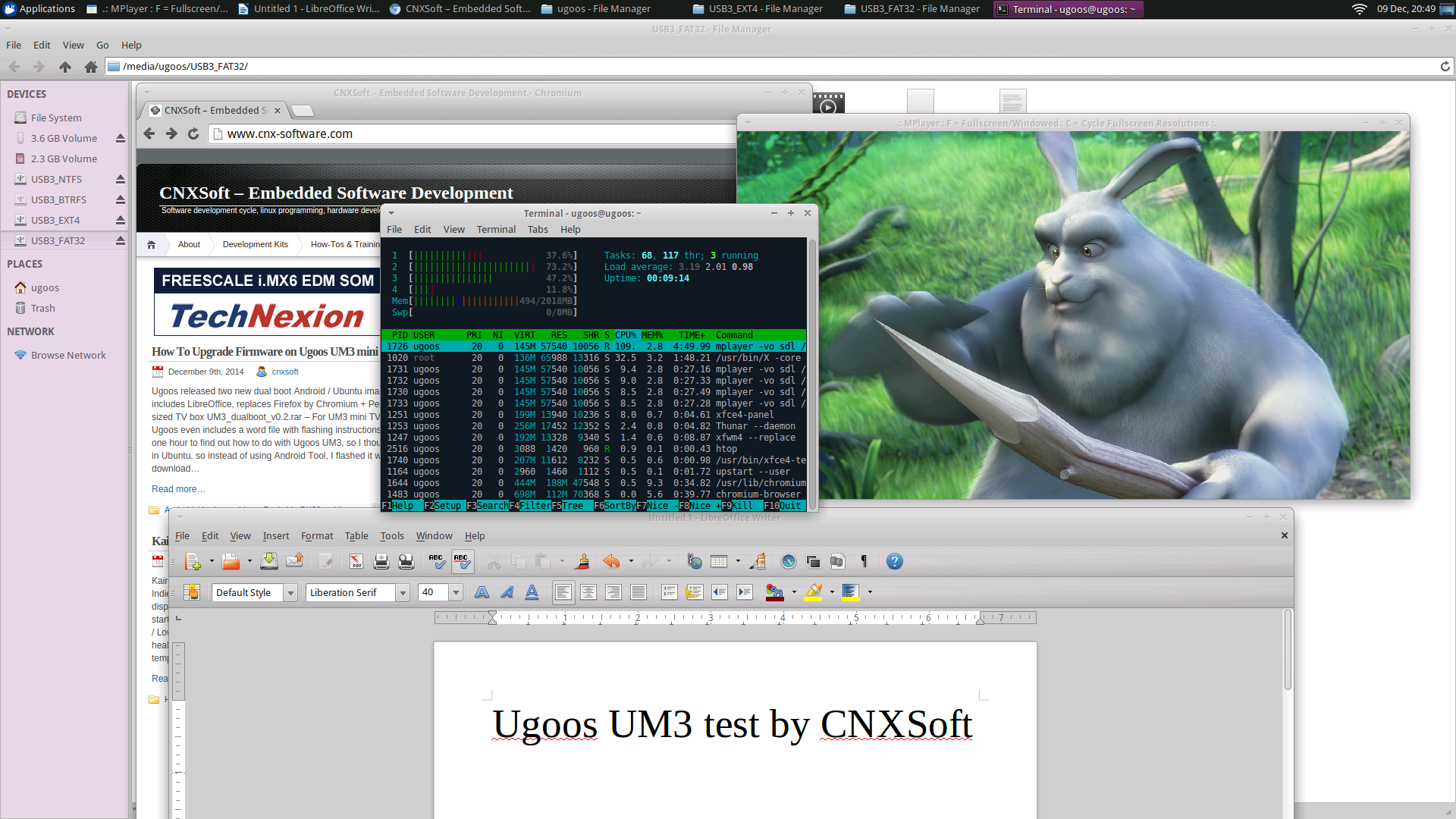

Ubuntu 14.10 + XFCE (Click for Original Size)
Ubuntu 14.10 + XFCE (Click for Original Size)

The first task was to connect Wi-Fi, which mostly worked, except DNS would not work properly. /etc/resolv.conf seems to be hardcoded to 192.168.2.1, which my router IP address is actually 192.168.0.1. To fix the DNS issue, I ran a few commands:


Wi-Fi won’t connect automatically at boot time, and I always had to click on my ESSID in the menu on the top right to connect to the network. USB Ethernet is supposed to work, but it’s not something I’ve tried. I’ve also checked the storage reserved for Ubuntu rootfs: 3.2 GB with 1.4 GB used, so 1.8 GB free, and we can also access the 2.3GB Android “data” partition from Ubuntu.

So after I tried LibreOffice which boots in a few seconds, typed a short seconds with a USB keyboard, and as expected I did not encounter any issues here. Then I switched to Chromium, but YouTube would refuse to load and complained with the message “Connection is not private”, and recommending to set the date/ time of the computer. So I looked for a way to configure the date and time in XFCE, and apparently it’s not possible from the user interface, so instead I used command tools to set the timezone, and get the time from NTP:


timedatectl is part of systemd-services (in Ubuntu), but I can’t remember if ntpdate was pre-installed. If it was not simply:


After setting the correct date and time, I could use Chromium to test the following:

  • Loading cnx-software.com – No problem, it loaded reasonably fast, and all items were properly displayed.
  • Playing an embedded YouTube video in CNX Software – OK (360p)
  • Playing the same YouTube video in YouTube – Some audio cuts and video may be choppy at time (480p)
  • Same YouTube Video (VP9 – 480p) in full screen – Video even more choppy, and audio cuts more frequent
  • Facebook Flash games – Candy Crush Saga: Will only load up to 67% of the game, and I could not play; Angry Birds with Friends: Load with error message: “This application is not correctly embedded. Wrong wmode value”.

So the web browsing experience is far from optimal, at least if you plan to use YouTube, or other online video services, or play flash games.

For the next step, I went to my USB hard drive (NTFS partition) in the File Manager, and clicked on a 1080p H.264 video (Big Buck Bunny) which started mplayer, and play the video smoothly. Later I tried the MP4 version of the video, and noticed some slowdowns. So some 1080p videos may play just fine, and some others not so. To make sure video decoding was done by software, I also tried to play a 4K video, and as expected it was a disaster (2 to 3 frames per second).

Finally I installed es2gears to confirm 2D/3D graphics acceleration is not enabled (yet):


Running es2gears will simply fail, and not even fallback to software rendering. I forgot to capture the exact error message, and one of the warning reads “libEGL warning: DRI2 failed to authenticate”.

Once I finished playing in Ubuntu, I clicked on the top menu Other->Reboot to Android, which opens a terminal windows asking to enter your user password into to complete the action, and within 30 to 40 seconds, I was back in Android.

Here’s the video with my tests. I’m sorry but the video quality is not very good,  especially in Ubuntu where it’s difficult, not to say impossible, to read the small text. I’ll have to find a better solution solution for next time, maybe getting an HDMI input recorder.

Some other quick comments. There’s no circuitry for power off in Ugoos UM3, so you’d have to disconnect the power to turn it off. If you do so in Ubuntu, the box will start Ubuntu next time, and in Android, it will boot to Android. I’ve also noticed that once Ubuntu enters screensaver mode (Black screen), there’s no way to get out of it, and a power cycle is needed.

That’s the status of the Android / Ubuntu image so far. Several bugs need to be addressed, VPU and GPU support in Linux, much more work is currently needed to have better Ubuntu image, although it can already be used to work with LibreOffice, and with caveats, to browse the web. Ugoos UM3 only has a 8GB eMMC flash, which means only 3GB is available in Android and Ubuntu, so you may consider using the Android or Ubuntu image instead of the dual boot image, if you need to install more applications.

If you plan to buy in quantities, you can do so by contacting the company via Ugoos UM3 product page. Since the device still in development, albeit almost ready, few sellers propose it for pre-order including Dealsprime for $109.99 including shipping, and on “Ugoosshop” for 129.95 Euros. It’s big brother, UGoos UT3, which also supports Android and Ubuntu, has been available for a month or so, and sells for about $140 on Amazon US, Chinavasion, GeekBuying, and others.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

18
Leave a Reply

avatar
18 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
9 Comment authors
CNXSoft – Embedded Systems News » Linux 3D GPU Acceleration Demo on Rockchip RK3288 based Firefly BoardCNXSoft – Embedded Systems News » Ugoos UT3S is an Update to UT3 Android & Ubuntu TV Box with a FanPeter BauerVegatorwerewolfc Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Riaqn
Guest

Fantasy! Now I would consider replacing my old PC on my desk with a lite box!

onebir
Guest
onebir

What about sudo halt|shutdown now?

Ava
Guest
Ava

Thanks for you review.

anon
Guest
anon

Ugoos and Hardkernel really are the cream of the crop when thinking about ARM systems, my ancient UG802 was the best design for the dual core era, and is still going strong as my main backup (Gentoo) desktop, and been running at max frequency for years now.

And Hardkernel has the developer board game pretty much figured out.

Everyone just need to stop all that cent-saving of the BOM on both PSU and cooling…

manny
Guest
manny

Hardkernel just launched a 35$ quad core / 1gb ram raspi competitor, would love to see benchmark and if the YouTube problems fair better

manny
Guest
manny

QUESTION: instead of a bulky, expensive UPS, can one use a Cheap POWER BANK as substitutes in case of sudden power outage?

anon
Guest
anon

@manny
Yes, the ones that support simultaneous charging and output, personally using bunch of 8Ah USB batteries that were on sale, but there are much larger, and smaller, models… So just make sure the battery support simultaneous input and output, and that the charging (re)starts are automatic, as some have only “one time charging start” that of course do not work.

werewolfc
Guest
werewolfc

Thanks for the review. Hope that you’ll have the chance to review the new Hardkernel’s 35$ board.

Vegator
Guest

I have a UT3. To clarify, to solve the WiFi problem in Linux, I had to run

sudo rm /etc/resolv.conf
sudo ln -s /run/resolvconf/resolv.conf /etc/resolv.conf

as instructed by running sudo resolvconf -u.

By the way, Linux is running in 16-bit color mode (ugh!) which is why images and videos are ugly (apart from low framerates for larger windows). Check with xdpyinfo, the default visual should be 24 planes (truecolor). Since Android does seem to run in 32-bit pixel (24-bit color) mode, truecolor must be possible but I had no luck when I tried changing the xorg.conf file (the UT3 has a tendency to require a reflash to get workable display output back).

Vegator
Guest

Another thing is that when the screensaver kicks in and turns off the screen it won’t come back until a hard reset (it doesn’t respond to mouse/keyboard input).

One solution is to disable the screensaver and DPMS in the X server:

xset s off
xset -dpms

This prevents the screensaver from kicking in and the monitor being put in energy saving mode.
You can put these lines in the .profile in your home directory, or a global file in /etc/profile.d/:

sudo nano /etc/profile.d/no_screensaver.sh

When the screen goes black or is powered down, most of the time the system and keyboard still works, so it is possible to gracefully restart or shut down the system using the Linux Alt-SysRq key combinations:

Hold down Alt + SysRQ and press R, E, I, S, U, B in that order (B perfoms a hard reboot).
Press R, E, I, S, U, O for a shut-down.

However, when playing with the Linux configuration (such as xorg display settings) it can happen that the screen won’t appear when booting , so you can’t see what you do, even making it difficult to switch systems to Android, which might make it necessary to reflash the firmware.

The Android switch icon in the Linux desktop executes the following code:

sh /usr/local/bin/b2android.sh

When the screen stays black in Linux after a reboot, it might be possible to recover “blind”:

(Wait until the login screen should have appeared)
– Type ugoos
– Type ugoos
(Wait a little)
Press Ctrl + Alt + T to launch a terminal that will have keyboard focus.
Then type commands, for example the command to switch to Android.

Another thing is that when you choose “Log out”, the login manager won’t show up and the screen stays black, but when logging in blind (ugoos twice) it will work and the screen will come back.

Peter Bauer
Guest

I have added some benchmarks and how to’s about the Ugoos UT3 box to my blog:
http://bitkistl.blogspot.co.at/2014/12/ugoos-ut3-dual-boot.html
You can find some infos on partitioning and audio configration.
