Orbbec Persee Android & Ubuntu Mini PC Comes with a 3D Camera and SDK (Crowdfunding)

Orbbec is a startup working on 3D cameras which can be used for gesture recognition, 3D scanning, research purpose, and more. The company has now embedded their Astra 3D sensor into an ARM based mini PC running Android and/or Ubuntu which they call Orbbec Persee.

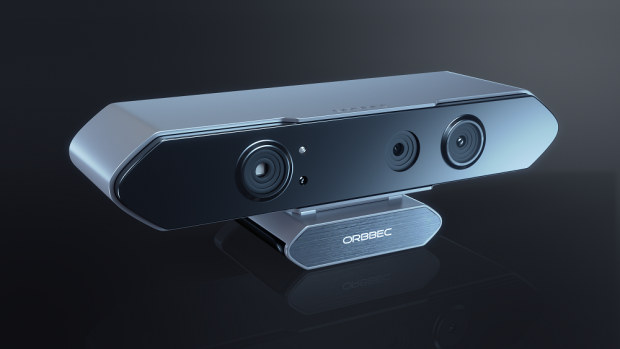

Orbbec_persee
Persee hardware specifications:

  • SoC – Quad core Cortex A17 processor up to 1.8GHz with a Mali-T7xx GPU @ 600 MHz (They did not name it, but it must be Rockchip RK3288)
  • System Memory – 2GB DDR3
  • Storage – 16GB eMMC flash, 1x micro SD card slot up to 64GB
  • Video & Audio Output – HDMI 2.0
  • Audio Input – 2x microphones
  • Camera – Built-in Astra Pro 3D camera
    • RGB image size – 1280×720 @ 30 fps (UVC support)
    • Depth image size – 640×480 @ 30 fps (16-bit)
    • Range – 0.4 to 8 meters
    • Depth accuracy – 0.5 centimeters at 2 meters
    • Field of view – 60° horizontal x 49.5° vertical (73° diagonal)
  • Connectivity – Ethernet, Dual band WiFi, Bluetooth
  • USB – 1x USB 2.0 port, 1x micro USB 2.0 OTG port
  • Power Supply – 5V/3A
  • Dimensions – About 184 x 35 x 46 mm
  • Weight – 800 grams

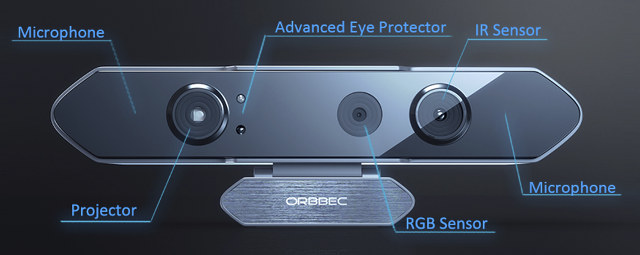

Orbbec_3D_Camera_mini_PCThere’s no mention of the operating systems’ versions, but since the products is highly likely based on Rochchip RK3288, Android 4.4, and Ubuntu 15.04 / 15.10 should be running on the device once it ships to backers.

Astra 3D cameras are supported using Orbbec Astra SDK with C/C++ API, and samples, with the latest version (v0.3.0) currently available for Windows 7 and later, and support for Mac OS X 10.8 or greater, Ubuntu 14.04 or greater, and Android 4.4.2 is coming soon. Persee will also run OpenNI 2 to handle gesture recognition and motion sensing. The SDK is said to support “Processing, and openFrameworks, Cinder, and Unity 3D will be coming soon”, and developers can get technical support on the forums.

Wondering how well it may work? Check out the gaming demo.


More demos showing how to control a user interface with gesture, and what the real-time depth image looks like can be found on Orbbec 3D YouTube Channel. Beside Astra Pro 720p camera, the company also offers Astra S VGA camera, and both can be connected via USB 2.0 to a computer.

Depth Image Accuracy Demo
Depth Image Accuracy Demo

Orbbec Persee was launched on Indiegogo a couple of days ago, and the project already raised around $45,000 out of their $40,000 funding target. Rewards start at $99 with Astra camera (VGA or 720p), but you’ll need to pledge at least $179 to get Orbbec Persee mini PC. Shipping starts at $12 to North America, but jumps to $50 to the rest of the word, with delivery scheduled for February 2016. Further details may also be found on Orbbec 3D website.

Via LinuxGizmos
