MK808B Pro Amlogic S905 Android TV Stick Unboxing and Teardown

MK808B Pro TV stick is the successor of the popular MK808B Plus and before that MK808B Android TV dongles with an upgrade to Amlogic S905 processor with 4K support. GeekBuying sent me a sample for evaluation, so I’ll start by checking the hardware before testing the device thoroughly in the full review.

MK808B Pro Unboxing

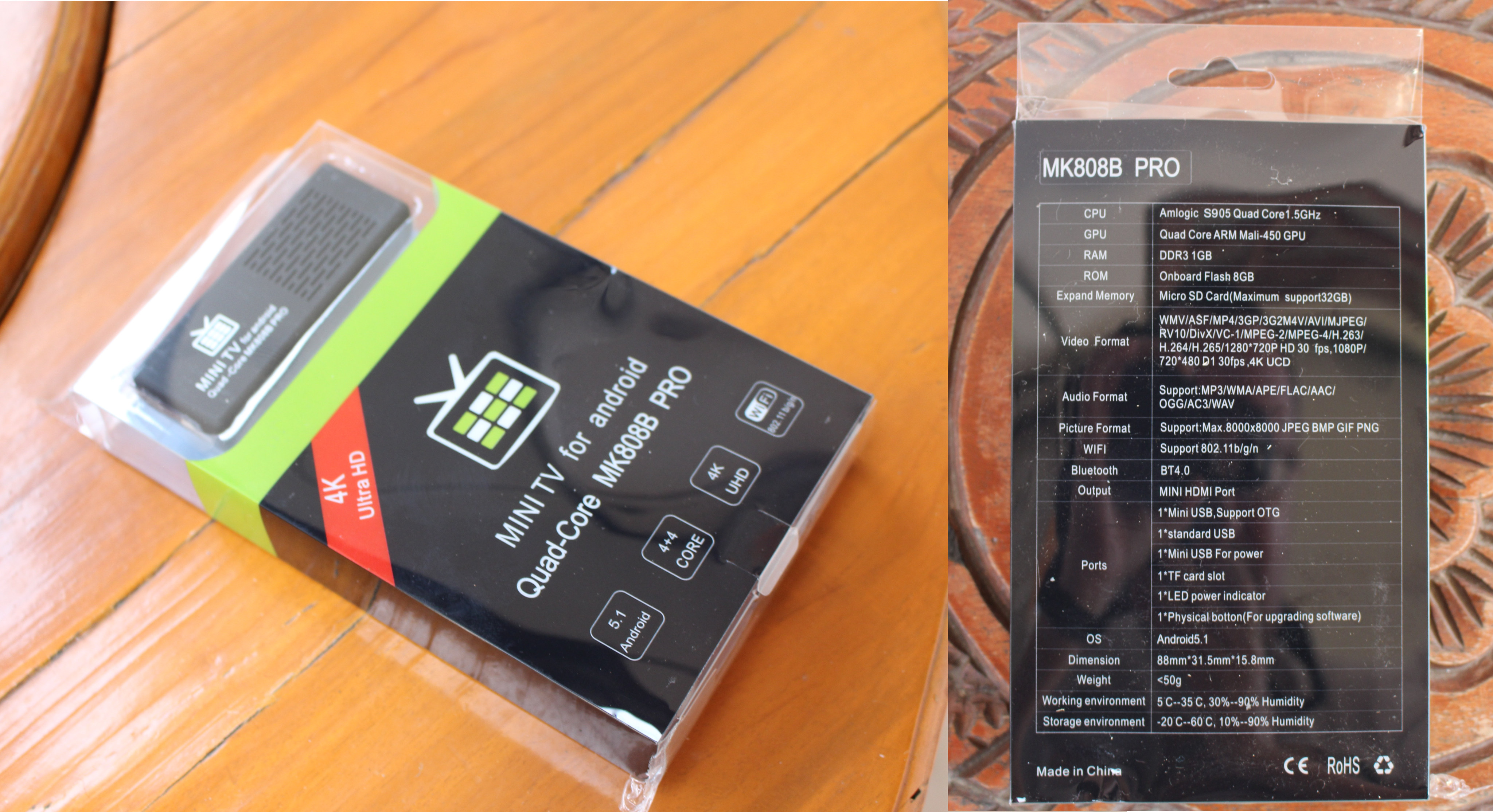

I received the stick in a package larger than I expected, but apparently about the same as the previous models (which I had not reviewed).

Click to Enlarge
Click to Enlarge

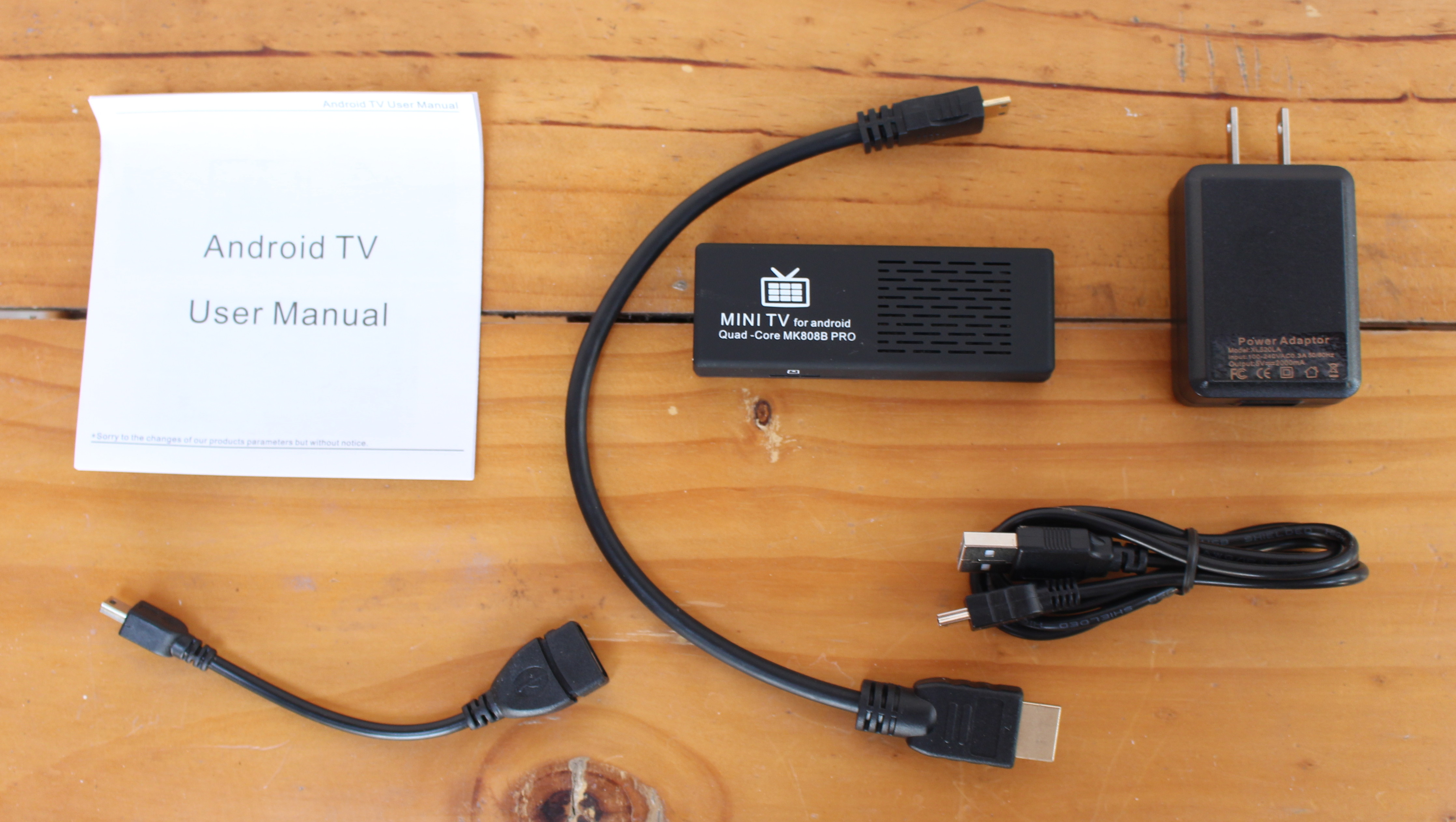

But that’s because of the included accessories: a 5V/2A power supply, a USB cable, a mini USB OTG adapter, a mini HDMI to HDMI cable, and a user’s manual.

Click to Enlarge
Click to Enlarge

Apart from the markings “MK808B PRO” and “4K Ultra HD”, the device looks the same as the older models.

Click to Enlarge
Click to Enlarge

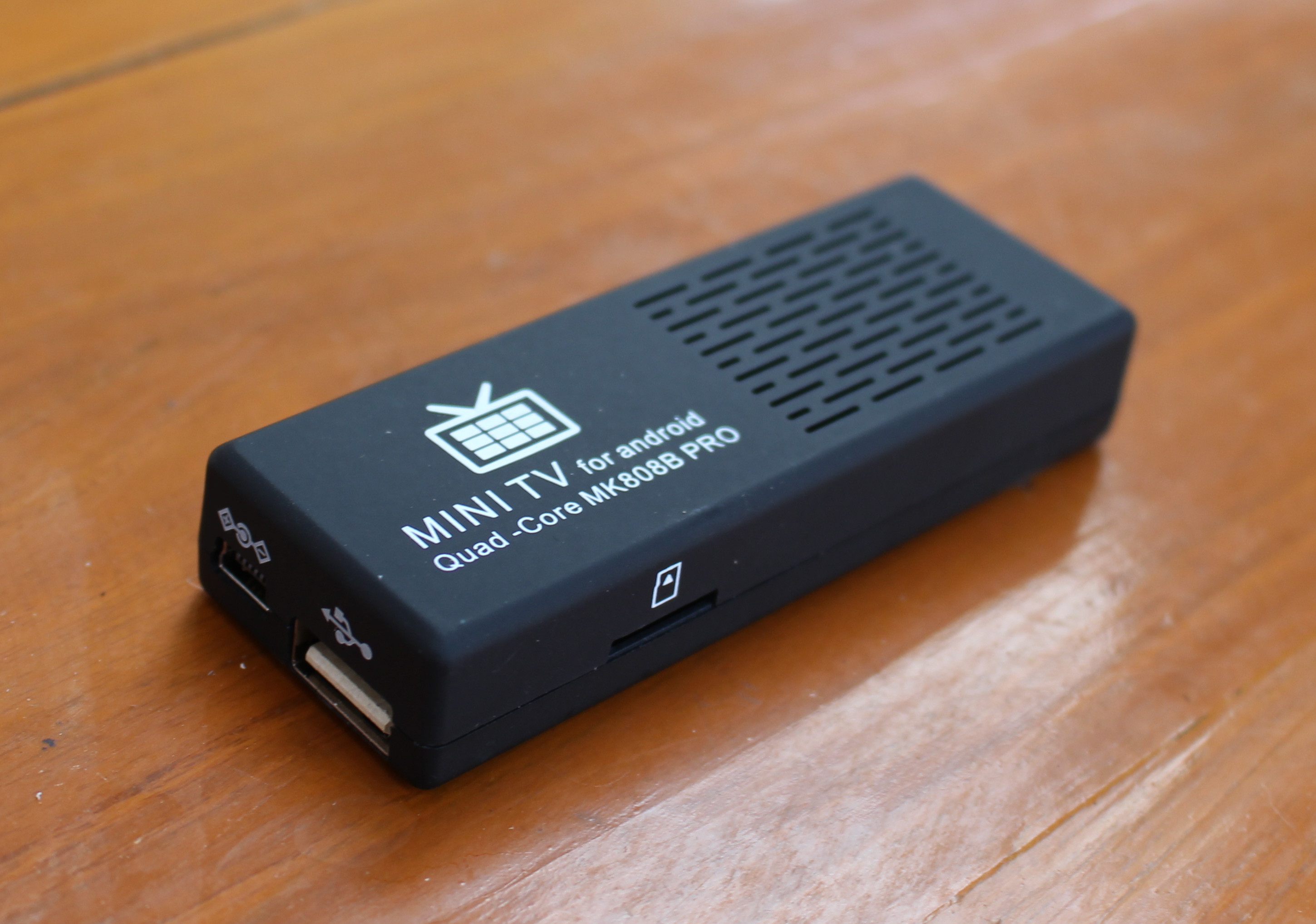

A mini USB port for power, and a USB 2.0 host port can be found on one end, with a micro SD slot on the side.

MK808B_Pro_mini_HDMI MK808B_PRO_OTG

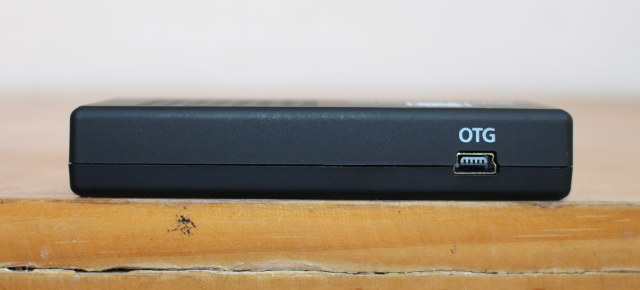

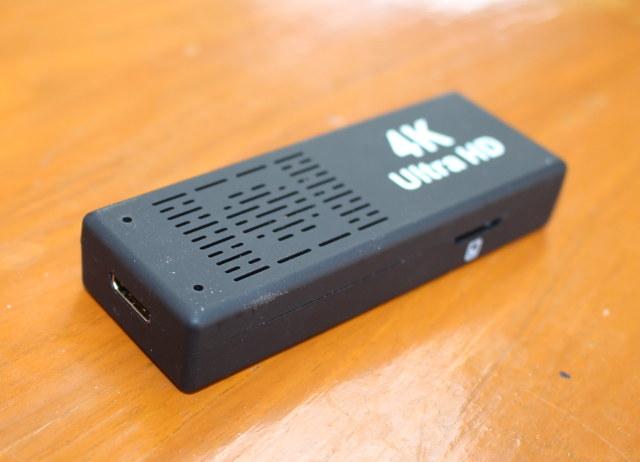

A mini HDMI port on the other end, and a mini USB OTG port (hence the provided USB OTG adapter) on the other side. There are also ventilation holes on both sides of the device.

MK808 Pro Teardown

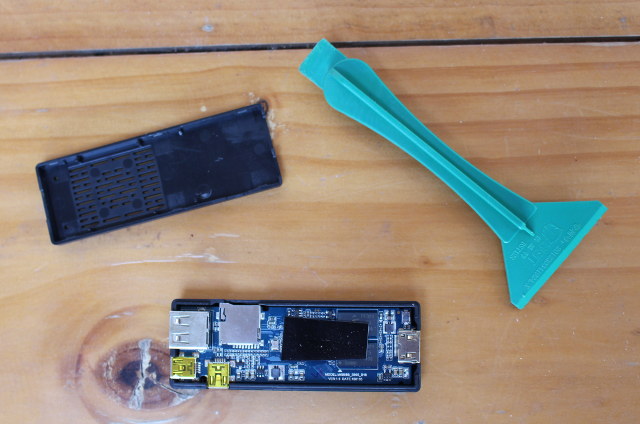

I used my favorite green plastic tool to separate the two parts of the case by starting right above the opening on top of the micro SD slot.
MK808_PRO_Teardown
The first remark is that there’s very little in the way of cooling with a think and hard black sheet covering the processor and partially two RAM chips. So that probably means the stick will run slower than most TV boxes based on Amlogic S905, as they may need to limit the processor frequency to keep it cool.

Click to Enlarge
Click to Enlarge

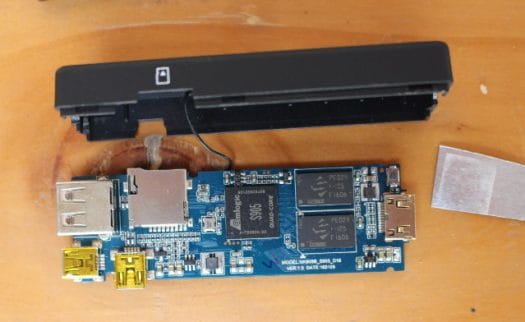

If we take it out, we can indeed see Amlogic S905 processor and two PE029-125 F1606 RAM chips (1GB in total) with some “S” logo. I’ve tried to scan the QR like code on the chip without luck, and I still have no idea which company makes these [Update: the company is SpecTek, a a wholly owned division of Micron Technology].  The board name is MK808B_S905_D16. You may also have noticed the push button on the top right corner of the board that is most likely used to enter recovery mode in order to update the firmware, and accessible via a hole on the top of the case.

Click to Enlarge
Click to Enlarge

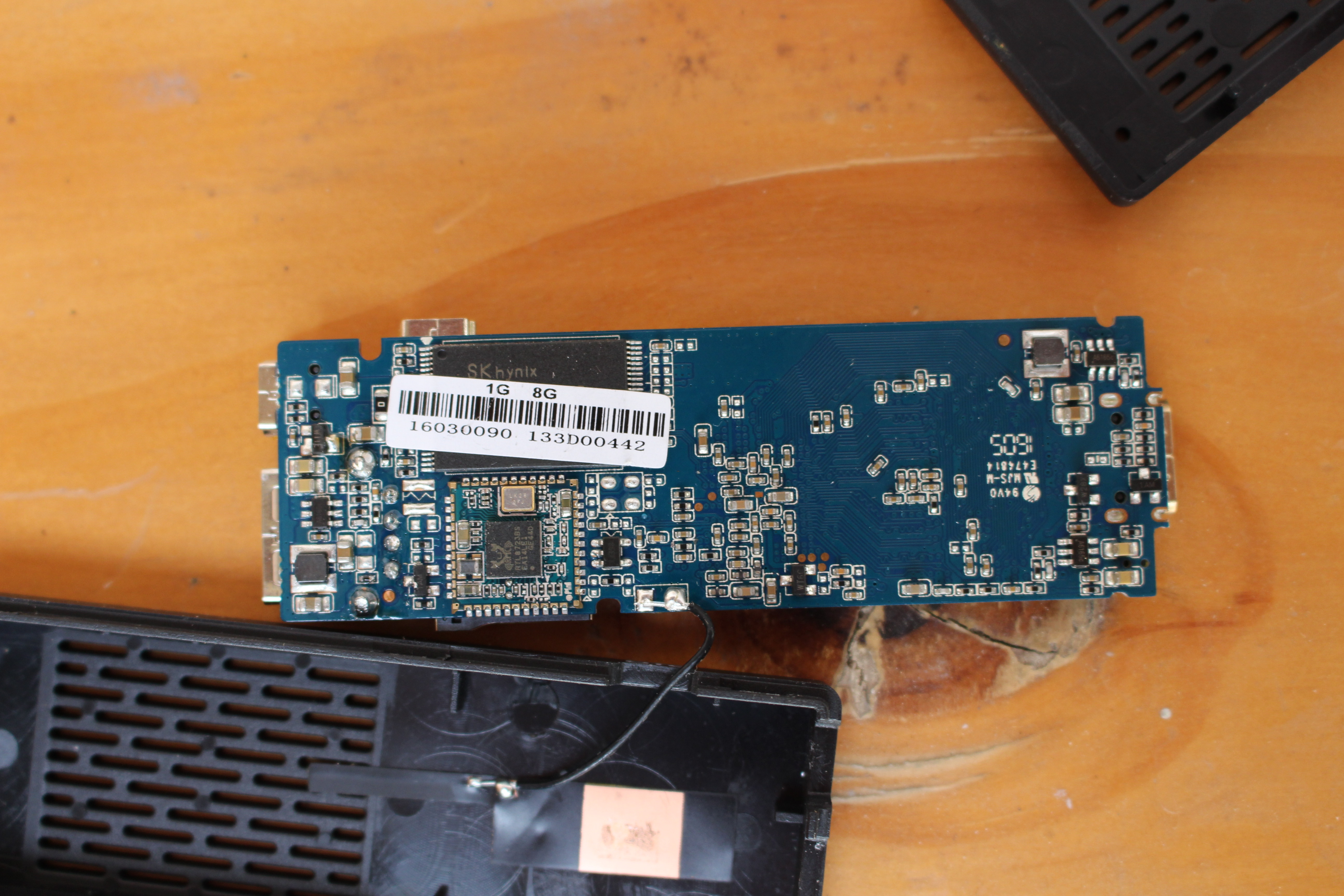

The other side of the board features a 8GB SKhynix flash and a wireless module based on Realtek RTL8723BS for Wifi 802.11 b/g/n and Bluetooth 4.0 connectivity.

GeekBuying kindly sent the review sample, and if you’d like to order one, you could consider purchasing it from their shop for $34.99 including shipping. The stick is also listed on Aliexpress for $36 and up, and eBay for $39.99.
