MXQ S905 / G9C 4K Android Media Player Unboxing and Teardown

Beside Tronsmart Vega S95 Telos, I’ve received another Amlogic S905 device with MXQ G9C, which was the first Amlogic S905 TV box to have surfaces in the news back in June, and a sample has been sent to me by Shenzhen Tomato. Since the company provides ODM/OEM services instead of catering to end users, the specs are flexible, but the device I received is with the default configuration namely 1GB RAM and 8GB flash, and with similar specs to Beelink MINI MX or KI Plus for example. Today, I’ll start by checking out the hardware, before reviewing the full package a little later.

MXQ S905 / G9C TV Box Unboxing

I received the parcel via DHL, with the device in a retail white brand package reading “MXQ”, “S905”, and “IPTV box”, with some features on the back such as Airplay, DLNA, Miracast, or Widewine, Playready, and Verimatrix. But I’m pretty sure the three DRM solutions have not been implemented in the box I’ve received…

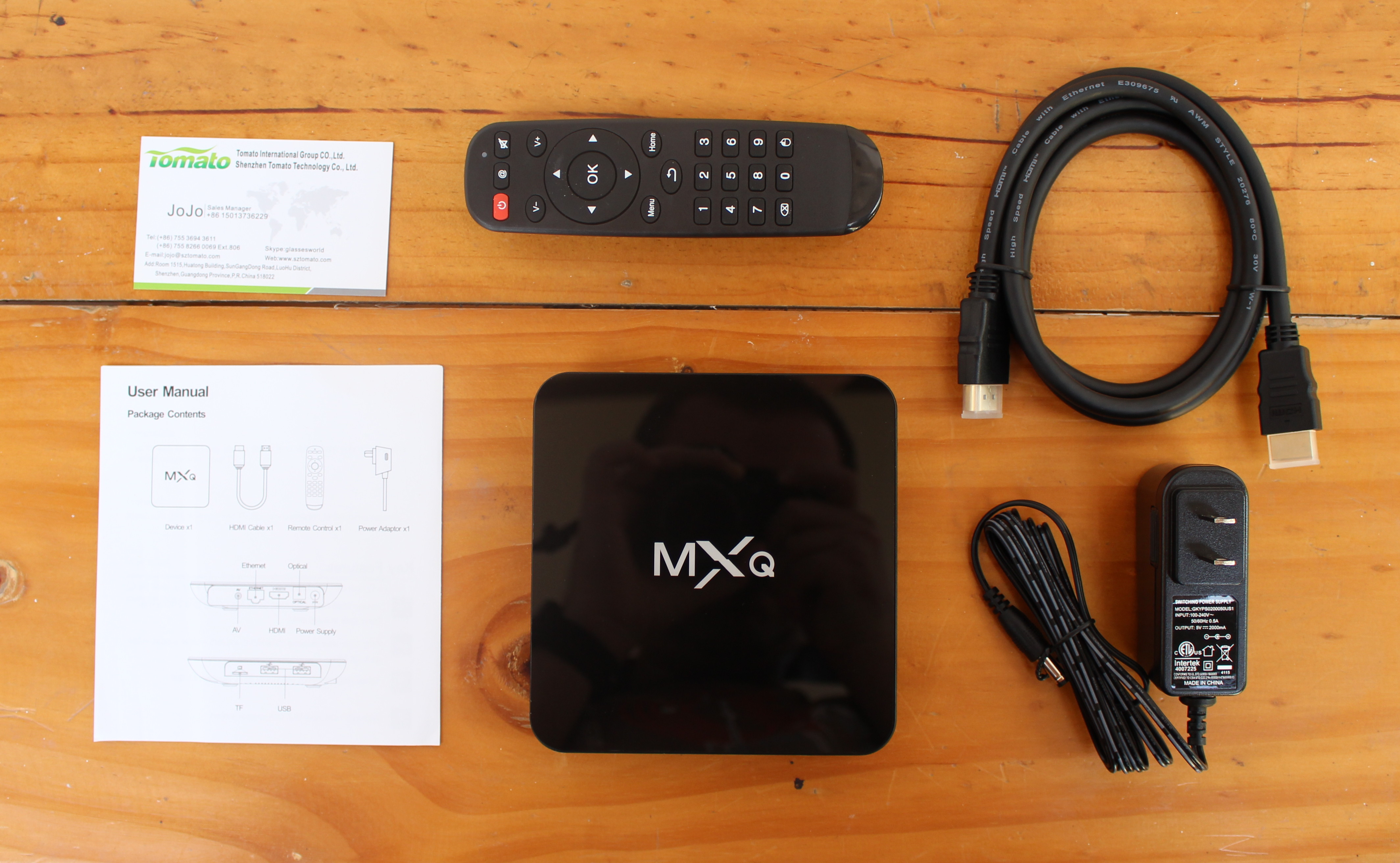

G9C_PackageThe device comes with an HDMI cable, an infrared remote control, a 5V/2A power supply, and a user’s manual in English.

Click to Enlarge
Click to Enlarge

The top of the case is quite reflective as you can see from the pictures…

MXQ_S905_TV_Box
Click to Enlarge

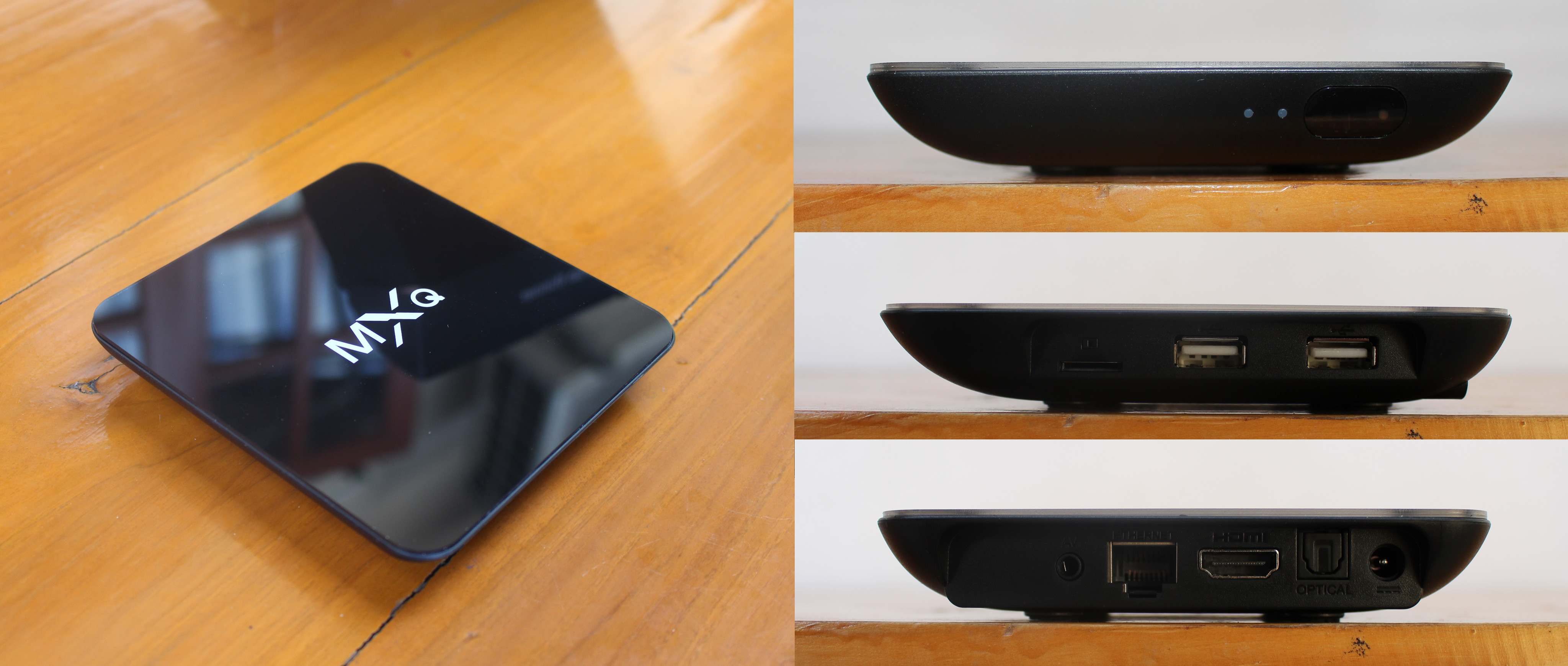

On the front we’ve got two LEDs and a small window for th IR receiver, while one side features two USB 2.0 host ports, and a micro SD slot. HDMI 2.0 and AV video output, optical S/PDIF, Gigabit Ethernet, and the power jack are all found in the rear panel.

G9C Android TV Box Teardown

Most devices come with a 2 parts shell fastened with screws, which are sometimes found under rubber pads.

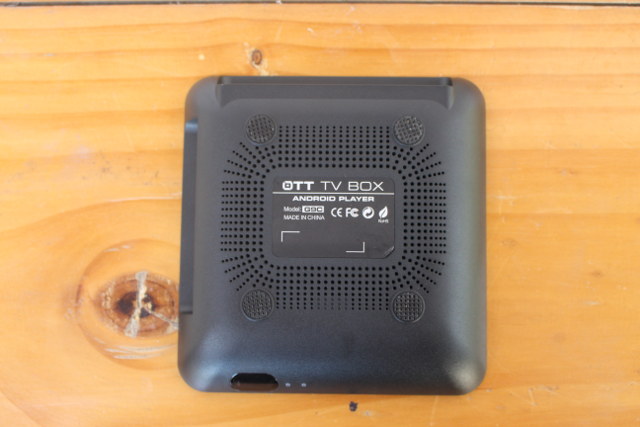

G9C_OTT_TV_BoxSo I removed all four pads, and there was nothing, so you can leave them alone, if ever you need to open the device… So instead I stuck a sharp plastic under the top cover, and found out it was was glued to the rest of the case, not unlike Voyo V2 mini PC, but with a stronger cover, and much weaker glue, so I did not have to break anything… 🙂
MXQ_S905_Case_Open

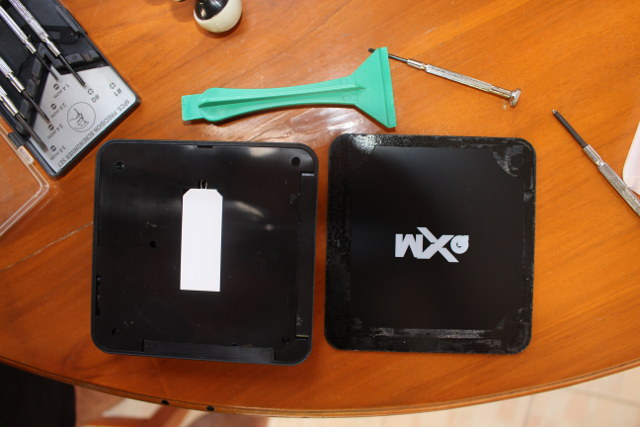

The white rectangle is an LED that will lit the MXQ sign on top of the device once it is turned on. To further open the device, I had to loosen four screws, and again use the little green tool above to pop-up the internal cover.

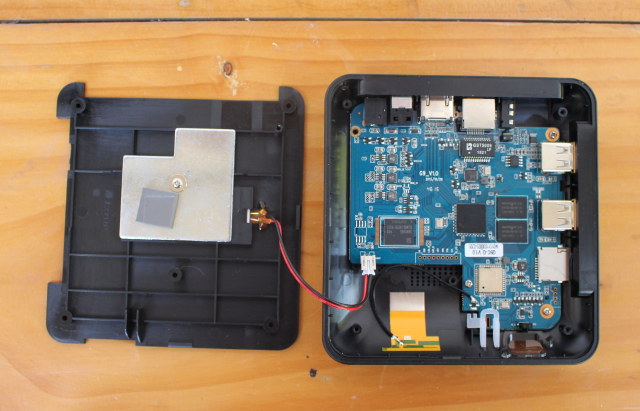

MXQ_S905_Heatsink_WiFi We are slowly getting there. Amlogic S905 is cooled via a thermal pad attached to a thick metal plate. Let’s take out three more screw to complete take out the board, and have a closer look.

Click to Enlarge
Click to Enlarge

So Amlogic S905 processor is coupled with two NANYA NT5CB256M16DB-EK DDR3 chips (512MB + 512 MB), and a Samsung KLM8G1WEPD-B031 8GB eMMC 5.0 flash. The wireless module is Ampak AP6212 supporting 802.11 b/g/n (2.4GHz) and Bluetooth 4.0, and Gigabit Ethernet is implemented with Realtek RTL8211F transceiver and GST5009 magnetics module. The board silkscreen reads G9_V1.0, but a sticker described the board as being G9C-G V1.0 instead.  The 4-pin header on the bottom right under the micro SD slot are for the serial console, and there’s a separate 9-pin headers for some separate functions. The firmware recovery button is located right being the AV port.

Click to Enlarge
Click to Enlarge

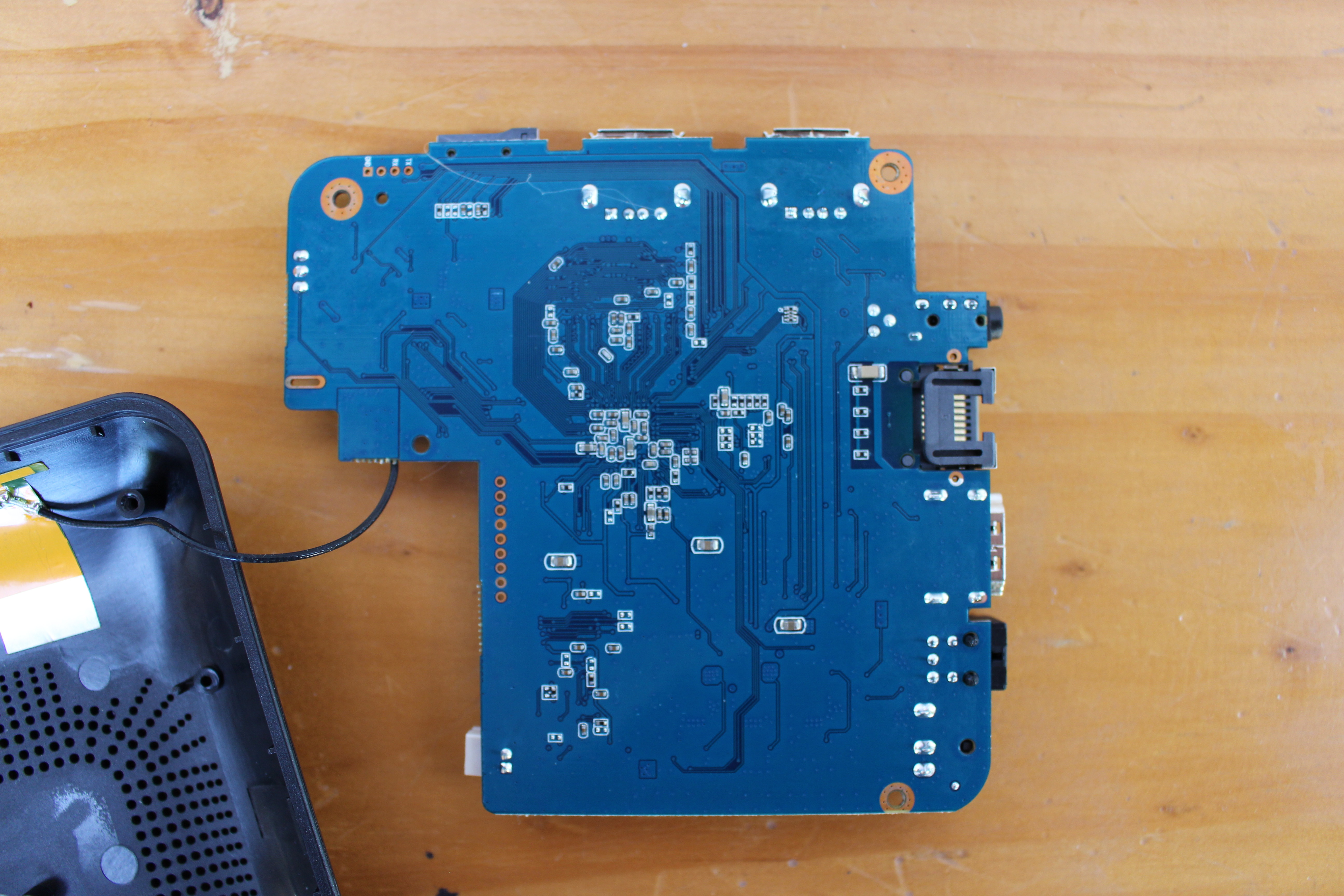

There’s not much to see on the bottom of the board, except the GND, Tx and Rx markings for the serial console.

Shenzhen Tomato kindly provided the sample for review, and if you are a distributor, or have a specific project that could make use of this hardware, you could contact the company via their G9C product page. I could not find G9C for sale on e-retailers, but one shop on DHGate offers a similar M95 box for $69.00 including shipping (but you have to purchase 10 or more).
