STMicro SensorTile is a Tiny STM32 Module with Bluetooth 4.1 LE and Four Sensor Chips

STMicroelectronics SensorTile is a 13.5 x 13.5mm sensor board based on STM32L4 ARM Cortex-M4 microcontroller, a MEMS accelerometer, gyroscope, magnetometer, pressure sensor, a MEMS microphone, as well as a 2.4Ghz radio chip for Bluetooth 4.1 Low Energy connectivity for wearables, smart home, and IoT projects.

stmicro-sensortile

SensorTile hardware specifications:

  • MCU – STMicro STM32L476 ARM Cortex-M4 microcontroller@ up to 80 MHz with 128 KB RAM, 1MB flash
  • Connectivity – Bluetooth 4.1 Smart/LE via BlueNRG-MS network processor with integrated 2.4GHz radio compliant with
  • Sensors
    • LSM6DSM 3D accelerometer + 3D gyroscope
    • LSM303AGR 3D Magnetometer + 3D accelerometer
    • LPS22HB pressure sensor/barometer
    • MP34DT04 digital MEMS microphone
  • I/Os – 2x 9 half holes with access to UART, SPI, SAI (Serial Audio Interface), I2C, DFSDM, USB, OTG, ADC, and GPIOs signals
  • Debugging – SWD interface (multiplexed with GPIOs)
  • Power Supply Range – 2V to 5.5 V
  • Dimensions – 13.5 x 13.5 mm
SensorTile's Functional Block Diagram - Click to Enlarge
SensorTile’s Functional Block Diagram – Click to Enlarge

Software development can be done through a sets of APIs based on the STM32Cube Hardware Abstraction Layer and middleware components, including the STM32 Open Development Environment. The module is supported by Open Software eXpansion Libraries, namely Open.MEMS, Open.RF, and Open.AUDIO, with various example programs allowing you to get started. Several third-party embedded sensing and voice-processing projects also support the module. The module also comes pre-loaded with BLUEMICROSYSTEM2 firmware, and can be controlled with “ST BlueMS” app found on Apple Store and Google Play.

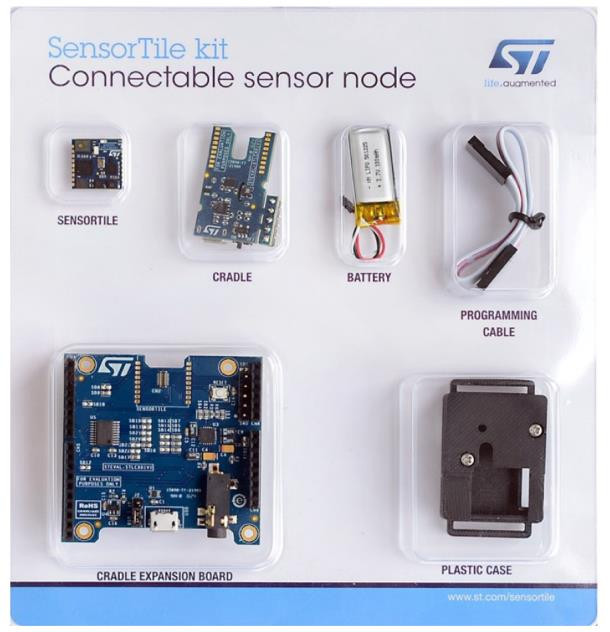

sensortile-kit

But the best way to get started is with SensorTile kit including SensorTile core module and:

  • STLCR01V1 cradle board with a footprint for SensorTile core board, HTS221 humidity and temperature sensor, a micro-SD card socket, a micro USB port, a lithium-polymer battery (LiPo) charger, and a SWD header.
  • A LiPo rechargeable battery and a plastic case for the cradle board, SensorTile module, and battery
  • STLCX01V1 Arduino UNO R3 compatible cradle expansion board with analog stereo audio output, a micro-USB connector for power and communication, a reset button and a SWD header.
  • A programming cable

I could not find a price for SensorTile core module, but STEVAL-STLKT01V1 SensorTile kit can be purchased for $80.85 directly on STMicro website or their distributors. Visit SensorTile kit’s product page for further information include hardware design files, quick start guide, software and firmware downloads, purchase links, and more.
