Rock960 Board is a 96Boards Compliant Board Powered by Rockchip RK3399 SoC

September 29th, 2017 Leave a comment Go to comments

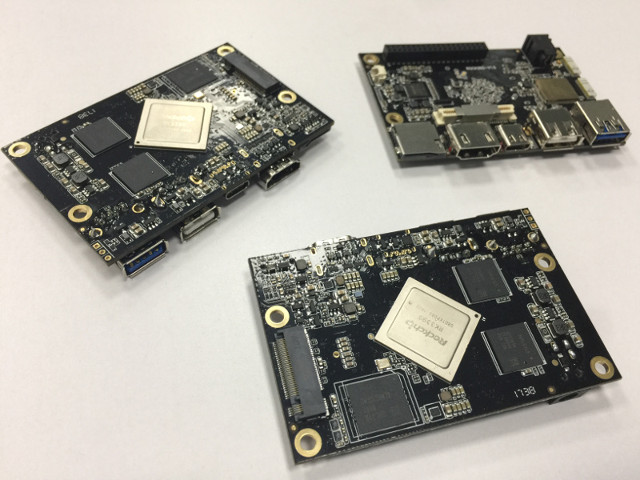

So it looks like Rockchip is soon going to join 96Boards family with Rock960 board. Developed by a Guangzhou based startup called Varms, the board will be powered by Rockchip RK3399 hexa-core SoC, and comply with 96Boards CE specifications.

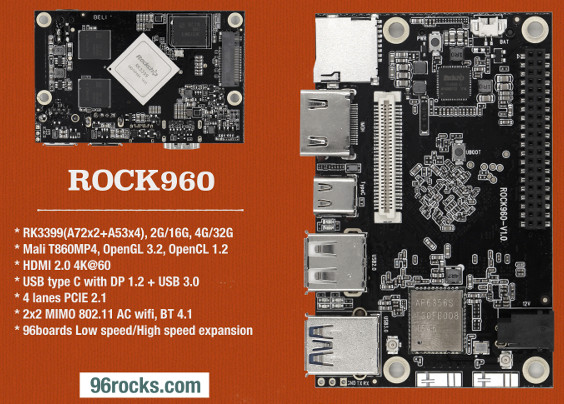

Rock960 board preliminary specifications:

  • SoC – Rochchip RK3399 hexa-core big.LITTLE processor with two ARM Cortex A72 cores up to 1.8/2.0 GHz, four Cortex A53 cores @ 1.4 GHz, and  ARM Mali-T860 MP4 GPU with OpenGL ES 1.1 to 3.2 support, OpenVG1.1, OpenCL 1.2 and DX 11 support
  • System Memory – 2 or 4GB RAM
  • Storage – 16 or 32GB eMMC flash + micro SD card
  • Video Output – 1x HDMI 2.0 up to [email protected] Hz with CEC and HDCP
  • Connectivity – WiFi 802.11ac 2×2 MIMO up to 867 Mbps, and Bluetooth 4.1 LE (AP6356S module) with two on-board antennas, two u.FL antenna connectors
  • USB – 1x USB 2.0 host port, 1x USB 3.0 port, 1x USB 3.0 type C port with DP 1.2 support
  • Expansion
    • 1x 40 pin low speed expansion connector – UART, SPI, I2C, GPIO, I2S
    • 1x 60 pin high speed expansion connector – MIPI DSI, USB, MIPI CSI, HSIC, SDIO
    • 1x M.2 key M PCIe connector with support for up to 4-lane PCIe 2.1 (max bandwidth: 2.0 GB)
  • Misc – Power & u-boot buttons. 6 LEDS (4x user, 1x Wifi, 1x Bluetooth)
  • Power Supply – 8 to 18V DC input (12V typical) as per 96Boards CE specs; Battery header
  • Dimensions – 85 x 54 mm (96Boards CE form factor)

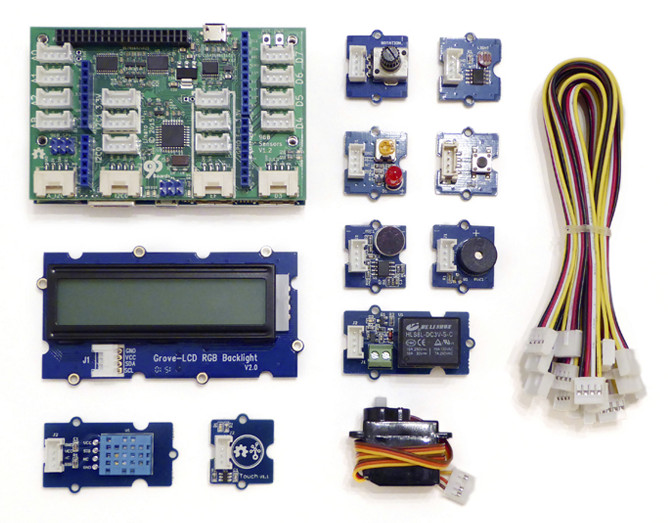

The board will support Android (AOSP), Ubuntu, the Yocto Project, and Armbian. The website shows the word “official” for the first three, and lists Canonical as partner. The company will also offer various at least one expansion board, and starter kit based on Seeed Studio Grove system with a mezzanine board with plenty of Grove headers, an LCD display, and various Grove modules like buzzers, relays, buttons, LEDs, temperature sensors, and so on.

Rock960 is both simpler and smaller than other RK3399 boards such as Firefly-RK3399 and VS-RK3399, so I’d expect it to be cheaper, hopefully below $100, once it becomes available. The website is still very much under construction, but you may find few more details there.

Thanks to mininodes for the tip.
