$25 Orange Pi Lite2 Board Comes with Allwinner H6 Processor, 802.11ac WiFi + BLE Module, USB 3.0, and More

After Shenzhen Xunlong launched of the first low cost Allwinner H6 development board with Orange Pi One Plus at the very end of last month, we know more Allwinner H6 were coming, and the company has now launched Orange Pi Lite2 development board with 1GB LPDDR3, 802.11ac WiFi and Bluetooth module, and a USB 3.0 port.

The board however does not come with an Ethernet port, so people wanting to get H6 with Gigabit Etheret and USB 3.0 will need to wait a little longer. Orange Pi Lite2 is sold for $25 plus shipping on Aliexpress.

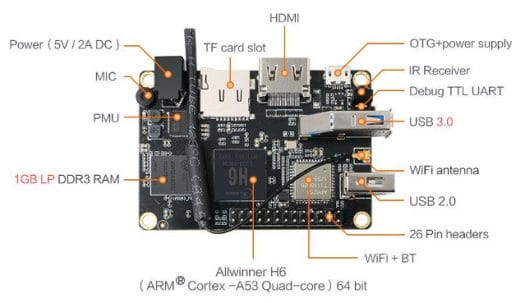

Click to Enlarge

Orange Pi Lite2 board specifications:

  • SoC – Allwinner H6 V200 quad core Cortex A53 processor with Arm Mali-T720MP2 GPU
  • System Memory – 1 GB LPDDR3
  • Storage – micro SD card slot up to 32GB
  • Video Output – HDMI 2.0a up to 4K @ 60 Hz with HDCP 2.2 (TBC)
  • Audio – HDMI audio output, built-in microphone
  • Camera – Parallel CSI connector with support 5MP camera up to 1080p30
  • Video Decoding – 10-bit H.265 up to 4K @ 60 fps, VP9 and H.264 up to 4K @ 30 fps
  • Connectivity – 802.11b/g/n/ac WiFi and Bluetooth 4.1 via Ampak 6255 module
  • USB – 1x USB 3.0 port, 1x USB 2.0 host port, 1x micro USB OTG port (also used for power)
  • Expansion – 26-pin header
  • Debugging – 3-pin serial console header
  • Misc – Power & status LEDs, power button, IR receiver
  • Power Supply – 5V/2A via power barrel jack, or micro USB port; AXP805 PMIC
  • Dimensions – 69 x 48 mm
  • Weight – 50 grams

The company provides Android, Ubuntu, and Debian for the board, but as mentioned for Orange Pi One Plus, Allwinner H6 is pretty new, so if you plan to use Linux, expect some initial pain… The images will eventually be one Orange Pi resources pages, and I can see the company release Android 7.1 firmware & SDK, tools, and a “user’s manual” for Allwinner H6. I’d expect Allwinner H6 to be supported by Armbian in a few months.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
17 Comments
oldest
newest
Nobody of Import
Nobody of Import
6 years ago

At least they didn’t hobble the damned thing with that craptastic XR819 WiFi part. X-D

Someone needs to club Allwinner/XRadio up alongside the head over that and get them to at least NDA someone in the Community to fix the firmware, if possible, and give out enough bits and bobs to re-work the Craptacular driver that’s out in the wild so that at least it can recover crashes, etc. better.

Jay
Jay
6 years ago

How would this chip compare to the AllWinner H3 used in the Orange Pi One or an Amlogic S805? I’m looking to replace some hardware cheaply, if they release an Ethernet Model with USB 3.0 and it has at least a moderate improvement in performance, I would be interested

John
John
6 years ago

Does the Allwinner H6 have MIPI-CSI? According to the V200 datasheet it only has Parallel CSI interface.

The Display is MIPI-DSI

Jon Smirl
6 years ago

There is no MIPI at all on this chip. Camera is CSI, Display is RGB parallel or HDMI. Which is why it has 451 balls. MIPI camera and display would eliminate 100 pins. A better use of those 100 pins would be to make the memory bus wider.

John
John
6 years ago

@Jon Smirl
You are correct. No MIPI on the chip.

Wider memory bus would be good.

milkboy007
milkboy007
6 years ago

i miss the opi2 (my fav opi board) design with the heat sink mounting holes.
After complaining for soo long about the terrible thermal, why wont xunlong listen and design the board with a heat sink addon mounting holes.

i cant stand the newe boards thermal design.

TC
TC
6 years ago

wow, they really added a barrel plug!

tkaiser
tkaiser
6 years ago

@TC
All Orange Pi use exactly this barrel plug (4.0/1.7mm, centre positive) starting even with the first A20 models more than 3 years ago. Only exceptions are the various Zero models where Micro USB is used. But so far all OPi could also be powered through GPIO header (pins 4 and 6) without any drawbacks. No idea whether this still applies to One Plus and Lite2.

Icenowy Zheng
Icenowy Zheng
6 years ago

@tkaiser The 4.0×1.7 plug is a tradition among sunxi boards, from cubieboard, to banana pi, then to orange pi.

Tom Cubie
6 years ago

The DC 4.0 is used on cubieboard because they just followed Mele A1000. Bpi and opi just followed that.

Adam
Adam
6 years ago

Wow! Any info about max USB 3.0 speed that can be achieved on this board? Together with Cypress FX3 this can be base for whole new range of cheap and capable DIY logic analysers, SDRs, oscilloscopes etc.

Icenowy Zheng
Icenowy Zheng
6 years ago

@Adam I have a H6 board with Linux on it and USB3 brought up. How to benchmark USB3? I have a USB3 HDD (not SSD so cannot show the maximum performance of USB3)

tkaiser
tkaiser
6 years ago

Icenowy Zheng :
How to benchmark USB3?

Most simple test would be to use an SSD with high IOPS values and capable of +500MB/s behind an UASP capable SATA bridge. Then test with iozone or better fio with various queue depths. This should give a good estimate about what’s possible. But if it’s just the usual DesignWare USB3 implementation then performance should be on par with RK3328/ROCK64 (read as: really great)

Icenowy Zheng
Icenowy Zheng
6 years ago

@tkaiser
Yes it’s DWC3 as confirmed by Wink.

tkaiser
tkaiser
6 years ago

@Icenowy Zheng That’s good news! Hopefully @Xalius finds some time on the weekend to give it a try with a decent performing SSD. BTW: I compared yesterday some Geekbench 4.1/4.2 numbers from Zidoo H6 Pro and Beelink GS1 with other ARMv8 devices and by looking at the real performance numbers we can assume that latest Allwinner BSP really allows for H6 being clocked at up to 1.8 GHz with single threaded workloads (when all 4 cores are busy at the same time the performance scores indicate that frequency capping to ~1.5GHz occurs. I only took those performance scores into account… Read more »
