IBASE AGS100/AGS102 Smart IoT Gateway Targets Industrial Control and Factory Automation

IBASE has introduced AGS100 and AGS102 intelligent IoT gateways powered by an Intel Apollo Lake processor, and specifically geared towards industrial control and factory automation applications.

AGS100 can be powered by Intel Atom processor E3950/ E3930 with extended operating temperature (-40°C to 70°C), Intel Pentium N4200, and Celeron N3350 processors (-20°C to 60°C), while AGS102 adds support for two RS232 ports and more GPIOs.

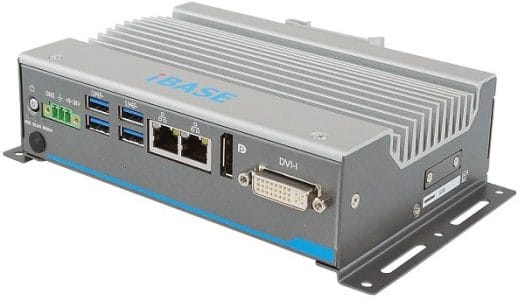

AGS100

Specifications:

  • SoC – Intel Atom E3950/E3930 or Pentium N4200/ Celeron N3350 processor
  • System Memory – 1x 4GB DDR3L-1866 SO-DIMM, up to  8GB
  • Storage – 1x mSATA socket (Mini-PCI-E), 1x 2242 M.2 B-Key socket for mSATA SSD
  • Rear Panel External I/O
    • 1x DVI-I + 1x DisplayPort connector
    • 4x USB 3.0 ports
    • 2x RJ45 Gigabit Ethernet port
    • 3x LED indicators (HDD, WLAN, WWAN)
    • 1x power button with green LED
    • 1x 3-pins DC-in terminal block type for 9-36V DC input
    • 1x Antenna hole for WLAN module
    • AGS102 only – 2x RS232 ports for COM3/COM4, 1x 4-in & 4-out GPIO with isolation
  • Left Panel External I/O
    • 2x RS232/422/485 port for COM#1/COM#2
    • 1x Antenna hole for WLAN module
    • 1x Speaker-out connector
  • Right Panel External I/O – 1x SIM card slot
  • Expansion Slots
    • 1x Full size Mini PCI-E socket (USB 2.0 + PCI-E + SATA)
    • 1x 2230 M.2 E-Key socket for WLAN & BT (USB 2.0 + PCI-E)
    • 1x 3042 M.2 B-Key socket for WWAN & SSD (USB 2.0 + SATA)
  • Dimensions – 160mm x 110mm  x 44mm (Aluminum & Steel)
  • Temperature Range
    • Operating – -40°C to 70°C for E-series CPU;  -20°C to 60°C for N-series CPU
    • Storage – 40°C ~ 85°C
  • Relative Humidity – 5~90% @ 45°C, (non-condensing)
  • Vibration – Operating: 2.0 grms / 5~500Hz / random operation (with IEC 60068-2-64);  non-Operating: 3.0 grms / 5~500Hz / random
    operation (with IEC 60068-2-64)
  • Shock – Operating : 30G/11 ms Duration (with MIL-STD-810G);  non-operating: 40G/11 ms Duration (with MIL-STD-810G)
  • Certification – CE / LVD / FCC Class B

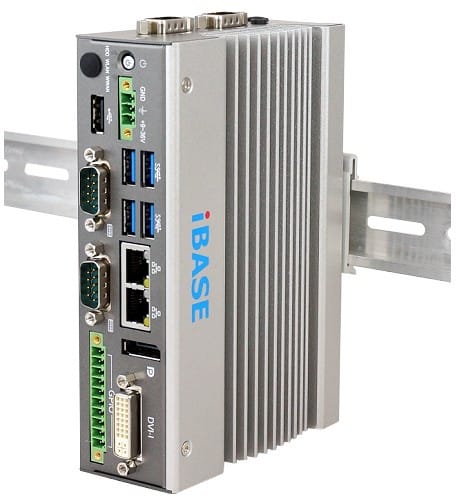

AGS102 on DIN Rail



The gateway supports DIN-rail,  desktop or wall mounting. The company did not bother to list operating system support, but this type of device should support Linux, and possibly Windows Embedded or Windows 10 IoT.

Further information can be found on the product pages for AGS100 and AGS102 .
