Serpente R2 Microchip SAMD21 Board Features a Male USB Type-C Port

Development boards with a USB Type-C port for power and programming are becoming more common, most in most cases with a female USB-C port.

Designed by arturo182, Serpente R2 CircuitPython prototyping board based on Microchip SAMD21 Arm Cortex-M0+ microcontroller offers three USB power & programming option with USB type-A male, USB type-C female, or USB type-C male, with the latter option allowing you to plug into directly into your host computer.

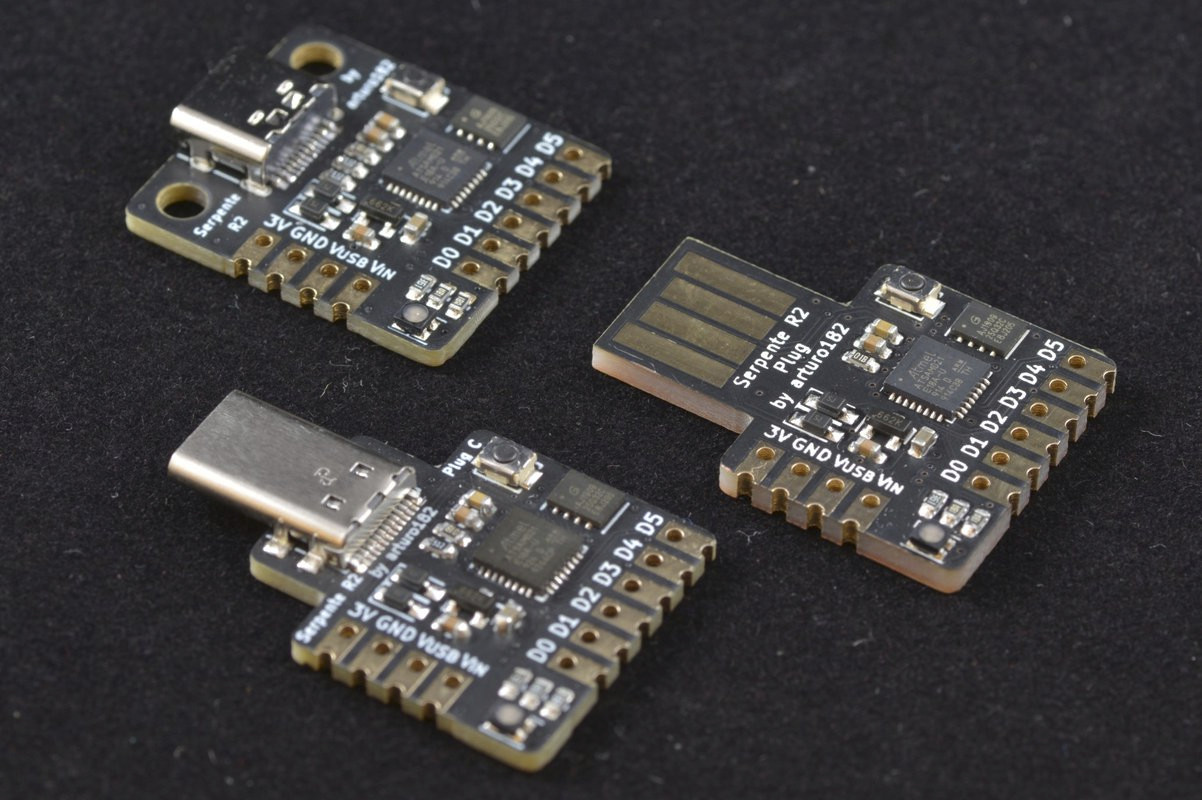

Serpente R2 USB Board
Click to Enlarge

Serpente R2 board specifications:

  • MCU – Microchip ATSAMD21E18A 32-bit Cortex-M0+ running at 48MHz, with 256KB flash, and 32KB RAM
  • Storage – 4MB SPI Flash for storing files and CircuitPython code
  • Expansion – 10x I/Os with castellated holes including 6x customizable GPIOs, and 4x power signals (3V, GND, VUSB, and VIN)
  • USB
    • R2 – Female USB Type-C port
    • R2 Plug – Male USB Type-A port
    • R2 Plug C – Male USB Type-C port
  • Misc – User RGB LED, reset button
  • Power Supply – 5V via USB port or VIN;  250mA LDO; 3.3V logic and power
  • Dimensions
    • R2 – 24.75 x 22mm
    • R2 Plug – 29.55 x 22mm
    • R2 Plug C – 25.35 x 22mm

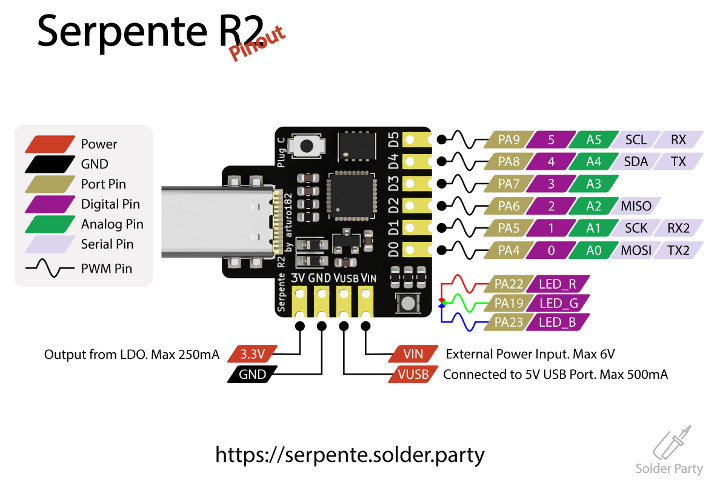

Serpente R2 Pinout DiagramThe board is open source hardware (See KiCAD files on Github) and is meant to run Adafruit CircuitPython, and you’ll find pretty-looking documentation here.

Serpente R2 board is sold on Tindie for $15, but you can get a 25% discount with “@arturo182” code.

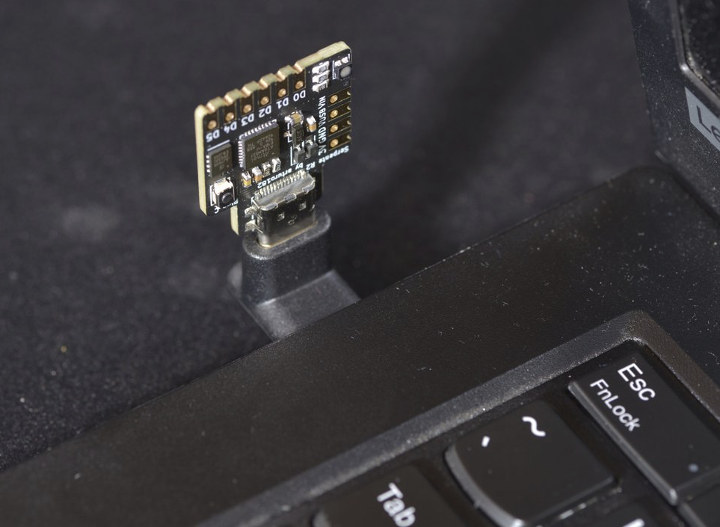

Male USB-C Development Board

Support CNX Software - Donate via PayPal or become a Patron on Patreon
Advertisements

15
Leave a Reply

avatar
2 Comment threads
13 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
9 Comment authors
iridiumsatDavid Willmoredgpjqpabc123Jean-Luc Aufranc (CNXSoft) Recent comment authors
  Subscribe
newest oldest most voted
Notify of
ben
Guest
ben

Amazing how many low-cost SAMD21 breakout/eval boards.. however, they all capable of compatible to run CircuitPython ? Or is there some pinout/layout of the Serpente R2 that makes it better?

David Willmore
Guest
David Willmore

How do they compare to blue pills, though? Those are pretty darn cheap as well and are well supported by Arduino IDE at least.

zoobab
Guest

You can get 10 bluepills for 1 Serpente 🙂

iridiumsat
Guest
iridiumsat

New 2 bluepills come with STM32F4 series, and max out to 512KB flash, 128KB ram, 36 I/O, integrated FPU.

Price point just around $4.

https://www.aliexpress.com/item/4000103610226.html

jqpabc123
Guest
jqpabc123

I doubt there is any *magic* involved but the I/O layout/configuration may have been hard coded into the language interpreter. I think the interpreter is open source so this could be changed with enough effort.

I’m no expert on CircuitPython but from what I’ve gathered from the web, code is stored right on the device in text format. This makes things simple and easy but is highly inefficient for a real world app— not to mention highly insecure as well. It should take minimal know how to extract code or reprogram the device.

dgp
Guest
dgp

>I’m no expert on CircuitPython but from what I’ve gathered from the web,
>code is stored right on the device in text format.

MicroPython (and therefore CircuitPython) support pre-compiled/processed byte code. This is how the built in modules are shipped in most cases.

>This makes things simple and easy but is highly inefficient for a real world app

It really depends. Python code is no good for bit banging or doing any sort of data processing but if you have that stuff in prepackaged modules written in C then you can very much make a “real world app” by plumbing the C functions with Python. Look at OpenMV for a good example of this.. doing any image processing in Python directly is insanely slow but wiring together the functions written in C from the OpenMV modules lets you wire together some pretty complicated apps that perform well enough to be usable.

>— not to mention highly insecure as well.
>It should take minimal know how to extract code or reprogram the device.

If I can pull your python code I can just as well pull your thumb binary code and chuck it into hopper or IDA. The reverse engineering process might be a bit harder but unless you think “security by obscurity” is going to help then it’s not any more secure. If your thumb code or python code are stored in flash you can’t easily read out (i.e. inside the mcu package) or you have external flash encrypted with keys inside the mcu the level of code security is the same whatever the code running looks like.

jqpabc123
Guest
jqpabc123

*Anything* can be reverse engineered — it’s all a question of the time, effort and skill required.

On a scale of 1 to 10, plugging a device into a USB port to access the source code in text format has to rank about 0.

dgp
Guest
dgp

If I can plug it in and get your python code and the built in modulles etc I would need to reverse engineer it I can also go in and get your thumb code. You said plain text is a security issue.

jqpabc123
Guest
jqpabc123

Most microprocessors provide fuse locks to make it hard to just read the binary code.

Once you get past these and obtain the code, you still have to reverse engineer it which typically provides assembly code without much syntax.

All of which can be done — but requires significantly more time, effort and know how than a simple USB plug operation. — which is essentially no security at all.

dgp
Guest
dgp

>Most microprocessors provide fuse locks
>to make it hard to just read the binary code.

If your python scripts are in the internal flash it’s just as well protected as the thumb code and your data that’s also in the flash. The format the code is in makes no difference to the security of the data.
MCUs designed for secure applications usually provide a way to disable flash readout along side OTP keys to encrypt external storage.

>Once you get past these and obtain the code,
>you still have to reverse engineer it which typically
>provides assembly code without much syntax.

Probably not as hard as you think. All of the common libraries people plumb together can make it very easy to find out where interesting stuff is.
And in the micropython case you might have the python top level code but you might also need to reverse engineer the thumb code for micropython and any modules that are written in C to make any sense of it.

>All of which can be done — but requires significantly more time, effort and >know how than a simple USB plug operation.

I think you’re talking out of your arse to be honest.

David Willmore
Guest
David Willmore

Are there really that few GPIO on that chips such that they have to share them with the LED? That makes them almost useless as inputs.

arturo182
Guest

That was my mistake when doing a copy-paste, the LED uses separate GPIOs.

David Willmore
Guest
David Willmore

Thanks for the clarification!
