Quectel FG50X and AF50T WiFI 6 Modules Target Consumer, Industrial & Automotive Applications

The new 802.11ax standard (WiFi 6) used to be mostly found in premium smartphones, laptops, and routers, but now WiFi 6 is starting to gain more traction as we’re seeing WiFi 6 modules designed for other applications such as u-Blox JODY-W6 WiFI 6 + Bluetooth 5.1 module designed specifically for automotive applications.

Quectel has now announced its own WiFi 6 modules with FG50X industrial-grade WiFi 6 module based on Qualcomm FastConnect 6800, as well as AF50T automotive-grade module powered by Qualcomm QCA6696 802.11ax chip. The former will be found in premium consumer & industrial products such as smart homes, smart TVs, over-the-top (OTT) devices, industrial controls, and customer premises equipment (CPE), while the latter will power “the Internet of Vehicles” applications such as  in-vehicle infotainment and on-board diagnosis (OBD). Both also happen to support Bluetooth 5.1.

Quectel WiFi 6 module

Shared features:

  • 802.11 ax WiFI 6 and Bluetooth 5.1 connectivity, backward compatible with 802.11a/b/g/n/ac WiFi
  • Dual MAC, 2.4 GHz & 5 GHz Dual Bands Simultaneous (DBS) in 2X2+2×2 mode, MU-MIMO with 8×8 sounding
  • Advanced Orthogonal Frequency Division Multiple Access (OFDMA) and 1024-QAM (Orthogonal Amplitude Modulation)
  • Maximum data rate of up to 1774.5 Mbps.
  • Host Interface – PCIe 2.0 interface
  • Package – 19.5 x 21.5 x 2.3 mm in LGA form factor
  • Temperature Range – -40°C to +85°C

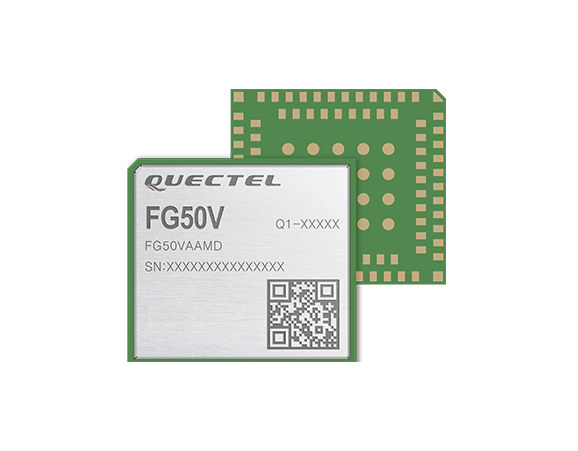

FG50V WiFi 6 industrial moduleQuectel FG50X supports up to 32 clients, with different variants to be offered depending on applications. The chip can be used in combination with the company’s RG500Q 5G module for MiFi and CPEs supporting both 5G & WiFi 6 connectivity.

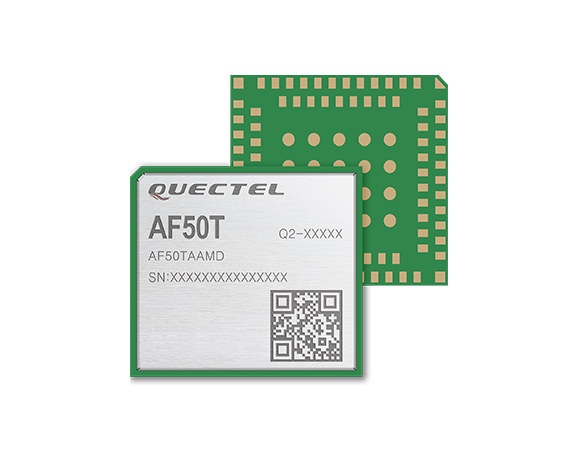

AF50T WiFi 6 moduleBeing designed for automotive use cases, Quectel AF50T complies with IATF 16949:2016 standards as well as APQP and PPAP automotive quality processes. The AF50T module could be combined with AG520R  LTE-A + C-V2X module and/or AG550Q 5G+ C-V2X module makes for in-vehicle products such as hot spot, data uploading, and vehicle monitoring.

Engineering samples for both the FG50X and AF50T WiFI 6 modules are available, and the company expected the first products based on FG50X to become available as early as May 2020 (next month). More details may eventually be found on the respective product pages here and there.
