IP69K-Rated Stainless Steel Panel PCs Run Windows 10 or Ubuntu 16.04

There are already several industrial dust and waterproof panel PCs on the market, but with its Intel Apollo Lake powered Titan-AL Series, ADLINK goes a step further with IP69K-rated stainless steel panel PCs that provide resistance against corrosion from all sort of chemicals.

Titan-AL series panel PCs can be washed with high-pressure water or steam to meet high-hygiene standards required in special production environments including food, pharmaceutical, and chemical production.

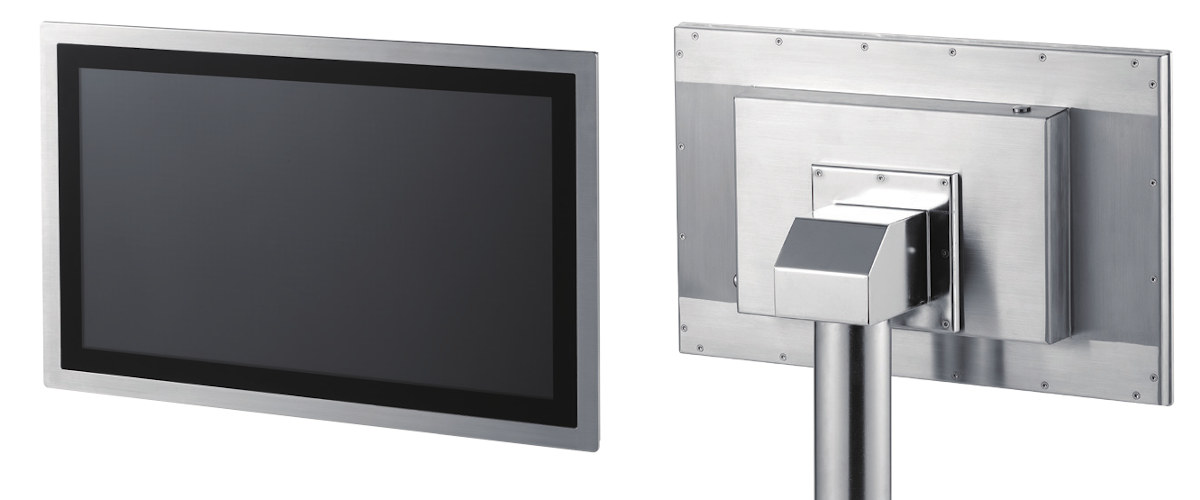

IP69K Stainless Steel Panel PC

ADLINK Titan-AL series panel PC specifications:

  • SoC  – Intel Atom x7-E3950 quad-core Apollo Lake processor @ 1.60 GHz  / 2.00 GHz (Boost) with Intel HD Graphics 505; 12W TDP
  • System Memory – 4GB DDR3L default (up to 8GB)
  • Storage – 2.5″ SATA drive bay
  • Available Displays Configurations
    • Titan-15W-AL – 15.6-inch display with 1366 x 768 resolution, optional capacitive touchscreen; viewing angle: 80/80/85/85° (U/D/R/L)
    • Titan-21W-AL – 21.5-inch display with 1920 x 1080 resolution, optional capacitive touchscreen; viewing angle: 89° in all directions
    • Titan-24W-AL – 23.9-inch display with 1920 x 1080 resolution, optional capacitive touchscreen; viewing angle: 89° in all directions
    • Luminance – 400 nits (w/o touch)
    • Backlight MTBF – 50,000 hours
  • Two choices for IP69K I/Os
    • M12 stainless connectors
      • 2x Gigabit Ethenret
      • 2x USB 2.0
      • 2x COM ports (RS232/422/485)
      • AC power input
    • Integrated “standard” I/Os port plus pipe mount (see photo below)
      • 2x Gigabit Ethernet
      • 1x USB 2.0 type A, 1x USB 3.0 type-A
      • 2x COM ports (RS232/422/485)
      • 1x DisplayPort for external display
      • AC power input
  • Expansion
    • 1x Mini PCIe card with PCIe and USB interface
    • Optional 802.11 a/b/g/n/ac and Bluetooth 4.0 via Mini PCIe card
  • Power Supply – Built-in 100 W AC-DC PSU (100-240V AC)
  • Power Consumption (typ.)
    • Titan-15W-AL – 35 W
    • Titan-21W-AL – 40 W
    • Titan-23W-AL – 48 W
  • Dimensions (H x W x D) & weight
    • Titan-15W-AL – 419 x 268 x 59.3 mm | 8 kg
    • Titan-21W-AL – 561 x 353 x 67.4 mm | 12 kg
    • Titan-23W-AL –  610 x 379 x 67.3 mm | 12.8 kg
  • Material – Stainless Steel 316L (V4A)
  • Temperature Range – Operating: 0°C to 45°C; storage: -20°C to 60°C
  • Humidity – 10% to 90% @ 40°C (non-condensing)
  • Vibration – Operating: 1G random 5 to 500Hz
  • Shock – Operating: 10G acceleration part to part, 11 ms
  • IP Rating – IP69K sealed
  • Certifications & Compliance – CE/FCC EN 55032/24, Part 15B; EN61000-6-2/-4 (EN55011); UL/CB (62368) + CB (60950)

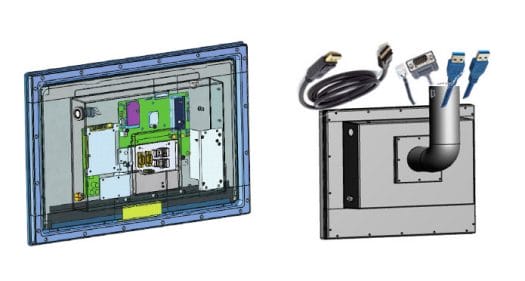

Waterproof panel PC
The panel PC is modular (left) and routes cables via a waterproof metal pipe (right) or M12 connectors

ADLINK Titan-AL series stainless steel panel PCs support Windows 10 64-bit or Linux Ubuntu 16.04 LTS 64-bit, and can be mounting via a VESA mount (MIS-D 75/100 mm) or a pipe mount.

The mainboard can be customized with optional rugged SODIMM, wide AC input voltage range, overvoltage protection (OVP) and undervoltage protection (UVP). The stainless steel panel PCs can be purchased now through ADLINK or distributors. More details may be found on the product page.
