Xilinx Zynq UltraScale+ ZU19EG MPSoC Devkit Offers HDMI 2.0, 10GbE, High-Speed Transceivers

iWave Systems iW-RainboW-G35D is a development kit powered by Xilinx Zynq UltraScale+ ZU19EG Arm Cortex-A53 and FPGA MPSoC coupled with 4GB DDR4 RAM with ECC for the processing system (PS) & 4GB dual-channel DDR4 RAM for the programmable logic (PL).

The board is equipped with HDMI 2.0 output/input ports supporting 4Kp60 UHD resolutions, a 10GbE SFP+ cage, FMC+, FMC, FireFly, and QSFP connectors for high-speed transceivers, and more.

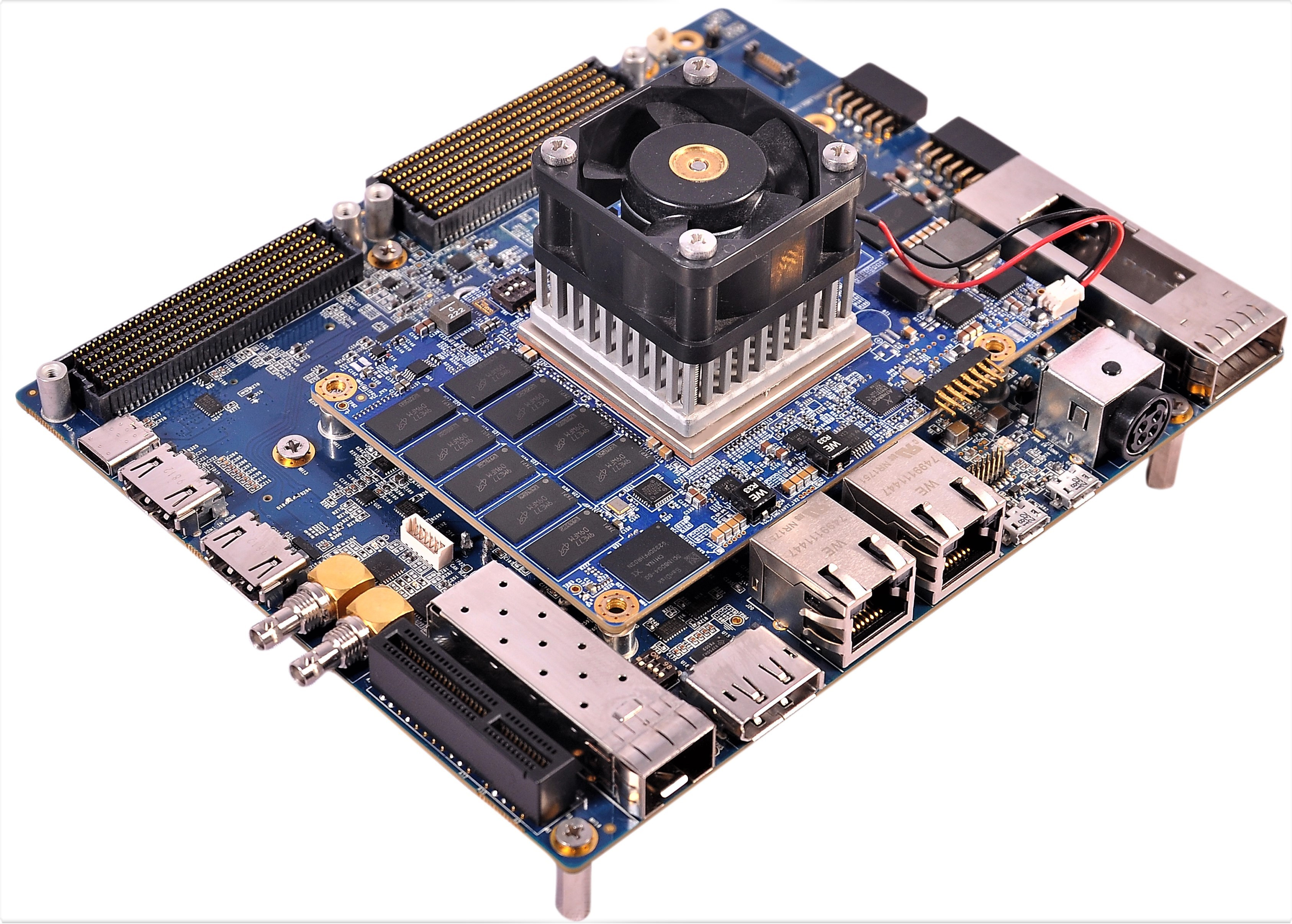

Zynq Ultrascale+ ZU19EG Development Kit
Click to Enlarge

iW-RainboW-G35D specifications:

  • iW-RainboW-G35M SoM
    • Xilinx Zynq Ultrascale+ ZCU19EG MPSOC (-1 speed) with four Cortex-A53 cores @ 1200 MHz, dual-core Arm Cortex-R5 MPCore up to 600MHz, FPGA fabric with 1,143K logic cells, and Arm Mali-400 MP2 GPU (lower-end ZCU17EG and ZCU11EG MPSoC are also available)
    • System Memory
      • 4GB DDR4 RAM for PS
      • 4GB Dual DDR4 RAM for PL
    • Storage – 8GB eMMC Flash (for boot code)
    • Transceivers
      • PS-GTR Transceivers x 4 @ 6Gbps
      • PL-GTH Transceivers x 32 @ 16.3Gbps
      • PL-GTY Transceivers x 16 @ 32.735Gbps
    • Networking – Gigabit Ethernet PHY
    • USB – USB2.0 transceiver
    • Power Management – PMIC with RTC
    • Dimensions – 110 x 75mm
  • Carrier Board
    • PS (Arm cores) interfaces
      • Storage – M.2 SATA socket, SD card socket
      • Video Output – DisplayPort
      • Networking – 2x 10/100/1000M Gigabit Ethernet
      • USB – USB 2.0 OTG port, USB Type-C port
      • Serial – CAN header
      • Expansion – PCIex4 slot, GPIO header
      • Debugging – JTAG connector, debug console
      • Misc – RTC battery holder
    • PL (FPGA) interfaces
      • Video
        • SDI Video IN connector
        • SDI Video OUT connector
        • HDMI IN connector
        • HDMI OUT connector
      • Networking – 10GbE SFP+ cage
      • Expansion
        • PMC+, FMC, QSFP+, FireFly connectors for high-speed transceivers
        • 2x Pmod connectors
    • Misc – Reset button, power ON/OFF Switch, PS-GTR lane selection switch
    • Power Supply -12V via 4-pin DIN power connector
  • REACH & RoHS Compliant

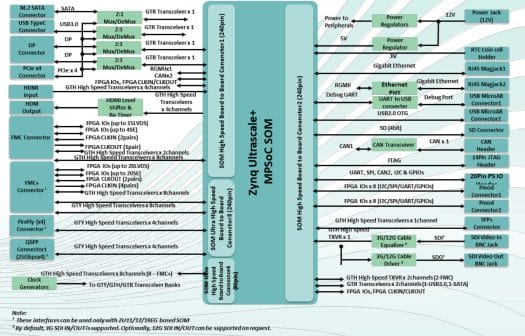

Zynq Ultrascale+ ZU19EG Development kit Block Diagram
Block Diagram

The company provides a Linux BSP for the system-on-module and development kit but did not offer any other specifics about software support.

iW-RainboW-G35D is designed for artificial intelligence, broadcast audio/video, HPC, disaggregated computing, 5G wireless, and 100Gbps connectivity.

You may find further information on the product page.

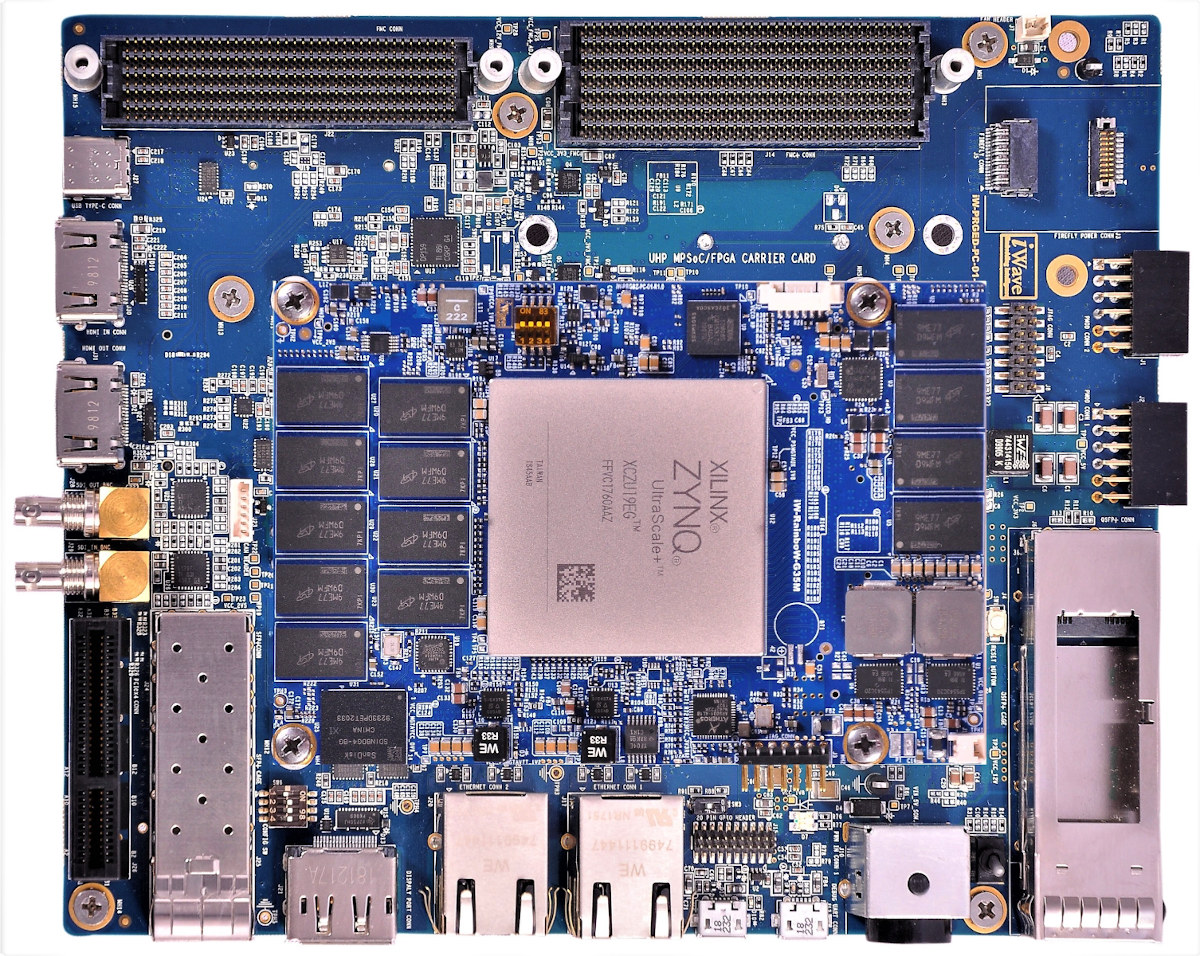

iW-RainboW-G35D development board
