Terminal Block modules for Raspberry Pi Pico come with screw or DIN rail mounting option

Terminal block raspberry pi picoif you’d like to use terminal blocks with your Raspberry Pi Pico, or compatible board,  instead of soldering wires to the MCU board, HCDC’s Terminal Block Breakout Module may meet your requirements with variants for either screw or DIN rail mounting.

Description/specifications:

  • PCB mount Terminal Block with 5 mm pitch, 7mm strip length, M2.5 screws –
  • Wire range 28AWG ~ 12AWG / 2.5mm square.
  • FR-4 fiber glass PCB, dual copper layers.
  • Mounting options
    • Screw version – “Taiwan high-quality” fireproof nylon material mount carrier (“not China low-quality carrier”).
    • DIN rail version – “High-quality Taiwan” DINKLE fireproof nylon material DIN rail mount carrier (“not China low-quality carrier”); supports 35mm wide rail.

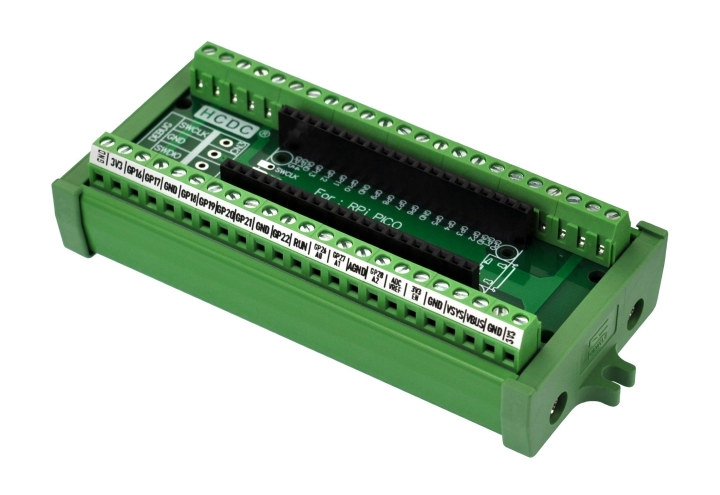

Terminal block raspberry-pi-pico din rail mount
DIN Rail version

I have not mentioned it in the introduction, but after reading the specifications, it appears (Xuken) HCDC may be based in Taiwan. 🙂 The company explains its Terminal Block Breakout Module for Raspberry Pi Pico is best suited to industrial control, home automation, and other applications that may benefit from terminal blocks.

The breakout module comes with two 20-pin 2.54mm pitch pin header connectors to be soldered to Raspberry Pi Pico, and a 3-pin 2.54mm pin header connector for debugging (SWD). The screw mounting version also includes two 10mm M3 wood screws.

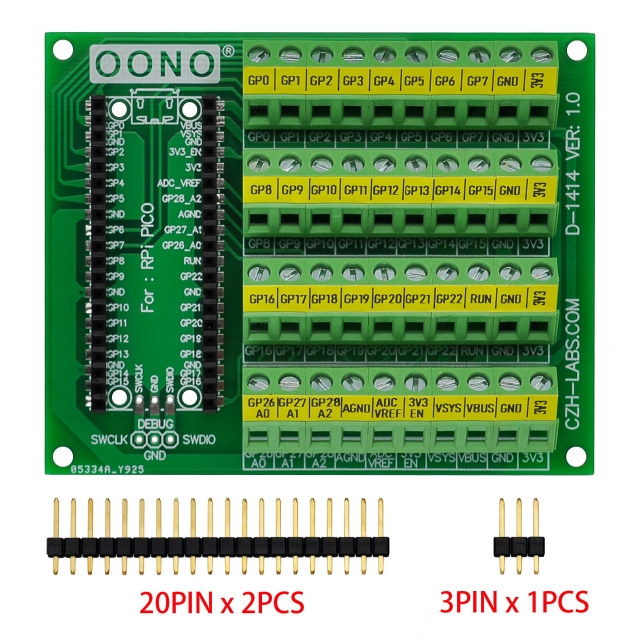

terminal block board rpi pico

I’ve also noticed “OONO” offers another form factor for Raspberry Pi Pico breakout board with terminal block, again with both screw and DIN rail mounting options.

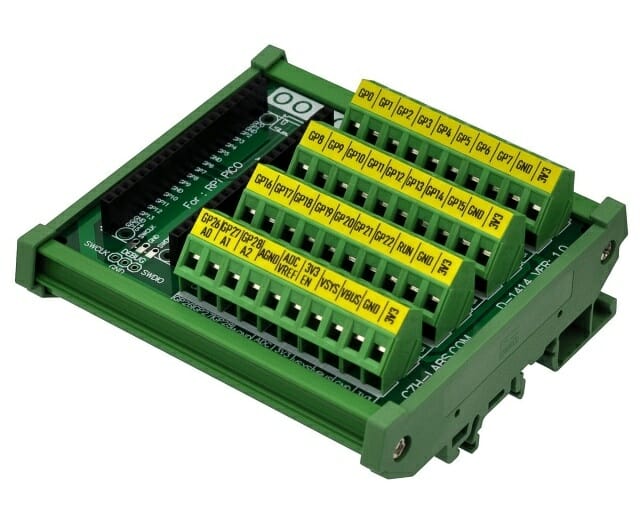

RP2040 board DIN Rail mountAll four models can be purchased on CZH-LABS Electronics Salon shop for prices ranging from $15.92 to $22.40.

Via Hackster.io

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
10 Comments
oldest
newest
Tim
Tim
6 months ago

The choice of “OONO” for a brand begs the question is it guaranteed to catch fire/explode/melt?

Tim
Tim
6 months ago

Not very “industrial”, as if the board fails, your service engineers will have the nightmare of 40 wires to disconnect/reconnect. Also the tiny terminals will test their eyesight/patience when installed inside a control cabinet.

TonyT
TonyT
6 months ago

Actually 5.0mm terminal blocks are very industrial, and not that small (small would be 3.5mm or 2.5mm) – Phoenix Contact, Wago, Weidmuller, Entrelec and such have catalogs full of similar break out boards (Yes, if you need to change a break out board, it’s a mess, but that’s not common. I prefer custom break out boards with mostly cables and a few terminal blocks, but these kind of boards have their uses, too, especially for very low volume machines or where you need a lot of flexibility).

Tim
Tim
6 months ago

I owe them an apology. From the pictures I had assumed 3.5mm.

domih
domih
6 months ago

For what it is worth: I have been using ATX breakout boards from CZH-LABS Electronics Salon shop. They can be as twice or three times more expensive than the low quality lower priced models you can find on eBay or AliExpress. On the other hand, the quality is top notch, especially the terminal block screw and nut threads. The last point being important if you end up changing wires a lot. With lower priced models: the threads are FUBAR pretty quickly, even at first use…

itchy n scratchy
itchy n scratchy
6 months ago

Would still prefer to have some connectors in the same size and on top of that spring loaded terminals over screw…

TonyT
TonyT
6 months ago

Depends – I prefer spring clamp terminals for production work, but screw terminals for prototyping, because if needed you can cram 2 (or 3) wires onto a single screw terminal block, but I wouldn’t try that on a spring clamp.

domih
domih
6 months ago

Another way to say it: CZH-LABS Electronics Salon is to these types of breakout board what Noctua is to fans. More expensive, better quality, last longer. Your choice.

TonyT
TonyT
6 months ago

And probably still a lot cheaper than Phoenix Contact and such.

Phoenix Contact’s quality is top notch; there’s a noticeable difference even compared to some cheaper “Name Brands” such as TE (note that Wago and some others are at the same level). But if you go too cheap, well, I had a distributor strongly advise me NOT to buy some made in India terminal blocks because the quality control was so bad.

TonyT
TonyT
6 months ago

Just took a look at the CZH-Labs page, and saw they are based in Shenzhen, so I guess the terminal blocks are Taiwanese, but the PCB is PRC.
